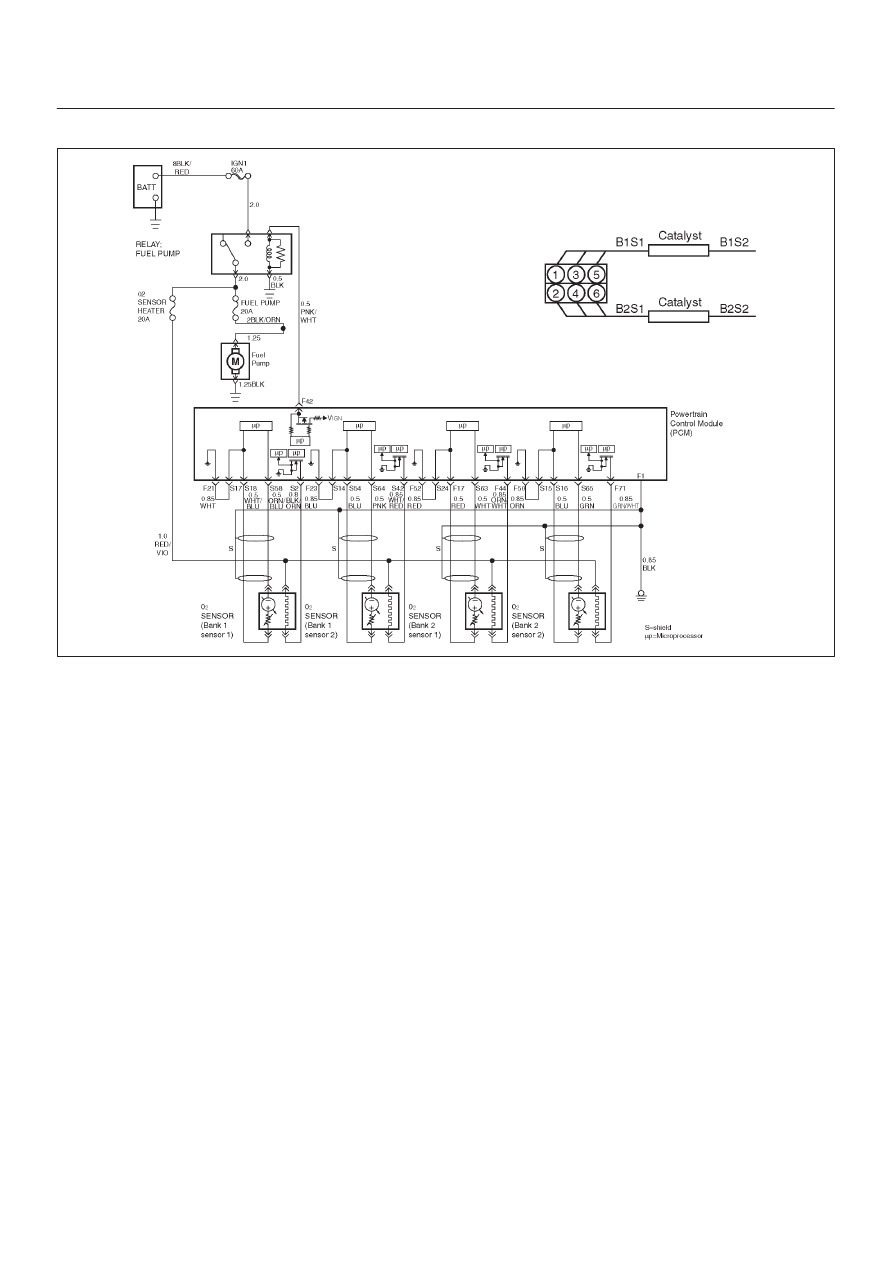

6E–230 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P0174 Fuel Trim System Lean Bank 2 060R200054 Circuit Description To provide the best possible combination of driveability, Conditions for Setting the DTC D None of the following DTCs are set: idle system, EGR, D Engine coolant temperature is between 6 ° C (42.8 ° F) and 105 ° C (221 ° F). D Intake air temperature is between –40 ° C (–40 ° F) and 120 ° C (248 ° F). D Manifold absolute pressure is between 24 kPa and 99 D Throttle angle is steady between 3 and 95%. D Vehicle speed is below 136 km/h (85 mph). D Engine speed is between 400 and 6,000 RPM. D Barometric pressure is greater than 72.5 kPa. D Mass air flow is between 2 g/second and 200 g/second. D Ignition voltage is above 9.5 volts. D Fuel system is in “closed loop”. D Canister purge duty cycle is greater than 0%, if “ON”. Action Taken When the DTC Sets D The PCM will illuminate the malfunction indicator lamp D The PCM will store conditions which were present Conditions for Clearing the MIL/DTC D The PCM will turn the MIL “OFF” on the third D A history DTC P0174 will clear after 40 consecutive D DTC P0174 can be cleared by using the Tech 2 “Clear |
