Isuzu Amigo / Axiom / Trooper / Rodeo / VehiCross. Manual - part 187





5C–65

POWER–ASSISTED BRAKE SYSTEM

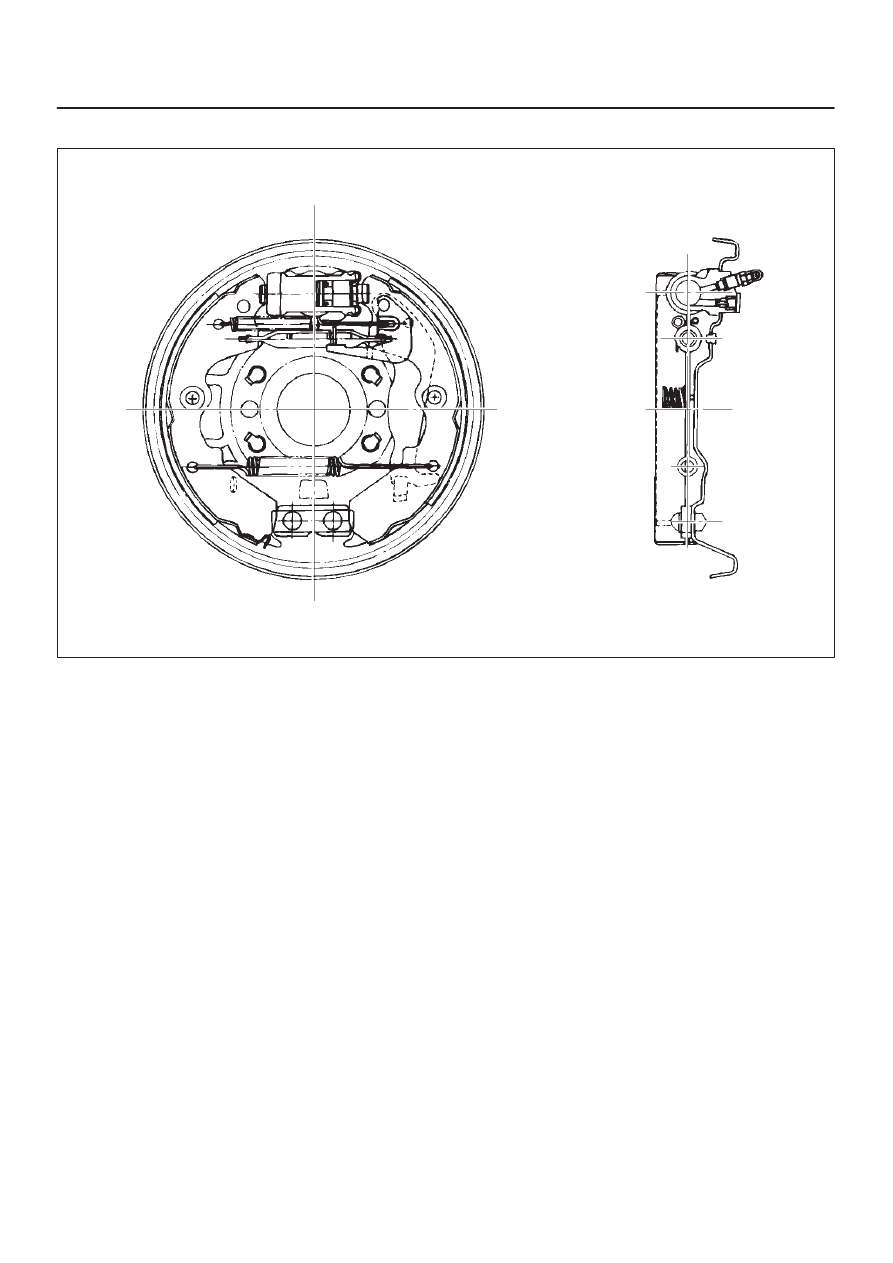

Leading/Trailing Drum Brakes (4

×

2 Model)

A05RS003

This drum brake assembly is a leading/trailing shoe
design. Both brake shoes are held against the wheel
cylinder pistons by the upper return spring and to the fixed
anchor plate by the lower return spring. When the brakes
are applied, the wheel cylinder pistons expand pushing
both shoes out contacting the drum.
With forward wheel rotation, the forward brake shoe will
wrap into the drum and becomes self-energized.
With reverse wheel rotation, the rear brake shoe is
self-energized. Force from the brake shoes is transferred
to the anchor plate through the braking plate to the axle
flange. Adjustment is automatic and occurs on any
service brake application. Also, with leading/trailing
brakes, it is normal for the front shoe to wear at a faster
rate than the rear shoe.

5C–66 POWER–ASSISTED BRAKE SYSTEM

Diagnosis

Road Testing The Brakes

Brake Test
Brakes should be tested on a dry, clean, reasonably
smooth and level roadway. A true test of brake
performance cannot be made if the roadway is wet,
greasy or covered with loose dirt where all tires do not grip
the road equally. Testing will also be adversely affected if
the roadway is crowned so as to throw the weight of the
vehicle toward wheels on one side or if the roadway is so
rough that wheels tend to bounce. Test the brakes at
different vehicle speeds with both light and heavy pedal
pressure; however, avoid locking the wheels and sliding
the tires. Braking without locking the tires will stop the
vehicle in less distance than braking to a skid (which has
no brake efficiency). More tire to road friction is present
while braking without locking the tires than braking to a
skid.
The standard brake system is designed and balanced to
avoid locking the wheels except at very high deceleration
levels.
It is designed this way because the shortest stopping
distance and best control is achieved without brake
lock–up.
Because of high deceleration capability, a firmer pedal
may be felt at higher deceleration levels.

External Conditions That Affect Brake Performance

1. Tires: Tires having unequal contact and grip on the

road will cause unequal braking. Tires must be
equally inflated, identical in size, and the thread
pattern of right and left tires must be approximately
equal.

2. Vehicle Loading: A heavily loaded vehicle requires

more braking effort.

3. Wheel Alignment: Misalignment of the wheels,

particularly in regard to excessive camber and caster,
will cause the brakes to pull to one side.

Brake Fluid Leaks

With engine running at idle and the transmission in
“Neutral”, depress the brake pedal and hold a constant
foot pressure on the pedal. If pedal gradually falls away
with the constant pressure, the hydraulic system may be
leaking.
Check the master cylinder fluid level. While a slight drop in
the reservoir level will result from normal lining wear, an
abnormally low level in reservoir indicates a leak in the
system. The hydraulic system may be leaking internally
as well as externally. Refer to

Master Cylinder Inspection.

Also, the system may appear to pass this test but still
have slight leakage. If fluid level is normal, check the
vacuum booster push rod length. If an incorrect length
push rod is found, adjust or replace the push rod. Check
the brake pedal travel and the parking brake adjustment.
When checking the fluid level, the master cylinder fluid
level may be lower than the “MAX” mark if the front and
rear linings are worn. This is normal.

Warning Light Operation

When the ignition switch is in the START position, the
“BRAKE” warning light should turn on and go off when the
ignition switch returns to the ON position.
The following conditions will activate the “BRAKE” light:

1. Parking brake applied. The light should be on

whenever the parking brake is applied and the ignition
switch is on.

2. Low fluid level. A low fluid level in the master cylinder

will turn the “BRAKE” light on.

3. During engine cranking the “BRAKE” light should

remain on. This notifies the driver that the warning
circuit is operating properly.

5C–67

POWER–ASSISTED BRAKE SYSTEM

General Diagnosis

Condition

Possible cause

Correction

Brake Pull

Tire inflation pressure is unequal.

Adjust

Front wheel alignment is incorrect.

Adjust

Unmatched tires on same axle.

Tires with approx. the same amount
of tread should be used on the same
axle.

Restricted brake pipes or hoses.

Check for soft hoses and damaged
lines. Replace with new hoses and
new double walled steel brake
piping.

Water or oil on the brake pads.

Clean or replace.

Brake pads hardened.

Replace

Brake pads worn excessively.

Replace

Brake rotor worn or scored.

Grind or replace.

Disc brake caliper malfunctioning.

Clean or replace.

Front hub bearing preload incorrect.

Adjust or replace.

Loose suspension parts.

Check all suspension mountings.

Loose calipers.

Check and tighten the bolts to
specifications.

Brake Roughness or Chatter
(Pulsates)

Excessive lateral runout.

Check per instructions. If not within
specifications, replace or machine
the rotor.

Parallelism not within specifications.

Check per instructions. If not within
specifications, replace or machine
the rotor.

Pad reversed (steel against iron).

Replace the brake pad and machine
rotor to within specifications.

Excessive Pedal Effort

Malfunctioning vacuum booster.

Check the vacuum booster operation
and repair, if necessary.

Partial system failure.

Check the front and rear brake
system for failure and repair. Also,
check the brake warning light. If a
failed system is found, the light
should indicate failure.

Excessively worn pad.

Check and replace pads in sets.

Piston in caliper stuck or sluggish.

Remove caliper and rebuild.

Fading brakes due to incorrect pad.

Remove and replace with original
equipment pad or equivalent.

Vacuum leak to vacuum booster.

Check for ruptured or loose hose.

Check the direction of check valve
within vacuum hose.

Correct vacuum hose direction.

Grease on the brake pads.

Replace or clean.

Excessive Brake Pedal Travel

Air in hydraulic circuit.

Bleed the hydraulic circuit.

Level of brake fluid in the reservoir
too low.

Replenish brake fluid reservoir to
specified level and bleed hydraulic
circuit as necessary.

Master cylinder push rod clearance
excessive.

Adjust

Leakage in hydraulic system.

Correct or replace defective parts.

5C–68 POWER–ASSISTED BRAKE SYSTEM

Condition

Correction

Possible cause

Brake Drag

Master cylinder pistons not returning
correctly.

Adjust the stop light switch and
vacuum booster push rod. If
necessary, rebuild.

Restricted brake pipes or hoses.

Check for soft hoses or damaged
pipes, and replace with new hoses
and new double–walled steel brake
piping.

Parking brake maladjusted.

Adjust

Parking brake lining clearance
insufficient.

Adjust

Brake pedal free play insufficient.

Adjust the brake pedal height or
power cylinder operating rod.

Piston in the master cylinder sticking.

Replace

Piston in the disc brake caliper
sticking.

Replace piston seals.

Brake pads sticking in caliper.

Clean

Return spring weakened.

Replace

Parking brake binding.

Overhaul the parking brakes and
correct.

Front hub bearing preload incorrect.

Adjust or replace.

Parking brake shoes not returning.

Correct or replace the brake back
plate and brake shoe as necessary.

Obstructions in hydraulic circuit.

Clean

Rotor warped excessively.

Grind or replace.

Rear brake drum distorted.

Grind or replace.

Parking cable sticking.

Grind or replace.

Grabbing or Uneven Braking Action
(All conditions listed under “Pulls”)

Malfunctioning vacuum booster.

Check operation and correct as
necessary.

Binding brake pedal mechanism.

Check and lubricate, if necessary.

Corroded caliper assembly.

Clean and lubricate.

Brake Noisy

Brake pads are worn.

Replace

Brake pads are hardened.

Replace

Brake pads are in poor contact with
rotor.

Correct

Brake disc(s) warped, worn or
damaged.

Grind or replace.

Disc brake anti–squeak shims
fatigued.

Replace

Front hub bearings are loose or
preload is incorrect.

Adjust or replace.

Brake disc is rusted.

Grind or replace.
