10A–1
CRUISE CONTROL SYSTEM
RODEO
CONTROL SYSTEM
CRUISE CONTROL SYSTEM
CONTENTS
Service Precaution
10A–1
. . . . . . . . . . . . . . . . . . . . . .
General Description
10A–1
. . . . . . . . . . . . . . . . . . . . .

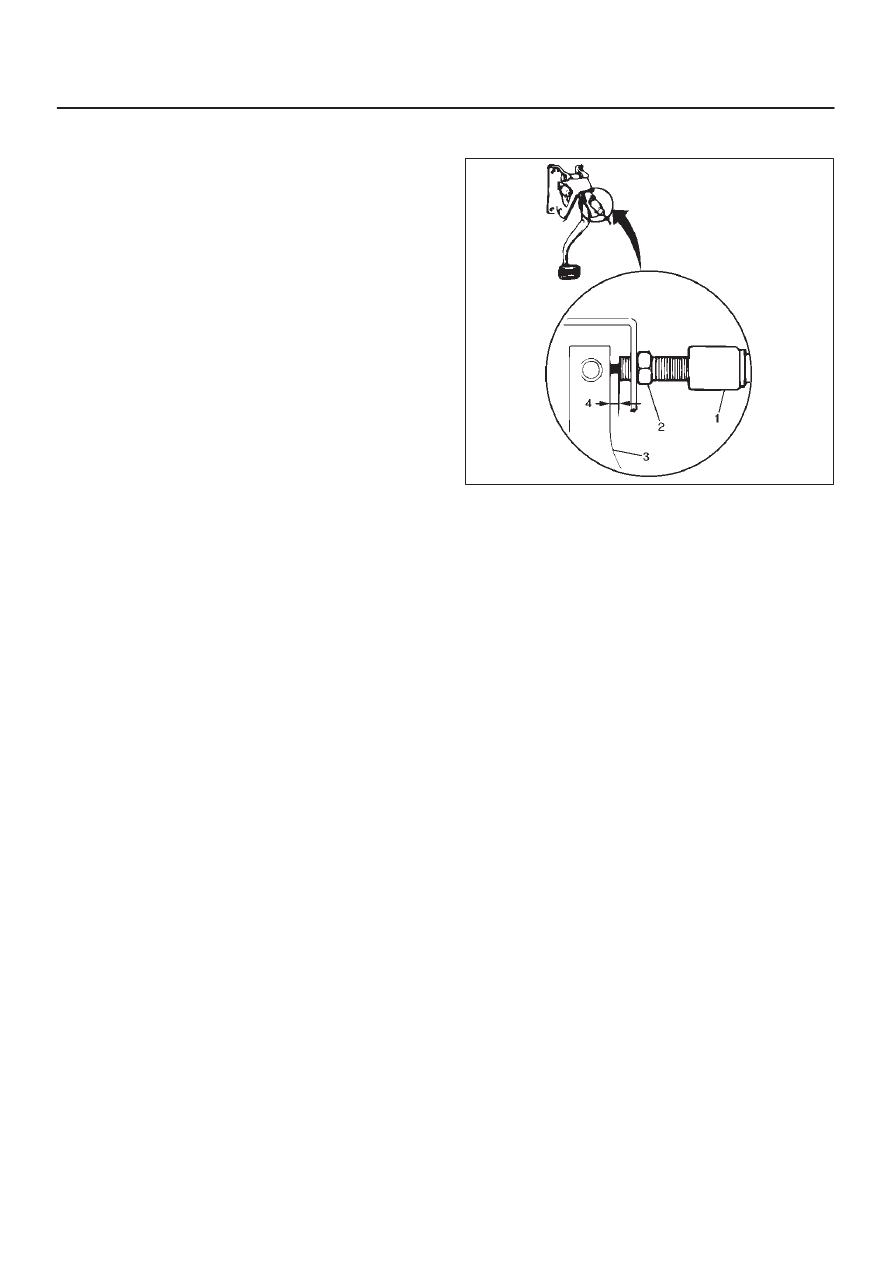

Brake Switch
10A–2
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation
10A–2
. . . . . . . . . . . . . . .
Adjustment
10A–2
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Clutch Switch
10A–3
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation
10A–3
. . . . . . . . . . . . . . .
Adjustment
10A–3
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Powertrain Control Module (PCM)
10A–3
. . . . . . . . .
Removal and Installation
10A–3
. . . . . . . . . . . . . . .
Mode Switch
10A–3
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation
10A–3
. . . . . . . . . . . . . . .

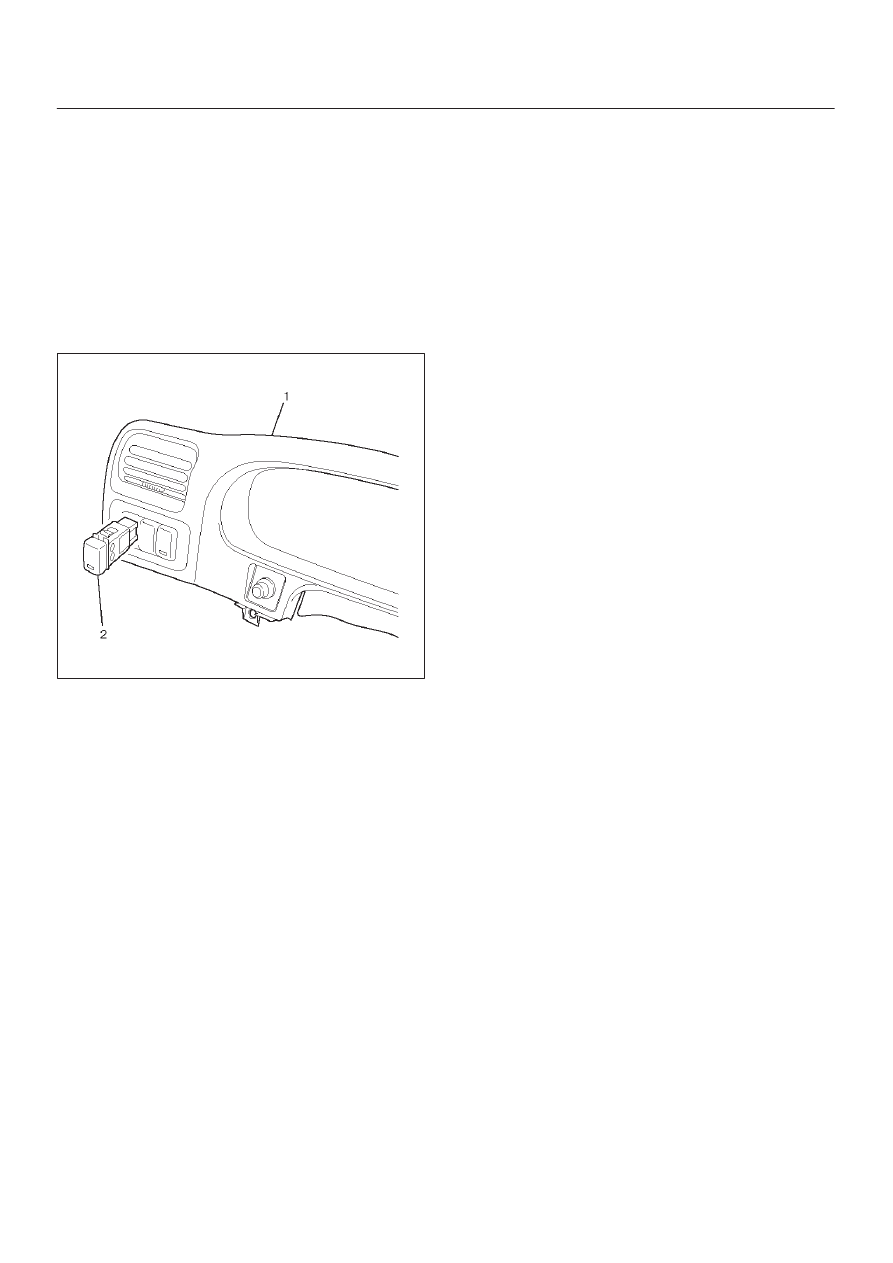

Cruise Control Main Switch
10A–4
. . . . . . . . . . . . . . .
Removal
10A–4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation
10A–4
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Control Switch (Combination Switch)
10A–4
Removal and Installation
10A–4
. . . . . . . . . . . . . . .
Diagnosis
10A–5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
General Description
The cruise control keeps the vehicle running at a fixed
speed until a signal canceling this fixed speed is received.
When the main switch “AUTO CRUISE” is turned on with
the vehicle in the running mode, the battery voltage is
applied to the PCM. When a signal from the control
switch is input to the PCM while the vehicle is in this state,
the cruise control system is activated. Also, while the
system is operating, the “AUTO CRUISE” indicator light in
the meter assembly lights up.
1 . SET/COAST Switch Function
1. Set Function: When the SET/COAST switch is
pressed and released with the main switch on, the
speed at which the vehicle is running at that moment
is stored in the memory, and the vehicle automatically
runs at the speed stored.
2. Coast–Down Function: When the SET/COAST
switch is kept on while the vehicle is running, the
vehicle decelerates during that time. The speed at
which vehicle is running when the control switch is
turned off is stored in the memory, and the vehicle
automatically returns to the stored speed.
3. Tap–Down Function: When the SET/COAST
switch is turned on and off instantaneously while the
vehicle is running, the vehicle decelerates a mile for
each on/off operation. The vehicle speed at which the
vehicle was running when the SET/COAST was
turned off last is stored in the memory, and the vehicle
automatically returns to this stored speed.
