Inspection of retractor

1. ELR (Emergency Locking Retractor) lock inclining

angle check.

• The seat belt should not lock when pulled gently

at a 15 degree angle. Also, the seat belt should
lock when pulled at a 45 degree angle or higher.

2. ELR lock check.

• The seat belt should not lock when pulled slowly,

however, the seat belt should lock when pulled
quickly.

3. ALR (Automatic Locking Retractor)/ELR check

(Except for driver's seat).

• Make sure the seat belt is locked when pulled out

fully.

• Make sure the seat belt can be pulled out and

retracts after when rewound fully.

CAUTION:  Do not disassemble the retractor.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the adjustable shoulder anchor assembly

fixing bolts to the specified torque.

Torque: 39 N·m (29 lb ft)

2. Tighten the seat belt anchor bolts (Upper & Lower)

and the retractor fixing bolts to the specified torque.

Torque: 39 N·m (29 lb ft)

9A–10

SEAT BELT SYSTEM

Rear Seat Belt (SWB)

Rear Seat Belt and Associated Parts

760R200023

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the luggage side lid (2).

3. Remove the luggage side front cover (4).

4. Remove the luggage side upper cover (3).

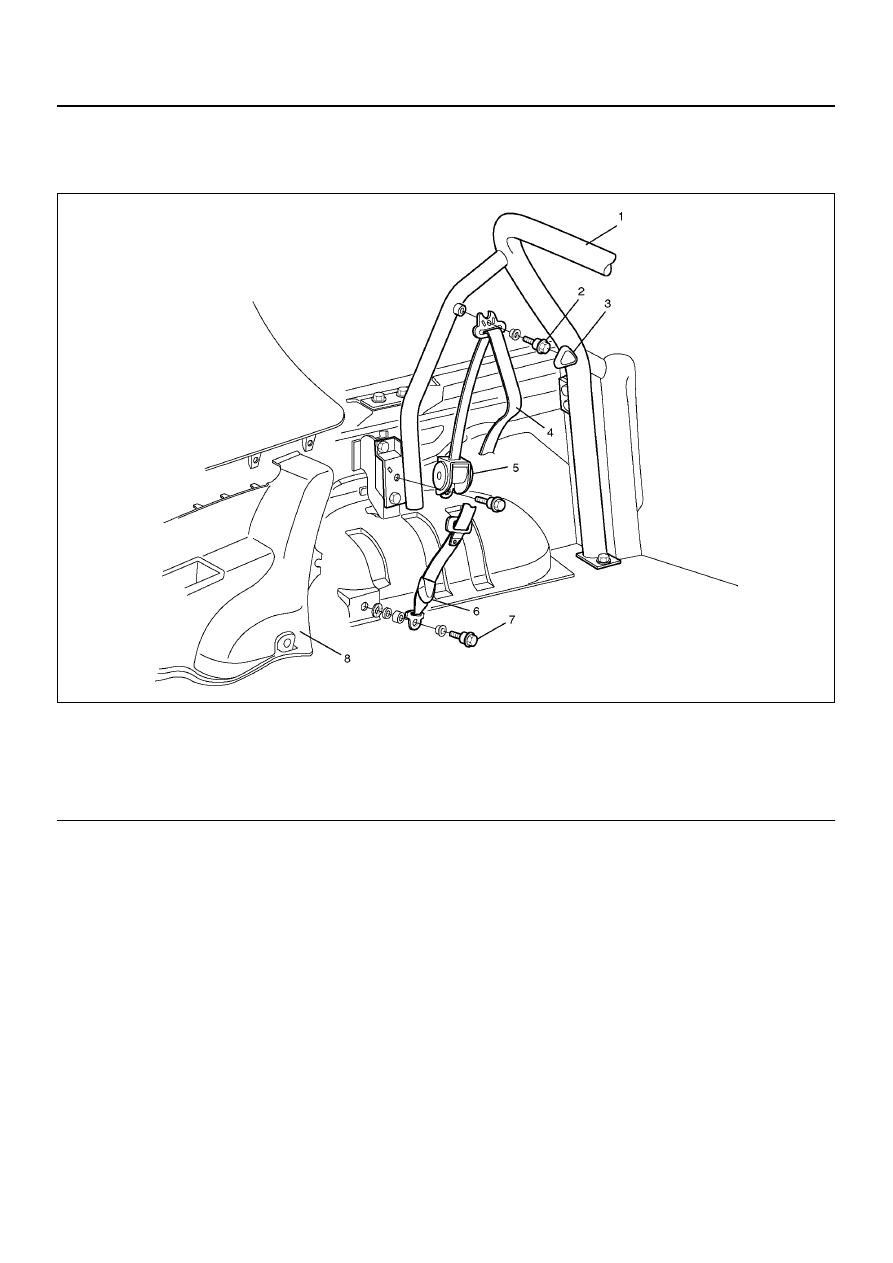

Legend

(1) Seat Belt Cross Bar Assembly
(2) Seat Belt Upper Anchor Bolt
(3) Shoulder Anchor Cover
(4) Rear Seat Belt Assembly

(5) Retractor
(6) Anchor Cover
(7) Seat Belt Lower Anchor Bolt
(8) Lower Quarter Trim Cover

SEAT BELT SYSTEM

9A–11

5. Remove the canopy cover (1) (Resin top model).

• Remove two fixing clips.

686RX001

• Remove the three bolts and three screws, and

then remove quarter side molding (Soft top
model).

687RW002

6. Remove the tailgate weather strip.

7. Remove the rear end floor trim cover.

8. Remove the luggage side trim cover (RH).

• Remove the jack & tool lid and remove the tool.

• Remove fixing screw and pry the trim cover

retainers free from the body panel.

687RW005

9. Remove the luggage side trim cover (LH).

• Remove fixing screw and pry the trim cover

retainers free from the body panel.

• Disconnect the accessory socket connectors.

10. Remove the anchor cover and seat belt lower

anchor bolt.

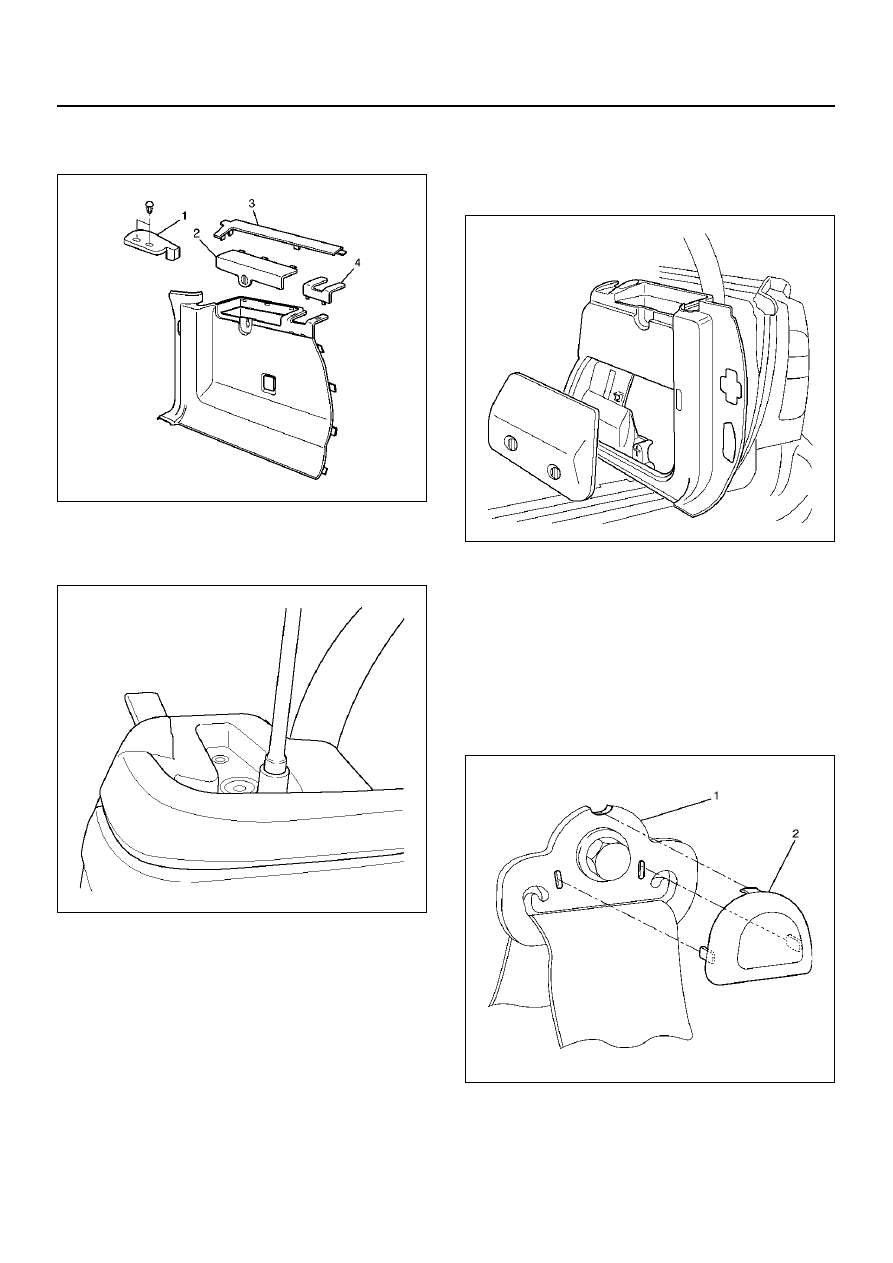

11. Remove the shoulder anchor cover (2).

• Release the hooked portion of cover from the

shoulder anchor (1).

755RW070

12. Remove the seat belt upper anchor bolt.

13. Remove the retractor.

14. Remove the rear seat belt assembly.

9A–12

SEAT BELT SYSTEM

Inspection

If any of the following abnormalities is found, replace on
an assembly basis.

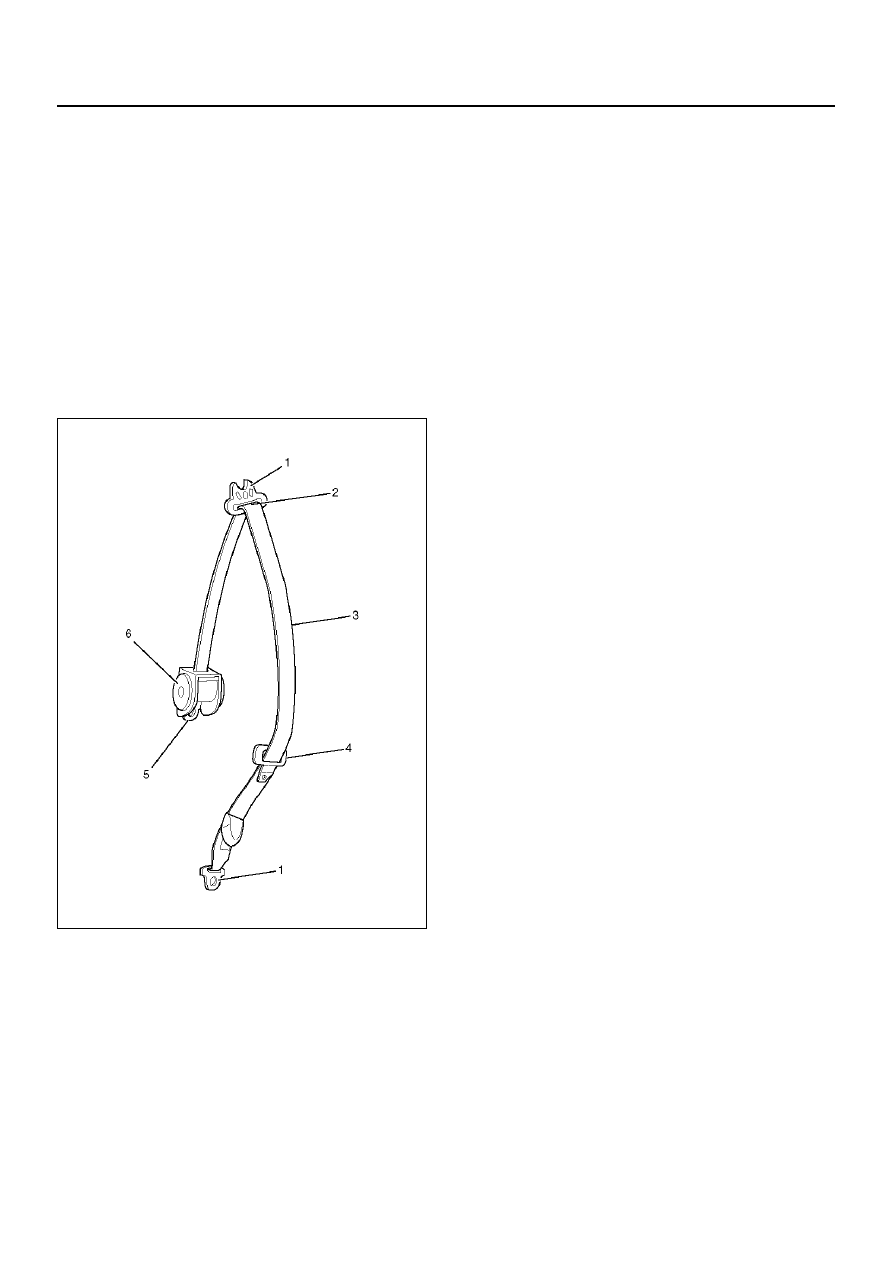

• Uneven movement of upper/lower anchors (1) in the

circumferential direction.

• Damaged and/or deformed through ring (2).

• Damaged and/or deformed tongue (4).

• Damaged and/or frayed webbing (3).

• Deformed retractor bracket (5).

• Seat belt does not retract (6).

• Resistance or abnormal sound when seat belt is

pulled out or retracted (6).

• Retractor (6) abnormality.

755R100004

Inspection of retractor

1. ELR (Emergency Locking Retractor) lock inclining

angle check.

• The seat belt should not lock when pulled gently

at a 15 degree angle. Also, the seat belt should
lock when pulled at a 45 degree angle or higher.

2. ELR lock check.

• The seat belt should not lock when pulled slowly,

however, the seat belt should lock when pulled
quickly.

3. ALR (Automatic Locking Retractor)/ELR check

(Except for driver's seat).

• Make sure the seat belt is locked when pulled out

fully.

• Make sure the seat belt can be pulled out and

retracts after when rewound fully.

CAUTION:  Do not disassemble the retractor.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Align the projection of the retractor to the square

hole of the seat belt cross bar assembly bracket.

2. Tighten the retractor fixing bolts to the specified

torque.

Torque: 39 N·m (29 lb ft)

3. Tighten the seat belt anchor bolt to the specified

torque.

Torque: 39 N·m (29 lb ft)
