8D–3

WIRING SYSTEM

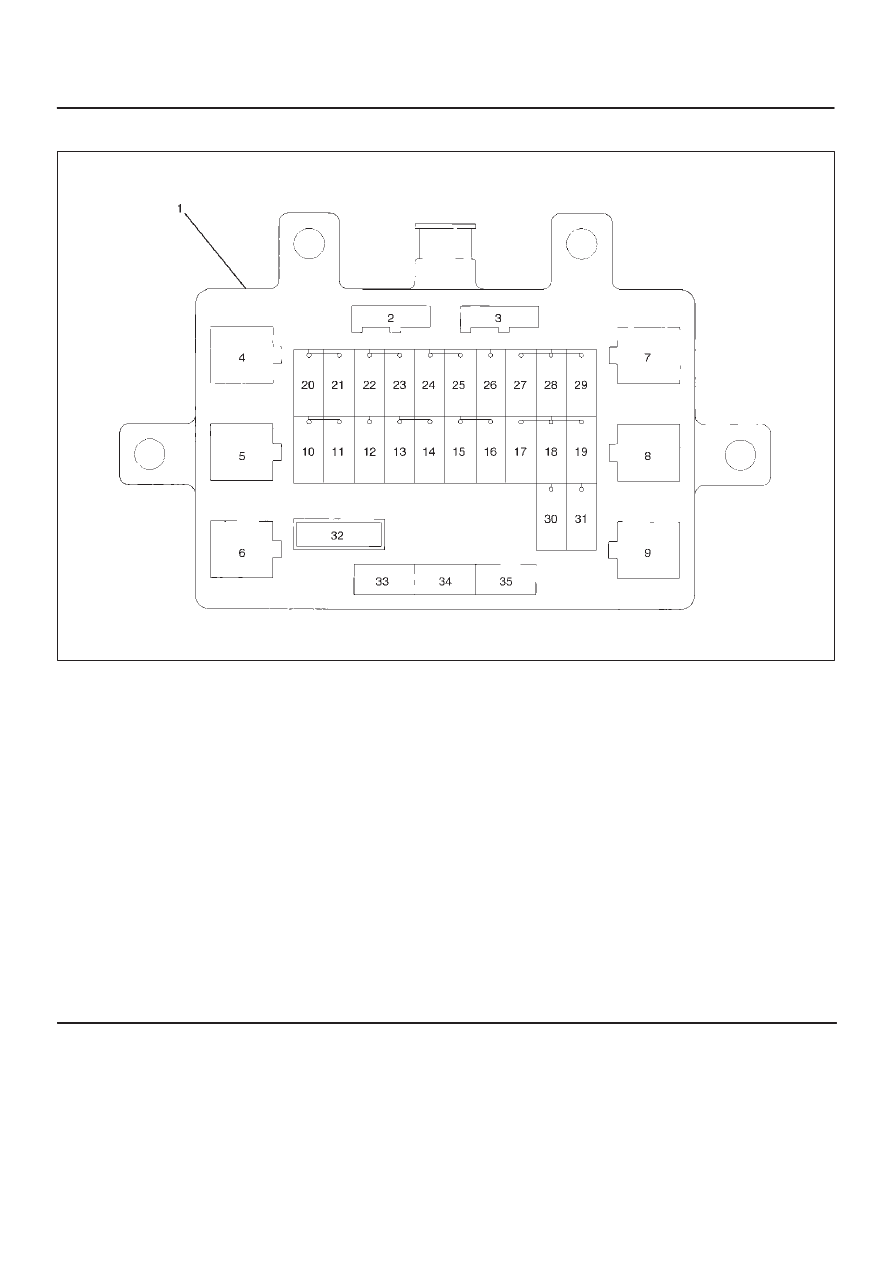

Relay / Fuse Box (Instrument Panel)

D08RY00529

Legend

(1) Fuse/Relay Box
(2) Diode
(3) Diode
(4) Tail Relay
(5) Not Used
(6) ACC Socket Relay
(7) Power Window Relay
(8) Not Used
(9) Rear Defogger Relay

(10) Fuse ACC Socket (20A)

(11) Fuse Audio (ACC) (15A)

(12) Fuse Starter (10A)
(13) Fuse Tail (15A)
(14) Fuse Room Lamp (10A)
(15) Fuse Stop Lamp (15A)
(16) Fuse Door Lock (20A)
(17) Fuse Mirror Defogger (10A)

(18) Fuse Rear Defogger (15A)
(19) Fuse Rear Defogger (15A)
(20) Fuse Meter (15A)
(21) Fuse ENG. (15A)
(22) Fuse IG. Coil (15A)
(23) Fuse Back Up (15A)
(24) Fuse ELEC. IG. (15A)
(25) Fuse RR Wiper (10A)
(26) Fuse FRT Wiper (20A)
(27) Fuse Audio (10A)
(28) Fuse Cigar Lighter (15A)
(29) Fuse Anti-theft (10A)
(30) Fuse SRS (10A)
(31) Fuse (Not Used)
(32) Circuit Breaker Power Window (30A)
(33) Spare Fuse (20A)
(34) Spare Fuse (15A)
(35) Spare Fuse (10A)

8D–4

WIRING SYSTEM

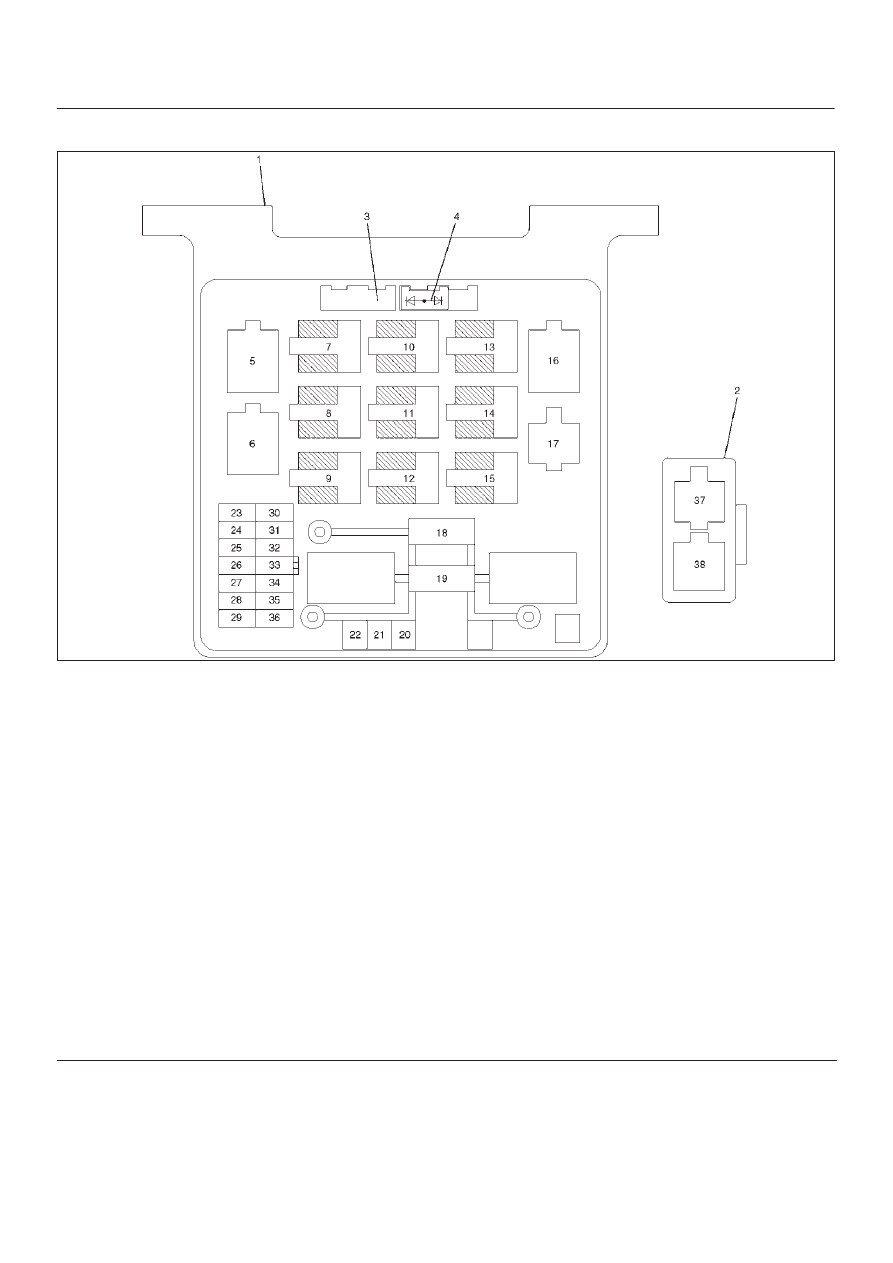

Relay / Fuse Box (L4 Engine Room)

D08R100034

Legend

(1) Fuse/Relay Box
(2) Option Box
(3) Diode
(4) Diode
(5) Heater Relay
(6) A/C Compressor Relay
(7) ECM Main Relay
(8) Not Used
(9) Fog Lamp Relay

(10) Not Used

(11) Not Used

(12) Thermo Relay
(13) Headlamp Relay
(14) Starter Relay
(15) Not Used
(16) Fuel Pump Relay
(17) Electric Fan (LO) Relay
(18) IG.1 (+B.1 60A)
(19) Main (100A)

(20) ABS (50A)
(21) IG.2 (+B.2 50A)
(22) Electric Fan (40A)
(23) Hazard (15A)
(24) Horn (10A)
(25) ACG–S (10A)
(26) Not Used
(27) Blower (15A)
(28) Blower (15A)
(29) A/C (10A)
(30) Headlamp–LH (10A)
(31) Headlamp–RH (10A)
(32) Fog Lamp (15A)
(33) O

2

 Sensor (10A)

(34) Fuel Pump (20A)
(35) ECM (15A)
(36) Not Used
(37) Electric Fan (H1) Relay
(38) Electric Fan (H1) Relay (A/T Only)

8D–5

WIRING SYSTEM

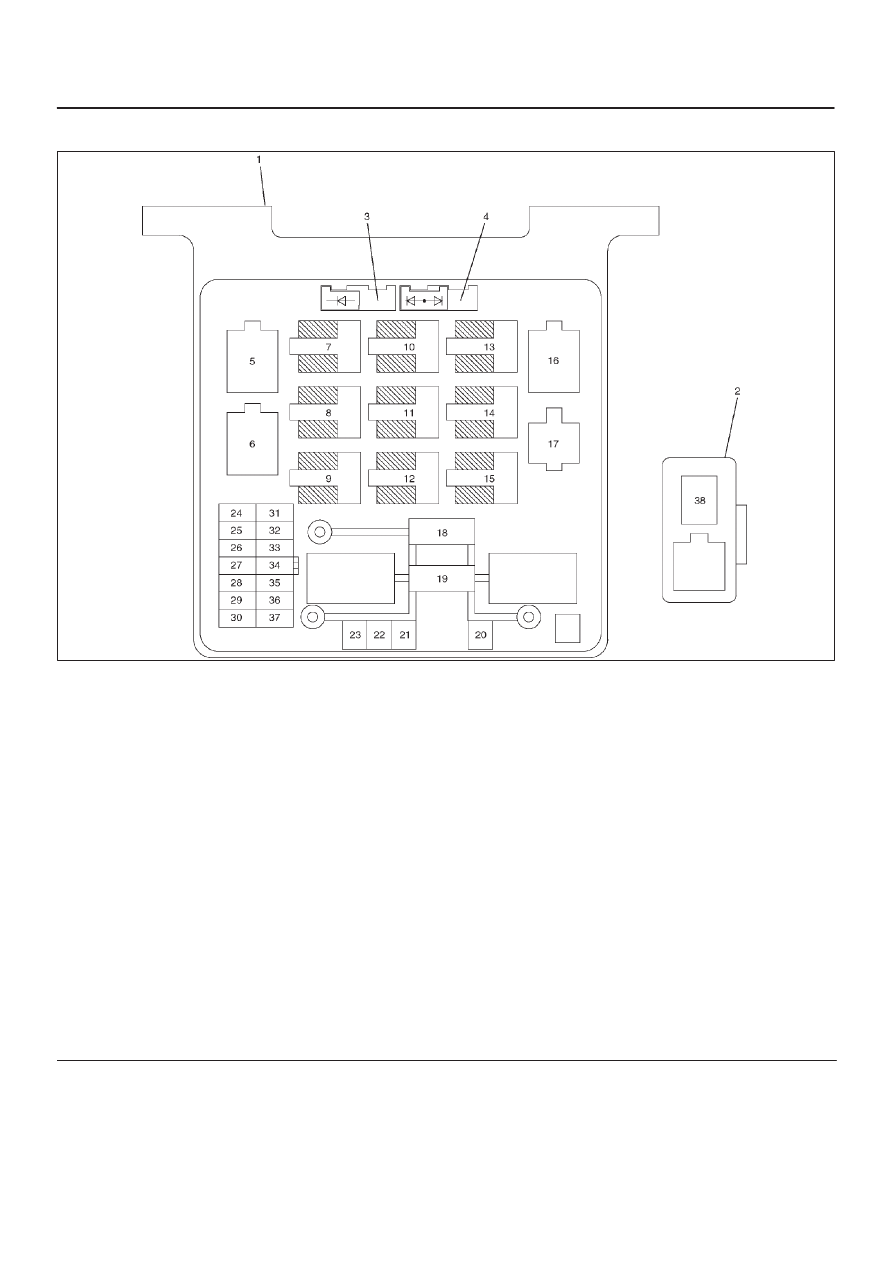

Relay / Fuse Box (V6 Engine Room)

D08RY00531

Legend

(1) Fuse/Relay Box
(2) Option Box
(3) Diode
(4) Diode
(5) Heater Relay
(6) A/C Compressor Relay
(7) ECM Main Relay
(8) Not Used
(9) Fog Lamp Relay

(10) Not Used

(11) Not Used

(12) Thermo Relay
(13) Headlamp Relay
(14) Starter Relay
(15) Condenser Fan Relay (A/T Only)
(16) Fuel Pump Relay
(17) Not Used
(18) IG.1 (+B.1 60A)
(19) Main (100A)

(20) ECM (30A)
(21) ABS (50A)
(22) IG.2 (+B.2 50A)
(23) Condenser Fan (A/T Only) (30A)
(24) Hazard (15A)
(25) Horn (10A)
(26) ACG (S) (10A)
(27) Not Used
(28) Blower (15A)
(29) Blower (15A)
(30) A/C (10A)
(31) Headlamp–LH (10A)
(32) Headlamp–RH (10A)
(33) Fog Lamp (15A)
(34) O

2

 Sensor (20A)

(35) Fuel Pump (20A)
(36) ECM (15A)
(37) Not Used (10A)
(38) Intelligent Suspension (30A)

8D–6

WIRING SYSTEM

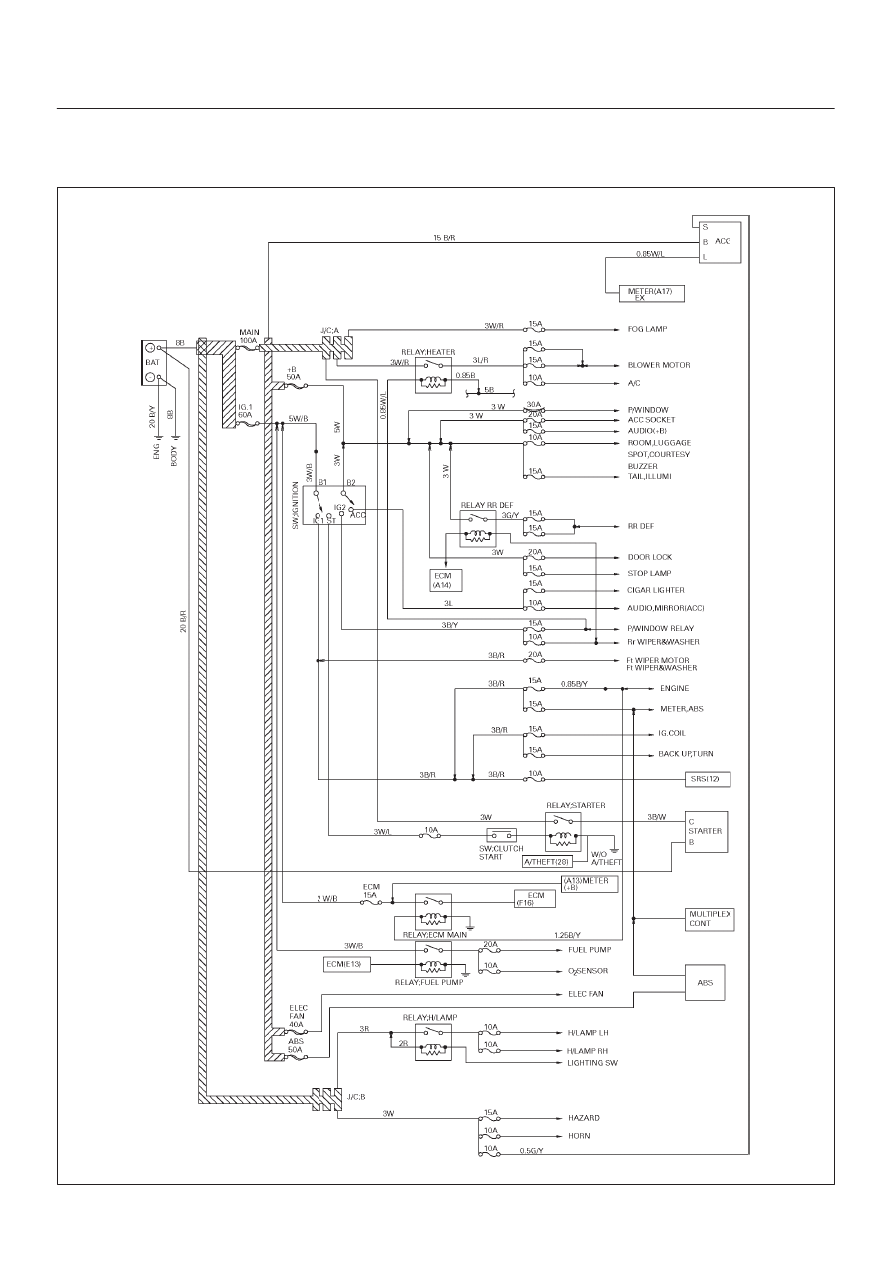

Circuit Diagram

Fuse Block Circuit–1 (L4)

D08R200061
