Isuzu Amigo / Axiom / Trooper / Rodeo / VehiCross. Manual - part 1614

7C–32

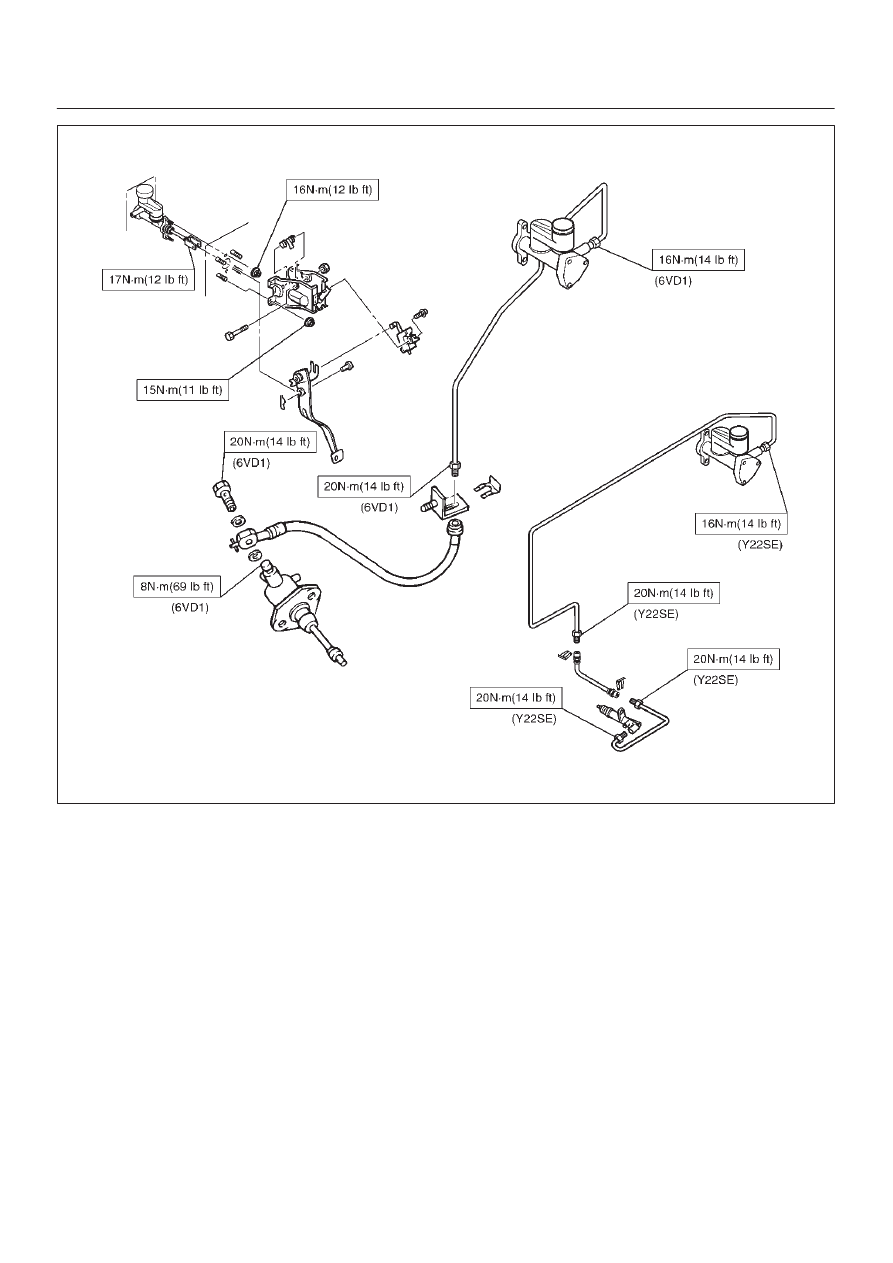

CLUTCH

205R100001

CLUTCH

7C–33

Special Tools

ILLUSTRATION

PART NO.

PART NAME

J–24547

Driven plate aligner

(6VD1)

J–42877

Driven plate aligner

(X22SE)

J–5822 and J–23907

Pilot bearing remover

and Sliding hammer

J–22888

Bearing puller

J–2241–11

Adapter

J–26516–A

Crankshaft pilot bearing

installer (6VD1)

ILLUSTRATION

PART NO.

PART NAME

J–1522

Crankshaft pilot bearing

installer (X22SE)

J–8092

Driver handle

LIGHTING SYSTEM

8A–1

RODEO / RODEO SPORT

BODY AND ACCESSORIES

CONTENTS

Lighting System

8A

. . . . . . . . . . . . . . . . . . . . . . . . .

Wiper / Washer System

8B

. . . . . . . . . . . . . . . . . .

Entertainment

8C

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Wiring System

8D

. . . . . . . . . . . . . . . . . . . . . . . . . .

Meter and Gauge

8E

. . . . . . . . . . . . . . . . . . . . . . .

Body Structure

8F

. . . . . . . . . . . . . . . . . . . . . . . . . .

Seats

8G

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Security and Locks

8H

. . . . . . . . . . . . . . . . . . . . . .

Sunroof / Convertible Top

8I

. . . . . . . . . . . . . . . .

Exterior / Interior Trim

8J

. . . . . . . . . . . . . . . . . . . .

LIGHTING SYSTEM

CONTENTS

Service Precaution

8A–2

. . . . . . . . . . . . . . . . . . . . . .

Headlight Bulb

8A–3

. . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight Assembly

8A–3

. . . . . . . . . . . . . . . . . . . . .

Headlight Adjustment

8A–4

. . . . . . . . . . . . . . . . . .

Fog Light Bulb

8A–6

. . . . . . . . . . . . . . . . . . . . . . . . . .

Fog Light Assembly

8A–7

. . . . . . . . . . . . . . . . . . . . .

Fog Light Adjustment

8A–7

. . . . . . . . . . . . . . . . . .

Side Marker Light Bulb

8A–7

. . . . . . . . . . . . . . . . . . .

Taillight Bulb

8A–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

License Plate Light Bulb (Bumper Type)

8A–8

. . . .

License Plate Light Bulb (Tailgate Type)

8A–9

. . . .

Stoplight Bulb

8A–9

. . . . . . . . . . . . . . . . . . . . . . . . . . .

High Mounted Stoplight Assembly

8A–10

. . . . . . . . .

High Mounted Stoplight Bulb

8A–10

. . . . . . . . . . . . . .

High Mounted Stoplight Assembly
 (Soft Top Model)

8A–11

. . . . . . . . . . . . . . . . . . . . . . . .

High Mounted Stoplight Bulb
 (Soft Top Model)

8A–11

. . . . . . . . . . . . . . . . . . . . . . . .

High Mounted Stoplight Assembly
 (Resin Top Model)

8A–12

. . . . . . . . . . . . . . . . . . . . . .

High Mounted Stoplight Bulb
 (Resin Top Model)

8A–12

. . . . . . . . . . . . . . . . . . . . . .

Backup Light Bulb

8A–13

. . . . . . . . . . . . . . . . . . . . . . .

Front Turn Signal Light Bulb

8A–13

. . . . . . . . . . . . . .

Rear Turn Signal Light Bulb

8A–14

. . . . . . . . . . . . . .

Dome Light Bulb (LWB)

8A–14

. . . . . . . . . . . . . . . . . .

Dome Light Bulb (SWB)

8A–15

. . . . . . . . . . . . . . . . . .

Courtesy Light Bulb

8A–15

. . . . . . . . . . . . . . . . . . . . . .

Spotlight Bulb

8A–16

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Luggage Room Light Bulb (LWB)

8A–16

. . . . . . . . . .

Luggage Room Light Bulb
 (Resin Top Model)

8A–17

. . . . . . . . . . . . . . . . . . . . . .

HVAC Bezel Illumination Light Bulb

8A–17

. . . . . . . .

Shift Lever Illumination Light Bulb (A/T)

8A–18

. . . .

Vanity Mirror Illumination Light Bulb

8A–18

. . . . . . . .

Starter Switch

8A–19

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Lighting Switch (Combination Switch)

8A–19

. . . . . .

Dimmer·Passing Switch
 (Combination Switch)

8A–19

. . . . . . . . . . . . . . . . . . .

Door Switch

8A–19

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Defogger Switch

8A–20

. . . . . . . . . . . . . . . . . . .

Key Remind Switch (Starter Switch)

8A–20

. . . . . . .

Hazard Warning Light Switch

8A–21

. . . . . . . . . . . . .

Stoplight Switch

8A–21

. . . . . . . . . . . . . . . . . . . . . . . . .

Backup Light Switch (M/T)

8A–22

. . . . . . . . . . . . . . . .

Turn Signal Light Switch
 (Combination Switch)

8A–22

. . . . . . . . . . . . . . . . . . .

Illumination Controller

8A–23

. . . . . . . . . . . . . . . . . . . .

Light and Bulb Specifications (LWB)

8A–24

. . . . . . .

Light and Bulb Specifications (SWB)

8A–25

. . . . . . .

SECTION

8A–2

LIGHTING SYSTEM

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.
