4C–84

DRIVE SHAFT SYSTEM

D

Aluminum tube type only: Inspect the aluminum
tubing for surface scratches and dents.  These
scratches may not exceed 0.2 mm (0.008 in) in depth.

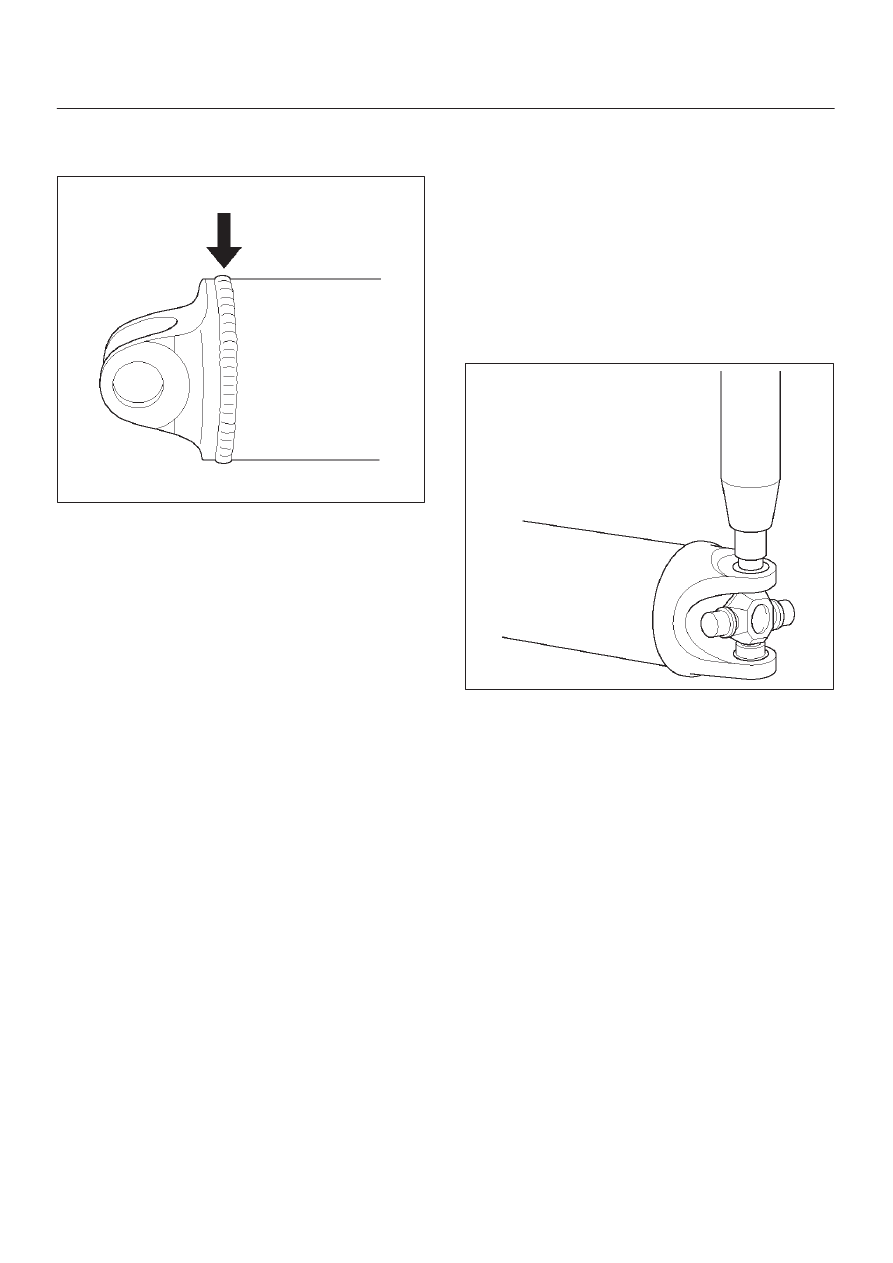

401RW022

D

Aluminum tube type only: Visually inspect the circle
welds and fittings for any signs of cracks or signs of
deterioration.  If there are any cracks that exceed 0.2
mm (0.008 in) in depth, the assembly must be
replaced.

D

Aluminum tube type only: Check to be sure there are
no missing balance weights.  If balance weights are
missing and void has occurred in the aluminum tubing
greater than 0.2 mm (0.008 in), the assembly must be
replaced.

Universal Joint Reassembly

1. Pack the four grease cavities of the spider with a high

quality, extreme pressure N.L.G.I. Grade 2 grease.
Do not add additional grease to bearing cup
assembly.

2. Move one end of the spider to cause a trunnion to

project through the spider hole beyond the outer
machined face of the yoke lug.  Place a bearing over
the trunnion diameter and align it to the spider hole.
Using an arbor press, hold the trunnion in alignment
with the spider hole and place a solid plug on the
upper bearing.  Press the bearing into the spider hole
enough to install snap ring.

401RW026

3. Install a snap ring.

NOTE: Be sure the snap rings are properly seated in the
grooves.

4. Repeat steps 2 and 3 to install the opposite bearing.  If

the joint is stiff, strike the yoke ears with a soft
hammer to seat the bearing.

5. Align the setting marks and join the yokes.

4C–85

DRIVE SHAFT SYSTEM

Slip Joint Reassembly

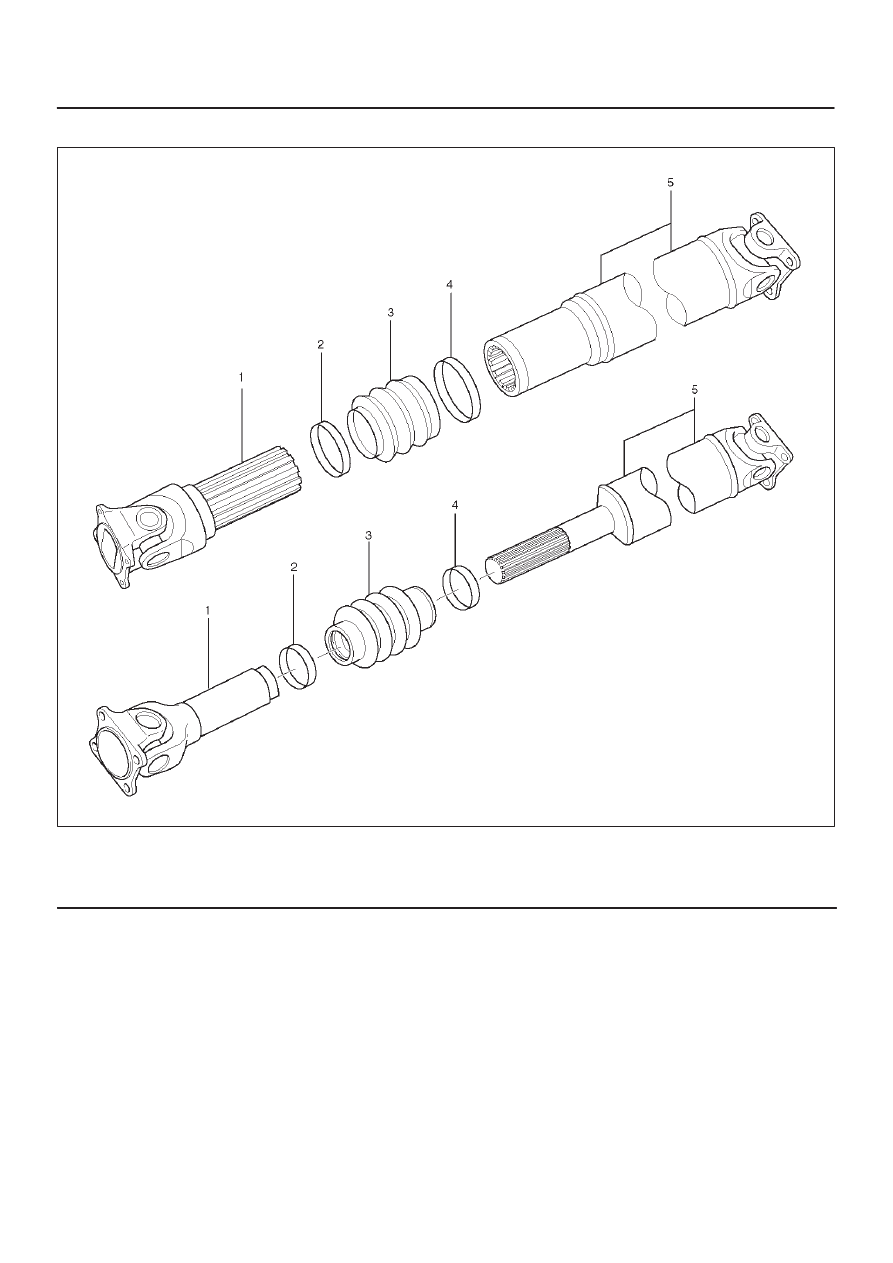

401RX00001

Legend

(1) Spline Yoke and Universal Joint Assembly
(2) Clamp

(3) Boot
(4) Clamp
(5) Tube and Universal Joint Assembly

1. Apply grease evenly to both the female and male

splines.

2. Apply a small amount of grease by finger to the outer

lips of the boot.

3. Slide the boot (smaller diameter side) onto the spline

yoke shaft being careful not to damage the spline
coating or boot.

4. Insert the spline yoke shaft spline into the tube

assembly being careful to maintain proper phasing.
The spider holes should be in line as originally marked
prior to disassembly.

5. Position boot onto tube and yoke shaft in its

assembled position.

6. Attach boot clamps and secure using pliers.

7. Be sure clamp is properly seated and secure.

CAUTION: Only use a similar type or same as the
original type clamp. Using any other clamp may
create an imbalanced shaft or lead to grease leakage.

4C–86

DRIVE SHAFT SYSTEM

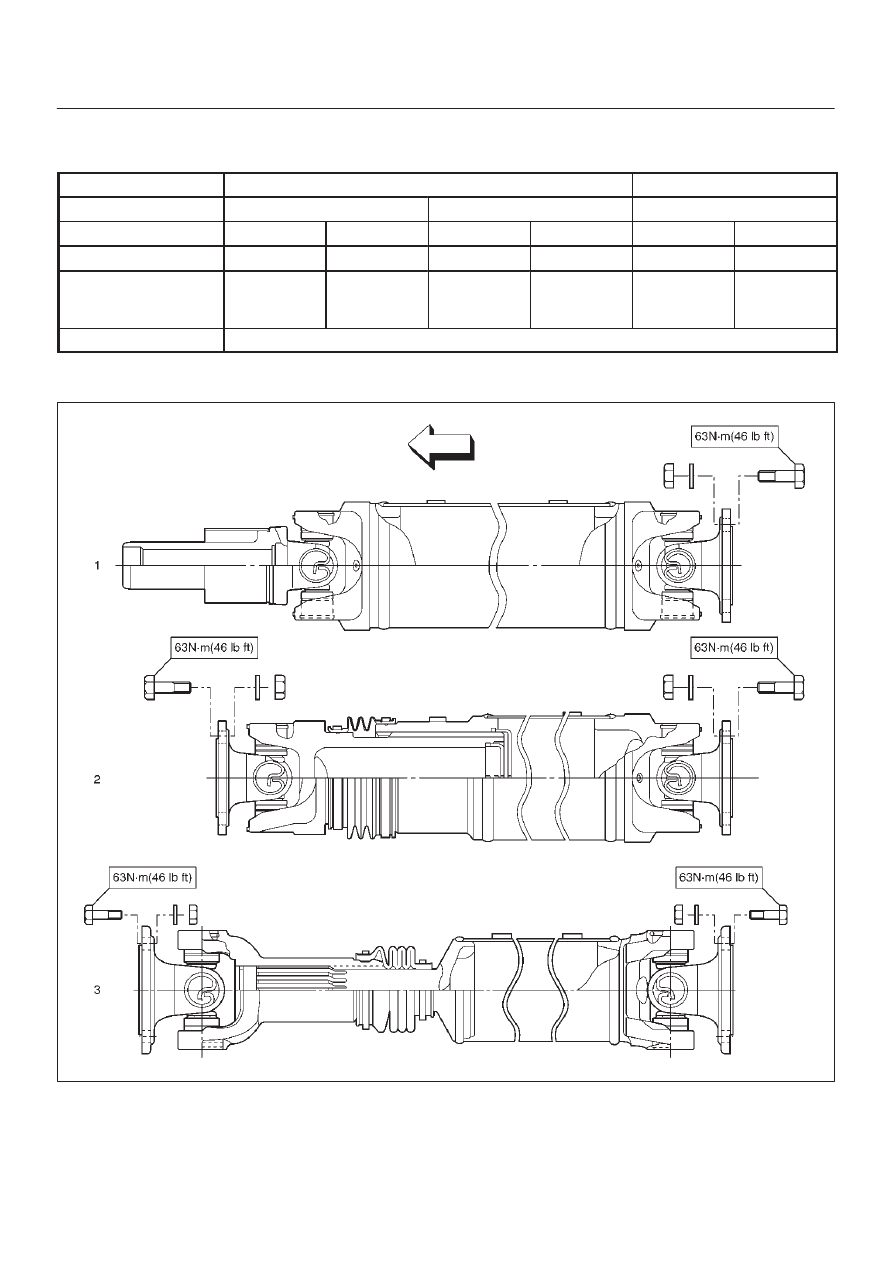

Main Data and Specifications

General Specifications

2WD Model

4WD Model

Engine

Y22SE

6VD1

6VD1

Transmission

M/T

A/T

M/T

A/T

M/T

A/T

Type (See illustration)

1

2

1

2

2

3

Length
between two spiders
center)

1314.4mm

(51.75in)

1334.7mm

(52.55in)

1298.4mm

(51.12in)

1323.0mm

(52.09in)

1191.2mm

(46.9in)

1021.2mm

(40.21in)

Universal joint type

Cardan type

Torque Specifications

401R100001

4D2–1

TRANSFER CASE (TOD)

AXIOM

DRIVELINE/AXLE

TRANSFER CASE (TOD)

CONTENTS

Service Precaution

4D2–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

4D2–2

. . . . . . . . . . . . . . . . . . . . .

Removal and Installation of Tfansfer Case
 Assembly

4D2–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

4D2–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

4D2–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Transfer Rear Oil Seal

4D2–6

. . . . . . . . . . . . . . . . . . .

Removal

4D2–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

4D2–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

TOD Control Unit

4D2–8

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

4D2–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

4D2–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Unit Repair

4D2–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembly and Reassembly of Major
 Components

4D2–9

. . . . . . . . . . . . . . . . . . . . . . . . .

Disassembly

4D2–10

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

4D2–10

. . . . . . . . . . . . . . . . . . . . . . . . . .

Transfer Cover Assembly

4D2–13

. . . . . . . . . . . . . . . .

Disassembly

4D2–13

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

4D2–14

. . . . . . . . . . . . . . . . . .

Reassembly

4D2–15

. . . . . . . . . . . . . . . . . . . . . . . . . .

Clutch Pack and Clutch Cam
 (Transfer Case Assembly)

4D2–16

. . . . . . . . . . . . . . .

Disassembly

4D2–16

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

4D2–18

. . . . . . . . . . . . . . . . . . . . . . . . . .

Chain, Sprocket and Mechanical Lock
 (Transfer Case Assembly)

4D2–20

. . . . . . . . . . . . . . .

Disassembly

4D2–21

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

4D2–22

. . . . . . . . . . . . . . . . . . . . . . . . . .

Transfer Case Assembly

4D2–24

. . . . . . . . . . . . . . . . .

Disassembly

4D2–24

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

4D2–26

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair
 (Transfer Case Assembly)

4D2–28

. . . . . . . . . . . . . .

Main Data and Specification

4D2–32

. . . . . . . . . . . . . .

General Specification

4D2–32

. . . . . . . . . . . . . . . . . .

Torque Specifications

4D2–33

. . . . . . . . . . . . . . . . . .

Torque Specifications (Cont’d)

4D2–34

. . . . . . . . . . .

Torque Specifications (Cont’d)

4D2–35

. . . . . . . . . . .

Special Tools

4D2–36

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution
