6E2–11

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

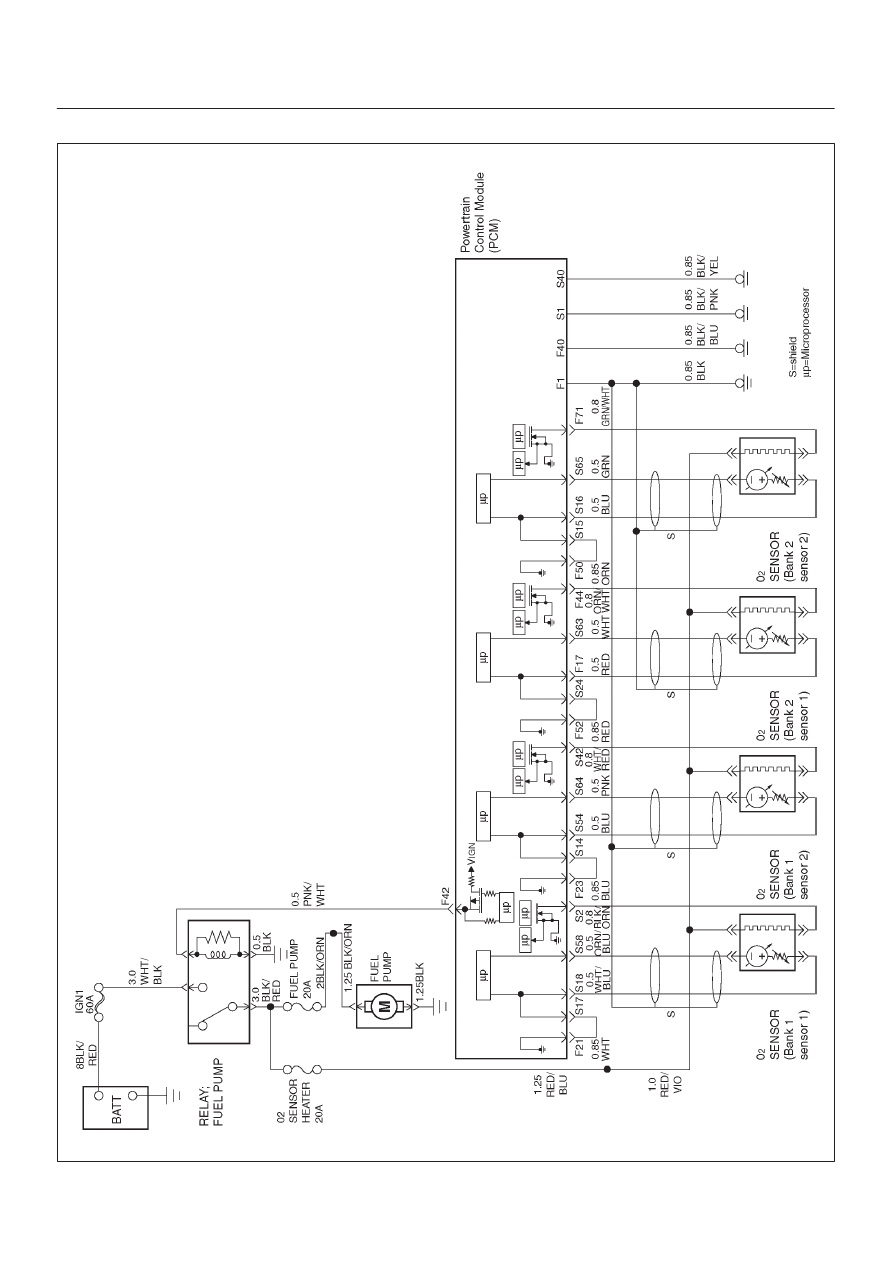

PCM Wiring Diagram (5 of 7)

060R200041

6E2–12

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

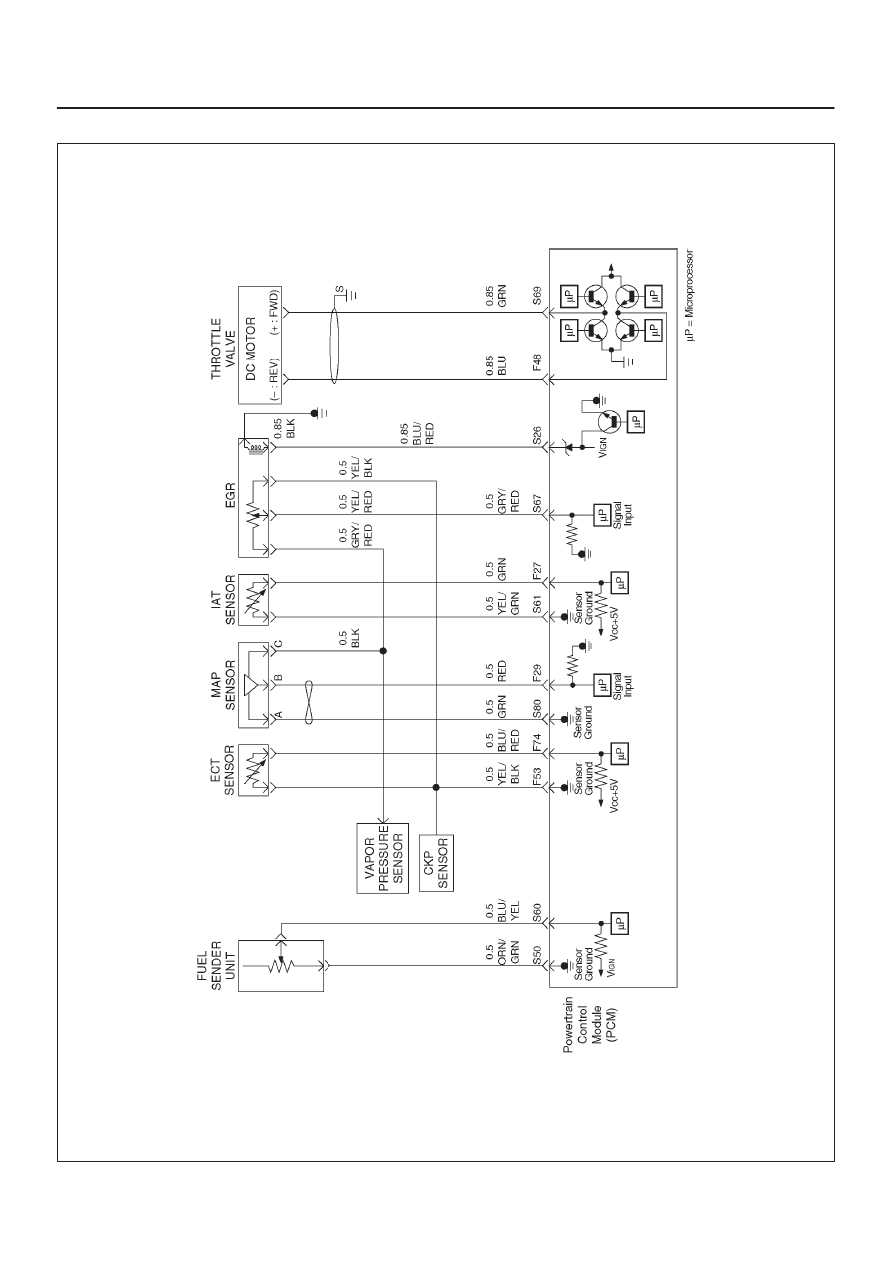

PCM Wiring Diagram (6 of 7)

060R200046

6E2–13

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

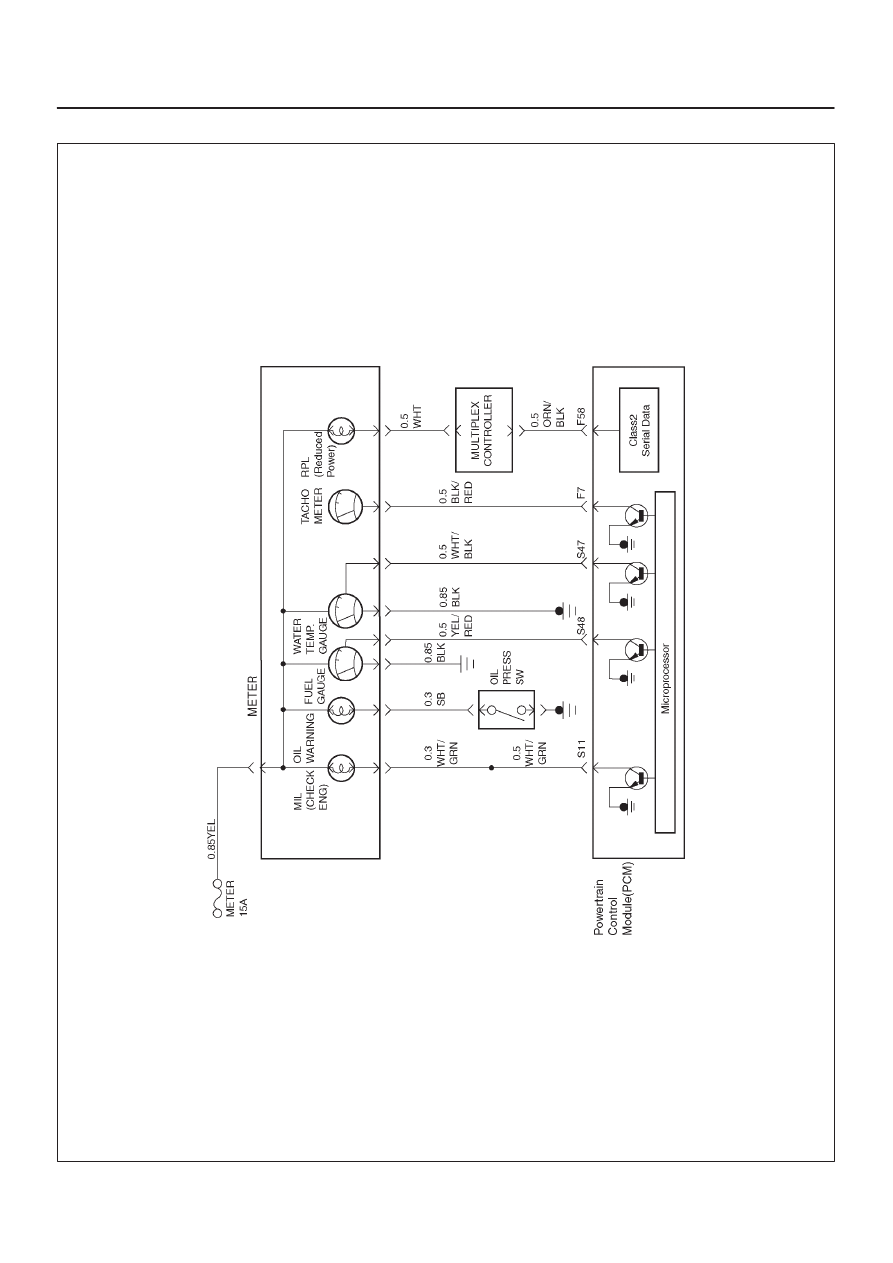

PCM Wiring Diagram (7 of 7)

060R200084

6E2–14

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

PCM Pinouts

PCM Pinout Table, 80-Way Blue Connector – Row “F1

∼

 20”

060RY00045

PIN

PIN Function

Wire Color

IGN ON

ENG RUN

Refer To

F1

PCM Ground

BLK

0.0V

0.0V

Chassis Electrical

F2

5Volt Reference“2” (AP
Sensor 2)

GRN

5.0V

5.0V

Accelerator Position (AP)
Sensor

F3

5Volt Reference“2” (TP
Sensor 2)

RED/WHT

5.0V

5.0V

Throttle Position (TP) Sensor

F4

A/C Clutch

GRY/RED

B+(A/C off)

B+(A/C off)

General Description and
Operation, A/C Clutch Circuit
Operation

F5

Relay Shift Solenoid

GRN/RED

0.0V

0.0V

4L30E  T/Mission

F6

Not Used

—

—

—

—

F7

Tachometer

BLK/RED

8.8V

10.0V (at

idle)

Chassis Electrical

F8

Not Used

—

—

—

—

F9

Not Used

—

—

—

—

F10

Not Used

—

—

—

—

F11

Not Used

—

—

—

—

F12

Not Used

—

—

—

—

F13

Starter Feed

PNK

—

—

—

F14

Mass Air Flow(MAF)

BLK/BLU

4.9V

4.2V

General Description, Mass
Air Flow Sensor

F15

Not Used

—

—

—

—

F16

Not Used

—

—

—

—

F17

Bank 1 HO2S Low

RED

0.3V

0.1–0.9V

General Description and
Operation, Catalyst Monitor
HO2S 2

F18

Not Used

—

—

—

—

F19

Ignition Feed

RED/GRN

B+

B+

6D Section

F20

Ignition Feed

RED/WHT

B+

B+

6D Section
