RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

Diagrams and Schematics

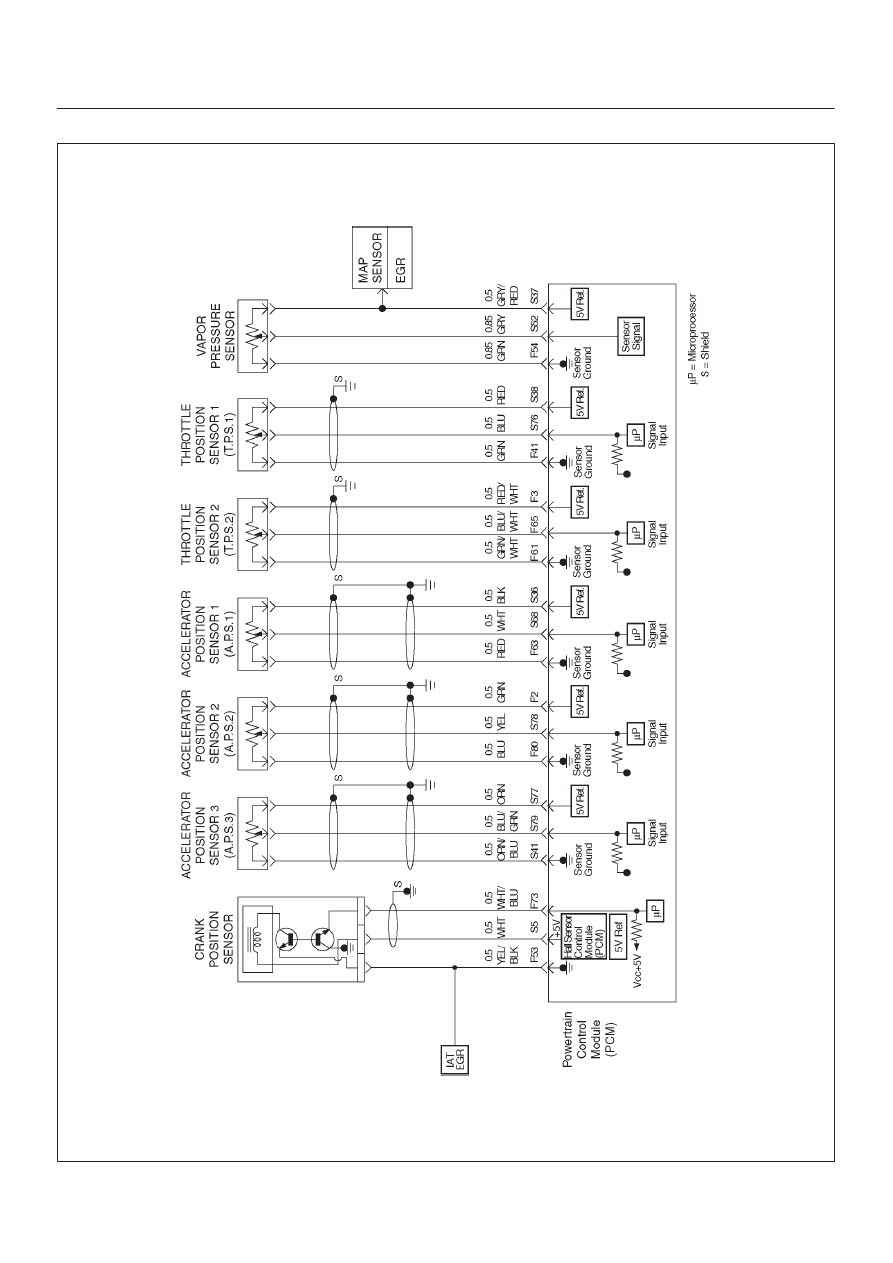

PCM Wiring Diagram (1 of 7)

060R200082

6E2–8

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

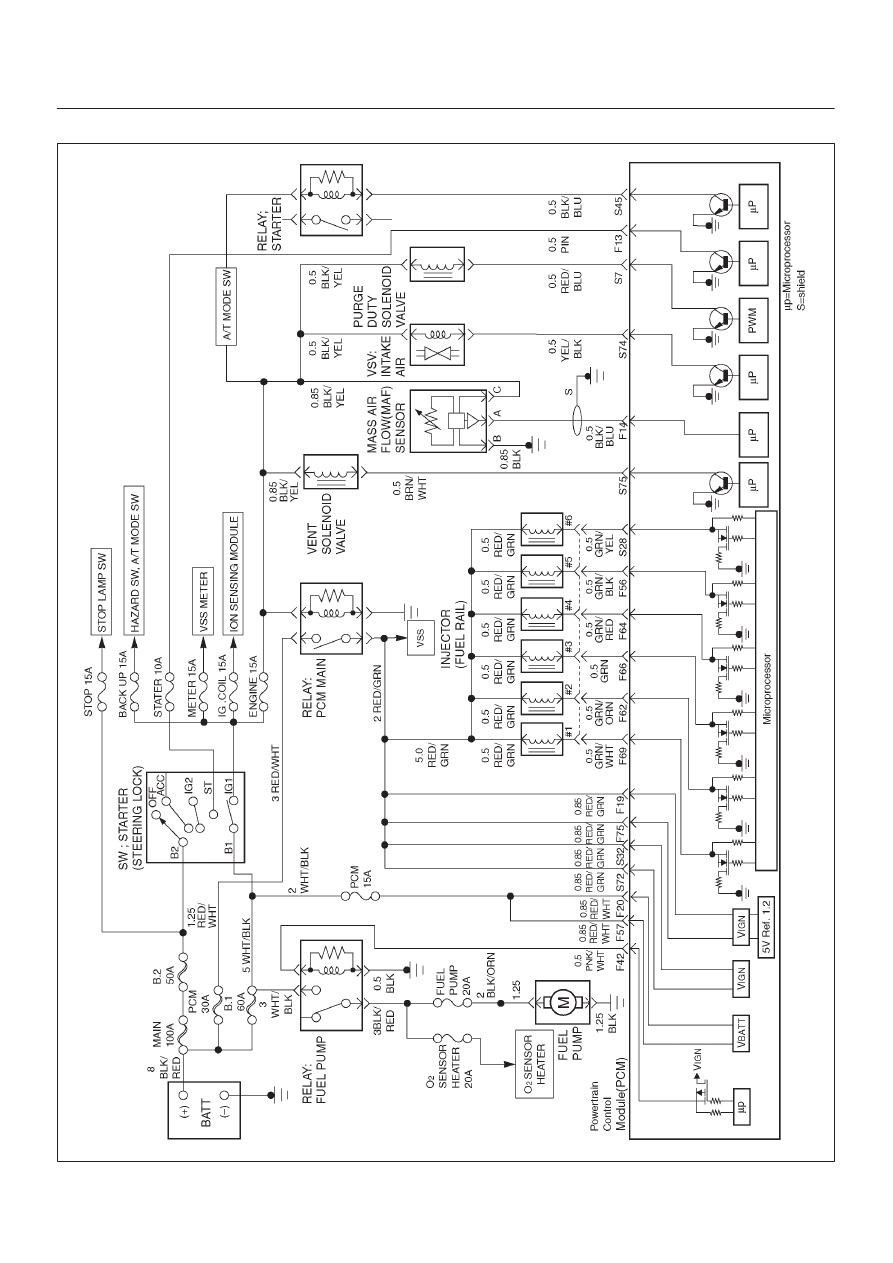

PCM Wiring Diagram (2 of 7)

060R200083

6E2–9

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

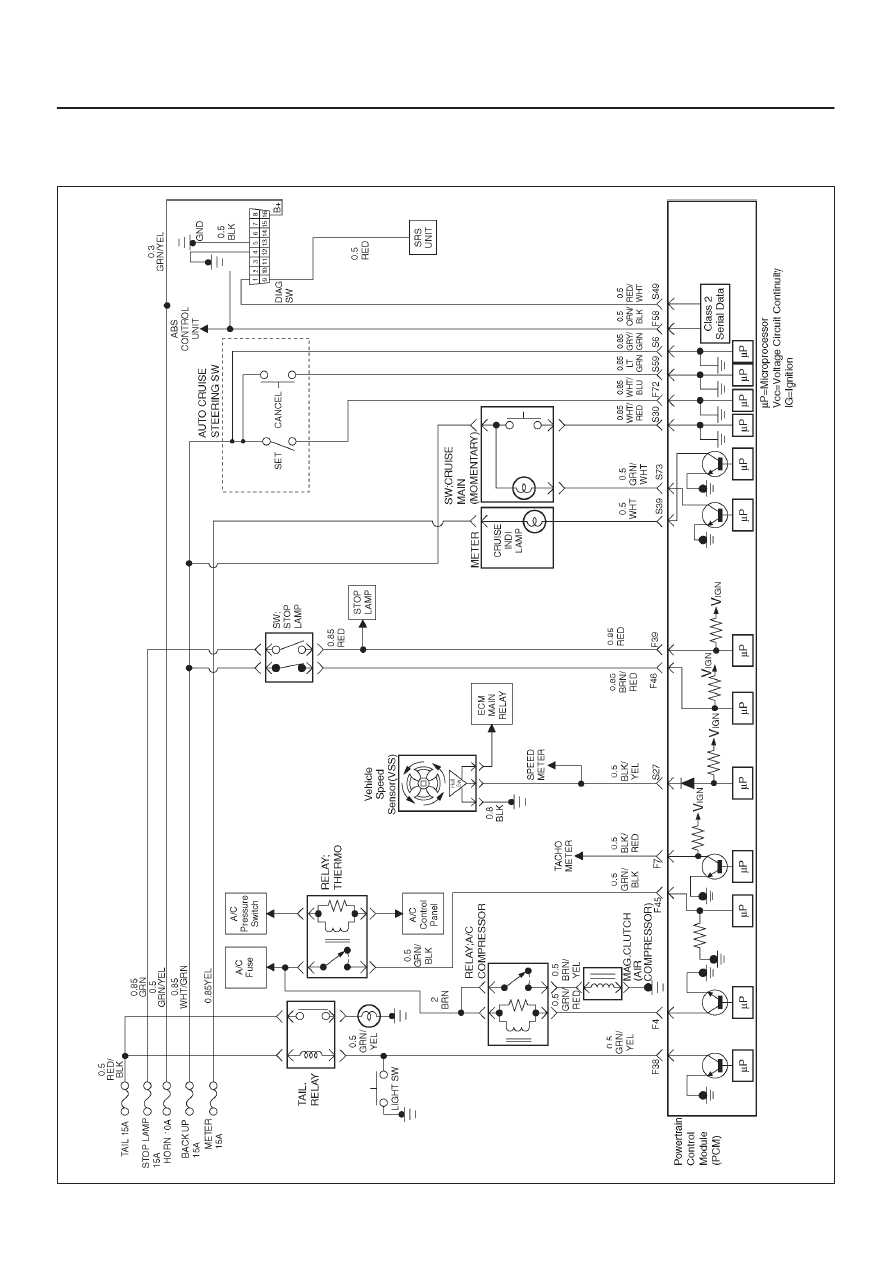

PCM Wiring Diagram (3 of 7)

060R200043

6E2–10

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

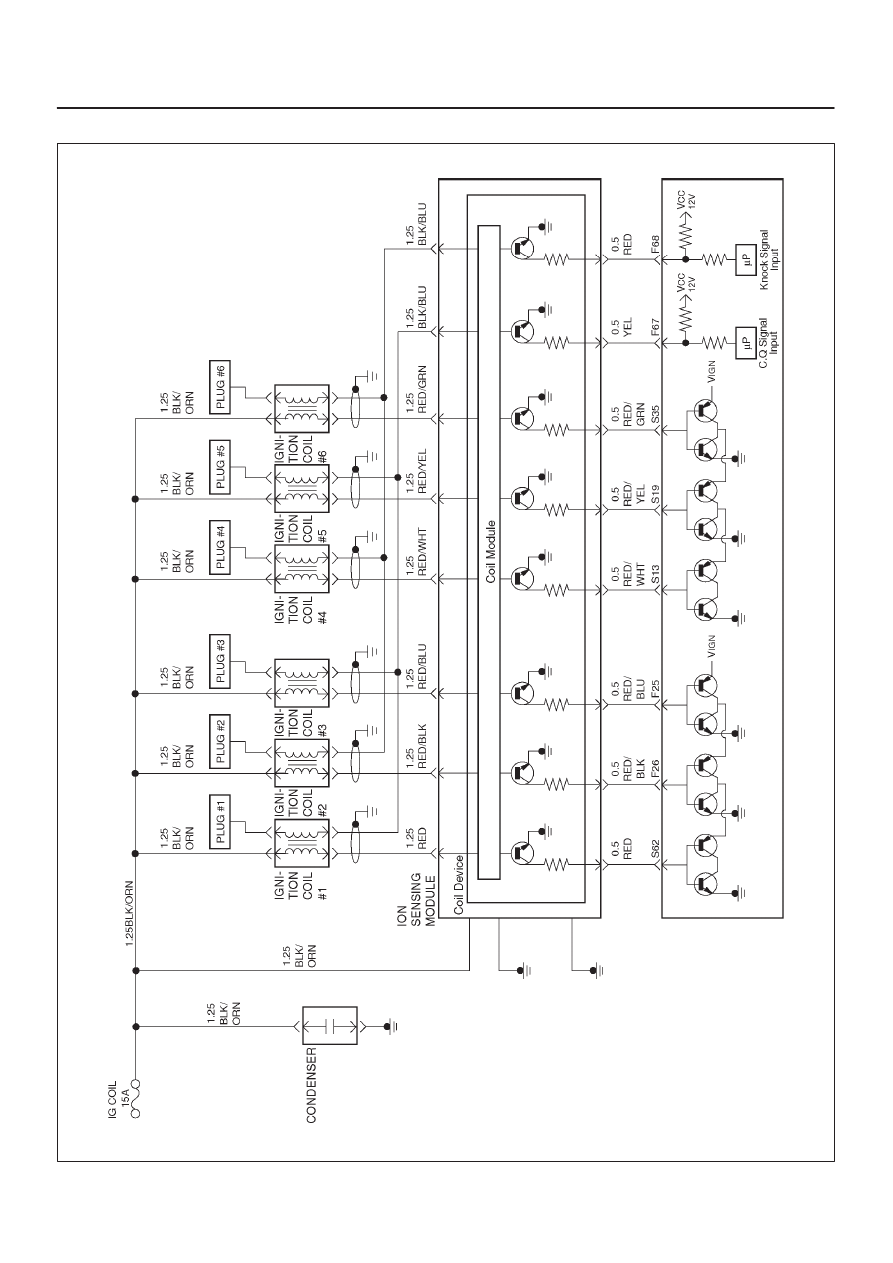

PCM Wiring Diagram (4 of 7)

060R200065
