6A–68

ENGINE MECHANICAL (6VD1 3.2L)

Inspection and Repair for Crankshaft

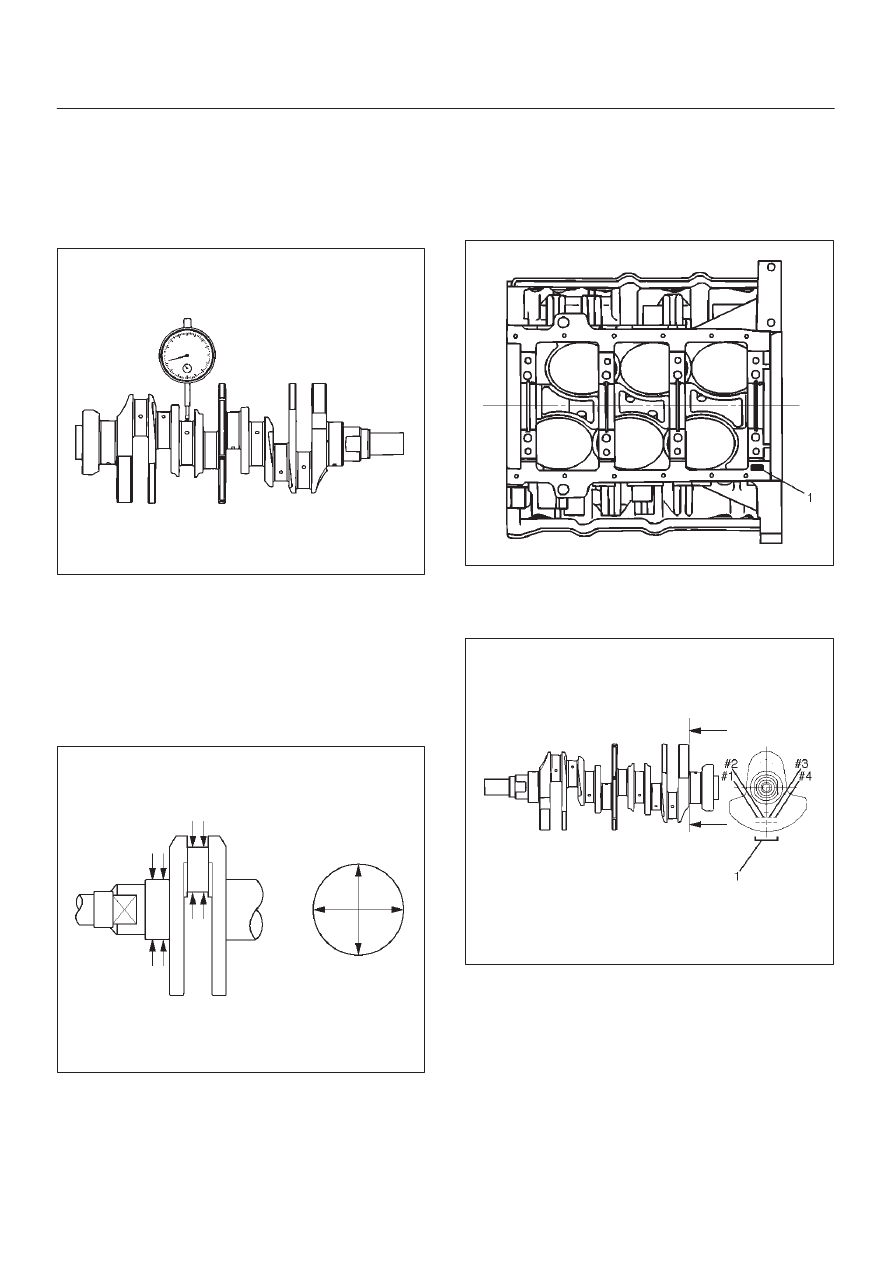

1. Carefully set the crankshaft on the V–blocks. Slowly

rotate the crankshaft and measure the runout. If the
crankshaft runout exceeds the specified limit, the
crankshaft must be replaced.

Runout : 0.04 mm (0.0016 in)

015RS007

2. Measure the diameter and the uneven wear of main

journal and crank pin. If the crankshaft wear exceeds
the specified limit, crankshaft must be replaced.

Main journal diameter : 63.918 mm–63.933 mm

(2.5165 in–2.5170 in)

Crank pin diameter : 53.922 mm–53.937 mm

(2.1229 in.–2.1235 in.)

Uneven wear limit : 0.005 mm (0.0002 in)

015RS009

Crankshaft Bearing Selection

When installing new crankshaft bearings or replacing
bearings, refer to the selection table below. Select and
install the new crankshaft bearings, paying close
attention to the cylinder block journal hole.

1. Diameter size mark (1) and the crankshaft journal.

015RS010

2. Diameter size mark (1).

The diameter size marks are stamped on the No.1
crankshaft balancer as shown in the illustration.

015RS011

NOTE: Take care to ensure the bearings are positioned
correctly.

6A–69

ENGINE MECHANICAL (6VD1 3.2L)

015RS012

Legend

(1) Number 1 and 4 main bearing upper and lower
(2) Number 2 and 3 main bearing upper
(3) Number 2 and 3 main bearing lower

1 Size

Mark

Main Bearing

Bore Diameter

Crank Shaft Main

Journal Diameter

2 Size

Mark

Crank

Shaft

Bearing

Size Mark

(Upper

Side)

Crank

Shaft

Bearing

Size Mark

(Lower

Side)

Oil Clearance

(Reference)

1

68.994-69.000

63.918-63.925

(2.5165-2.5167)

2

Blue

Blue

0.030-0.049

(0.0012-0.0019)

1

(2.7163-2.7165)

63.926-63.933

(2.5168-2.5170)

1

Brown

Brown

0.028-0.047

(0.0011-0.0019)

2

68.987-68.993

63.918-63.925

(2.5165-2.5167)

2

Brown

Brown

0.029-0.048

(0.0011-0.0019)

2

(2.7160-2.7163)

63.926-63.933

(2.5168-2.5170)

1

Green

Green

0.027-0.046

(0.0011-0.0018)

3

68.980-68.986

63.918-63.925

(2.5165-2.5167)

2

Green

Green

0.028-0.047

(0.0011-0.0019)

3

(2.7157-2.7160)

63.926-63.933

(2.5168-2.5170)

1

Yellow

Yellow

0.026-0.045

(0.0010-0.0018)

Reassembly

1. Crankshaft (12)

D

Install the main bearings to the cylinder block and
the main bearing caps.

D

Be sure that they are positioned correctly.

D

Apply new engine oil to the upper and lower main
bearing faces.

NOTE: Do not apply engine oil to the main bearing back
faces.

015RS012

6A–70

ENGINE MECHANICAL (6VD1 3.2L)

D

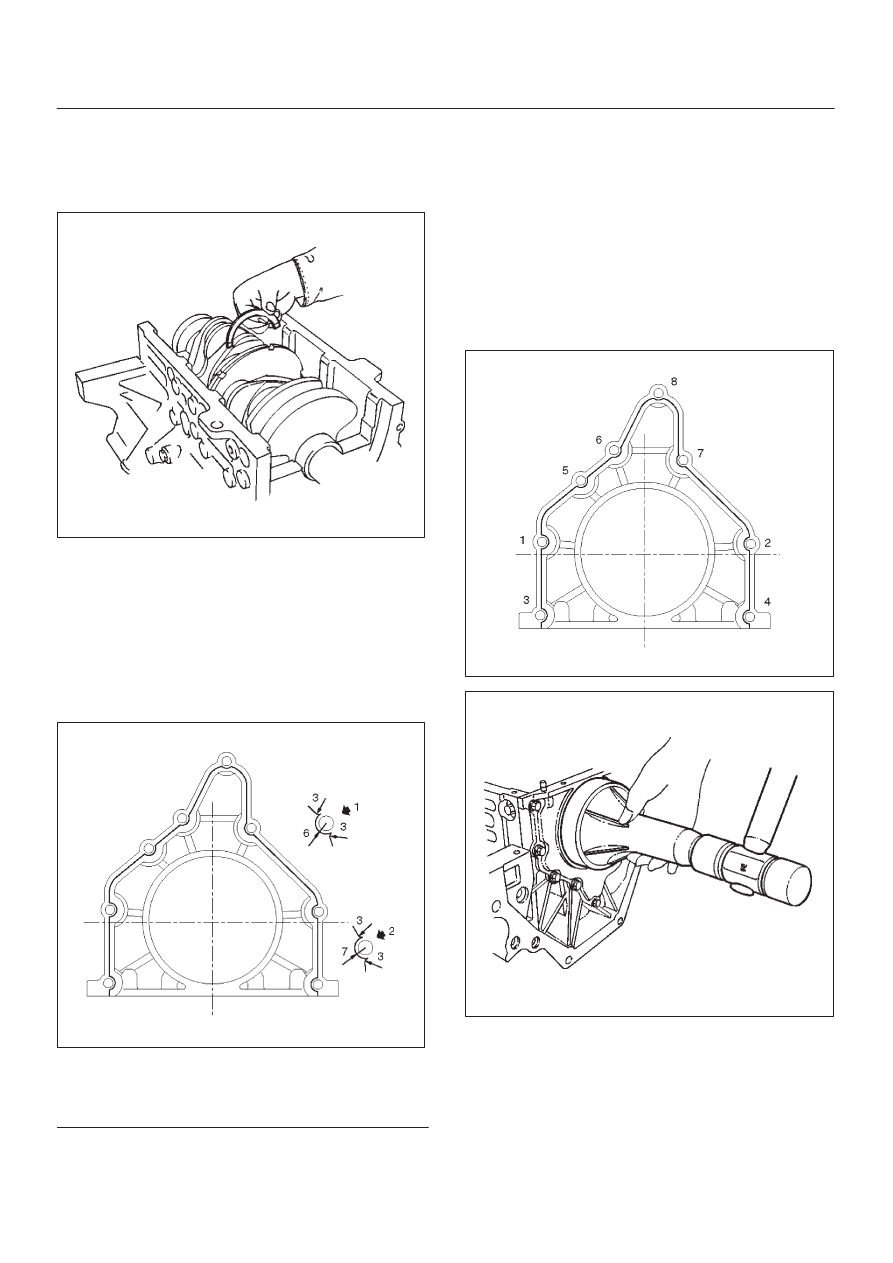

Carefully mount the crankshaft.

D

Apply engine oil to the thrust washer.

D

Assemble the thrust washer to the No.3 bearing
journal. The oil grooves must face the crankshaft.

015RS013

2. Rear oil seal (10)

D

Remove the oil from the cylinder block and the
retainer mounting surface.

D

Apply sealant (TB–1207B or equivalent) to the
retainer mounting surface, following the pattern
shown in the illustration.
The retainer must be installed within 5 minutes after
sealant application to prevent premature hardening
of sealant.

015RW002

Legend

(1) Around Bolt Holes
(2) Around Dowel Pin

D

Apply engine oil to the oil seal lip.

D

Align the cylinder block dowel pin holes with the rear
retainer dowel pins.

D

Tighten the rear retainer fixing bolts. New bolts
should be used when installing rear retainer.

Torque: 18 N·m (13 lb ft)

NOTE: Be very careful not to disengage the oil seal garter
spring during installation of the rear retainer.

If the seal was removed from retainer for
replacement, apply engine oil to the oil seal lip and
install the oil seal using J–39201 oil seal installer.

015RW001

015RS017

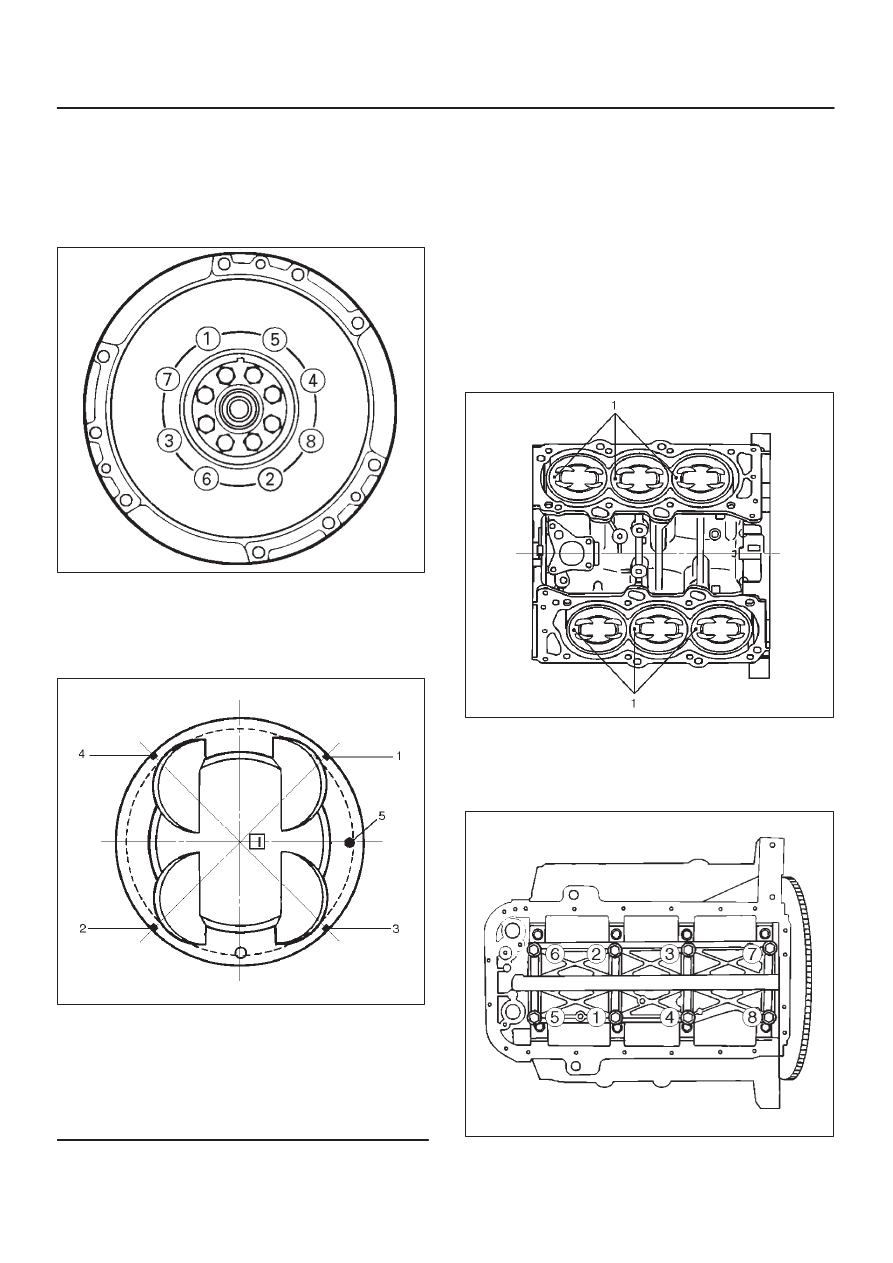

3. Flywheel (9)

1. Thoroughly clean and remove the oil from the

threads of crankshaft.

2. Remove the oil from the crankshaft and flywheel

mounting faces.

3. Mount the flywheel on the crankshaft and then

install the washer.

6A–71

ENGINE MECHANICAL (6VD1 3.2L)

4. Hold the crankshaft to prevent from rotating then

install the bolts in the order shown to the specified
torque.

Torque: 54 N·m (40 lb ft)

NOTE: Do not reuse the bolt and do not apply oil or thread
lock to the bolt.

015RS018

4. Piston and connecting rod assembly (8)

D

Apply engine oil to the cylinder bores, the
connecting rod bearings and the crankshaft pins.
Check to see that the piston ring end gaps are
correctly positioned.

015RS019

Legend

(1) No.1 Compression Ring
(2) No.2 Compression Ring
(3) Oil Ring Side Rail Upper
(4) Oil Ring Side Rail Lower
(5) Piston Front Mark

D

Insert the piston/connecting rod assemblies into
each cylinder with the piston ring compressor. The
front marks must be facing the front of the engine.

D

Match the numbered caps with the numbers on the
connecting rods. Align the punched marks on the
connecting rods and caps.

D

Apply engine oil to the threads and seating faces of
the nuts.

D

Tighten the nuts.

Torque: 54 N·m (40 lb ft)

After tightening the cap nuts, check to see that the
crankshaft rotates smoothly.

NOTE: Do not apply engine oil to the bearing back faces.

015RS020

5. Install oil gallery (7) and tighten the bolts in 2 steps, in

the order shown.

1st step: 29 N·m (22 lb ft)
2nd step: 55

°

∼

 65

°
