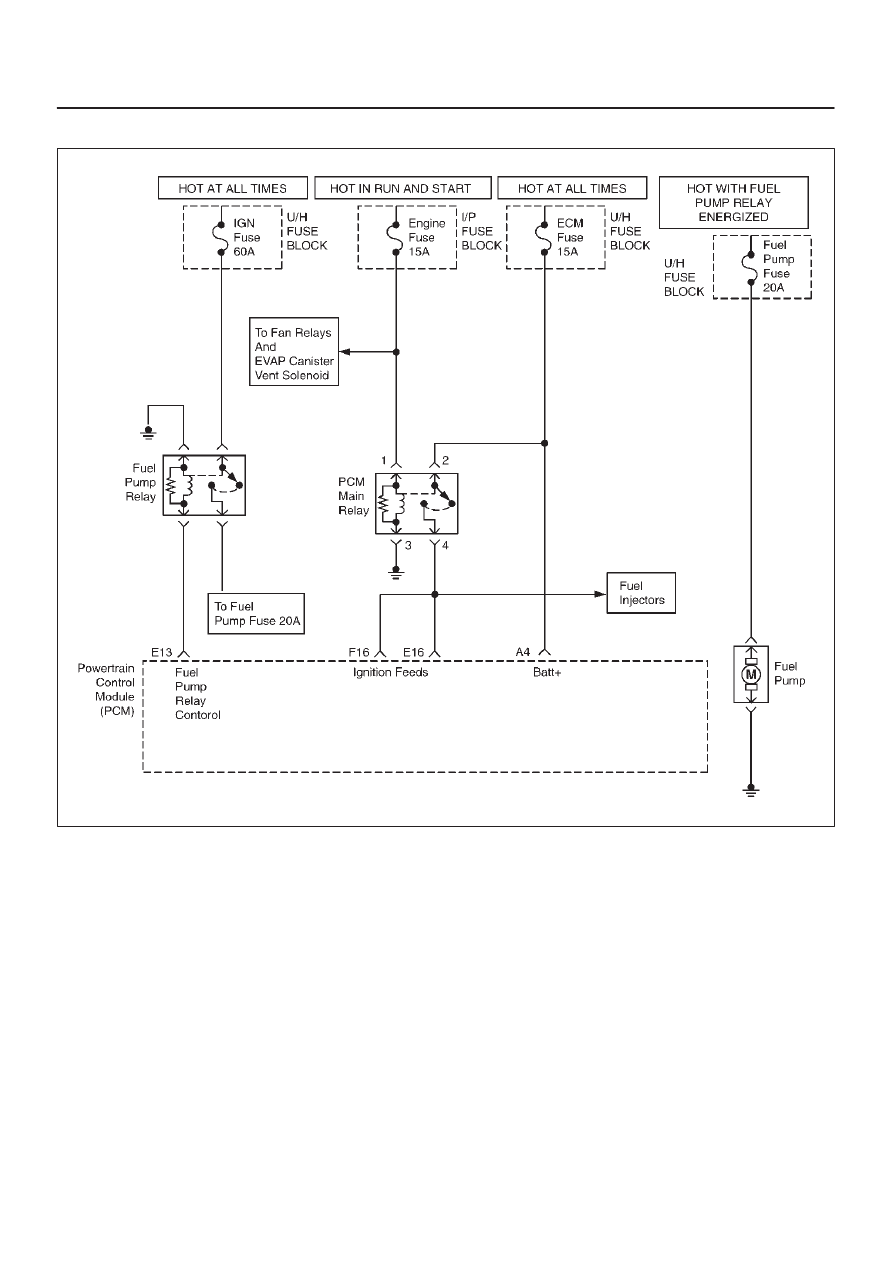

6E1–96 RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION Fuel System Electrical Test (Cont'd) Step No Yes Value(s) Action 9 Check for short or open between the PCM and the fuel Was a problem found? — Verify repair Go to Step 10 10 1. Check the fuel pump relay circuit for a poor terminal connection at the PCM. 2. If a problem is found, replace terminal as necessary. Was a problem found? — Verify repair Go to Step 11 11 Replace the PCM. IMPORTANT: The replacement PCM must be and also refer to latest service bulletin. Is the action complete? — Verify repair — 12 1. Reconnect the fuel pump relay. fuel tank. 3. Using a test light connected to ground, probe the fuel pump feed wire (harness side). 4. Command the fuel pump ON with a Tech 2. Did the light illuminate for 2 seconds? — Go to Step 15 Go to Step 13 13 1. Honk the horn to verify that the horn relay is functioning. 2. Substitute the horn relay for the fuel pump relay. Did the test light illuminate for 2 seconds when the fuel — Go to Step 17 Go to Step 14 14 1. Re–connect the horn relay in its proper location. between the relay and the fuel tank. Is the action complete? — Verify repair — 15 1. With the fuel pump electrical connector at the fuel tank disconnected, connect a test light between the 2. Command the fuel pump ON with a Tech 2. Did the test light illuminate for 2 seconds? — Go to Step 18 Go to Step 16 16 Repair the open circuit in the fuel pump ground wire. Is the action complete? — Verify repair — 17 1. Re–connect the horn relay in its proper location. Is the action complete? — Verify repair — 18 Replace the fuel pump. Is the action complete? — Verify repair — |
