6E1–16

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

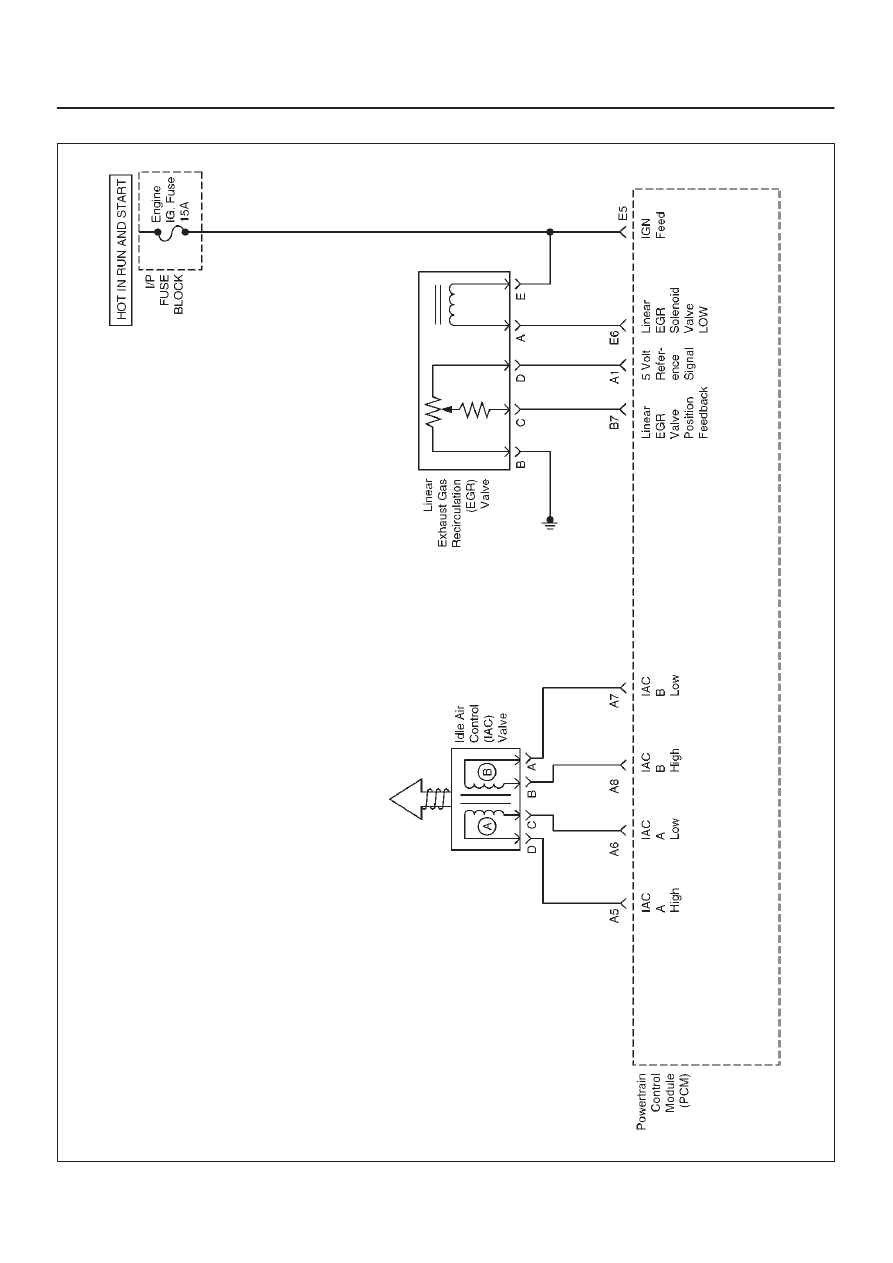

PCM WIRING DIAGRAM (10 of 13)

060R100089

6E1–17

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

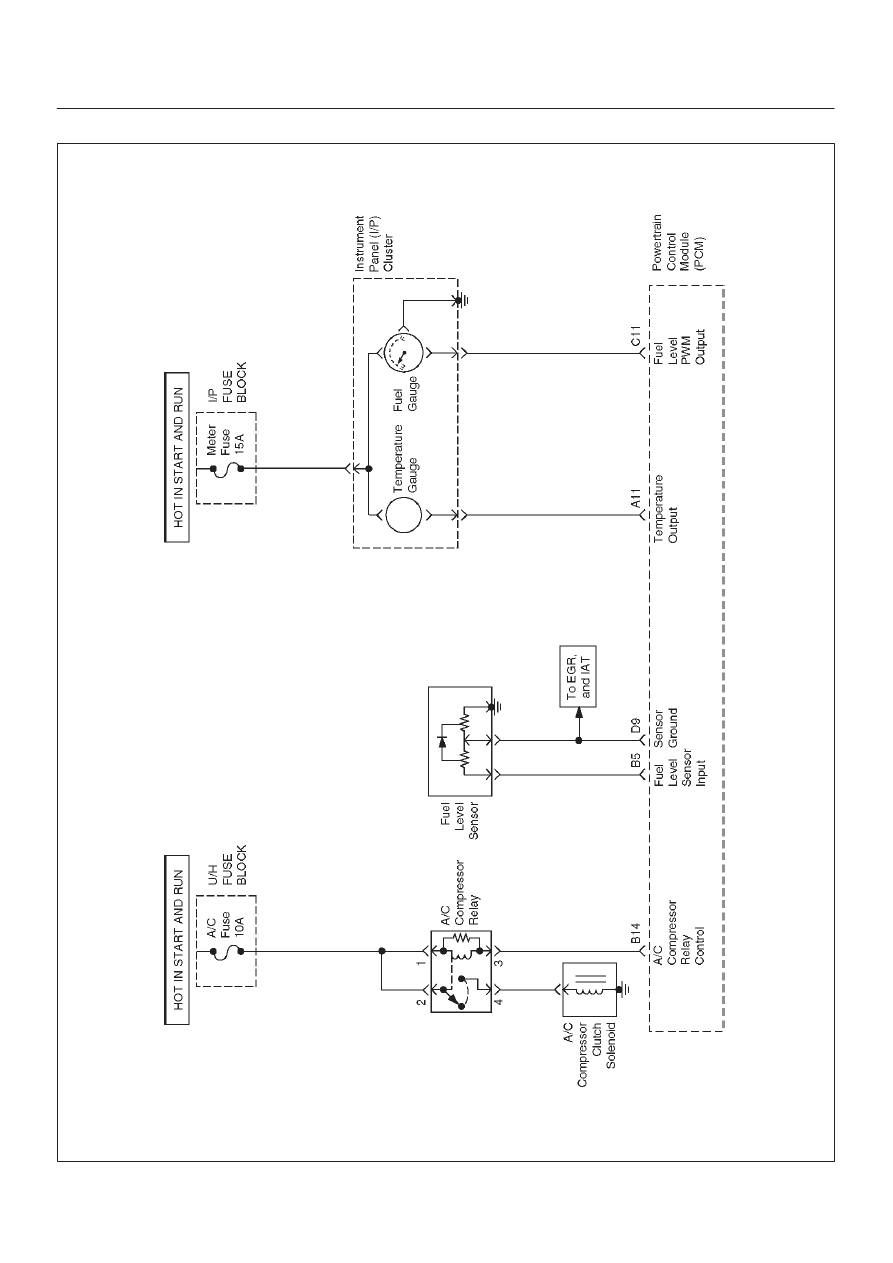

PCM WIRING DIAGRAM (11 of 13)

060R100013

6E1–18

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

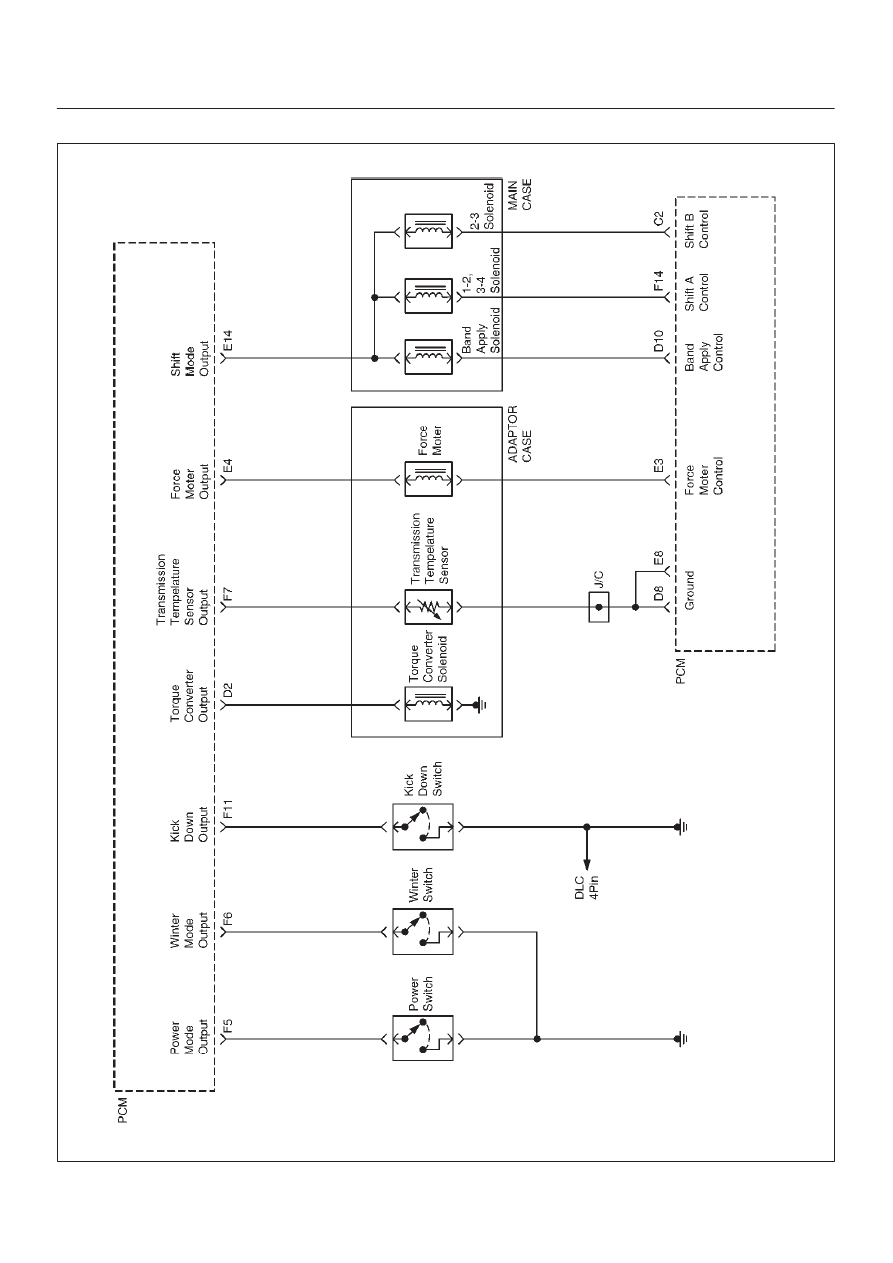

PCM WIRING DIAGRAM (12 of 13)

060R100014

6E1–19

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

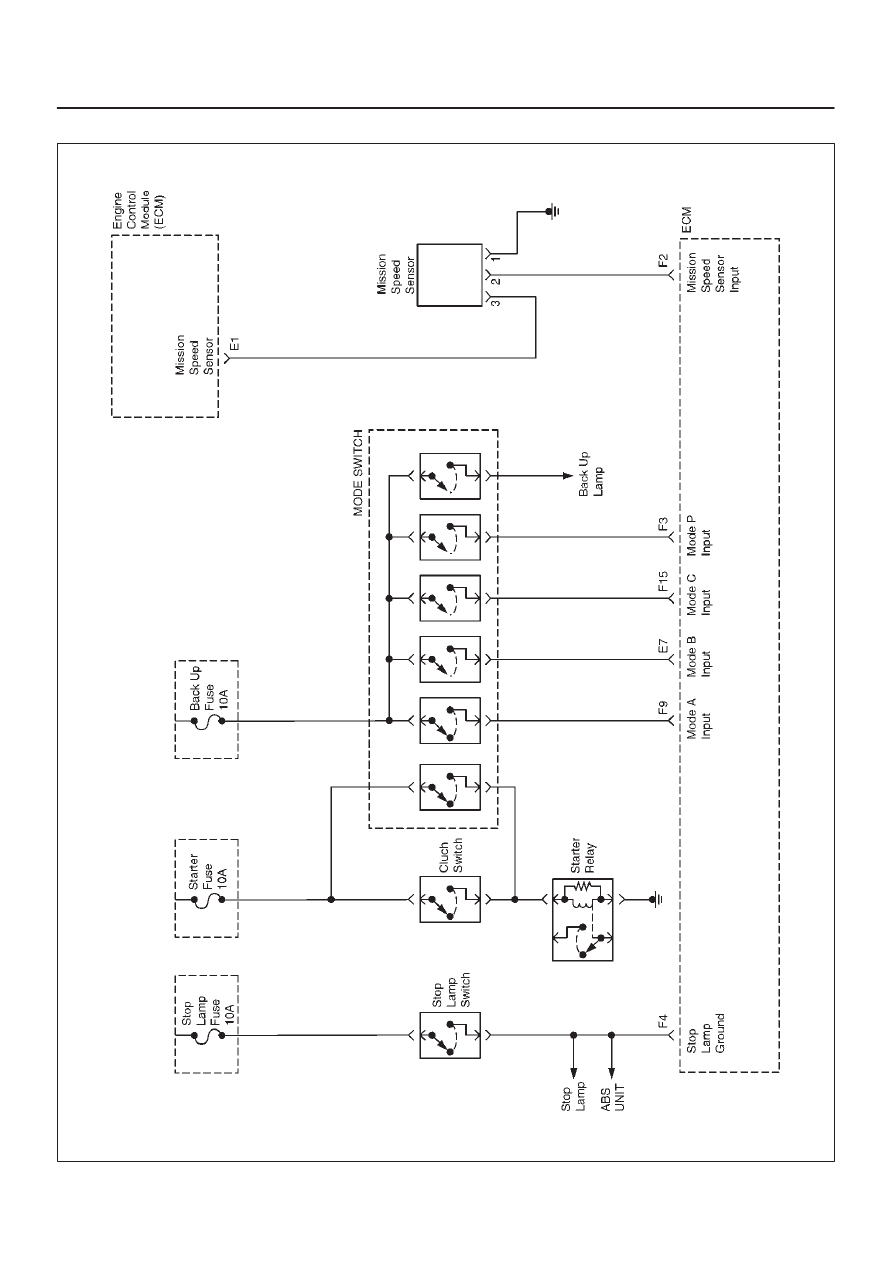

PCM WIRING DIAGRAM (13 of 13)

060R100015
