6E1–12

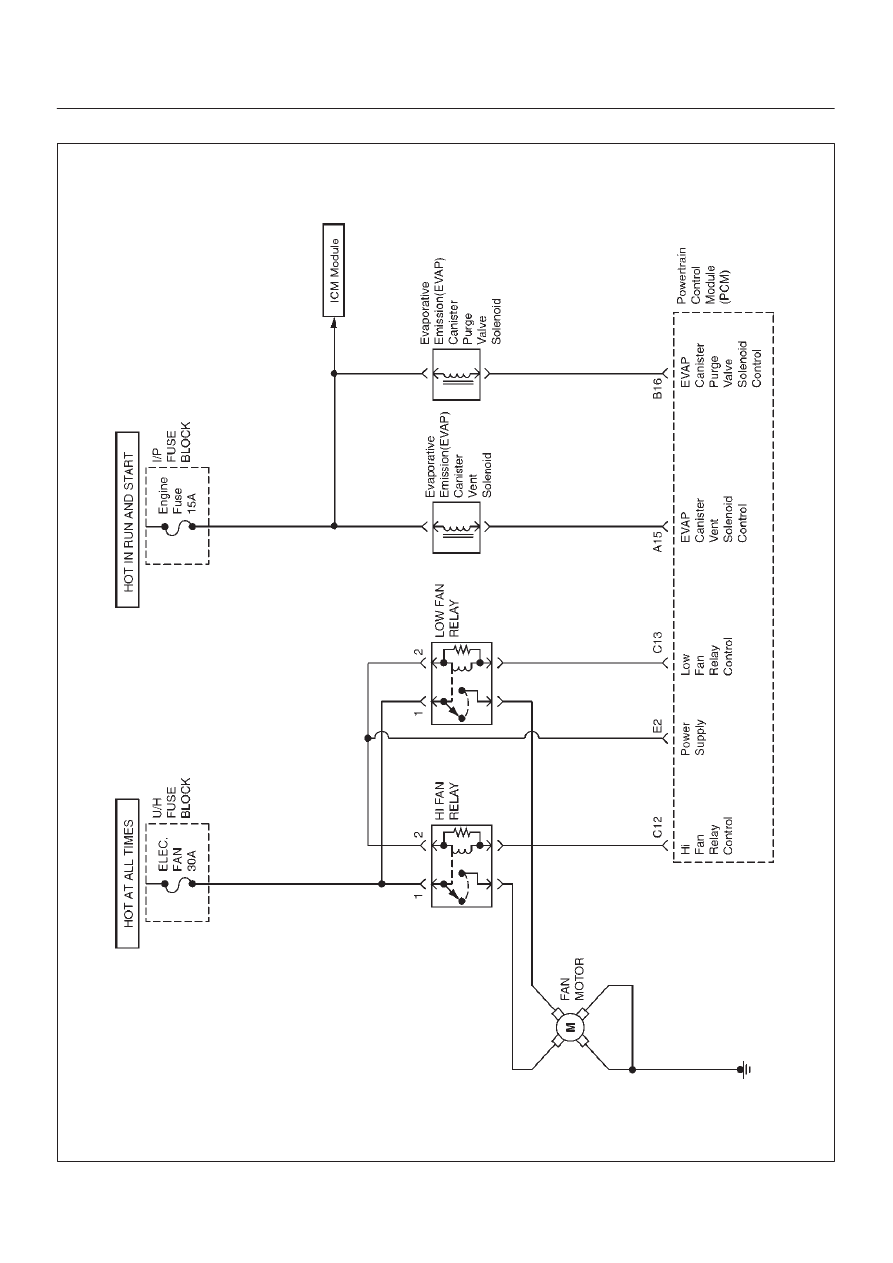

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

PCM WIRING DIAGRAM (6 of 13)

060R100008

6E1–13

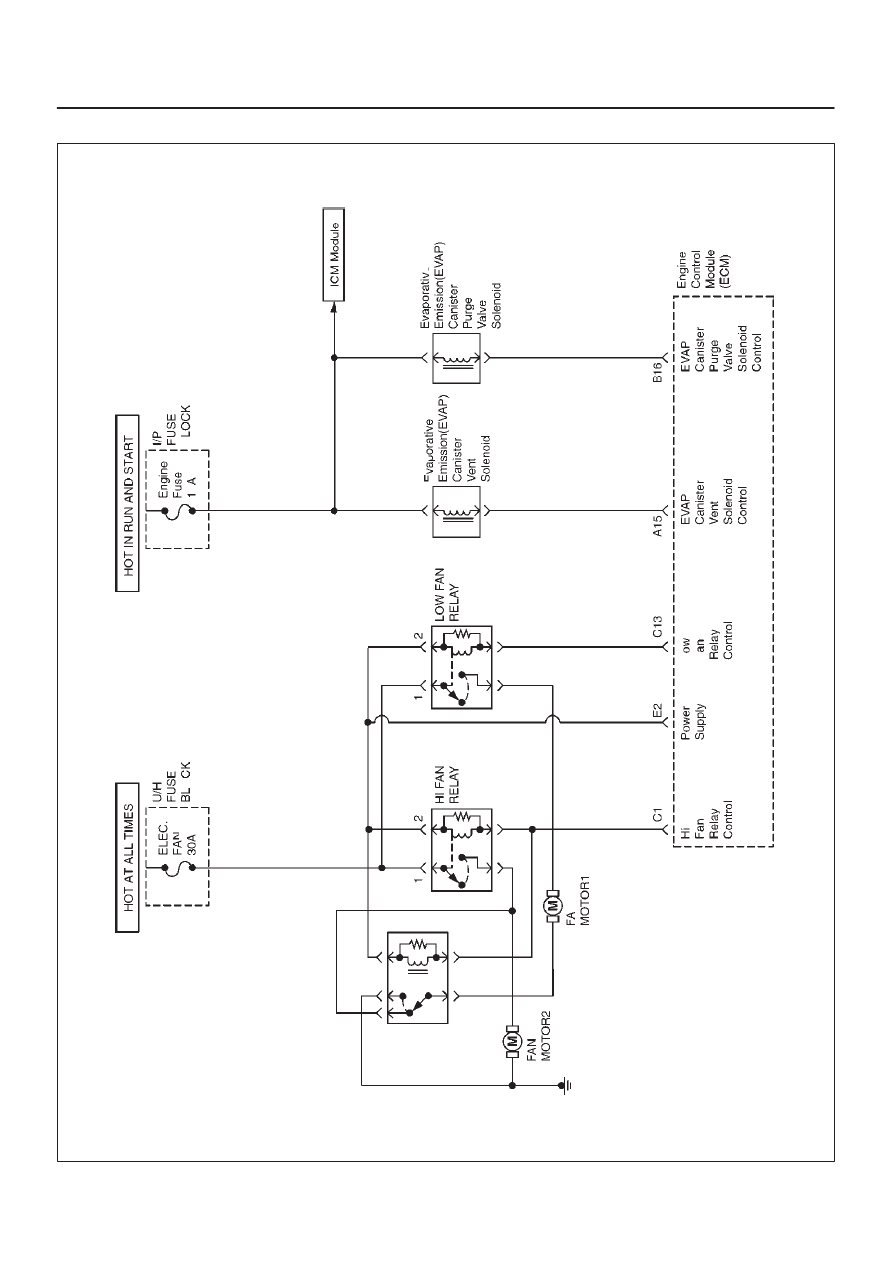

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

PCM WIRING DIAGRAM (7 of 13)

060R100009

6E1–14

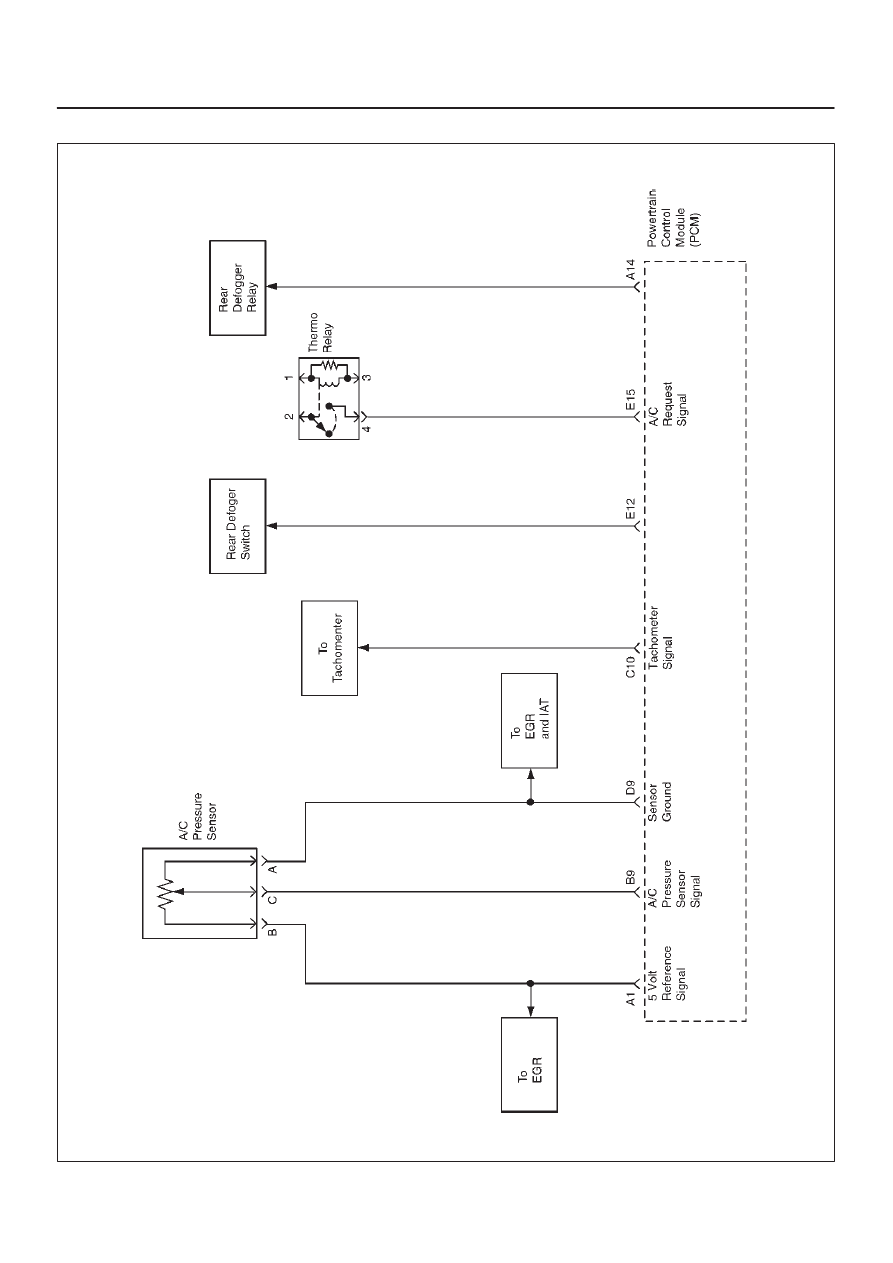

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

PCM WIRING DIAGRAM (8 of 13)

060R100010

6E1–15

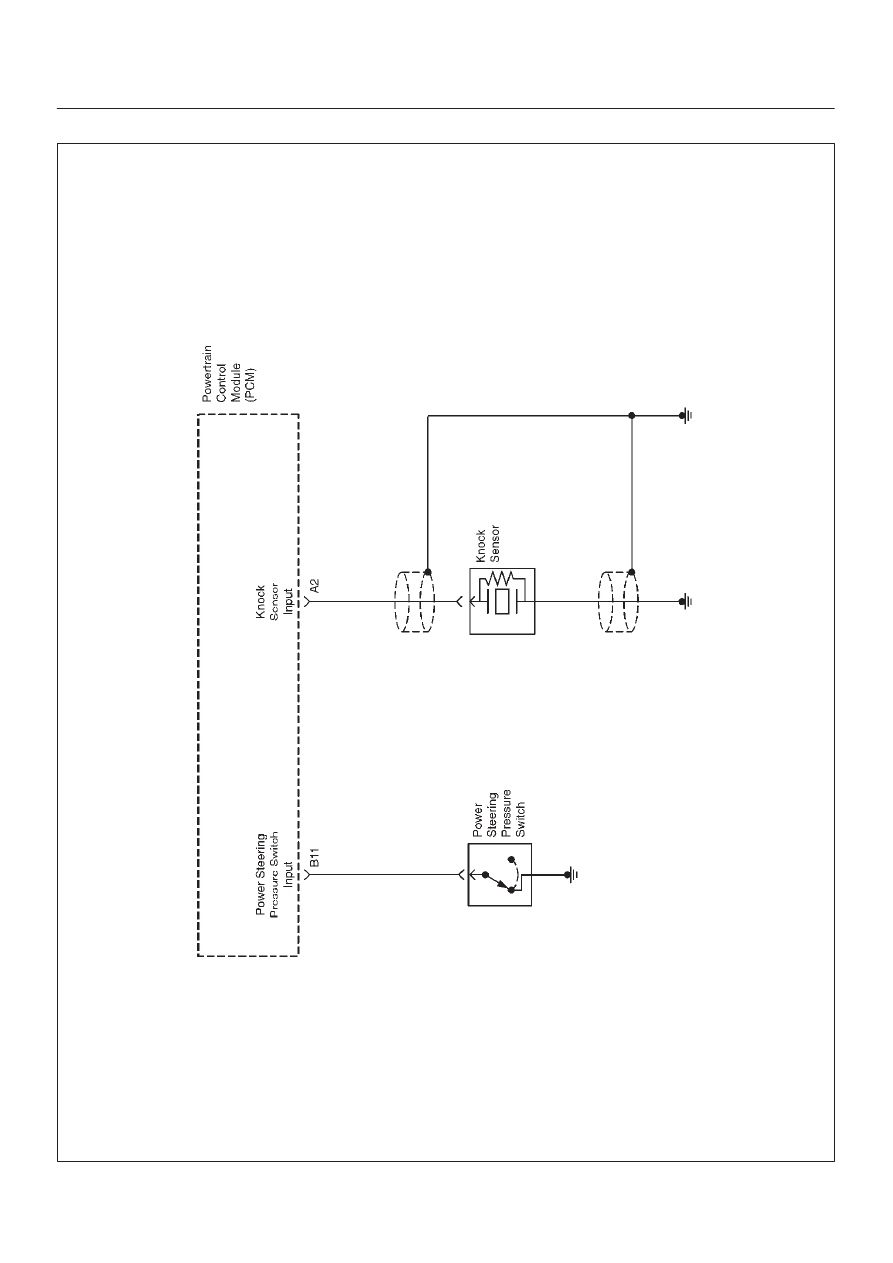

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

PCM WIRING DIAGRAM (9 of 13)

060R100011
