BRAKE CONTROL SYSTEM

5A–25

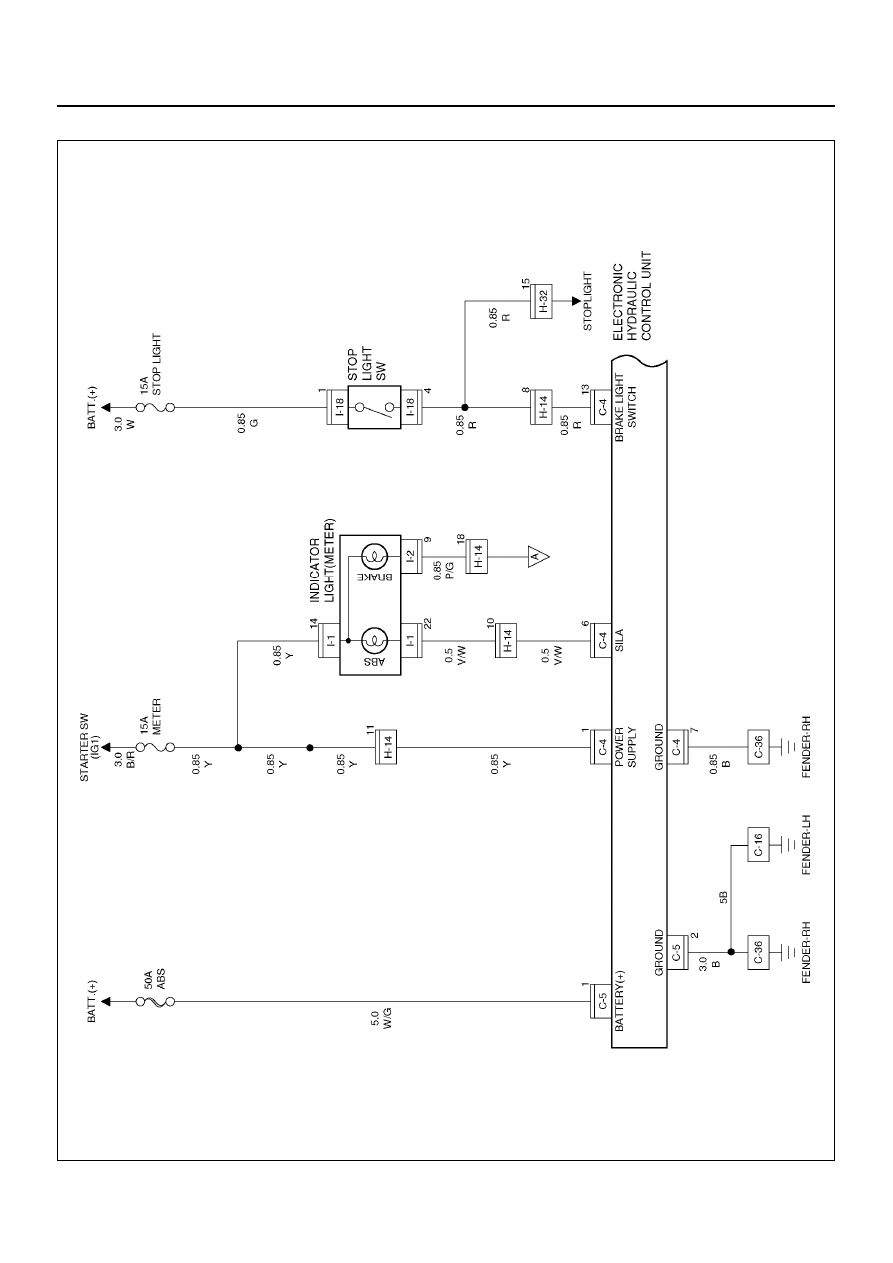

Circuit Diagram

D05R200005

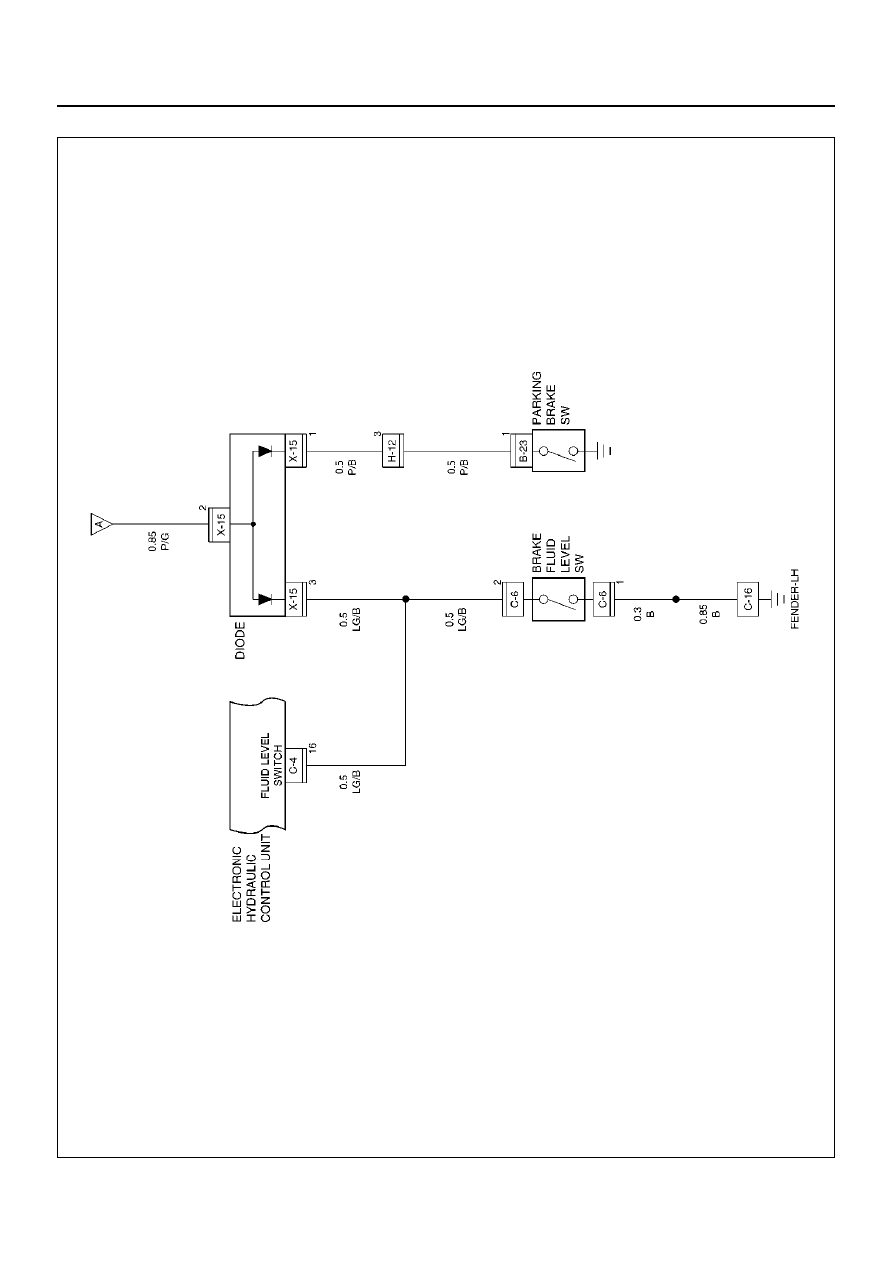

5A–26

BRAKE CONTROL SYSTEM

D05R100002

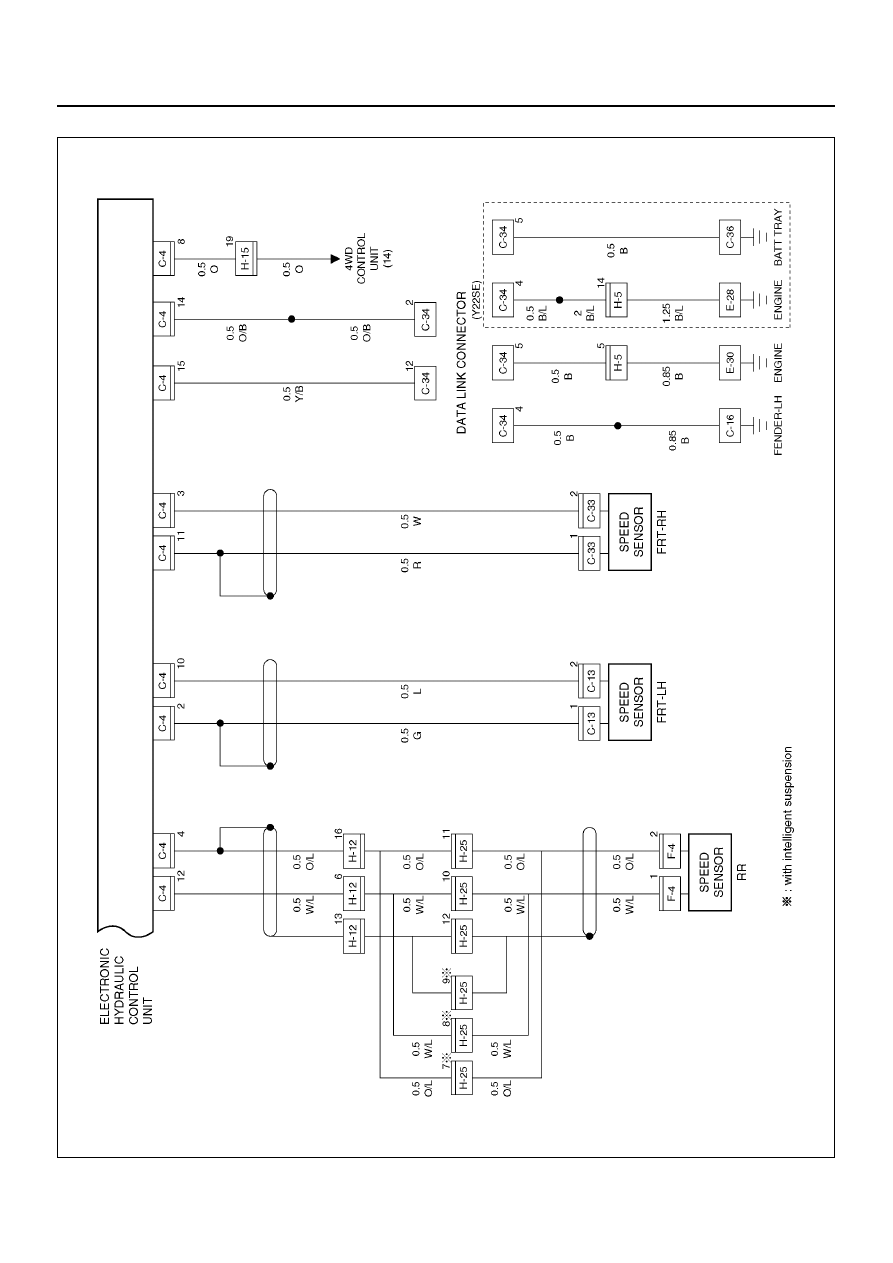

BRAKE CONTROL SYSTEM

5A–27

D05R200006

5A–28

BRAKE CONTROL SYSTEM

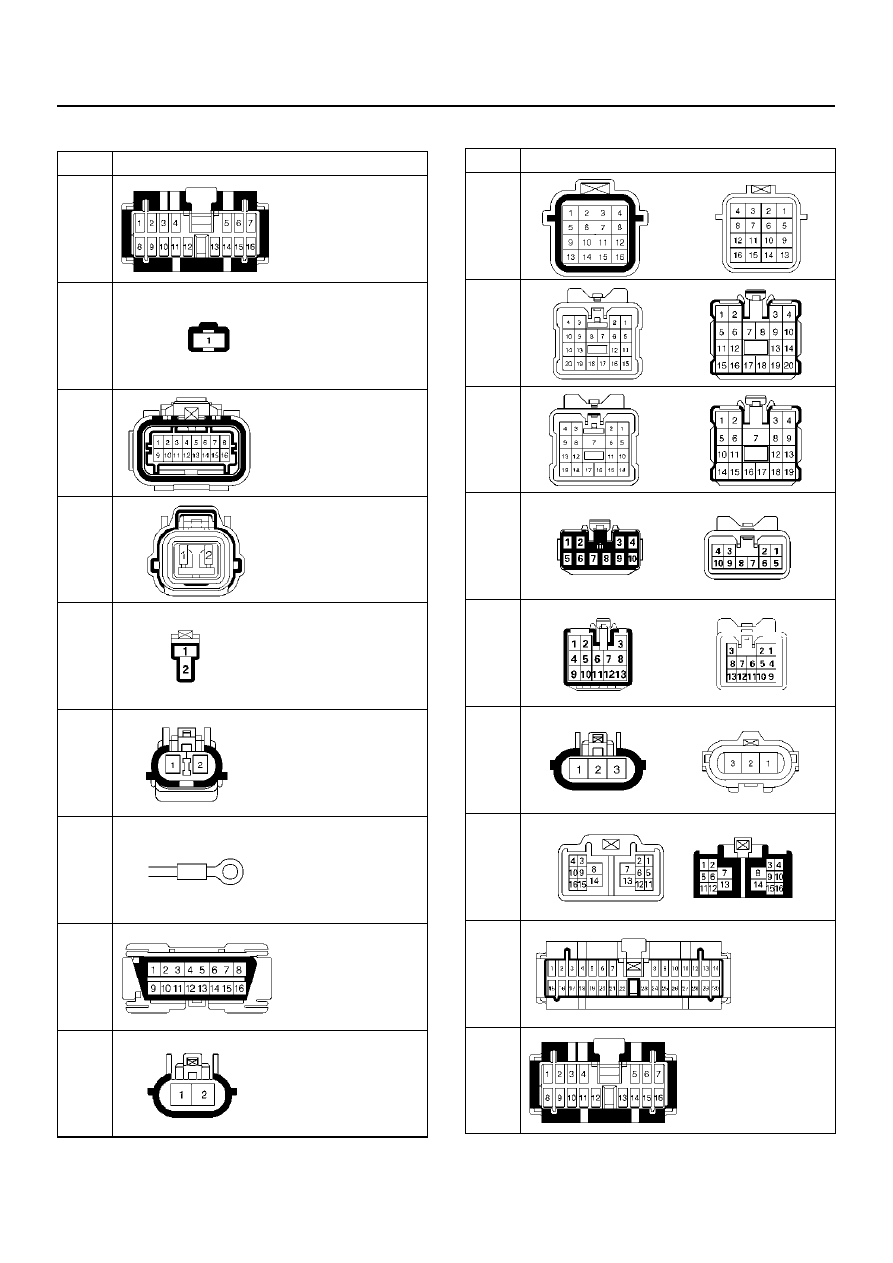

Connector List

No.

Connector face

B-19

B-23

C-4

C-5

C-6

C-13
C-33

C-16
C-36

E-28
E-30

C-34

F-4

H-5

H-12
H-15
H-25

H-14

H-25

(Intelli

gent

Sus)

H-25

H-26

H-32

I-1

I-2

No.

Connector face
