BRAKE CONTROL SYSTEM
5A–17

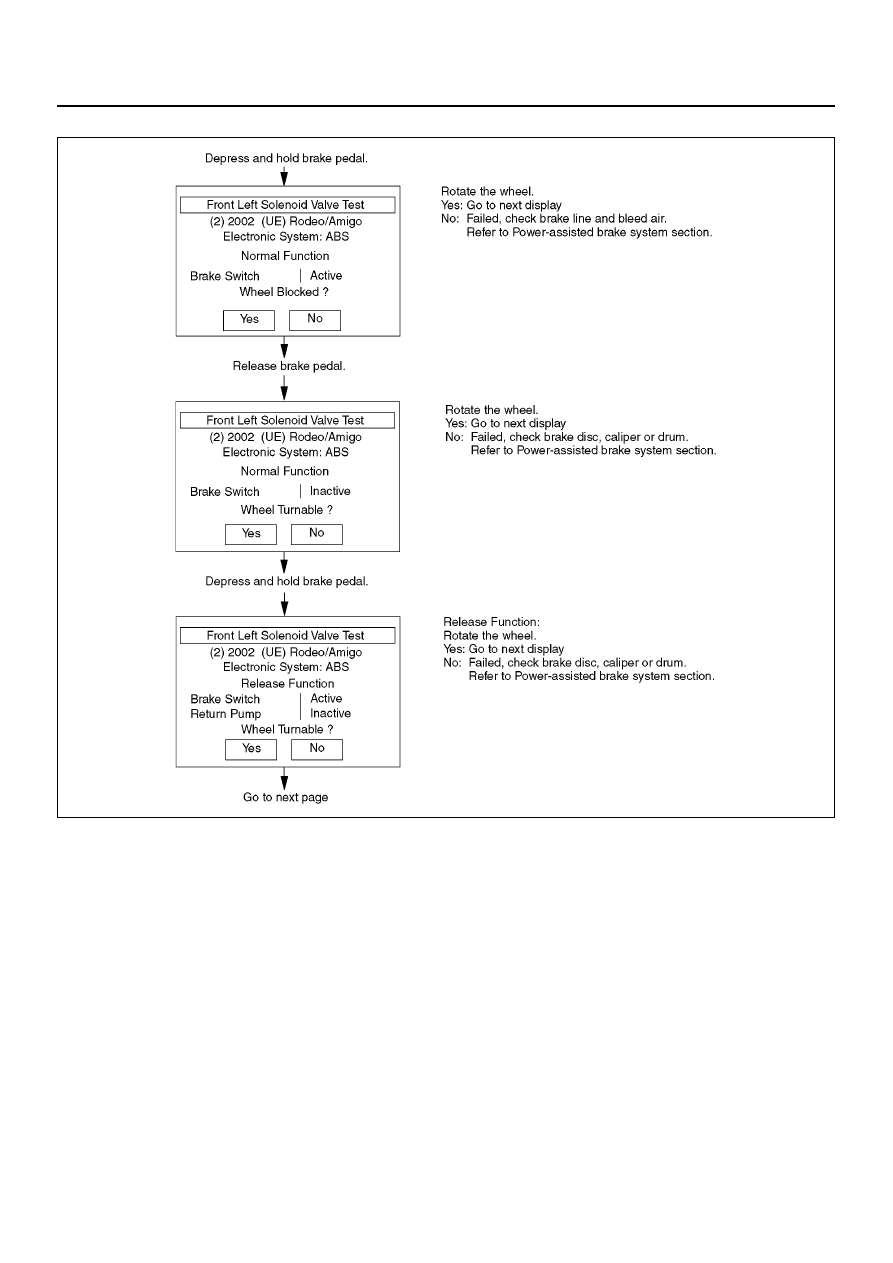

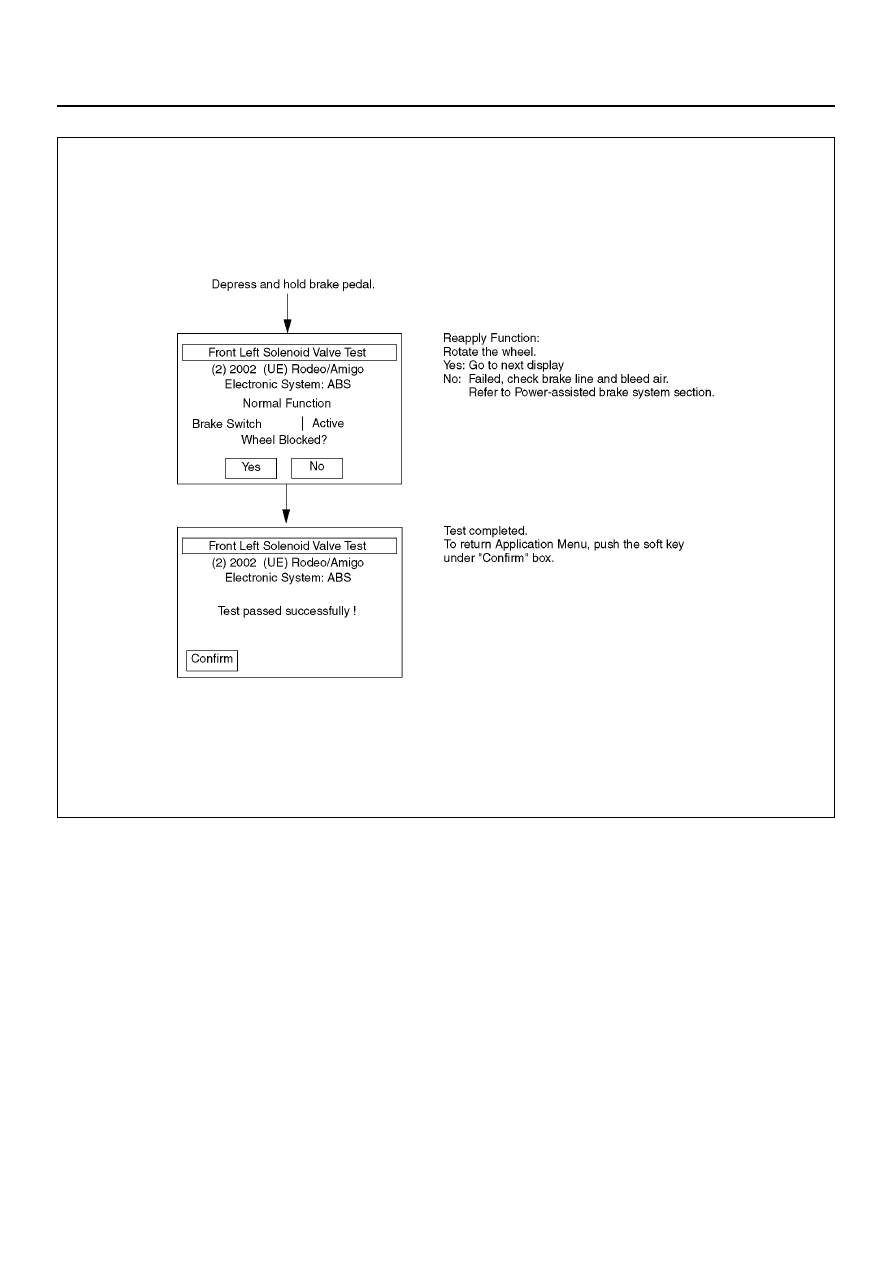

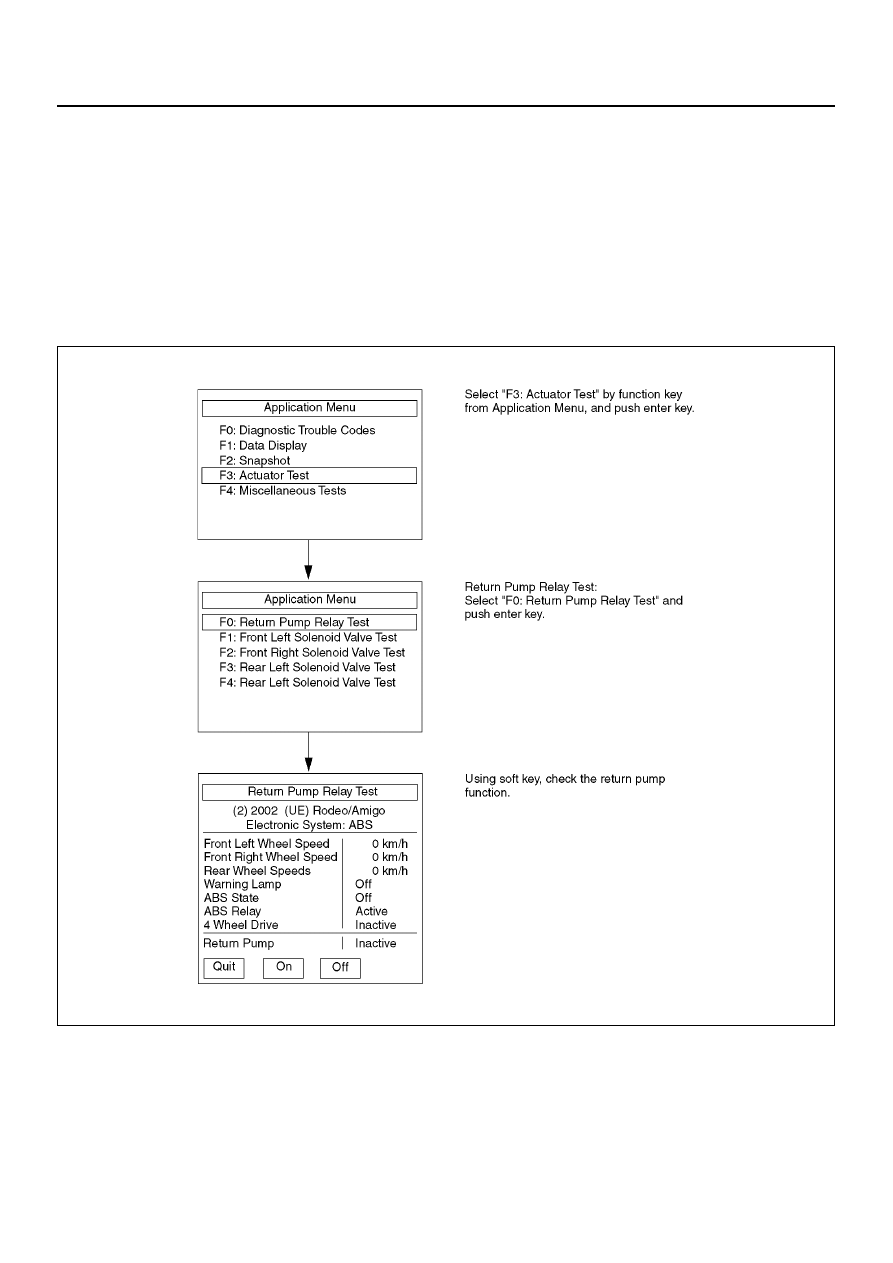

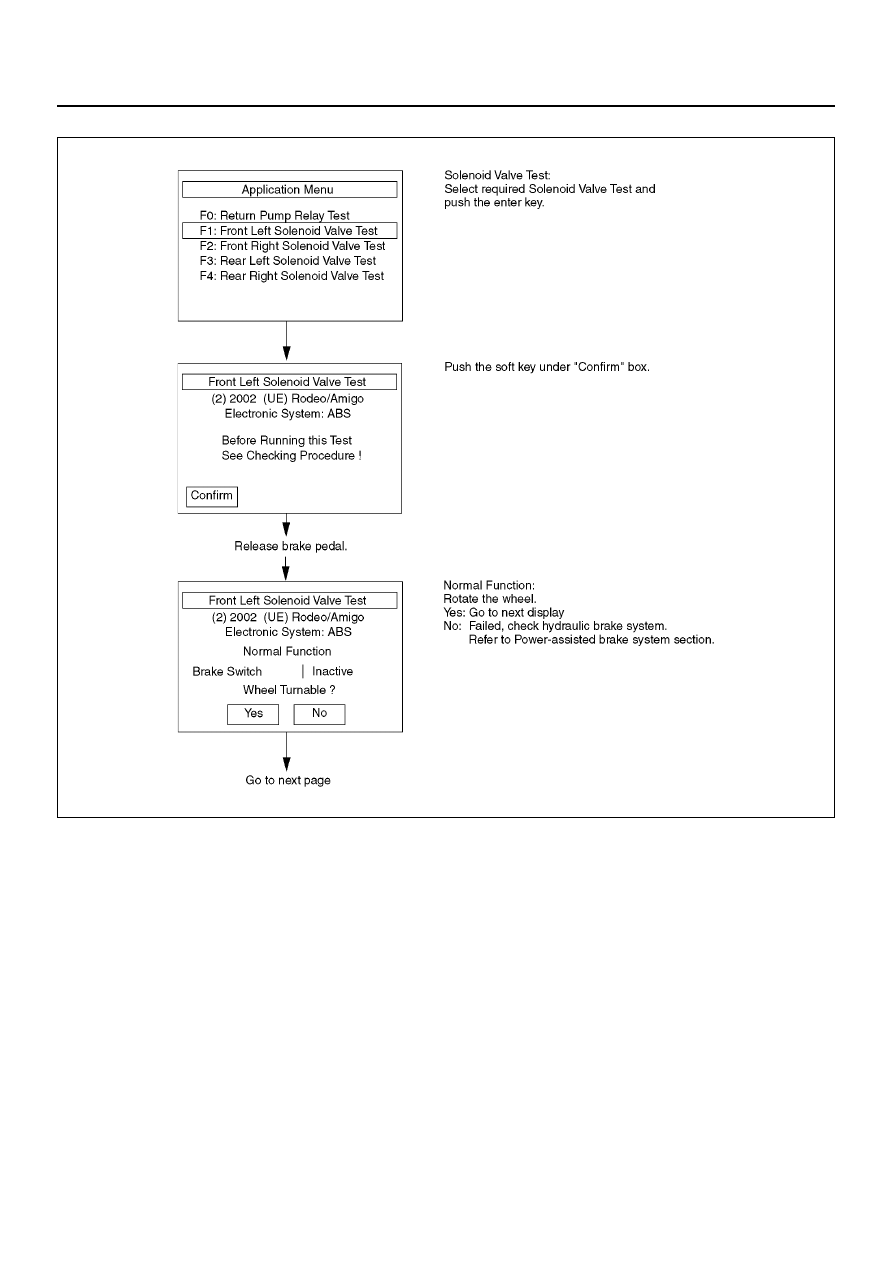

ACTUATOR TEST
This mode is used to exercise the ABS actuators and
make sure they operate normally. Prior to the test, pay
attention to the cautions below. (When checking the
solenoid valve system, be sure to jack up the vehicle.)
CAUTION:
• Before testing, be sure that the brakes work
normally.
• Make sure that the battery is fully charged.
Conduct the test by two persons (A TECH 2
operator and a vehicle checker).
• Be sure to start ACTUATOR TEST with the engine
stopped.
• Before testing, make sure that electrical trouble,
if any, has been completely repaired.
Conducting tests of ABS solenoid with electrical
circuit problem remaining uncorrected could
damage the control unit.
F05R200007
