TRANSFER CASE

4D–37

Main Data and Specifications

General Specifications

Torque Specifications

E07RW022

Type

Synchronized type gears shifting between the 2 and 4 wheel drive mode.
Constant mesh type gears shifting between “low" and “high".

Control method

Remote (A/T) and direct (M/T) control with the gear shift lever on the floor for
gears shifting between “low" and “high".
Electric control with the button switch on the instrument panel for gears
shifting between the 2 and 4 wheel driver mode.

Gear ratio

High; 1.000
Low; 2.050

Oil capacity

1.45 lit. (1.53 U.S. quart)

Type of lubricant

Engine oil
Refer to chart in Section 0

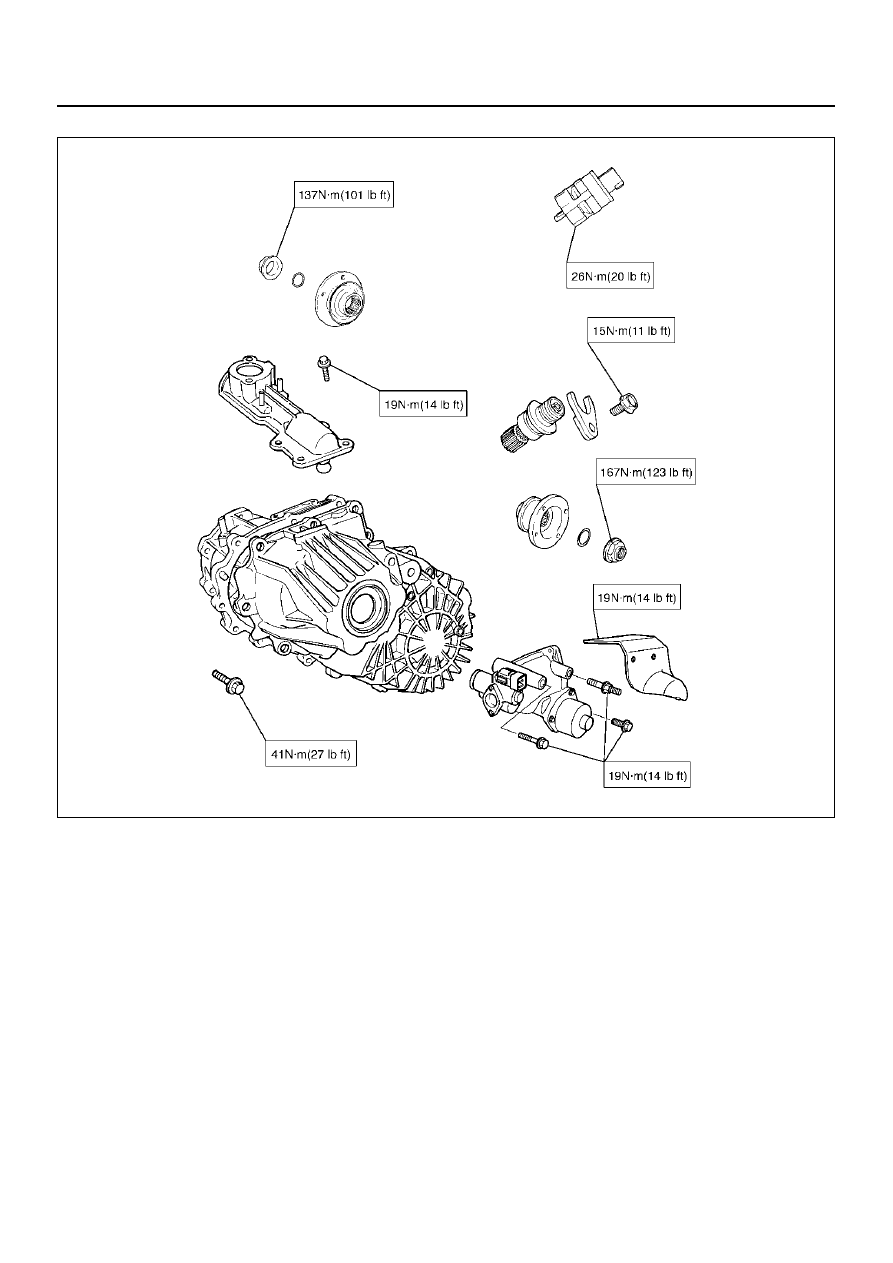

4D–38

TRANSFER CASE

E07RX006

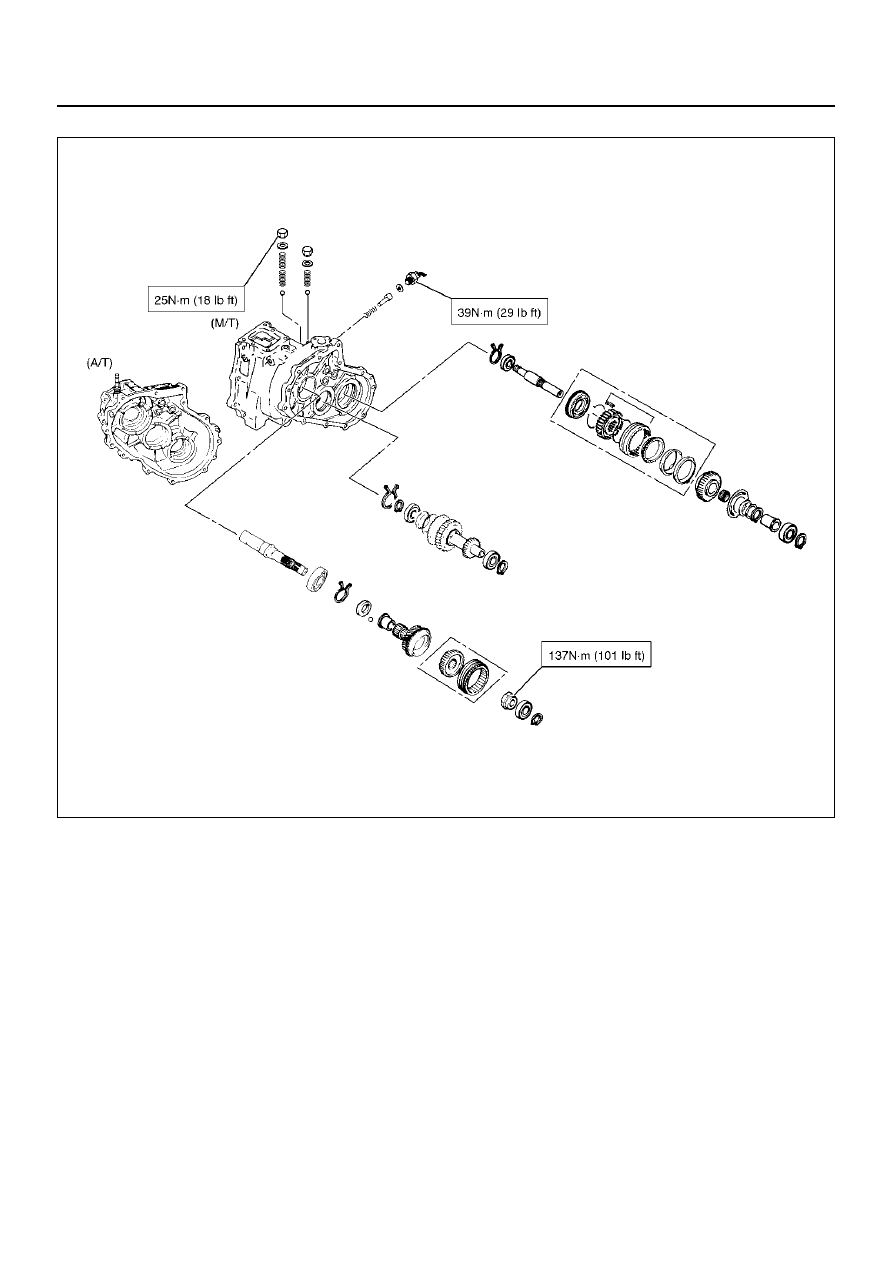

TRANSFER CASE

4D–39

262R100002

4D–40

TRANSFER CASE

Special Tools

ILLUSTRATION

PART NO.

PART NAME

J–22912–01

Bearing remover/installer

J–38592

Transfer case oil seal

installer

J–37219

Mainshaft nut wrench

J–37223

Rear output shaft and

bearing installer

J–39209

Punch; end nut

J–38594

Front output shaft oil seal

installer

J–39208

Rear oil seal installer

J–37486–A

Bearing installer adapter

J–8614–11

Flange holder

J–37217

Mainshaft end bearing

remover

J–37487

Puller

J–8092

Driver handle

ILLUSTRATION

PART NO.

PART NA ME
