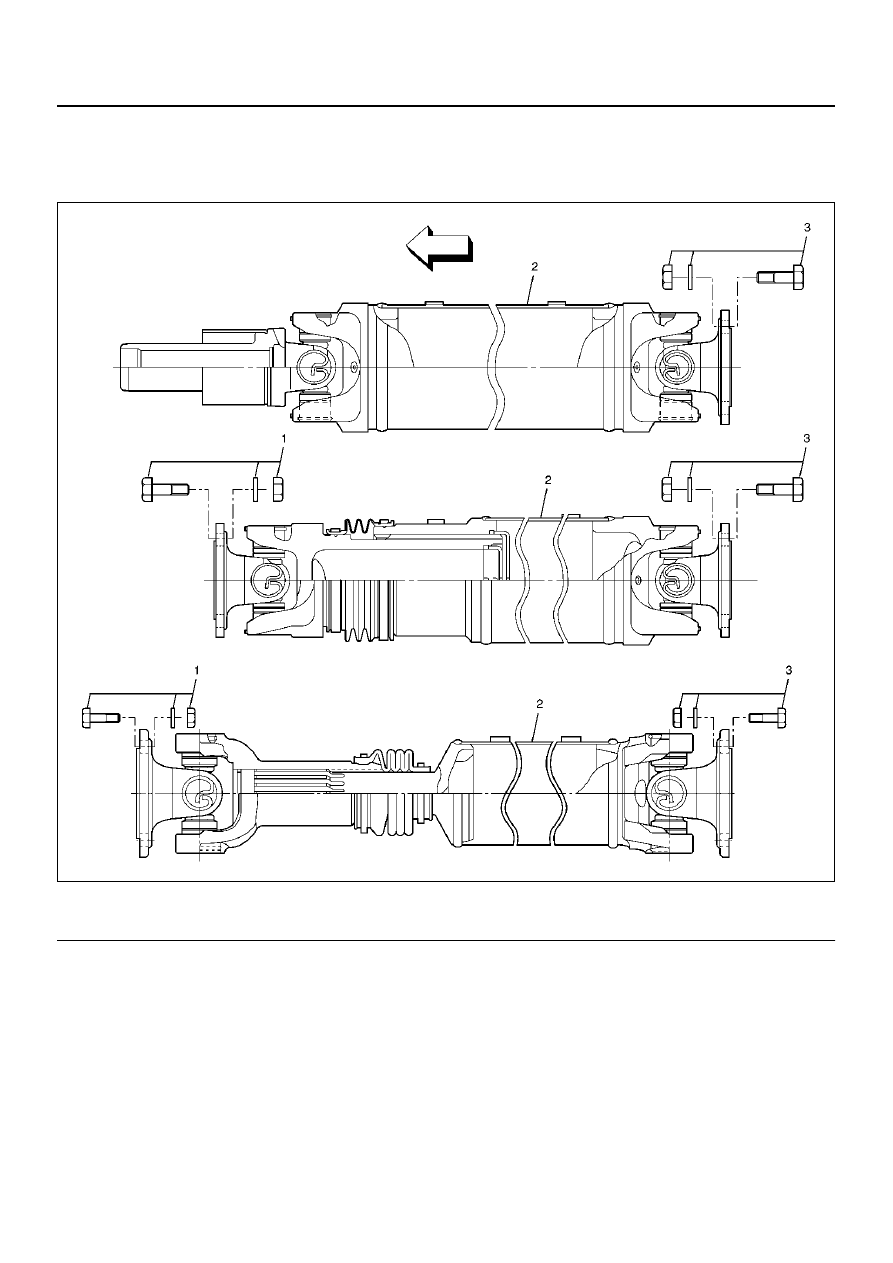

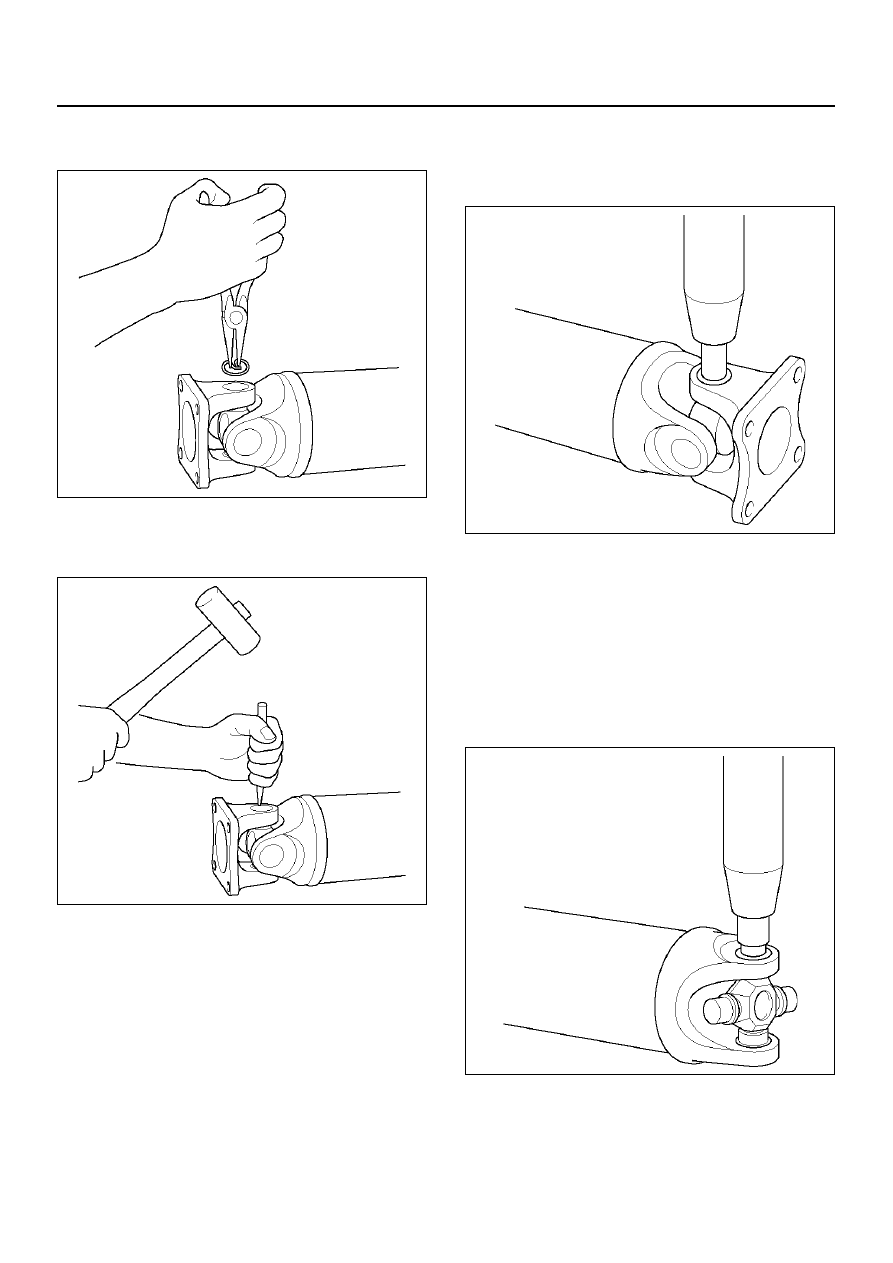

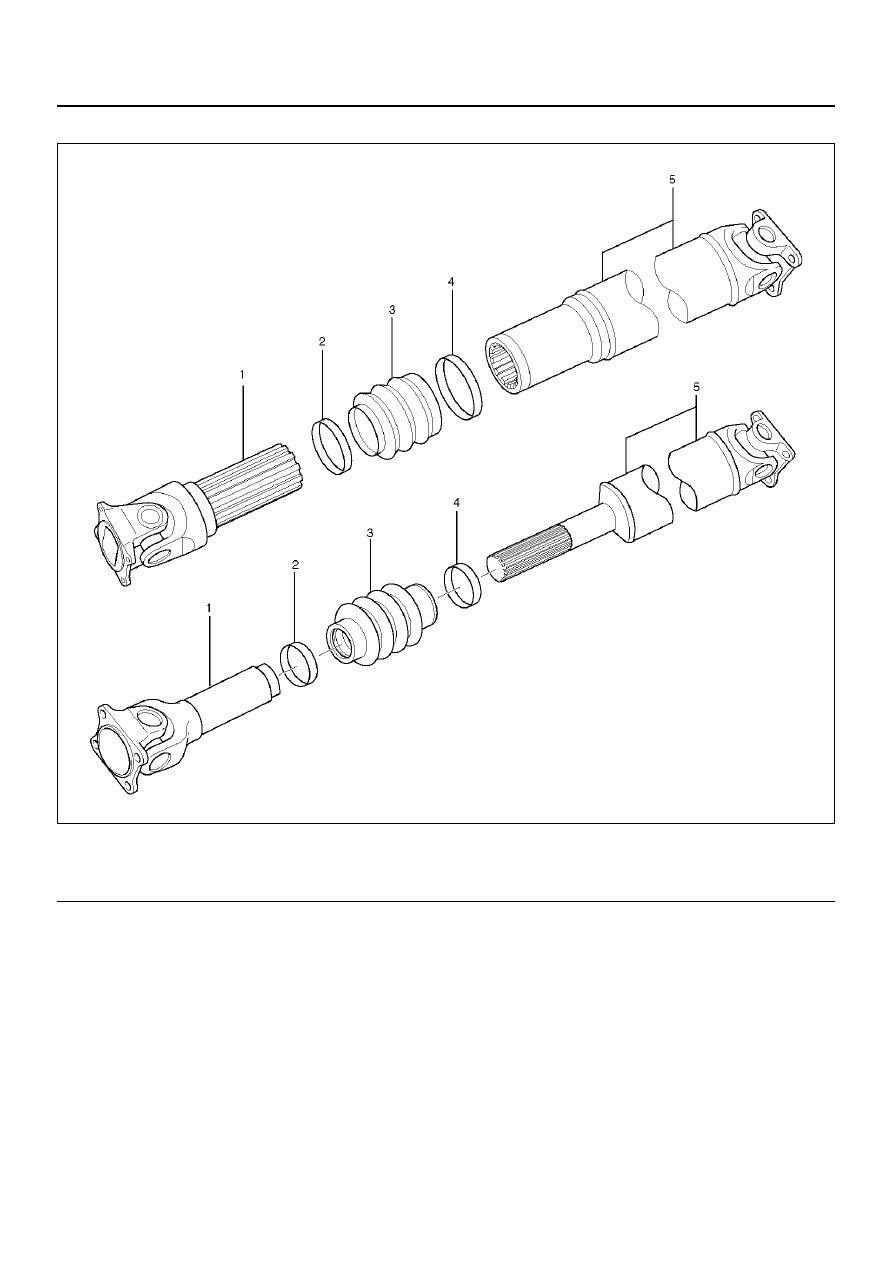

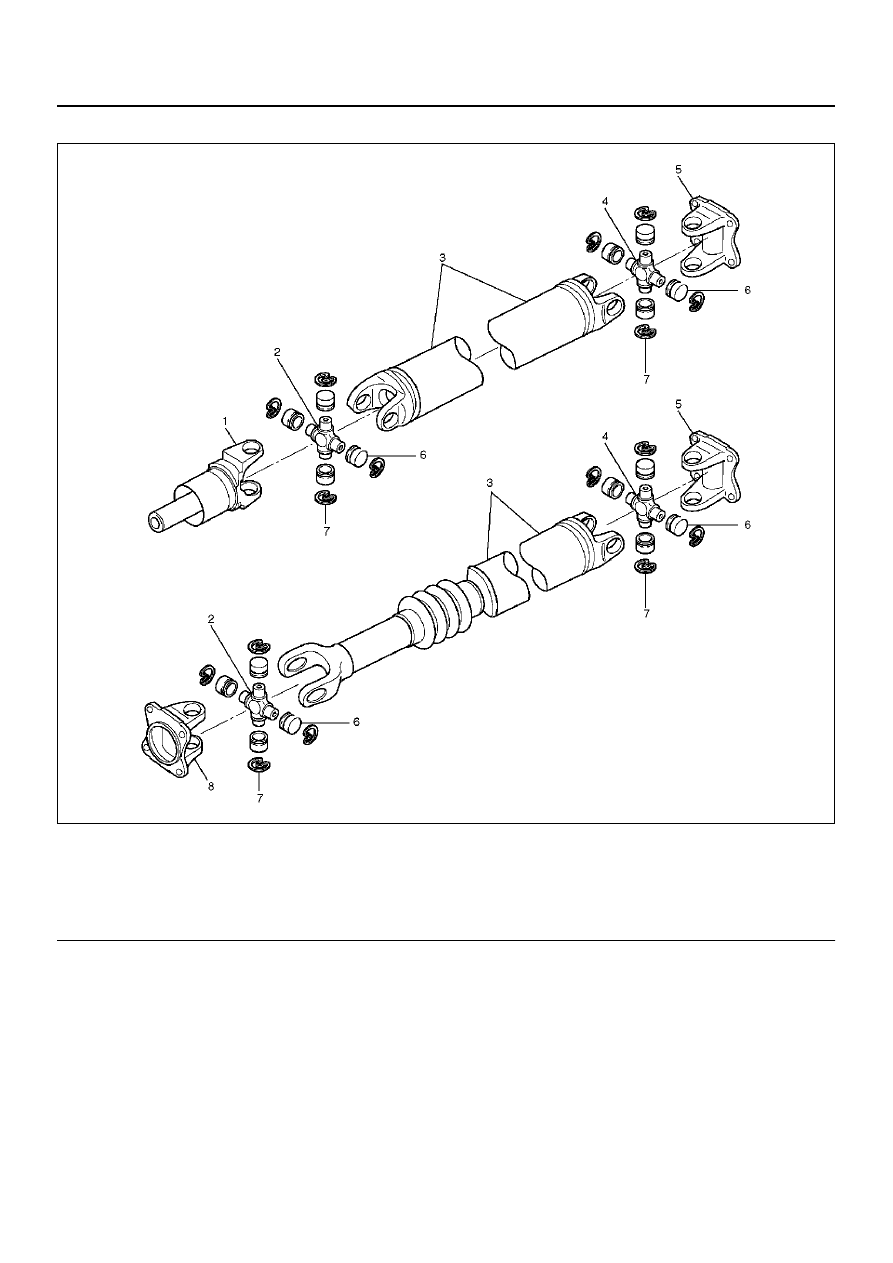

4C–36 DRIVE SHAFT SYSTEM Rear Propeller Shaft Rear Propeller Shaft and Associated Parts 401RX003 EndOFCallout Removal 1. Raise the vehicle on a hoist. NOTE: Apply alignment marks on the flange at the rear 2. Remove transfer side bolt, nut and washer (except spline yoke type). 3. Remove rear axle side bolt, nut and washer. 4. Remove rear propeller shaft. NOTE: Plug the hole of the transmission rear end to Installation NOTE: Never install the shaft assembly backwards. 1. Align the mark which is applied at removal. 2. Install rear propeller shaft and tighten the bolts to the specified torque. Torque: 63 N·m(46 lb ft) Legend (1) Bolt, Nut and Washer (Transfer Side) (2) Rear Propeller Shaft |
