4A2–32

DIFFERENTIAL (REAR)

Main Data And Specifications

General Specifications

Rear axle

Type

Salisbury, Semi–floating

Rear axle Size

226 mm (8.9 in)

Gear type

Hypoid

Gear ratio  (to 1)

4.100 (6VD1 with A/T)

4.300 (6VD1 with M/T)

4.777 (Y22SE)

Differential type

Two pinion

Lubricant Grade

GL–5: (Standard differential)

GL–5, LSD: (Limited slip differential)

 Locking Differential Lubricant

 80W90 GL–5

 (USE Limited Slip Differential Gear Lubricant or Friction

Modifier Organic Additive)

Capacity

1.77 liter (1.87 US qt)

DIFFERENTIAL (REAR)

4A2–33

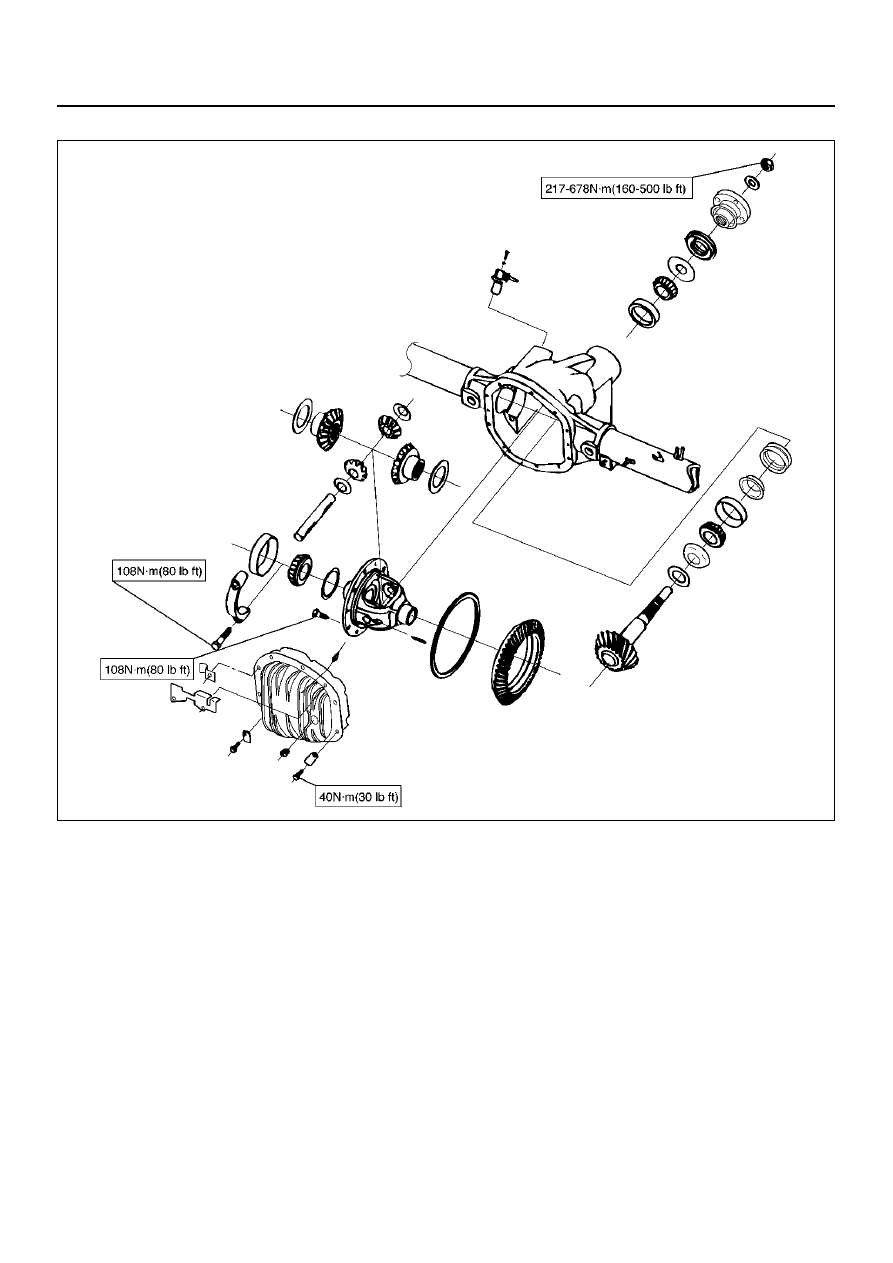

Torque Specifications

E04RX002

4A2–34

DIFFERENTIAL (REAR)

Special Tools

 ILLUSTRATION

 TOOL NO.

 TOOL NAME

J–8614–01

Pinion flange holder

J–37263

Installer; Pinion oil seal

J–42379

Remover; Bearing

J–39830

Adapter; Side bearing

plug

J–8611–01

Installer; Outer bearing

outer race

J–8592

Grip

J–42836

Installer; Inner bearing

outer race

J–42824

Pilot;Outer

J–21777–43

Nut & Stud

J–42827

Pilot;Inner

J–39837–2

Gauge plate

J–8001

Dial indicator

 ILLUSTRATION

 TOOL NO.

 TOOL NAME

DIFFERENTIAL (REAR)

4A2–35

J–39837–1

Disc (2 required)

J–23597–1

Arbor

J–42828

Installer; Pinion bearing

J–21784

Installer; Side bearing

J–39602

Remover; Outer bearing

J–24385–B

Spreader

 ILLUSTRATION

 TOOL NO.

 TOOL NAME

J–39858

Clutch pack unloading

tool kit Includes

J–34174–1/J–34174–2

Screw cap and Cap

J–22342–15

Forcing screw

J–39834

Limited–slip differential

(LSD) service adapter

J–39824

Holder

J–39836

Side bearing preload

master bearings

 ILLUSTRATION

 TOOL NO.

 TOOL NAME
