1A–22 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Rear Heater Duct, Defroster Nozzle and Ventilation Duct

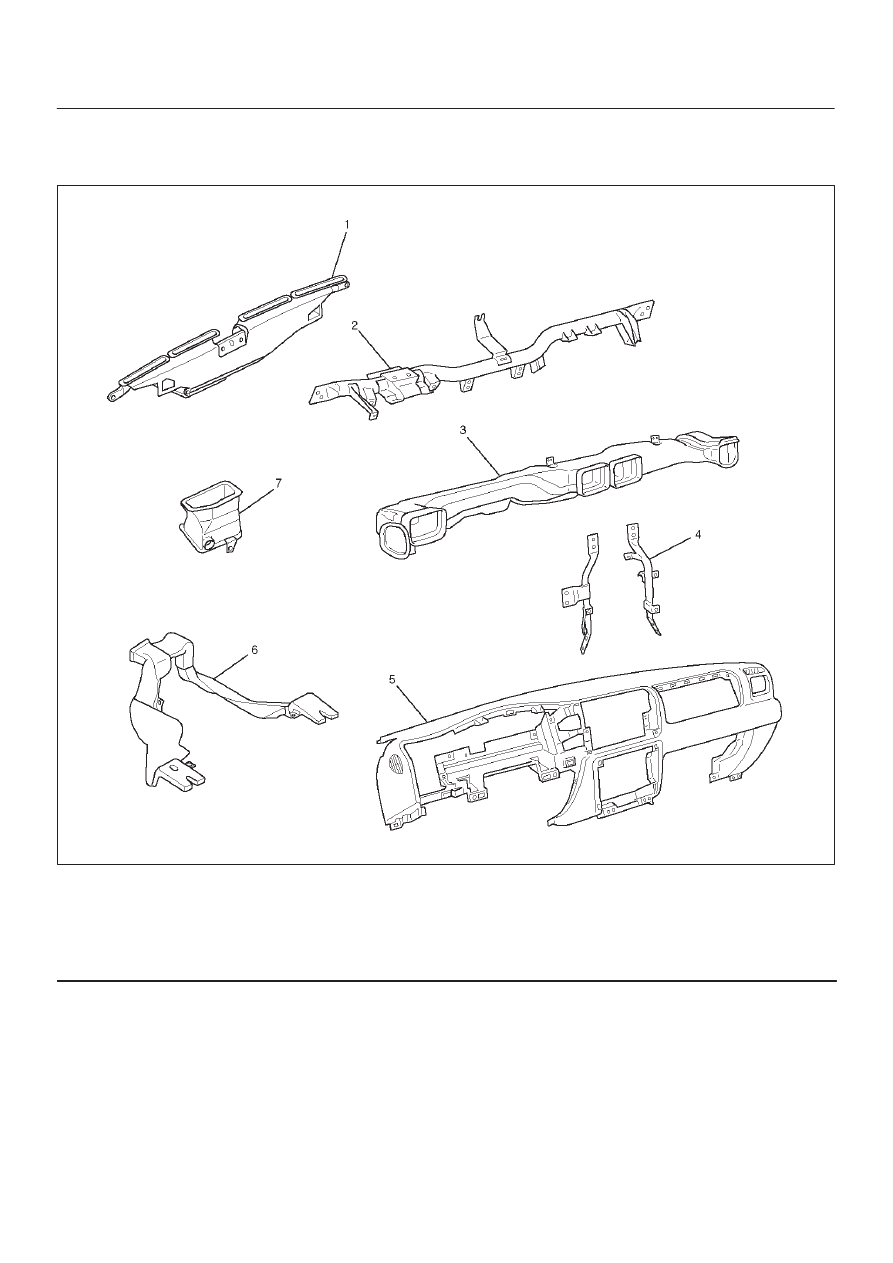

Rear Heater Duct, Defroster Nozzle, Ventilation Duct and Associated Parts

840RY00031

Legend

(1) Defroster Nozzle
(2) Cross Beam Assembly
(3) Center Ventilation Duct and Side Defroster

Duct

(4) Instrument Panel Bracket
(5) Instrument Panel Assembly
(6) Rear Heater Duct
(7) Ventilation Lower Duct

Removal

1. Disconnect the battery ground cable.
2. Remove instrument panel assembly.

D

Refer to Instrument Panel Assembly in Body and
Accessories section.

3. Remove center ventilation duct and side defroster

duct.

D

Remove 5 screws.

4. Remove instrument panel brackets.

D

Refer to Cross Beam Assembly in Body and
Accessories section.

5. Remove cross beam assembly.

D

Refer to Cross Beam Assembly in Body and
Accessories section.

6. Remove ventilation lower duct.
7. Remove rear heater duct.

D

Remove foot rest carpet and 3 clips.

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–23

8. Remove defroster nozzle.

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. Connect each duct and nozzle securely leaving no

clearance between them and making no improper
matching.

Control Lever Assembly and / or Control Cable

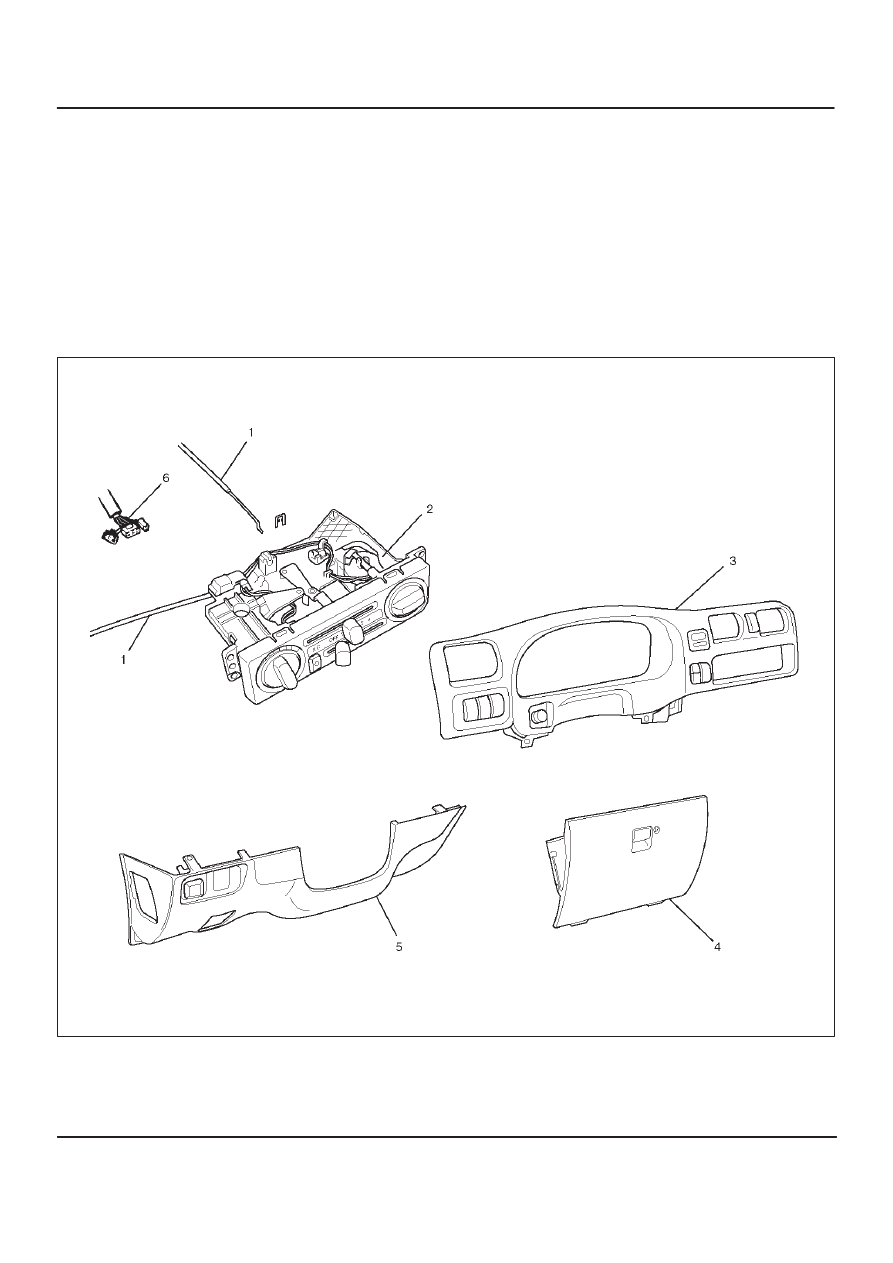

Control Lever Assembly, Control Cable and Associated Parts

865RY00014

Legend

(1) Control Cable
(2) Control Lever Assembly
(3) Meter Cluster Assembly

(4) Glove Box
(5) Instrument Panel Driver Lower Cover

Assembly

(6) Fan Switch Air Conditioning Switch Connector

1A–24 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Removal

1. Disconnect the battery ground cable.
2. Remove instrument panel driver lower cover

assembly.

3. Remove meter cluster assembly.

D

Refer to Instrument Panel Assembly in Body and
Accessories section.

4. Remove glove box.
5. Remove the control lever attaching screws.

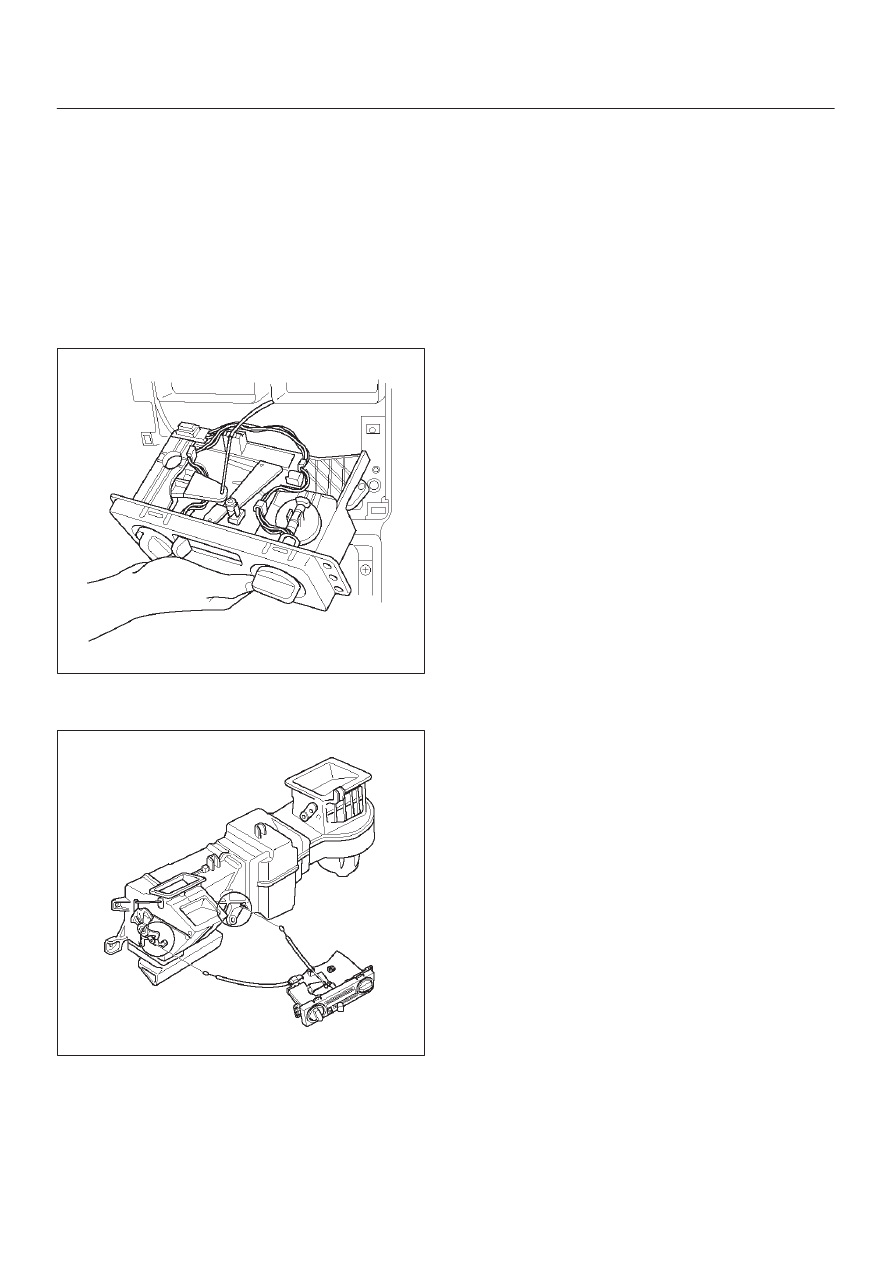

6. Pull the control lever assembly out and disconnect the

fan switch and air conditioning switch connectors.

865RY00015

7. Remove control level assembly.
8. Disconnect control cables at each unit side.

865RY00016

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–25

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

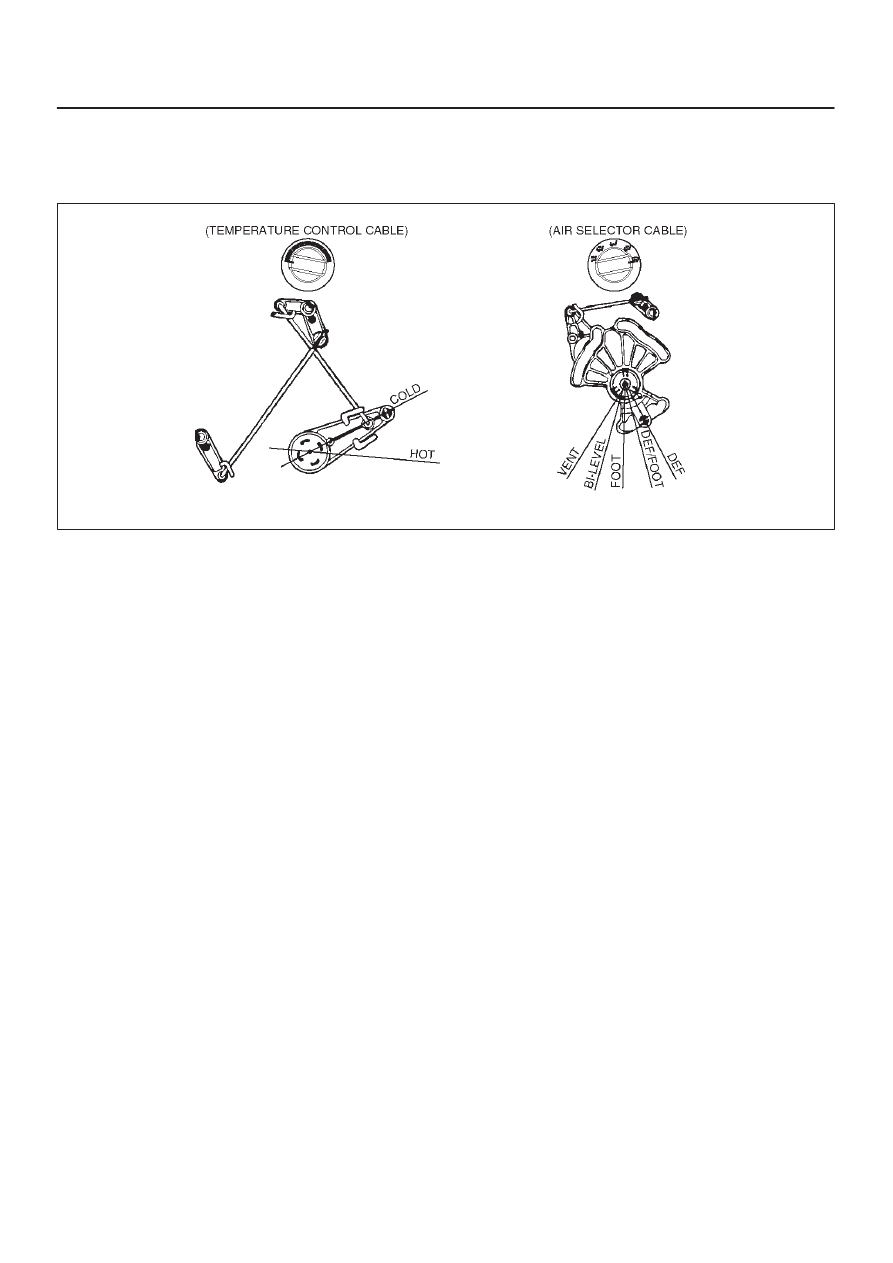

1. Adjust the control cable.

865RY00017

D

Temperature control cable.

1. Turn the control knob to the left (“MAX COLD”

position).

2. Connect the control cable at the “COLD”

position of the temperature control link of the
heater unit and secure it with the clip.

D

Air select control cable

1. Turn the control knob to the right (“DEFROST”

position).

2. Connect the control cable at the “DEFROST”

position of the mode control link of the heater
unit and secure it with the clip.

2. Check the control cable operation.
