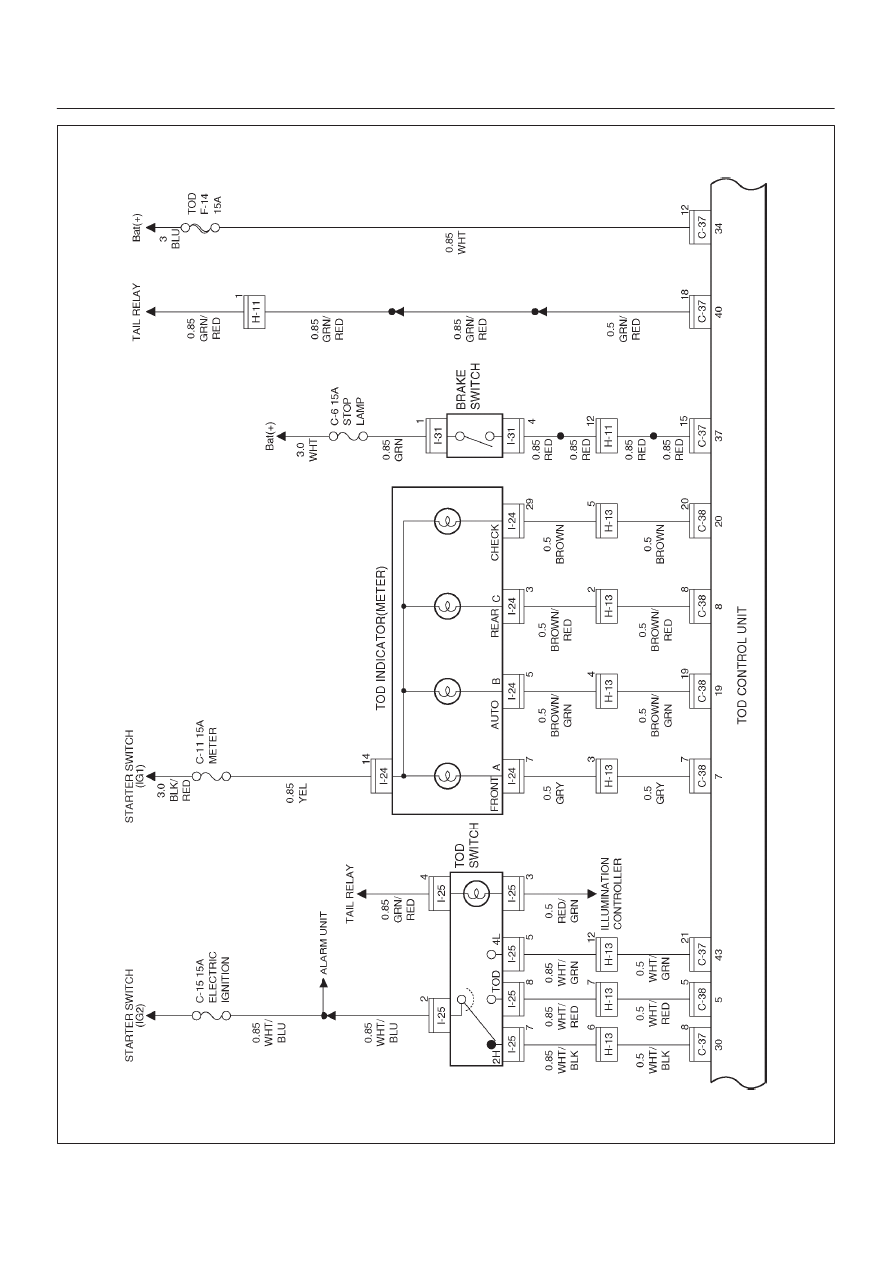

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–22

D04R200020

4B2–23

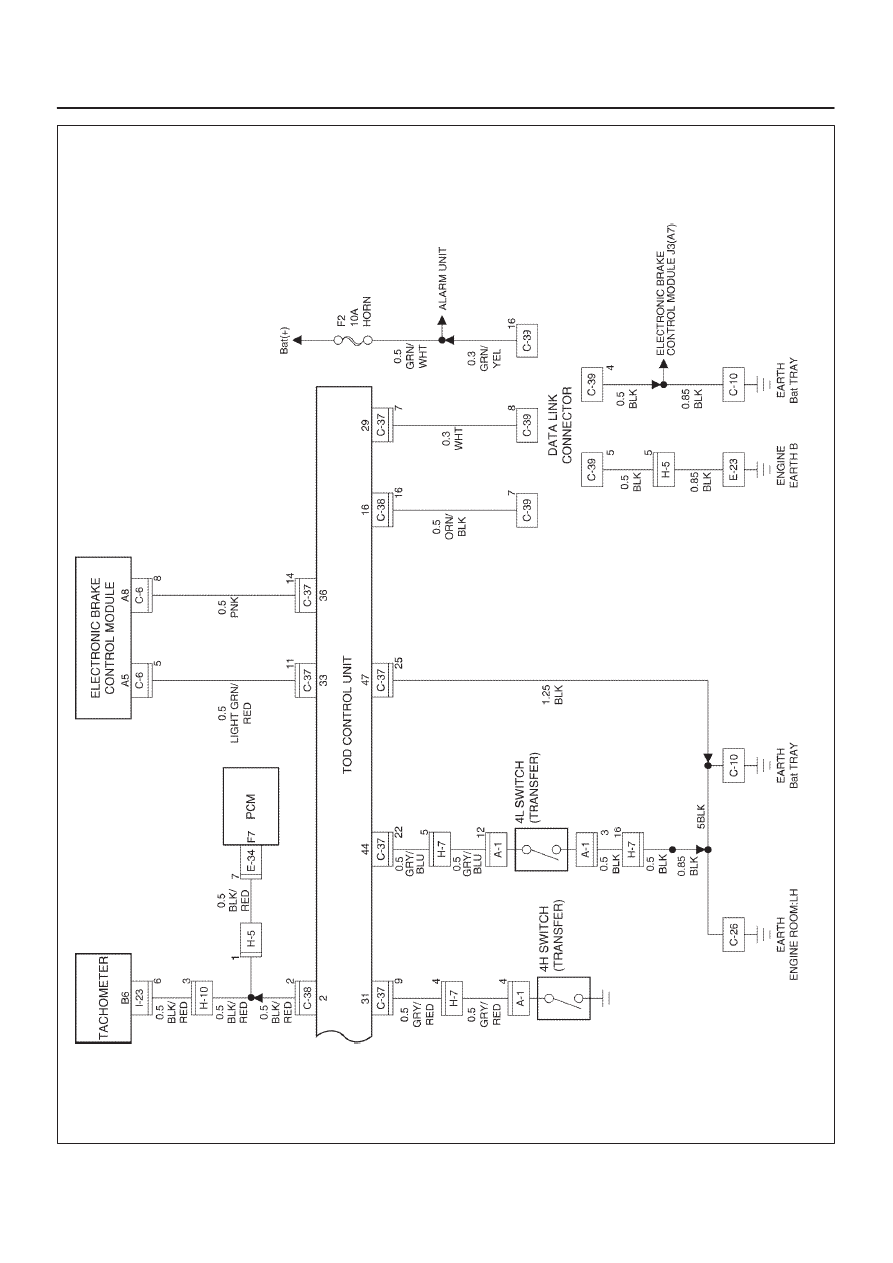

DRIVE LINE CONTROL SYSTEM (TOD)

D04R200004

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–24

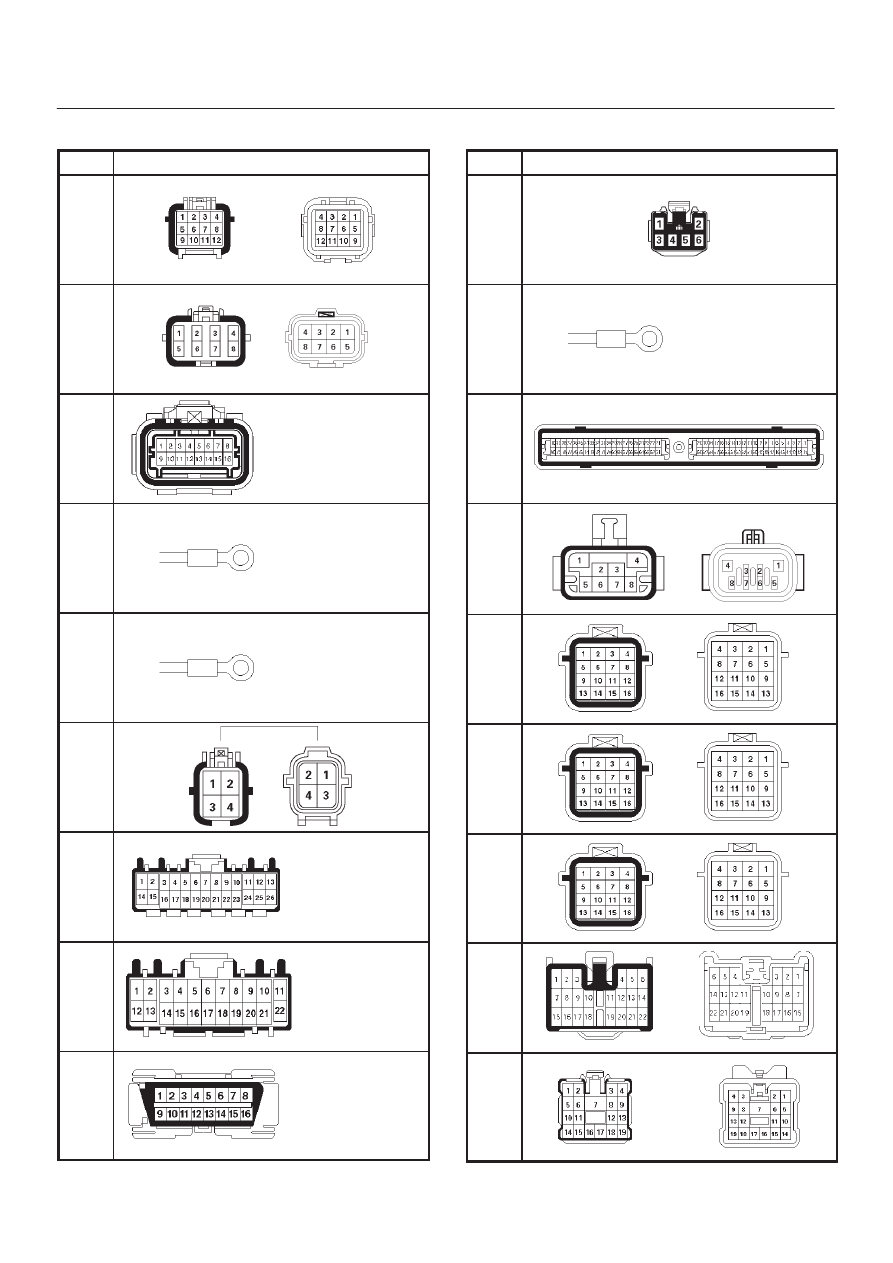

Connector List

No.

Connector face

A-1

A-2

C-6

C-10

C-26

C-29

C-37

C-38

C-39

No.

Connector face

C-41

E-23

E-34

E-41

H-5

6VD1

H-3

H-7

H-10

H-11

4B2–25

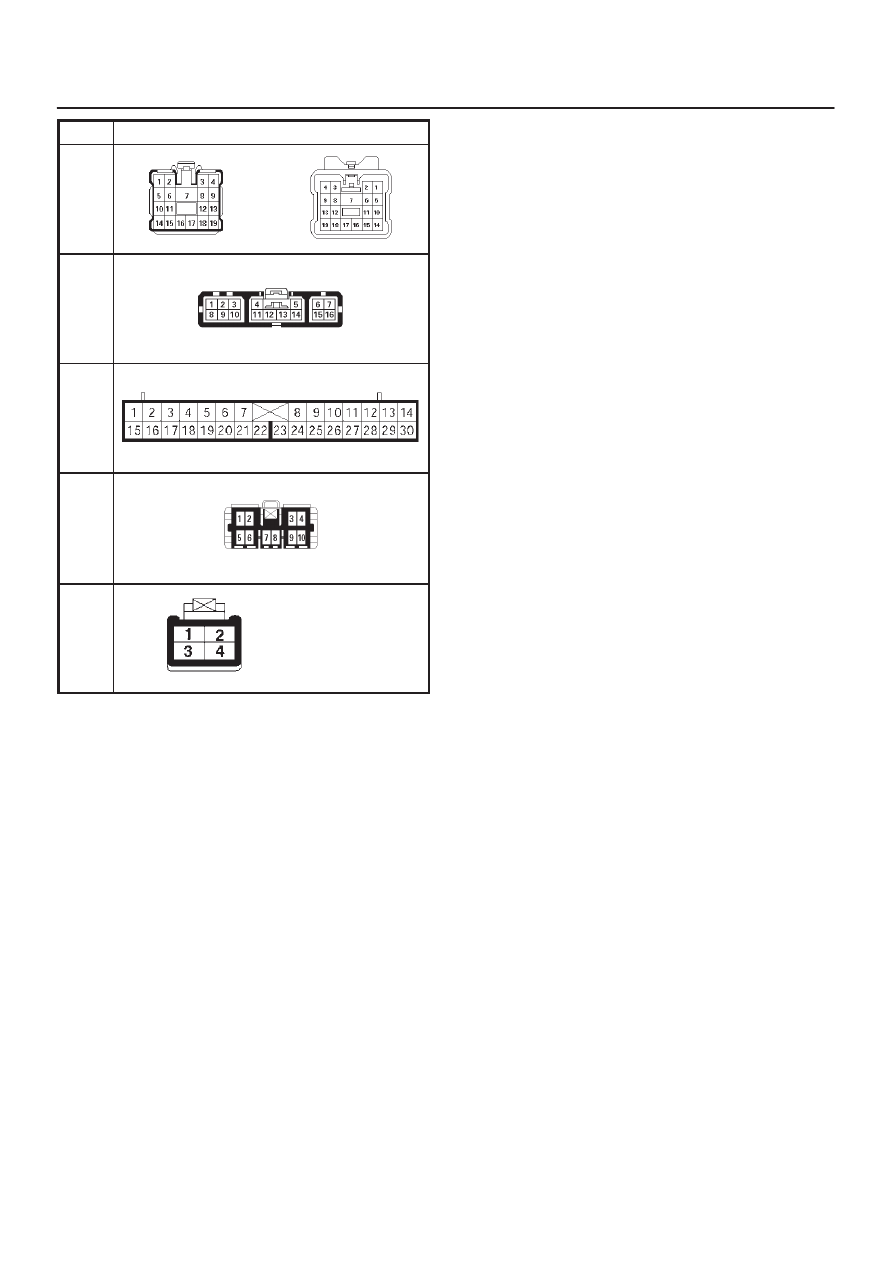

DRIVE LINE CONTROL SYSTEM (TOD)

No.

Connector face

H-13

I-23

I-24

I-25

I-31
