8F–54

BODY STRUCTURE

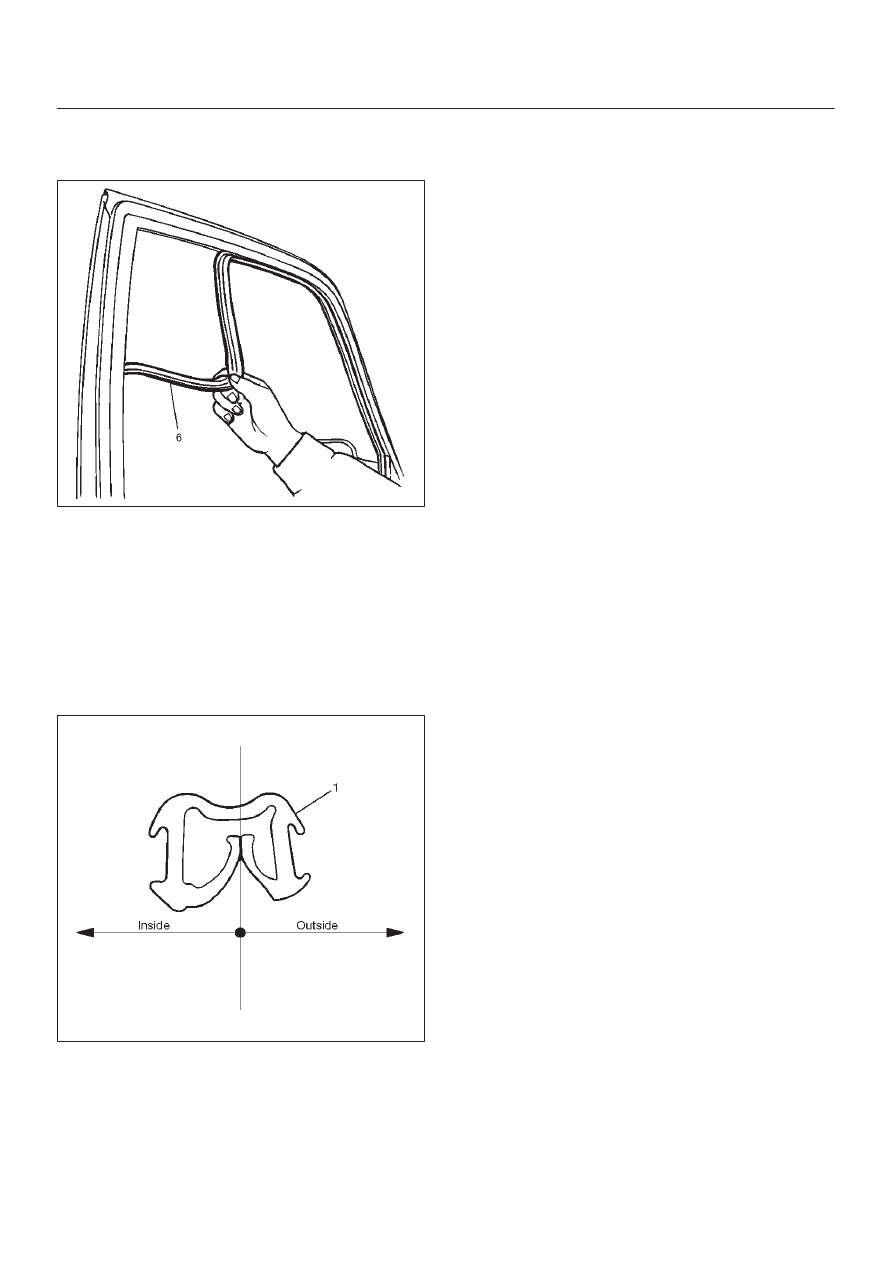

7. Remove glass run.

D

Pull the glass run (6) out from the door frame
groove.

631RS007

8. Remove rear guide rail.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply soap and water to the door frame groove. Insert

the glass run (1) to the door frame from the A corner in
the arrow–marked directions.
Install the glass run with its wider end pointed to the
inside of the vehicle.

A10RS023

2. Set the glass into the door panel with the front side of

the glass lowered and insert the rear side of the glass
into the glass run (1). Then insert the front side of the
glass into the glass run in order to install the glass to
the glass run while raising it up along the glass run.

3. Tighten the window regulator and the glass fixing

bolts and nuts to the specified torque.

Torque : 8  N

•

m (69  lb in)

4. Check to see of the window regulator operates

smoothly and the glass opens and closes properly.
Install the waterproof sheet with no clearance
between the door panel and the waterproof sheet.

8F–55

BODY STRUCTURE

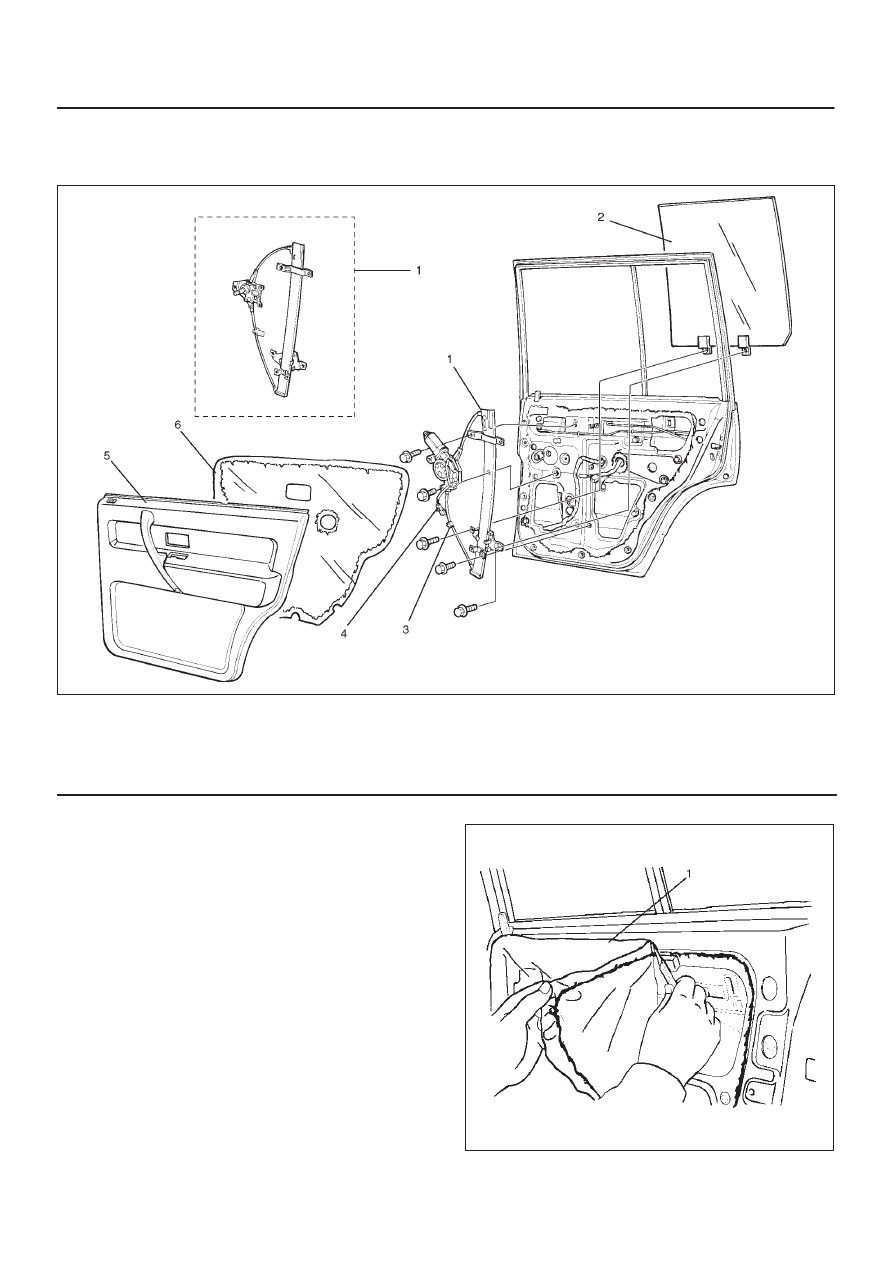

Rear Window Regulator And Glass

Parts Location

651R200006

Legend

(1) Window Regulator
(2) Glass
(3) Cable Fixing Clip

(4) Window Regulator Motor Connector
(5) Door Trim Panel
(6) Waterproof Sheet

Removal

1. Disconnect the battery ground cable.
2. Remove door trim panel.

D

Refer to Rear Door Trim Panel in Exterior / Interior
Trim section.

3. Remove waterproof sheet (1).

D

Taking notice of the door harness, peel the
waterproof sheet off the door panel carefully.

651RS002

8F–56

BODY STRUCTURE

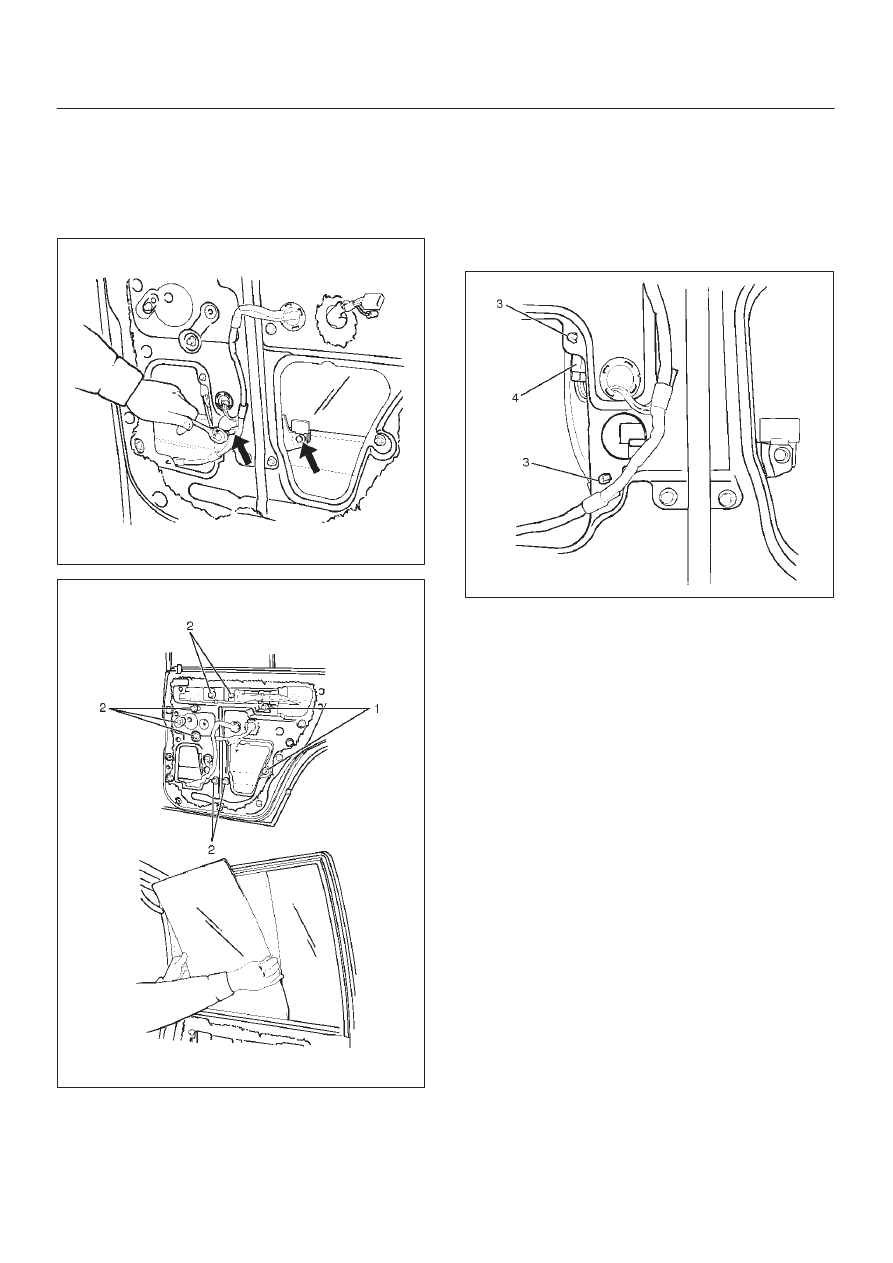

4. Remove glass.

D

Bring the glass down to the position where the bolt
can be seen.

D

Remove the sash division 2 fixing bolts (1) and then
remove the glass fixing bolt to remove the glass
upwards.

651RS003

651RW010

5. Remove window regulator.

D

Disconnect the regulator motor connector (4) and
remove the window regulator cable fixing clip (3)
from the door panel, if model is equipped with power
windows.

D

Remove the window regulator 7 fixing bolts (2) and
pull the regulator out from the lower hole of the door
panel.

651RW011

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the window regulator and the glass fixing

bolts to the specified torque.

Torque : 8  N

•

m (69  lb in)

2. Install the waterproof sheet with no clearance

between the door panel and the waterproof sheet.

8F–57

BODY STRUCTURE

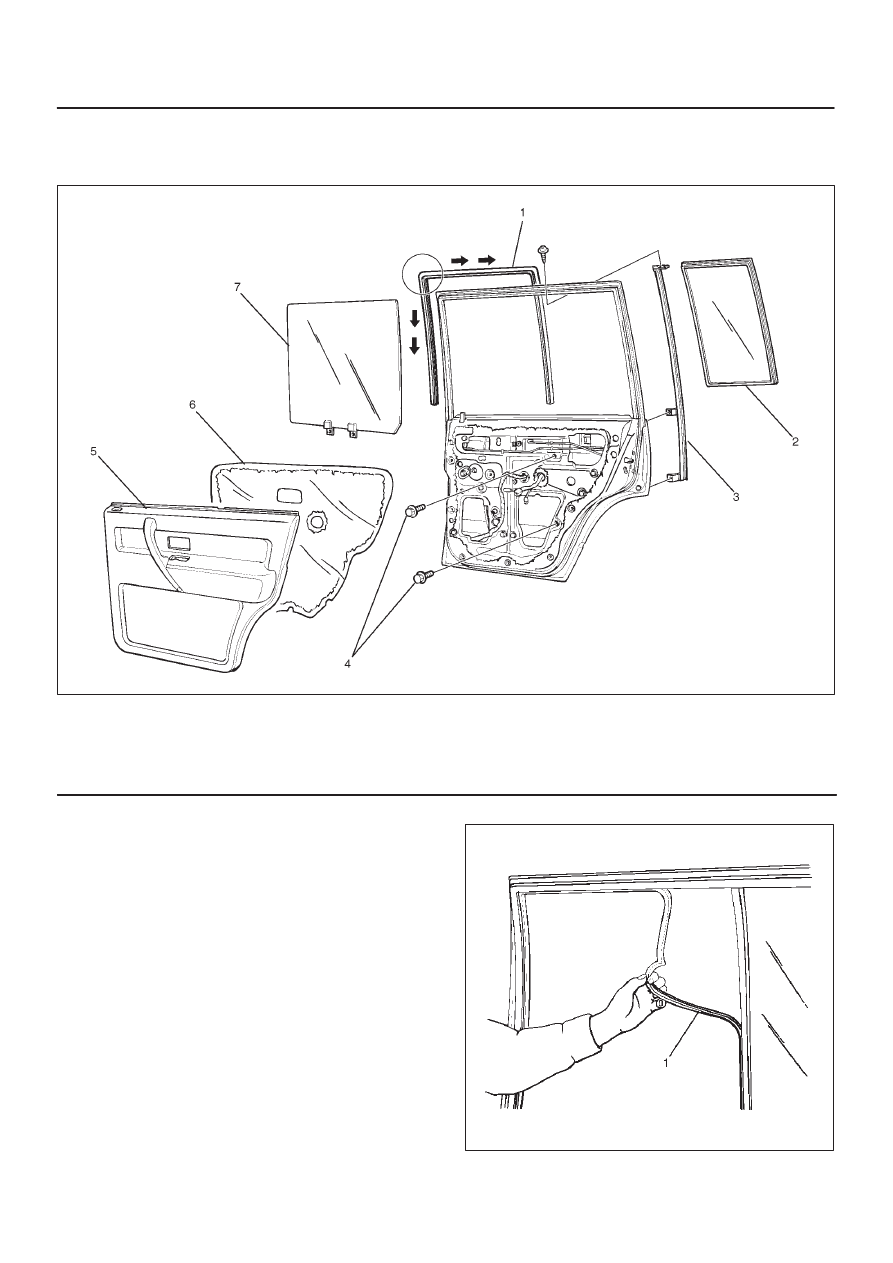

Rear Door Fixed Glass And Glass Run

Parts Location

651R200007

Legend

(1) Glass Run
(2) Rear Fixed Glass
(3) Sash Division

(4) Sash Division Fixing Bolts
(5) Door Trim Panel
(6) Waterproof Sheet
(7) Glass

Removal

1. Disconnect the battery ground cable.
2. Remove door trim panel.
3. Remove waterproof sheet.
4. Remove glass.

D

Refer to Rear Window Regulator and Glass in this
section.

5. Remove glass run.

D

Pull the glass run (1) out from the door frame.

651RS007
