4B1–5

DRIVELINE CONTROL SYSTEM

Shift On The Fly Electrical Equipment

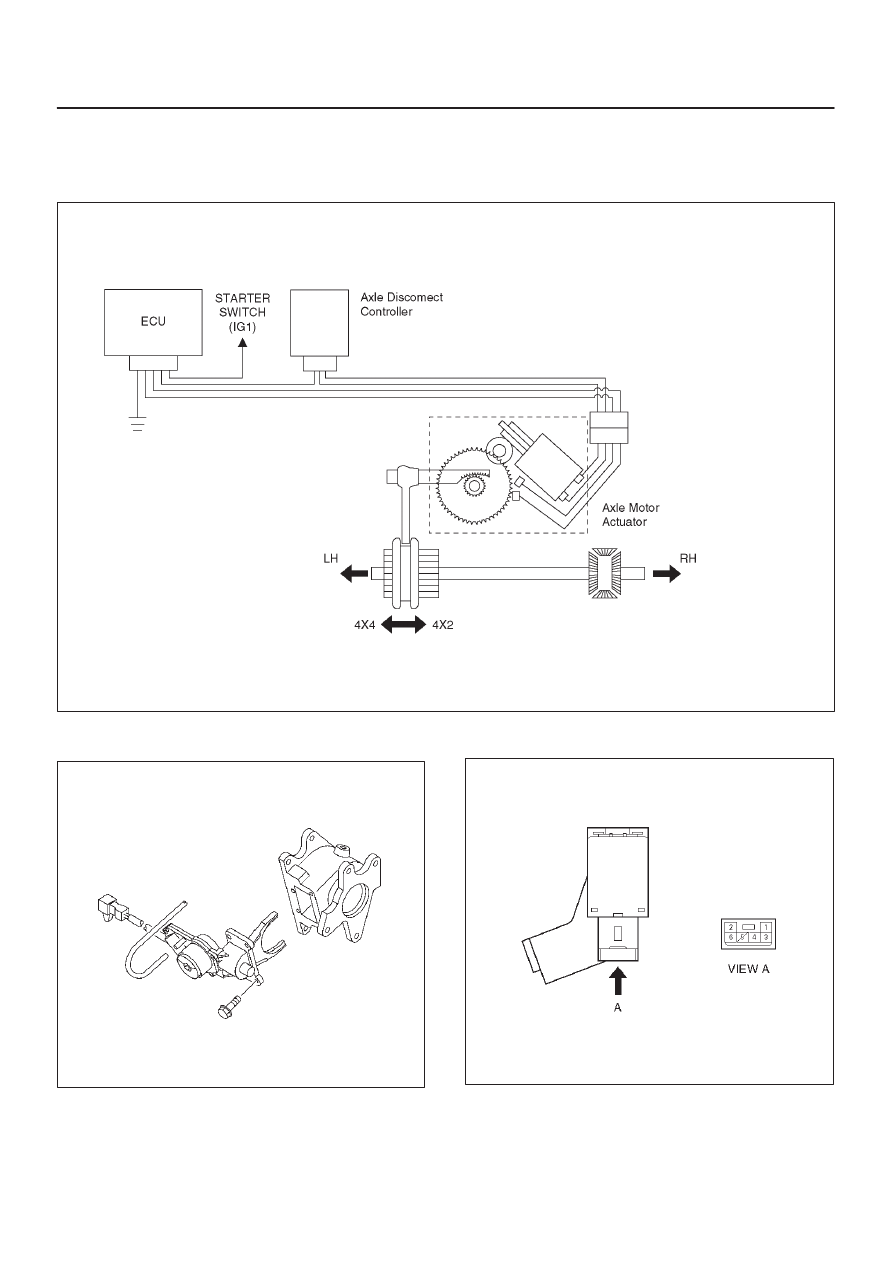

Axle Shaft Connection and Disconnection

412R200006

Actuator Assembly

412RY00004

Axle Disconnect Controller

828RY00009

4B1–6 DRIVELINE CONTROL SYSTEM

828RY00010

Legend

(1) Output Signal
(2) Output Signal
(3) 12V
(4) Input Signal
(5) GND

1. Connect 12V with terminal (3) and the ground with the

terminal (6).

2. Send the signal to the terminal (4)

2WD

→

 4WD less than 2.4V

4WD

→

 2WD more than 9.0V

3. Confirm the output signal from the terminals (1) & (2)

(2 seconds output)

INPUT

SIGNAL

OUTPUT SIGNAL

(2 seconds)

4

1

2

2WD

→

 4WD

Less than

2.4V

0V

12V

4WD

→

 2WD

More than

9.0V

12V

0V

4. If the trouble occurs afther above test, charge the

Axle Disconnect Controller to the new one.

4B1–7

DRIVELINE CONTROL SYSTEM

Shift On The Fly Controller

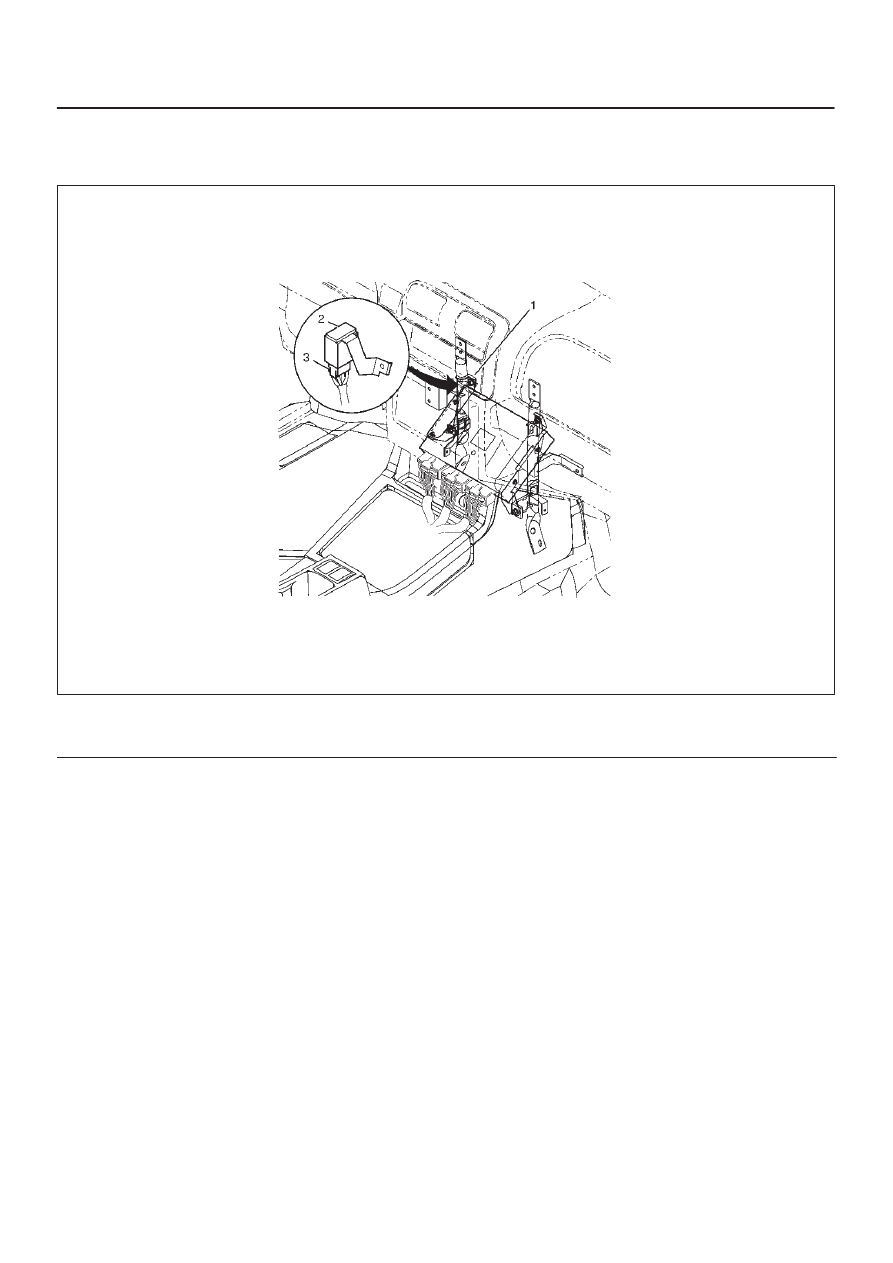

Shift On The Fly Controller and Associated Parts

828RY00003

Legend

(1) Nut

(2) SOF Controller
(3) Connector

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly.

Refer to

Consoles in Body and Accessories section.

3. Disconnect the connector from the controller.
4. Remove the nut.
5. Remove the controller.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

Torque: Nut (1) 8 N·m (69 Ib in)

4B2–1

DRIVE LINE CONTROL SYSTEM (TOD)

AXIOM

DRIVELINE/AXLE

DRIVELINE CONTROL SYSTEM (TOD)

CONTENTS

Service Precaution

4B2–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

4B2–2

. . . . . . . . . . . . . . . . . . . . .

Transfer Position and Drive Mode

4B2–2

. . . . . . . .

TOD Control

4B2–3

. . . . . . . . . . . . . . . . . . . . . . . . . .

TOD Indicator Control

4B2–3

. . . . . . . . . . . . . . . . . .

Abbreviations

4B2–3

. . . . . . . . . . . . . . . . . . . . . . . . .

System Components

4B2–4

. . . . . . . . . . . . . . . . . . . .

Parts Location

4B2–4

. . . . . . . . . . . . . . . . . . . . . . . .

Front and Rear Speed Sensors

4B2–5

. . . . . . . . . .

Electromagnetic Coil

4B2–5

. . . . . . . . . . . . . . . . . . .

Multi Plate Disk Clutch Pack

4B2–5

. . . . . . . . . . . .

Mechanical Lock Sleeve

4B2–5

. . . . . . . . . . . . . . . .

High-Low Planetary Gear Set

4B2–6

. . . . . . . . . . .

4H and 4L Switch

4B2–6

. . . . . . . . . . . . . . . . . . . . . .

Transfer Connector (12-pin type)

4B2–6

. . . . . . . .

Transfer Connector (8-pin type)

4B2–6

. . . . . . . . .

TOD Indicator Lamps
 (on the instrument panel)

4B2–7

. . . . . . . . . . . . . .

Check Lamp

4B2–7

. . . . . . . . . . . . . . . . . . . . . . . . . .

TOD ECU

4B2–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

High-Low Shift Motor

4B2–9

. . . . . . . . . . . . . . . . . . .

Motor Position and Encoder Position Code

4B2–10

Encode Position Plate

4B2–10

. . . . . . . . . . . . . . . . . .

Shift High Range and Low Range

4B2–10

. . . . . . . .

Functions of TOD Switch and Indicator
 Lamp

4B2–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TOD Switch and Indication of Drive Mode

4B2–11

.

Check Lamp

4B2–13

. . . . . . . . . . . . . . . . . . . . . . . . . .

Diagnosis

4B2–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Information Diagnosis

4B2–14

. . . . . . . . . .

Self-diagnosis

4B2–14

. . . . . . . . . . . . . . . . . . . . . . . . .

Precautions on Diagnosis

4B2–16

. . . . . . . . . . . . . . .

Basic Diagnostic Flow Chart

4B2–18

. . . . . . . . . . . . . .

Parts Location

4B2–19

. . . . . . . . . . . . . . . . . . . . . . . . . .

Circuit Diagram

4B2–20

. . . . . . . . . . . . . . . . . . . . . . . . .

Connector List

4B2–24

. . . . . . . . . . . . . . . . . . . . . . . . . .

Checking Failed Pin

4B2–26

. . . . . . . . . . . . . . . . . . . . .

Connector Pin Assignment

4B2–26

. . . . . . . . . . . . . .

Reference

4B2–28

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking Failed TOD Control Unit Pin

4B2–30

. . . . .

Tech 2 Scan Tool

4B2–32

. . . . . . . . . . . . . . . . . . . . . .

Getting Started

4B2–33

. . . . . . . . . . . . . . . . . . . . . . . .

Operating Procedure

4B2–33

. . . . . . . . . . . . . . . . . . .

Diagnostic Trouble Codes

4B2–35

. . . . . . . . . . . . . . . .

Diagnosis from Trouble Codes

4B2–36

. . . . . . . . . . . .

Trouble Diagnosis Depending on The Status
 of TOD Indicator

4B2–67

. . . . . . . . . . . . . . . . . . . . . . . .

Diagnosis from Symptom

4B2–102

. . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION
