REAR SUSPENSION

3D–15

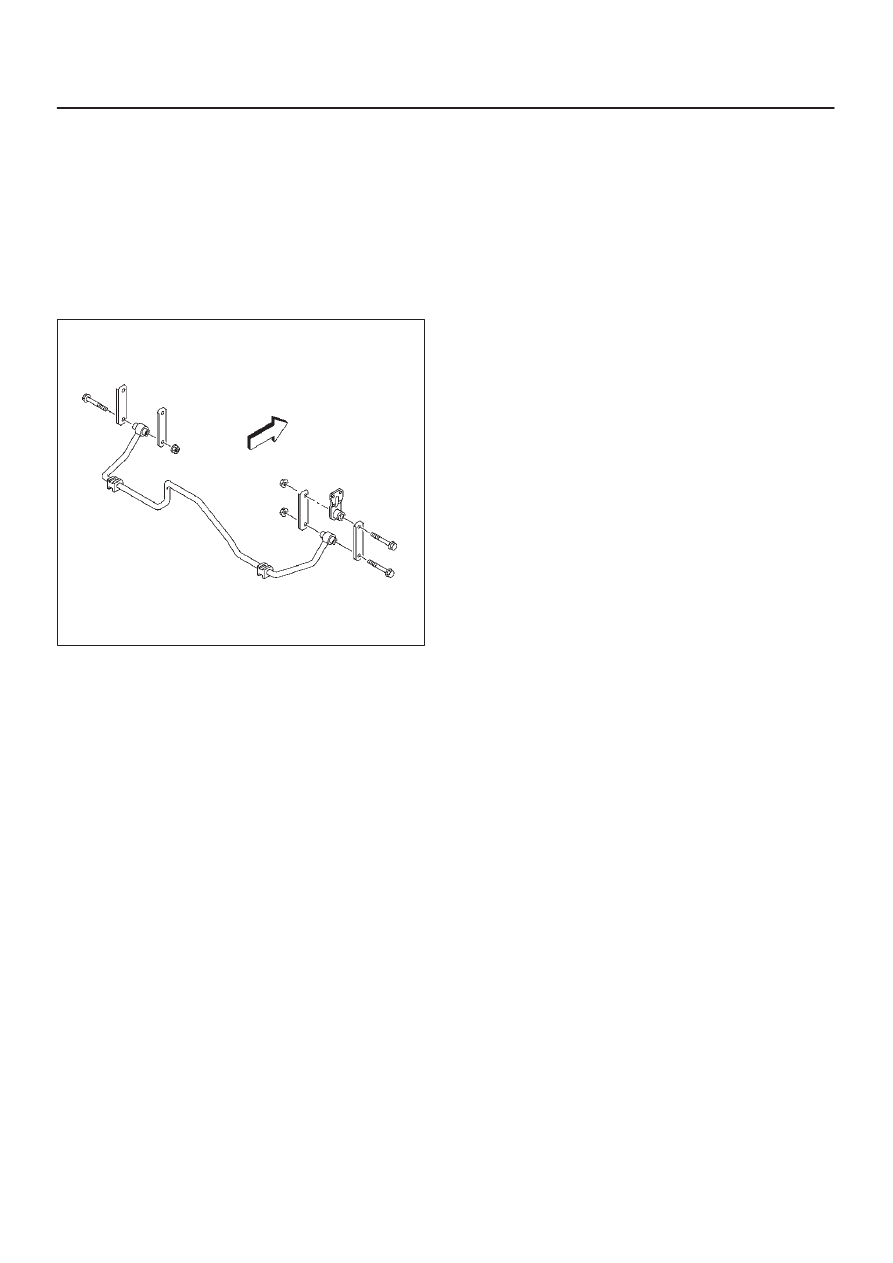

Installation

1. Install rubber bushing.
2. Install bracket to axle housing and tighten to the

specified torque.

Torque: 25 N·m (19 lb ft)

3. Install link.
4. Install bolt and nut, then tighten the nut to the

specified torque.

Torque: 31 N·m (27 lb ft)

460RW010

3D–16

REAR SUSPENSION

Main Data and Specifications

General Specifications

Rear suspension

Type

5–Link, coil spring type with stabilizer bar.

Coil spring

Free length

370.5 mm (14.59 in)

Spring diameter

12.4 mm (0.49 in)

Coil diameter
(inner)

105 mm (4.13 in)

Effective No. of
turns

5.21

Total No. of turns

6.71

Shock absorber

Type

Hydraulic, double acting, telescopic

Piston diameter

30 mm (1.18 in)

Stroke

159 mm (6.26 in)

Extended length

518 mm (20.39 in)

Compressed
length

359 mm (14.13 in)

Stabilizer bar

Diameter

18 mm (0.71 in)

REAR SUSPENSION

3D–17

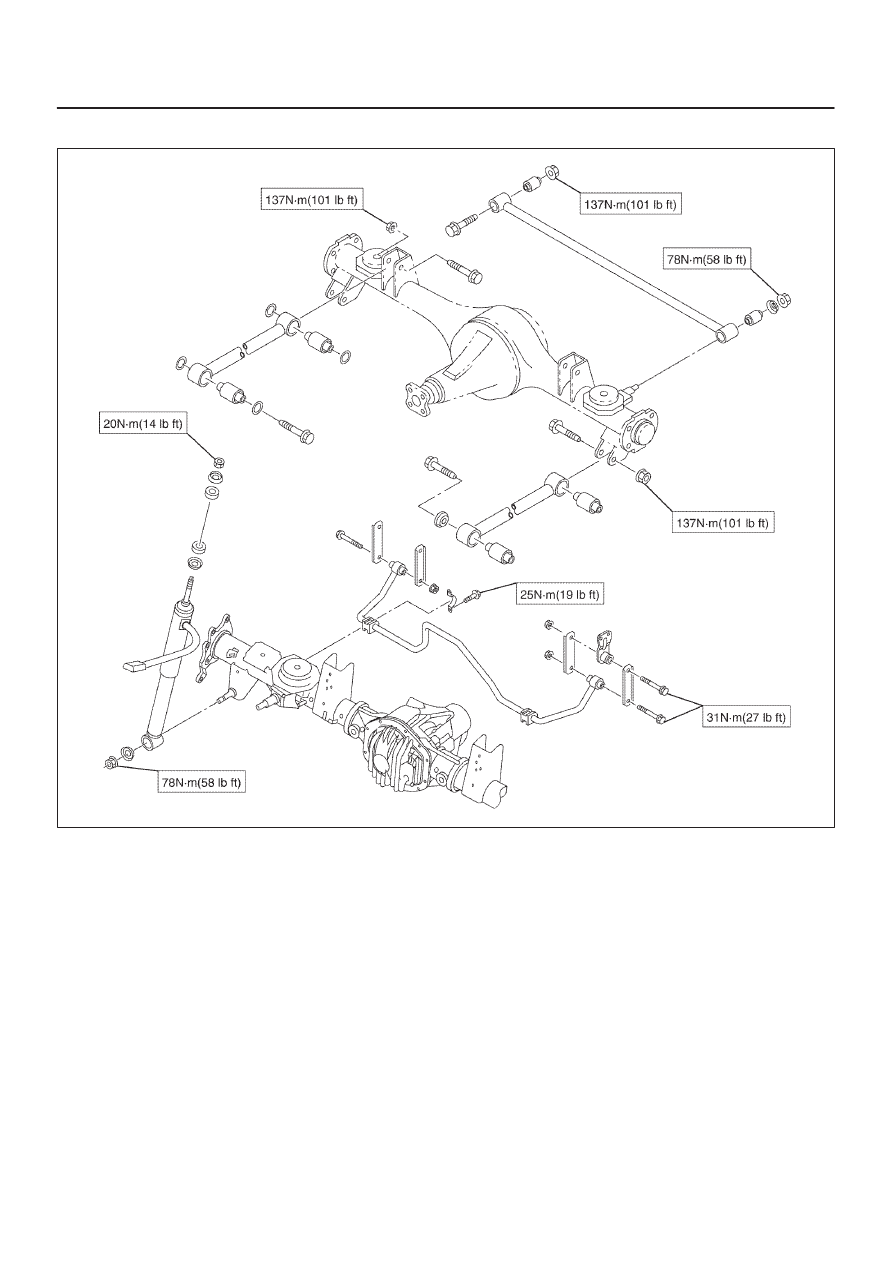

Torque Specifications

E03R200002

3D–18

REAR SUSPENSION

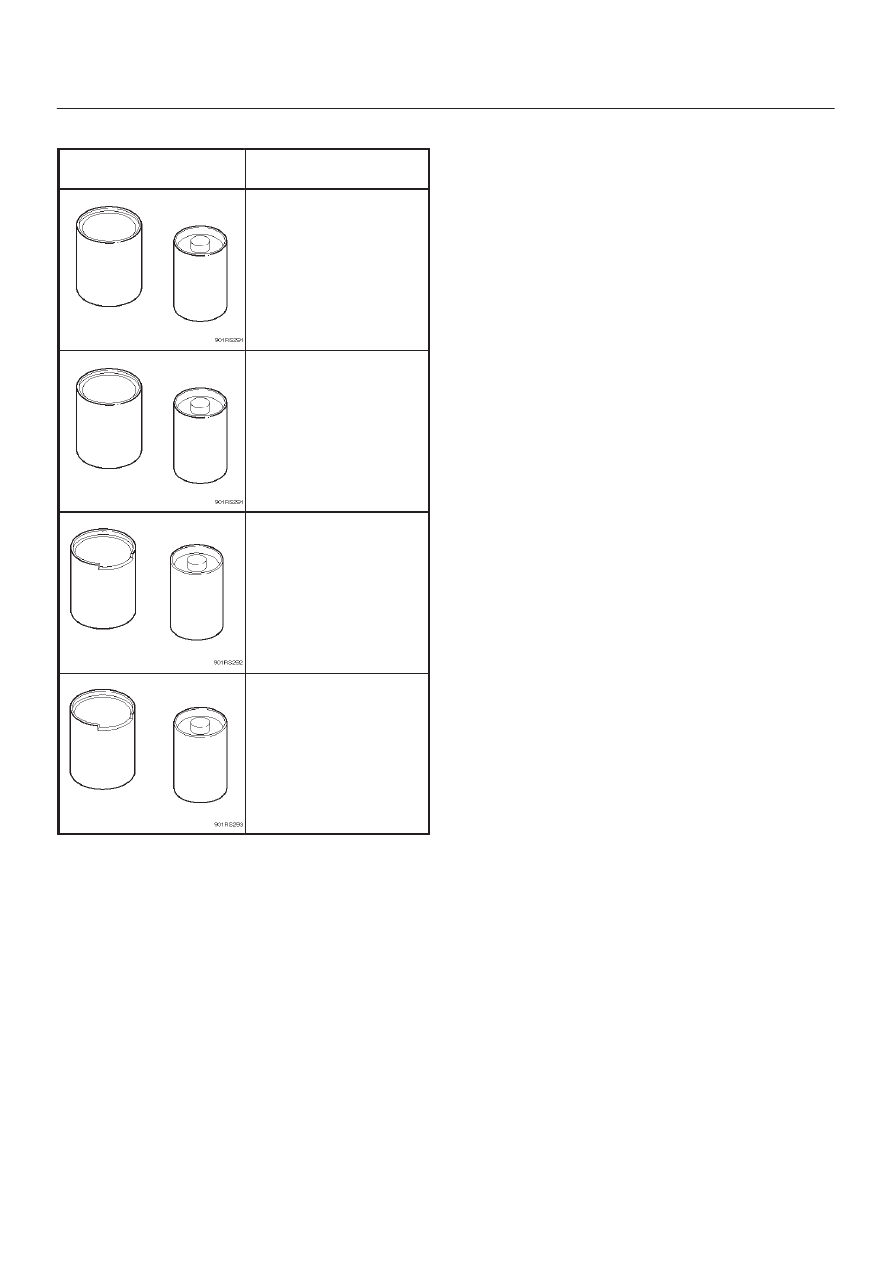

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–39214

Remover and Installer;

Trailing link bushing

J–43008

Remover and Installer;

Upper link bushing

J–39792

Remover and Installer;

Lateral rod bushing

 (Axle side)

J–39215

Remover and Installer;

Lateral rod bushing

(Frame side)
