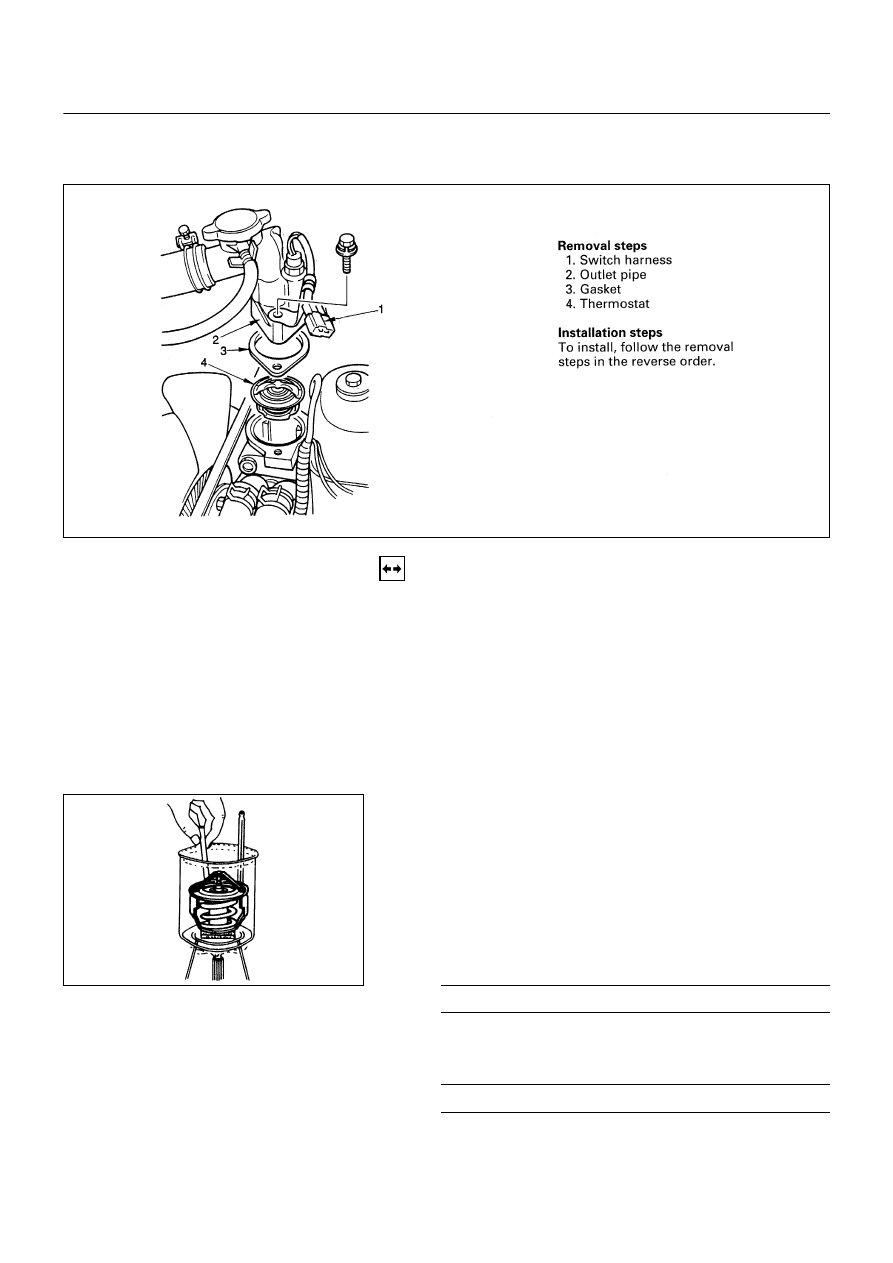

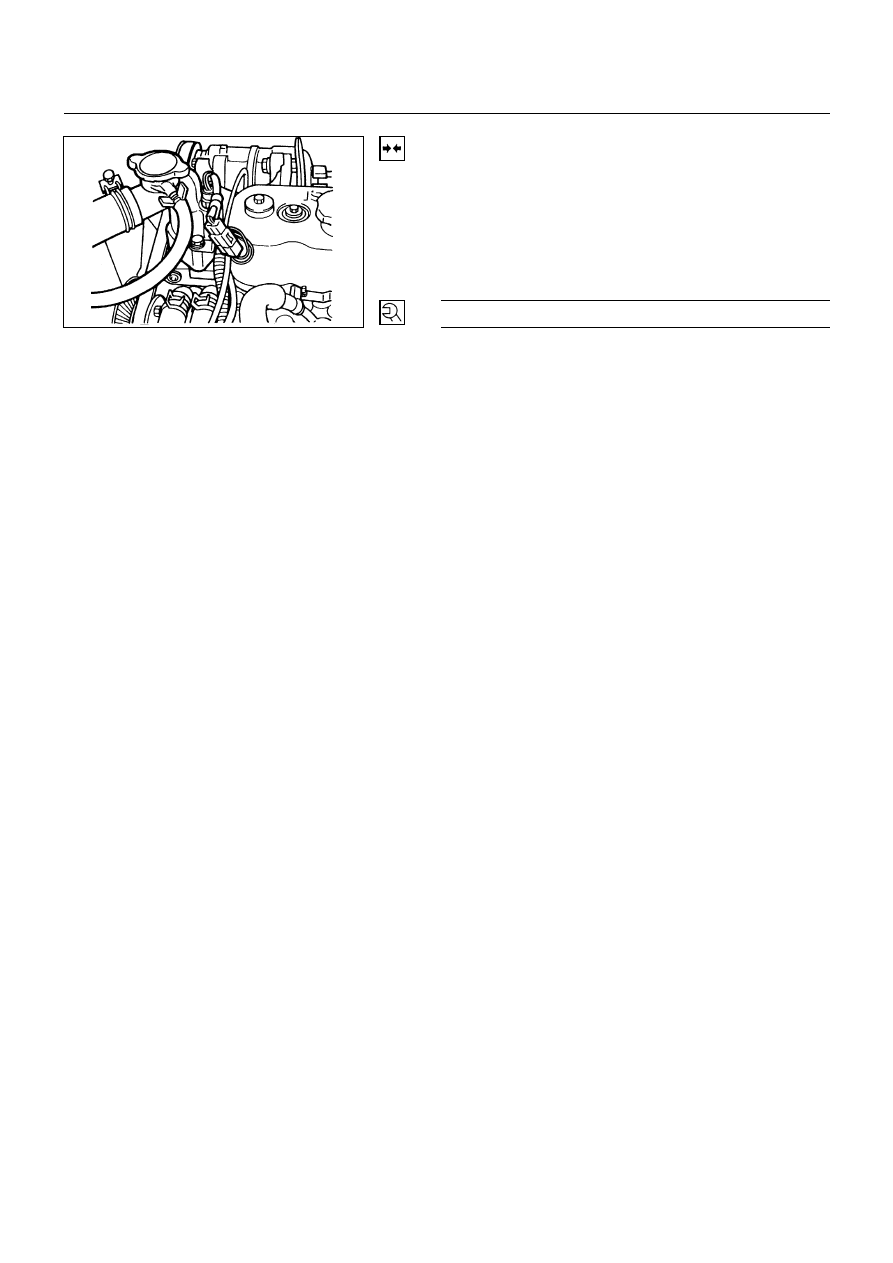

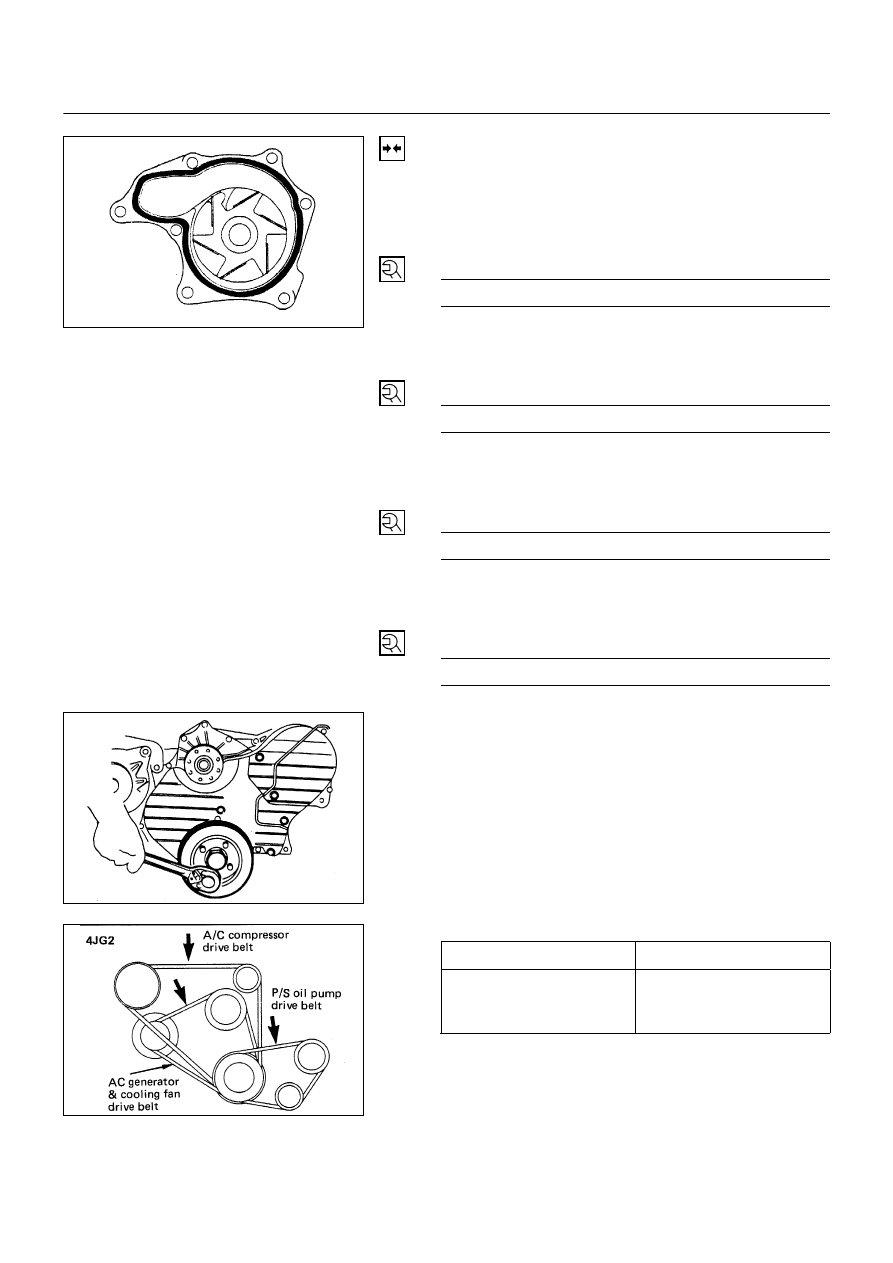

6B - 8 ENGINE COOLING INSTALLATION 9. Water Pump Assembly • Set O-ring in water pump body groove. • Install water pump assembly, and tighten to specified Pump Fixing Bolt Torque N∙m (Kg∙m/lb∙ft)
20 (2.0/14)
8. Timing Pulley Lower Cover • Install timing pulley lower cover, and tighten to Cover Fixing Bolts Torque N∙m (Kg∙m/lb∙in)
8 (0.8/69)
7. Timing Pulley Upper Cover • Install timing upper cover, and tighten to specified Cover Fixing Bolts Torque N∙m (Kg∙m/lb∙in)
8 (0.8/69)
6. Crankshaft Damper Pulley • Install crankshaft damper pulley, and tighten to Pulley Bolt Torque N∙m (Kg∙m/lb∙in)
19 (1.9/14)
5. AC Generator Drive Belt 4. A/C Compressor Drive Belt 3. Power Steering Pump Drive Belt • Install the drive belts and adjust belt • Push the middle of belts with a force of 98 N • Standard deflection mm (in) Initial tension AC Generator drive belt 8 – 12 (0.31-0.47) 6B-7-1.tif 6B-7-3.tif 6B-7-2.tif |
