7A2-30  TRANSMISSION CONTROL SYSTEM (AW30–40LE)

Service Programming System (SPS)

The procedure to program the control unit by using the
Service Programming System (SPS) software
contained in TIS2000 is explained below.

NOTE:

•  Should Tech2 display “SPS Procedure was not

successful”, engine will not start, but no DTCs are

present, low battery voltage or poor electrical

connections should be the primary suspects.

Perform the SPS procedure again after rectifying

the fault/s.







IMPORTANT:

Perform the following checks before attempting to
program the control unit:

••••  The Tech2 PCMCIA card is programmed with

the latest software release.

••••  The latest release of TIS2000 is loaded on the

PC.

••••  The vehicle battery is fully charged.
•••• The control unit to be programmed is

connected to the vehicle.

1. Preparations of TIS 2000

1.  Connect Tech 2 to P/C.

2.  Check to see if Hardware Key is plugged into Port.

3.  Activate TIS 2000 by P/C.

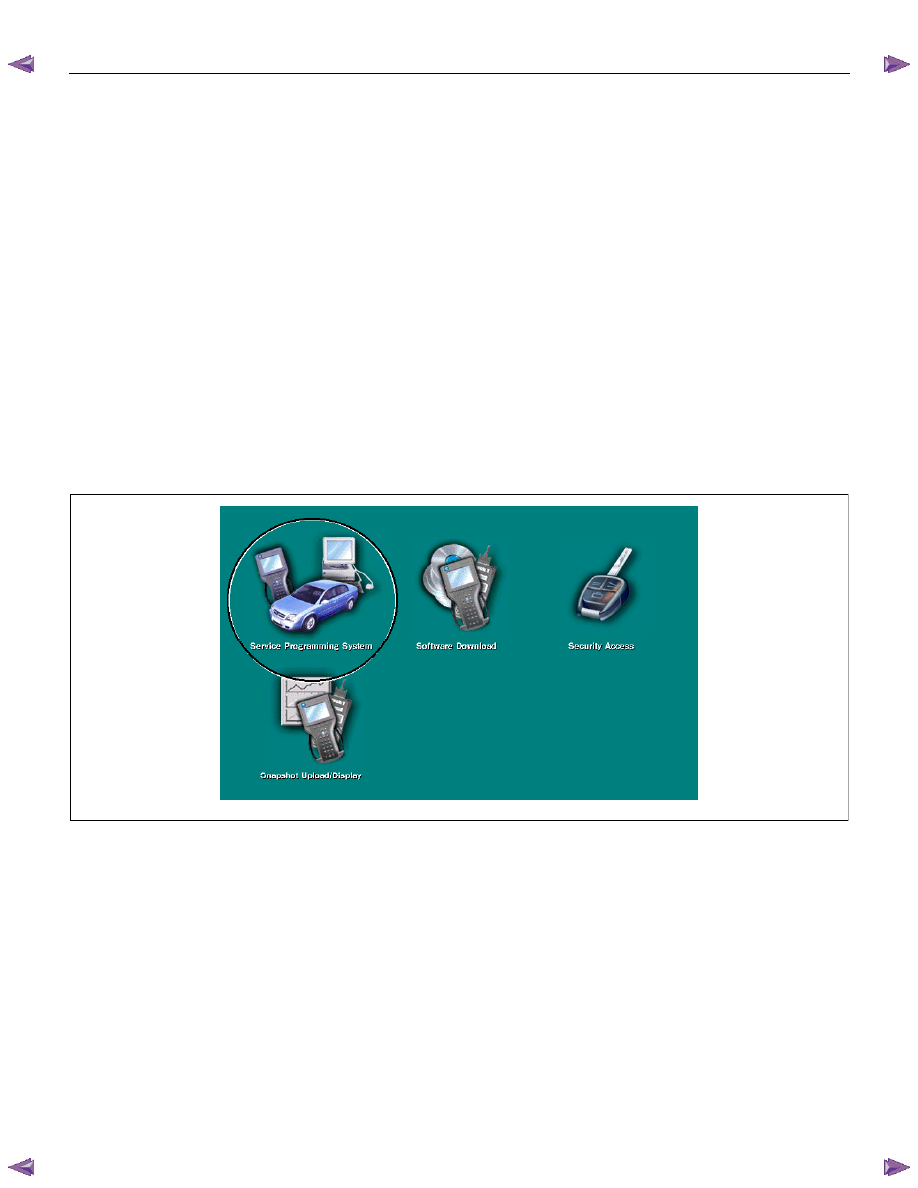

4.  On the activating screen of TIS2000, choose

“Service Programming System”.














5.  On the screen of “Diagnostic Tester and

Processing Program Selection”, choose the one

that will comply with the following.

•  Diagnostic tester in use
•  New programming by the existing module or new

programming by the replaced/new module.



•  Fixing position of the control unit.
6.  Upon completion of the selection, push the button

of “Continue”.



TRANSMISSION CONTROL SYSTEM (AW30–40LE)  7A2-31

2.Demand of Data

1.  Connect Tech 2 to the vehicle. When activated by

turning on the power of Tech 2, push the "Enter"

switch.

2.  Turn on the ignition switch (without starting the

engine)

3.  In the main menu of Diagnostic Tester, push "F1:

Service Programming System (SPS)".

4.  Push “F0: Request Info” of Tech 2.

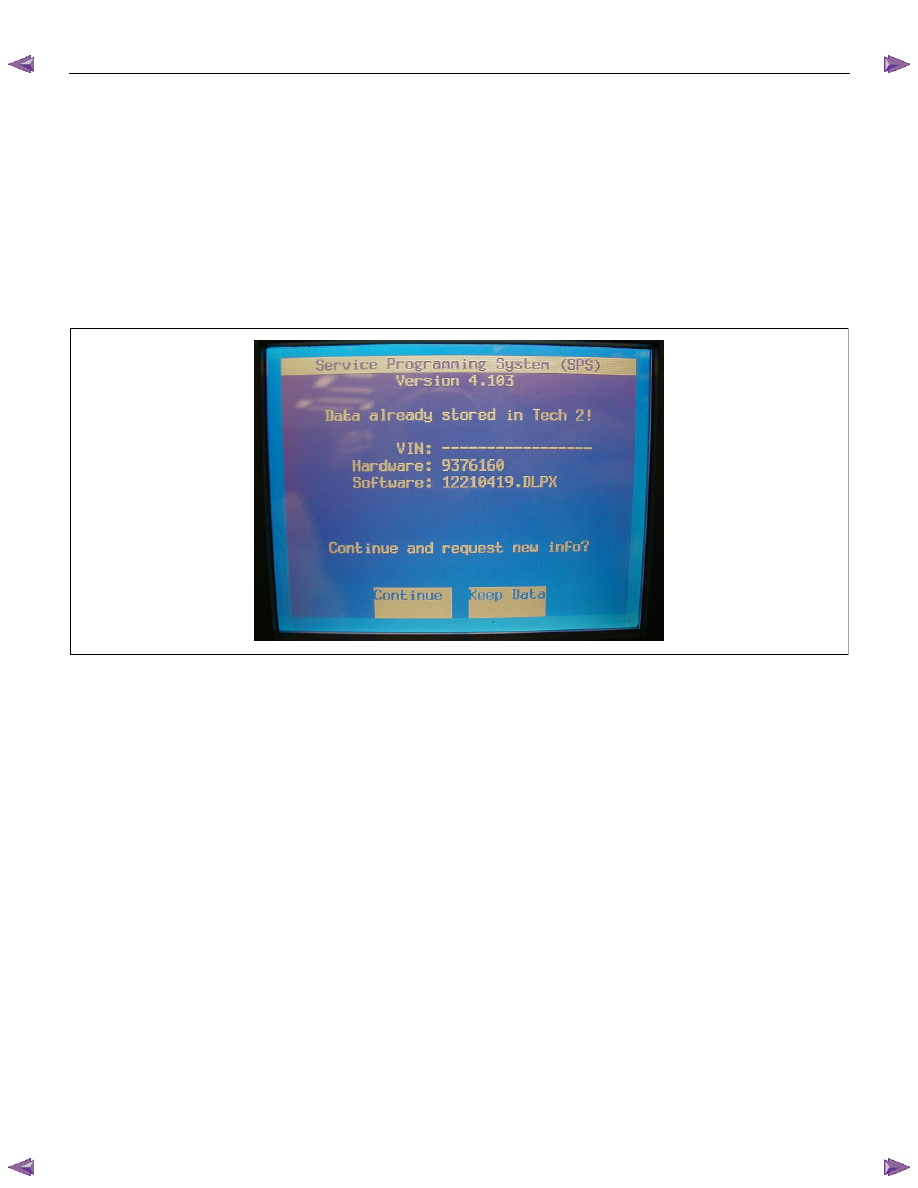

5.  Where vehicle data has been already saved in

Tech 2, the existing data come on display. In this

instance, as Tech 2 starts asking whether to keep

the data or to continue obtaining a new data from

the control unit, choose either of them.












6.  If you select “continue”, you have to select “Model

Year”, “Vehicle Type”, “Controller Type (Engine)”.

7.  After that. then push button and turn Ignition switch

tuned on, off, on following Tech 2 display. Tech 2

will read information from controller after this

procedure.

8.  During obtaining information, Tech 2 is receiving

information from the control unit chosen. In

replacing the control unit, please be sure to

undertake “Obtaining Information” from the new

unit. With VIN not being programmed into the new

control unit at the time of shipment, "obtaining

information" is not complete (because the vehicle

model, engine model and model year are specified

from VIN). For the procedure get additional

information on vehicles, instruction will be provided

in dialog form, when TIS2000 is in operation.

9.  Following instructions by Tech 2, push the “Exit”

switch of Tech 2, turn off the ignition of the vehicle

and turn off the power of Tech 2, thereby removing

from the vehicle.





3.Data Exchange

1.  Connect Tech 2 to P/C, turn on the power and

click the “Next” button of P/C.

2.  Check VIN of the vehicle and choose “Next”.

3.  When a lack of data is asked from among the

following menu, enter accordingly.



Select following Menu
•  Model Year
•  Model
•  Engine type
•  Transmission type
•  Destination code (vehicles for general export)*1
•  Immobiliser

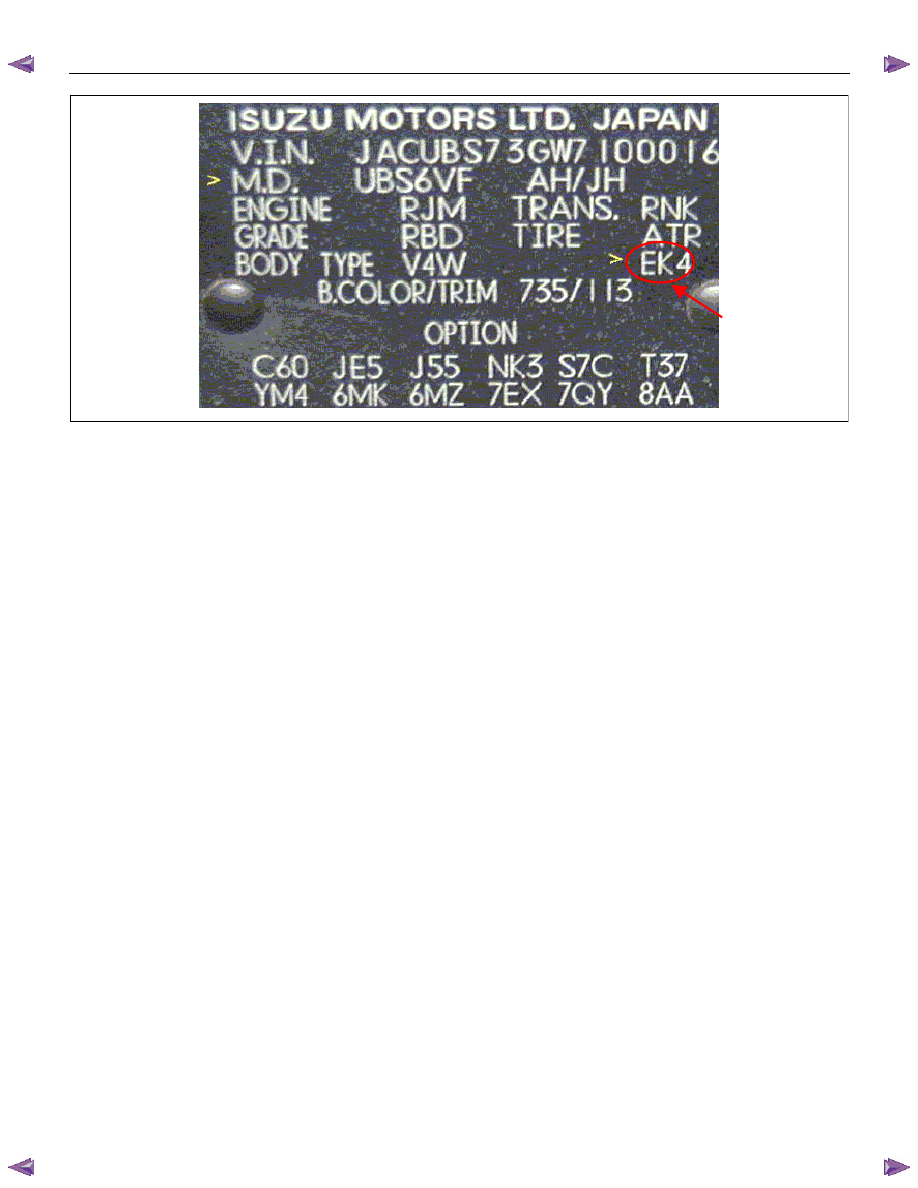

* 1: How to read the destination code

"Destination code can be read from ID Plate affixed on
vehicles, while on VIN plate the destination code is
described at the right-hand edge of Body Type line. In
Fig.-3, the destination code can be read as “EK4”
(Europe).





7A2-32  TRANSMISSION CONTROL SYSTEM (AW30–40LE)









4.  After choosing the data, click the “Next” button.

5.  When all the necessary information is entered, the

“details” of software within the database that match

the entered data will appear for confirmation. Click

the “Program” switch and then download the new

software onto Tech 2.

6.  “Data Transfer” comes on display. The progress of

downloading will be displayed on the screen in the

form of bar graph.

7.  Upon finishing the data transfer, turn off the power

of Tech-2, removing from P/C.





4. Programming of TCM

1.  Check to see if batteries are fully charged.

2.  Connect Tech 2 to Vehicle Diagnostic Connectors.

3.  Turn on the power of Tech 2 and the title screen

comes on display.

4.  Turn on the ignition (without allowing the engine to

start)

5.  On the title screen of Tech 2, push the "Enter"

button.

6.  Choose “F: Service Programming System” on the

main screen and then choose “F1: Programming”.

7.  While data is being transferred, “Downloading” will

be displayed on the Tech 2 screen.

8.  Upon finishing the data transfer, Tech 2 will display

“Reprogramming Successful”. Push the “Exit”

button to bring program to completion.





9.  Following “Procedure 2: Demand of Data”, try over

again "Information Obtaining" and check to confirm

if the data has been correctly re-loaded.

10.  Upon finishing confirmation, turn off the ignition of

the vehicle and then turn off the power of Tech 2,

removing from the vehicle.





TRANSMISSION CONTROL SYSTEM (AW30–40LE)  7A2-33

OBD Diagnostic Management System

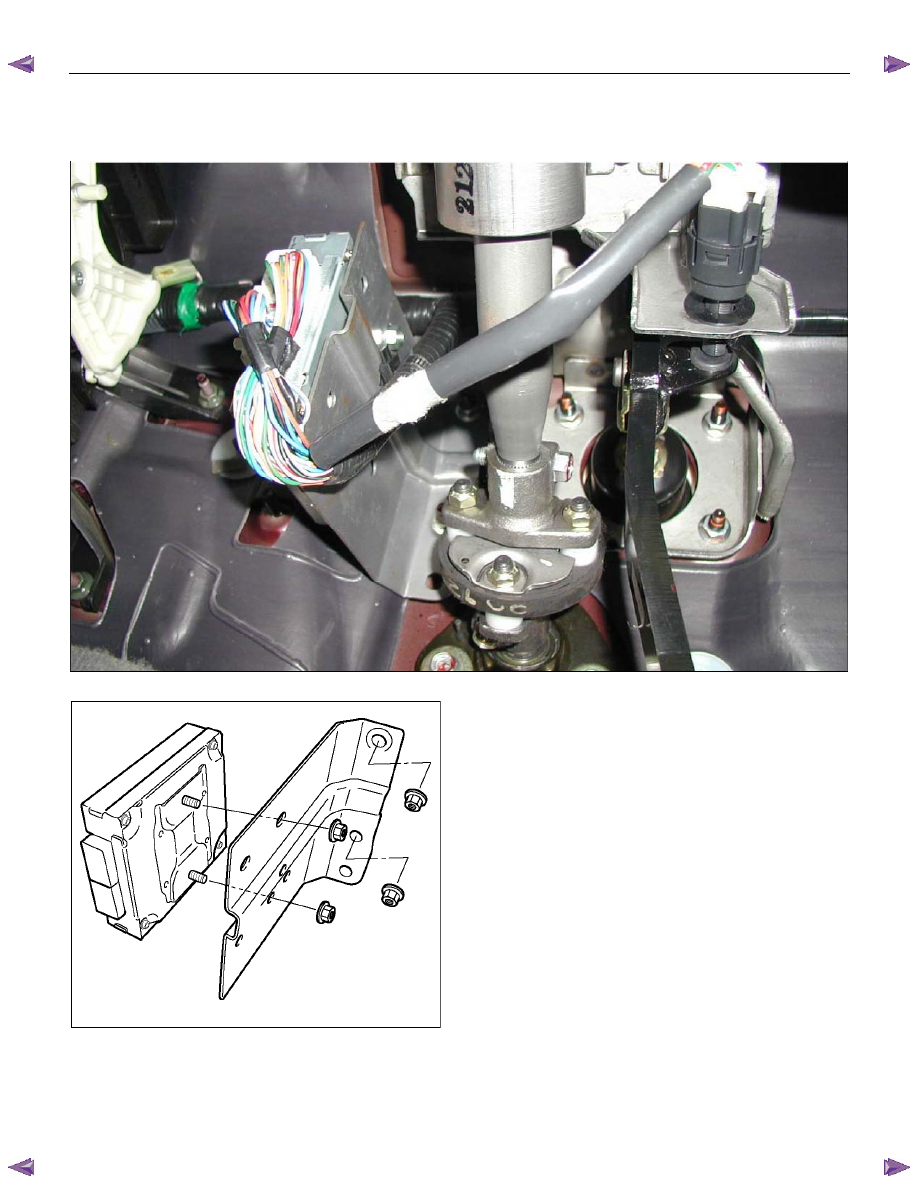

Transmission Control Module (TCM) Location
