7A2-26  TRANSMISSION CONTROL SYSTEM (AW30–40LE)

Snapshot Display With TIS2000











Procedures for transferring and displaying Tech2
snapshot data by using TIS2000 [Snapshot Upload]
function is described below.

Snapshot data can be displayed with [Snapshot Upload]
function included in TIS2000.

By analyzing these data in various methods, trouble
conditions can be checked.

Snapshot data is displayed by executing the three steps
below shown:







1. Record the snapshot data, in Tech2.



2. Transfer the snapshot data to PC.









TRANSMISSION CONTROL SYSTEM (AW30–40LE)  7A2-27

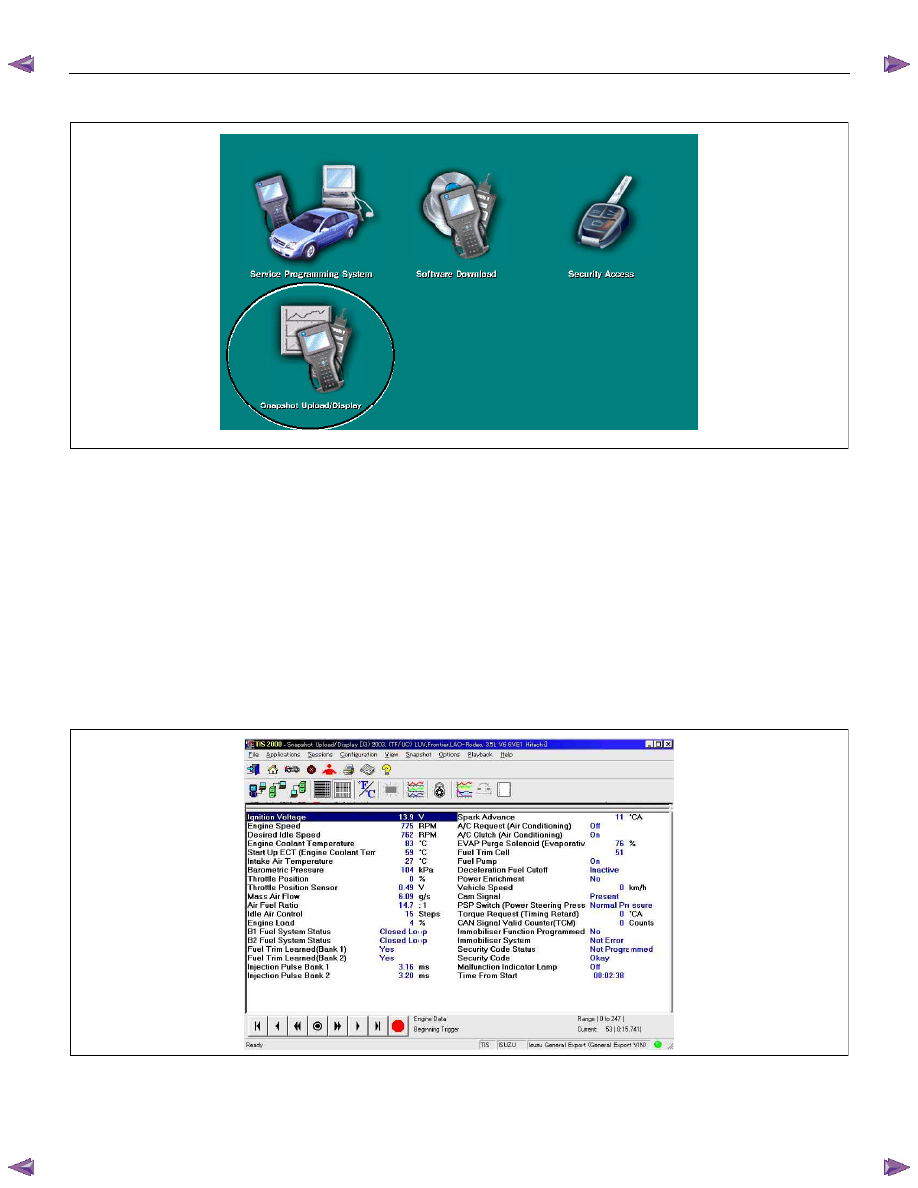

After recording the snapshot in Tech2, transfer the data
from Tech2 to PC by the below procedures.

1.  Start TIS2000.

2.  Select [Snapshot Upload] on the TIS2000 start

screen.

3.  Select [Upload from trouble diagnosis tool (transfer

from diagnosis tester)] or click the corresponding

icon of the tool bar.

4.  Select Tech2, and transfer the recorded snapshot

information.

5.  Select the transferred snapshot.

6.  After ending transfer of the snapshot, data

parameter list is displayed on the screen.







3. Snapshot data is displayed with TIS2000
[Snapshot Upload] function.

Snapshot is stored in the PC hard disk or floppy disk,
and can be displayed any time.

Stored snapshot can be displayed by the following
procedures.

1.  Start TIS2000.

2.  Select [Snapshot Upload] on the TIS2000 start

screen.

3.  Select [Open the existing files] or click the

corresponding icon of the tool bar.

4.  Select the transferred snapshot.

5.  Open the snapshot, to display the data parameter

list on the screen.









7A2-28  TRANSMISSION CONTROL SYSTEM (AW30–40LE)

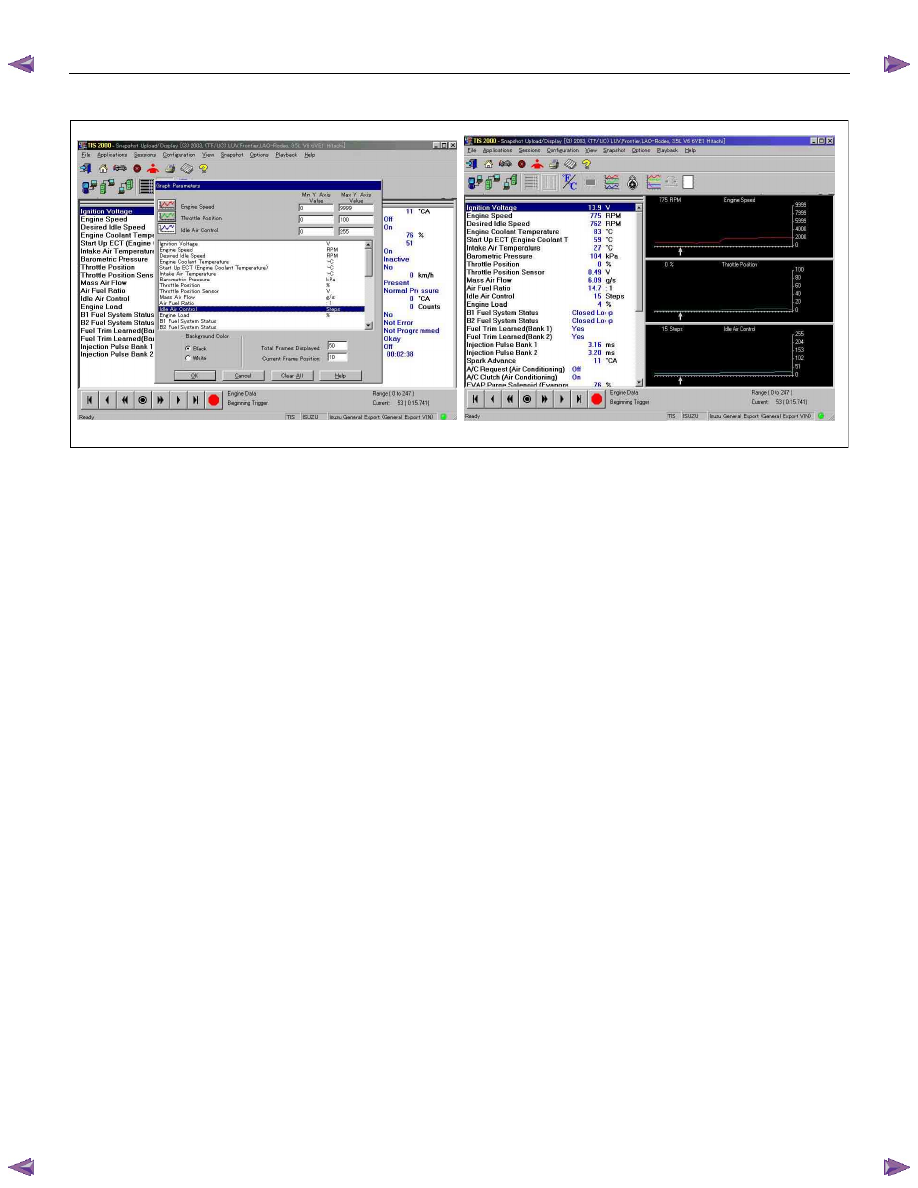

Graph display Values and graphs (Max. 3 graphs):











1.  Click the icon for graph display. [Graph Parameter]

window opens.

2.  Click the first graph icon of the window upper part,

and select one parameter from the list of the

window lower part. Selected parameter is

displayed next to the graph icon. Graph division

can be selected in the field on the parameter right

side.

3.  Repeat the same procedures with the 2nd and 3rd

icons.

4.  After selecting all parameters to be displayed

(Max. 3 parameters), click [OK] button.

5.  Parameter selected is displayed in graph form on

the right of the data parameter on the screen.

6.  Graph display can be moved with the navigation

icon.





7.  For displaying another parameter by graph, click

the parameter of the list, drug the mouse to the

display screen while pressing the mouse button

and release the mouse button. New parameter is

displayed at the position of the previous

parameter. For displaying the graph display screen

in full size, move the cursor upward on the screen.

When the cursor is changed to the magnifying

glass form, click the screen. Graph screen is

displayed on the whole screen.





TRANSMISSION CONTROL SYSTEM (AW30–40LE)  7A2-29

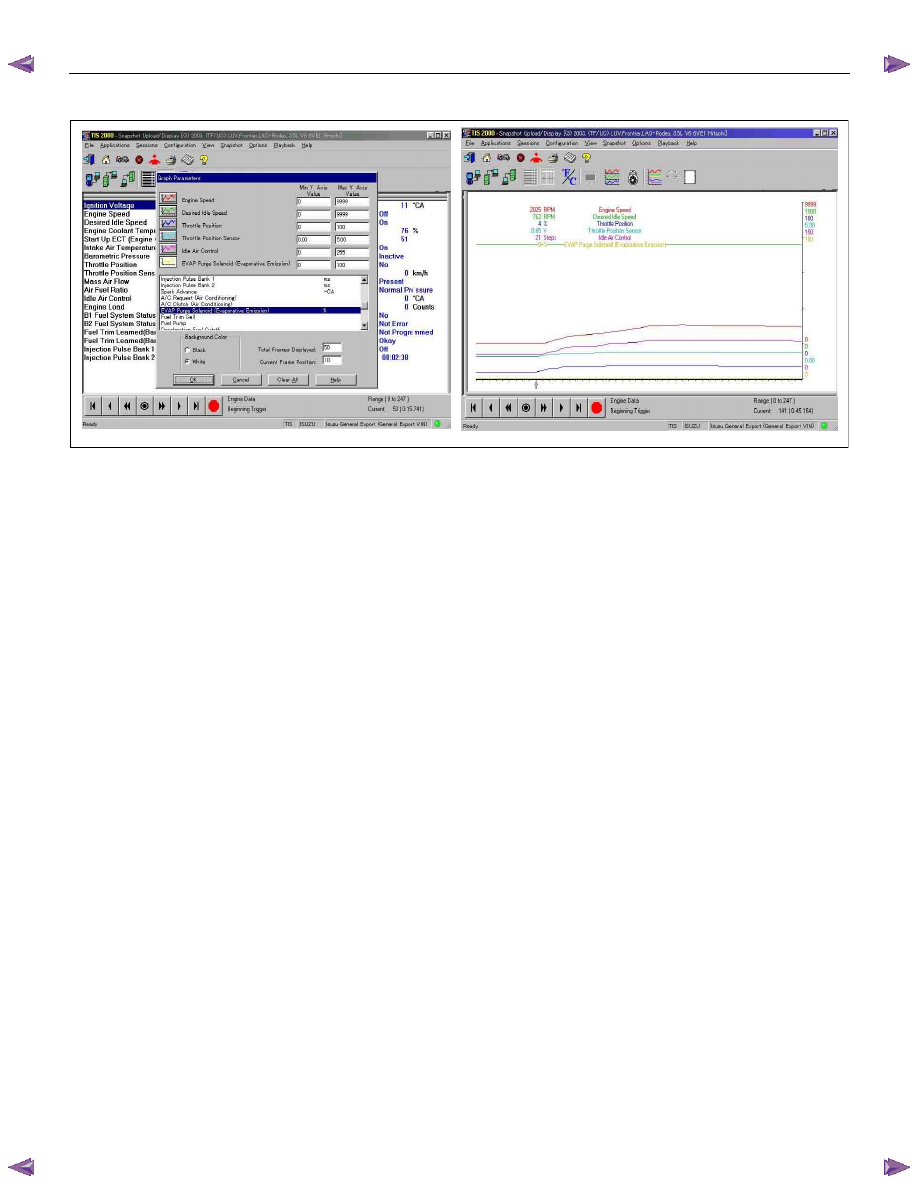

Display of graphs on one screen (Max. 6 graphs):







1.  Click the 6 graph icon. [Graph Parameter] window

opens.

2.  Click the graph icon, select the parameter to be

displayed from the list and change divisions

according to necessity.

3.  Repeat the same procedures with the graph icons,

from the 2nd to 6th.

4.  Click the [OK] button to display.

5.  In this case, parameters are displayed only in

graph form. All parameters are displayed in one

graph.

6.  The graph display screen can be moved with the

navigation icon.
