Engine Mechanical – V6

Page 6A1–351



Page 6A1–351

6

Torque Wrench Specifications

A T T E N T I O N

„

Fasteners must be replaced after loosening.



Fasteners either have micro encapsulated sealant applied or incorporate a mechanical thread lock and
should only be re-used once. If in doubt, replacement is recommended.



Oil Pan Drain Plug ................................................................................ 25.0 Nm

Oil Filter Adaptor Attaching Bolt ................................................ 20.0 – 26.0 Nm

Oil Level Indicator Tube Attaching Bolt........................................ 8.0 – 12.0 Nm

Accessory Drive Belt Idler Pulley Attaching Bolt................................... 50.0 Nm

Accessory Drive Belt Tensioner Attaching Bolt .................................... 50.0 Nm

Power Steering Reservoir Bracket  Attaching Screw.............................. 9.0 Nm

Power Steering Pump Bracket Attaching Bolt ........................... 49.0 – 67.0 Nm

Upper Intake Manifold to Lower Intake Manifold Attaching Bolt ........... 23.0 Nm

Upper Intake Manifold to Cylinder Head Attaching Bolt........................ 23.0 Nm

Lower Intake Manifold to Cylinder Head Attaching Bolt........................ 23.0 Nm

Fuel Injector Wiring Harness Bracket Attaching bolt .............................. 9.0 Nm

Exhaust Manifold to Cylinder Head Attaching Bolt ..................... 17.0 - 23.0 Nm

Exhaust Manifold Heat Shield Attaching Bolt ............................... 8.0 - 12.0 Nm

Battery Harness Ground Terminal Attaching Nut ................................. 13.0 Nm

Camshaft Cover Attaching Bolt ................................................... 8.0 – 12.0 Nm

Engine Ground Connector Bolt............................................................. 10.0 Nm

Engine Wiring Harness Former Attaching Bolt .......................... 12.0 – 16.0 Nm

„  Crankshaft Balancer Assembly Attaching Bolt:

Stage 1 ..................................................................................... 90.0 –110.0 Nm

Stage 2 ....................................................................................................... 150

°

Engine Front Cover Assembly Attaching Bolt............................ 20.0 – 26.0 Nm

Camshaft Intermediate Sprocket Attaching Bolt ........................ 58.0 – 72.0 Nm

Secondary Timing Chain Guide Attaching Bolt.......................... 20.0 – 26.0 Nm

Secondary Timing Chain Shoe Attaching Bolt........................... 20.0 – 26.0 Nm

Secondary Timing Chain Tensioner Attaching Bolt ................... 20.0 – 26.0 Nm

Primary Timing Chain Upper Guide Attaching Bolt.................... 20.0 – 26.0 Nm

Primary Timing Chain Tensioner Attaching Bolt ........................ 20.0 – 26.0 Nm

Oil Pump Assembly Attaching Bolt ............................................ 20.0 – 26.0 Nm

Camshaft Sprocket Attaching Bolt ............................................. 49.0 – 67.0 Nm

Exhaust Camshaft Sprocket Attaching Bolt ............................... 49.0 – 67.0 Nm

Camshaft Bearing Cap Attaching Bolt ......................................... 8.0 – 12.0 Nm

Cylinder Head Threaded Plug .............................................................. 31.0 Nm

„ Cylinder Head M11 Attaching Bolt:

Stage 1 ...................................................................................... 40.0 – 50.0 Nm

Stage 2 ....................................................................................................... 120

°

„ Cylinder Head M8 Attaching Bolt:

Stage 1 ...................................................................................... 12.0 – 18.0 Nm

Stage 2 ......................................................................................................... 60

°

Engine Mount Bracket to Cylinder Block Attaching Bolt ............ 43.0 – 57.0 Nm

Engine Mount to Bracket Attaching Nut..................................... 70.0 – 90.0 Nm

Engine Mount to Frame Attaching Nut ...................................... 44.0 – 60.0 Nm

Engine Lift Bracket Attaching Bolt .......................................... 58.0 – 72.0.0 Nm

Knock Sensor Attaching Nut................................................................. 23.0 Nm

Engine Mechanical – V6

Page 6A1–352



Page 6A1–352

Power Steering High Pressure Line Attaching Bolt ..................... 8.0 – 12.0 Nm

Power Steering High Pressure Line Flare Nut........................... 25.0 – 35.0 Nm

Steering Gear Housing Mounting Nut:
Stage 1 ................................................................................................. 60.0 Nm
Stage 2 ................................................................................................40° – 50°

Oil Suction Pipe Attaching Bolt............................................................. 10.0 Nm

Crankshaft Oil Deflector Attaching bolt................................................. 10.0 Nm

Oil Level Sensor ................................................................................... 20.0 Nm

Oil Pan to Cylinder Block Attaching Bolt.................................... 20.0 – 26.0 Nm

Oil Pan to Crankshaft Rear Oil Seal Housing Attaching Bolt ........ 8.0 - 12.0 Nm

„  Flexplate Attaching Bolt:

Stage 1 ...................................................................................... 26.0 – 34.0 Nm

Stage 2 ......................................................................................................... 45

°

Crankshaft Rear Oil Seal Housing Attaching Bolt........................ 8.0 – 12.0 Nm

„ Connecting Rod Cap Attaching Bolt:

Stage 1 ................................................................................................. 30.0 Nm

Stage 2 ................................................................................ Loosen Completely

Stage 3 ................................................................................................. 25.0 Nm

Stage 4 ....................................................................................................... 110

°

Crankshaft Bearing Cap Remover Nut ................................................. 11.0 Nm

„ Crankshaft Main Bearing Cap Inboard Attaching Bolt:

Stage 1 ................................................................................................. 20.0 Nm

Stage 2 ......................................................................................................... 80

°

„ Crankshaft Main Bearing Cap Outboard Attaching Bolt:

Stage 1 ................................................................................................. 15.0 Nm

Stage 2 ....................................................................................................... 110

°

„  Crankshaft main Bearing Cap Side Attaching Bolt:

Stage 1 ................................................................................................. 30.0 Nm

Stage 2 ......................................................................................................... 60

°

Cylinder Block Threaded Plug .................................................... 27.0 - 35.0 Nm

Oil Jet Attaching Bolt ................................................................... 8.0 – 12.0 Nm

Engine Mechanical – V6

Page 6A1–353



Page 6A1–353

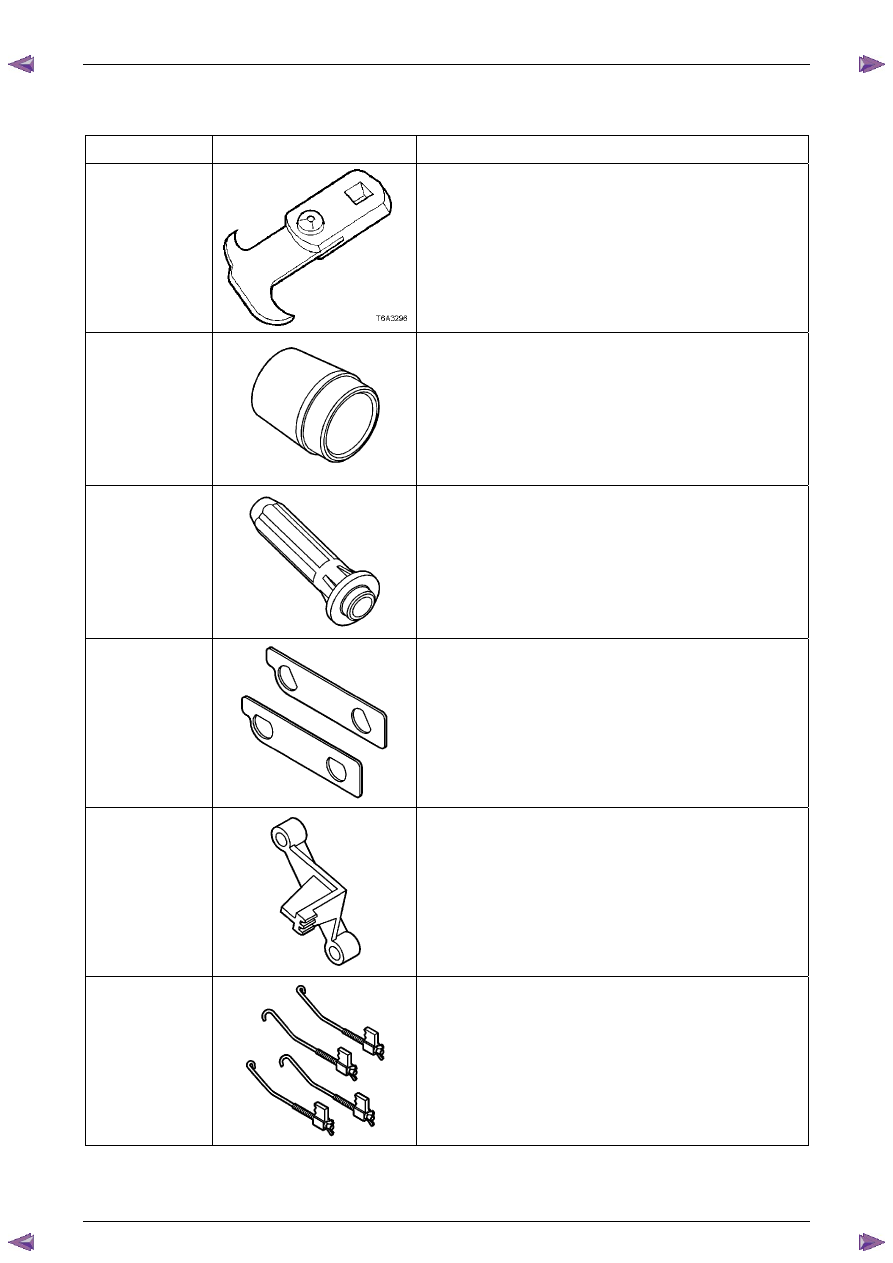

7 Special

Tools

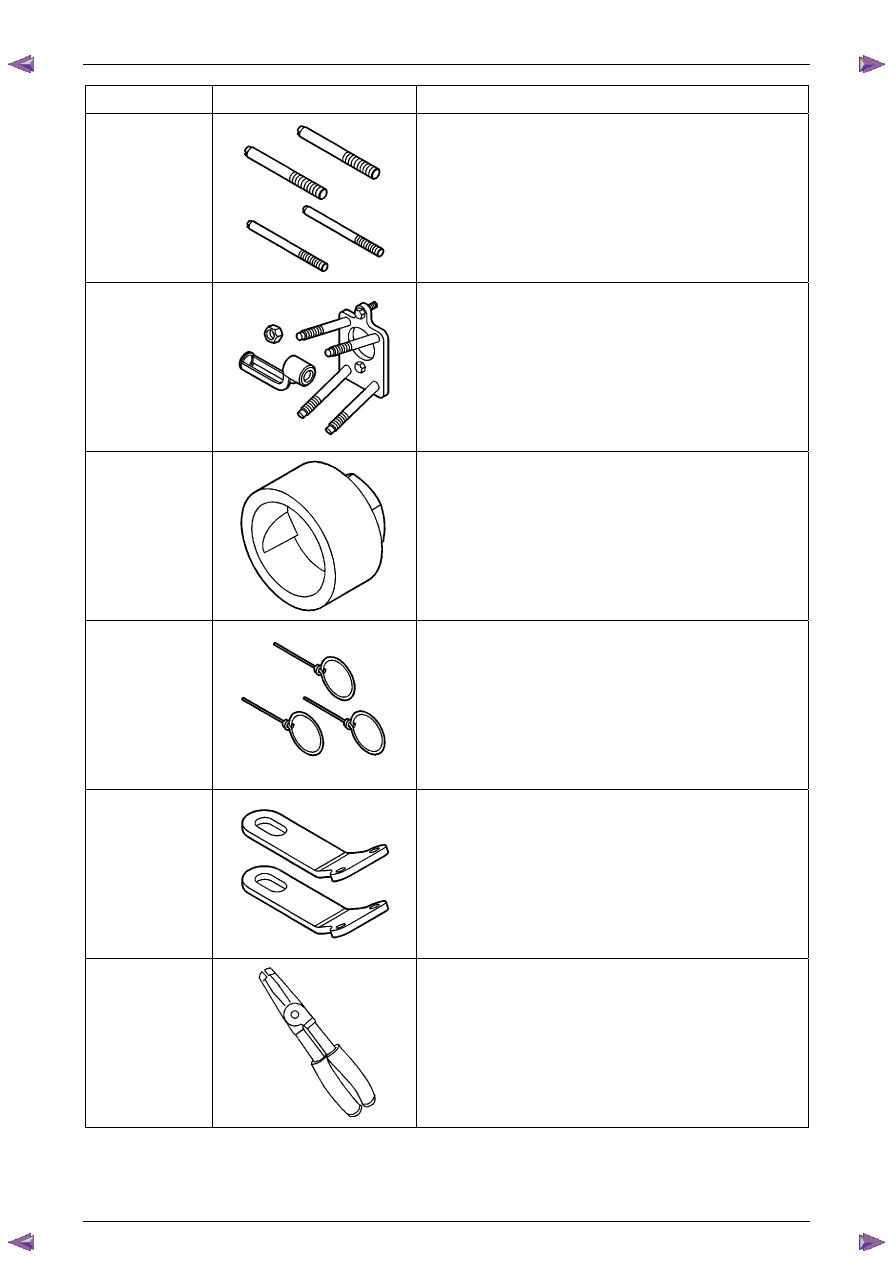

Tool Number

Illustration

Description

E-308



Seal Remover

Previously released.

EN-46101



Spark Plug Tube Seal Guide Set

Used to protect the spark plug lip seals when installing the
camshaft cover to the cylinder head.

EN-46103



Camshaft Actuator Valve Seal Installer

Used to install the camshaft actuator valve seals into the front
cover.

EN-46105 –

1 and 2



Camshaft Locking Tool Set

Used to retain camshaft position during timing chain or
camshaft actuator replacement.

EN-46106



Flexplate Holding Tool

Used to retain crankshaft position during valve-train overhaul
and harmonic balancer removal.

EN-46108



Timing Chain Retention Tool Set

Used to retain timing chain tension during camshaft and
sprocket removal.

Engine Mechanical – V6

Page 6A1–354



Page 6A1–354

Tool Number

Illustration

Description

EN-46109



Engine Front Cover / Oil Pan / Crankshaft Rear Oil Seal

Housing Installation Guide Pins

Used to align the engine front cover/oil pan/crankshaft rear oil
seal housing during engine assembly.

EN-46110



On-vehicle Valve Spring Compressor

Used to remove valve springs with the cylinder heads
assembled to the cylinder block.

EN-46111



Crankshaft Rotation Socket

Used to rotate the crankshaft during engine overhaul.

EN-46112



Timing Chain Tensioner Retraction Springs

Used to retain the timing chain tensioner plunger within the
tensioner bore during assembly of timing chains to engine.

EN-46114



Engine Lift Brackets

Used in conjunction with commercially available lifting
equipment to lift engine.

EN-46116



Valve Stem Seal Remover / Installer

Used to remove/install the valve stem seals.
