Engine Mechanical – V6

Page 6A1–293



Power Steering High Pressure Line Attaching Bolt ..................... 8.0 – 12.0 Nm

Power Steering High Pressure Line Flare Nut........................... 25.0 – 35.0 Nm

Steering Gear Housing Mounting Nut:
Stage 1 ................................................................................................. 60.0 Nm
Stage 2 ................................................................................................40° – 50°

Oil Suction Pipe Attaching Bolt............................................................. 10.0 Nm

Crankshaft Oil Deflector Attaching bolt................................................. 10.0 Nm

Oil Level Sensor ................................................................................... 20.0 Nm

Oil Pan to Cylinder Block Attaching Bolt.................................... 20.0 – 26.0 Nm

Oil Pan to Crankshaft Rear Oil Seal Housing Attaching Bolt ........8.0 - 12.0 Nm

„  Flexplate Attaching Bolt:

Stage 1 ...................................................................................... 26.0 – 34.0 Nm

Stage 2 ......................................................................................................... 45

°

Crankshaft Rear Oil Seal Housing Attaching Bolt........................ 8.0 – 12.0 Nm

„ Connecting Rod Cap Attaching Bolt:

Stage 1 ................................................................................................. 30.0 Nm

Stage 2 ................................................................................Loosen Completely

Stage 3 ................................................................................................. 25.0 Nm

Stage 4 ....................................................................................................... 110

°

Crankshaft Bearing Cap Remover Nut ................................................. 11.0 Nm

„ Crankshaft Main Bearing Cap Inboard Attaching Bolt:

Stage 1 ................................................................................................. 20.0 Nm

Stage 2 ......................................................................................................... 80

°

„ Crankshaft Main Bearing Cap Outboard Attaching Bolt:

Stage 1 ................................................................................................. 15.0 Nm

Stage 2 ....................................................................................................... 110

°

„  Crankshaft main Bearing Cap Side Attaching Bolt:

Stage 1 ................................................................................................. 30.0 Nm

Stage 2 ......................................................................................................... 60

°

Cylinder Block Threaded Plug ....................................................27.0 - 35.0 Nm

Oil Jet Attaching Bolt ................................................................... 8.0 – 12.0 Nm

Engine Mechanical – V6

Page 6A1–294



7 Special

Tools

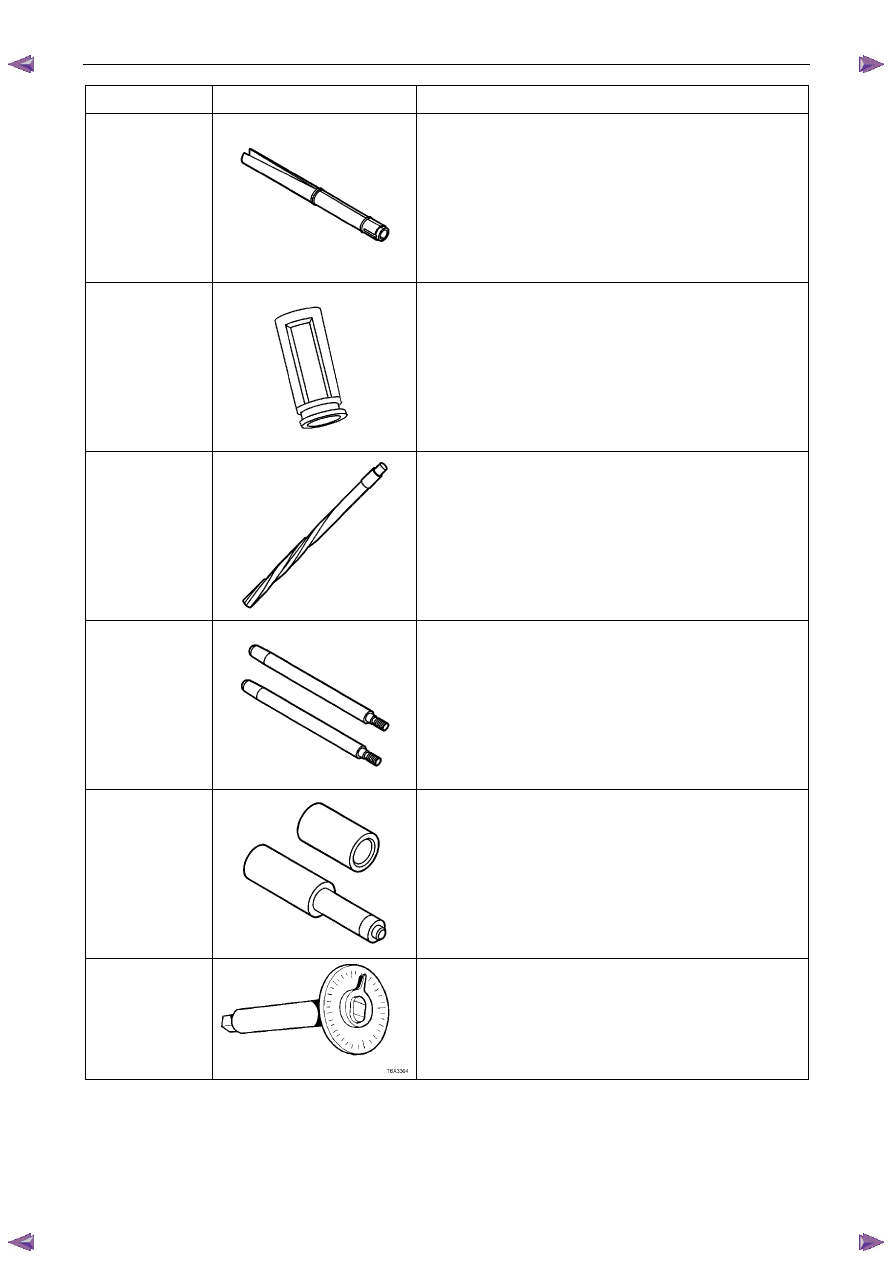

Tool Number

Illustration

Description

E-308

Seal Remover

Previously released.

EN-46101



Spark Plug Tube Seal Guide Set

Used to protect the spark plug lip seals when installing the
camshaft cover to the cylinder head.

EN-46103



Camshaft Actuator Valve Seal Installer

Used to install the camshaft actuator valve seals into the front
cover.

EN-46105 –
1 and 2



Camshaft Locking Tool Set

Used to retain camshaft position during timing chain or
camshaft actuator replacement.

EN-46106



Flexplate Holding Tool

Used to retain crankshaft position during valve-train overhaul
and harmonic balancer removal.

EN-46108



Timing Chain Retention Tool Set

Used to retain timing chain tension during camshaft and
sprocket removal.

Engine Mechanical – V6

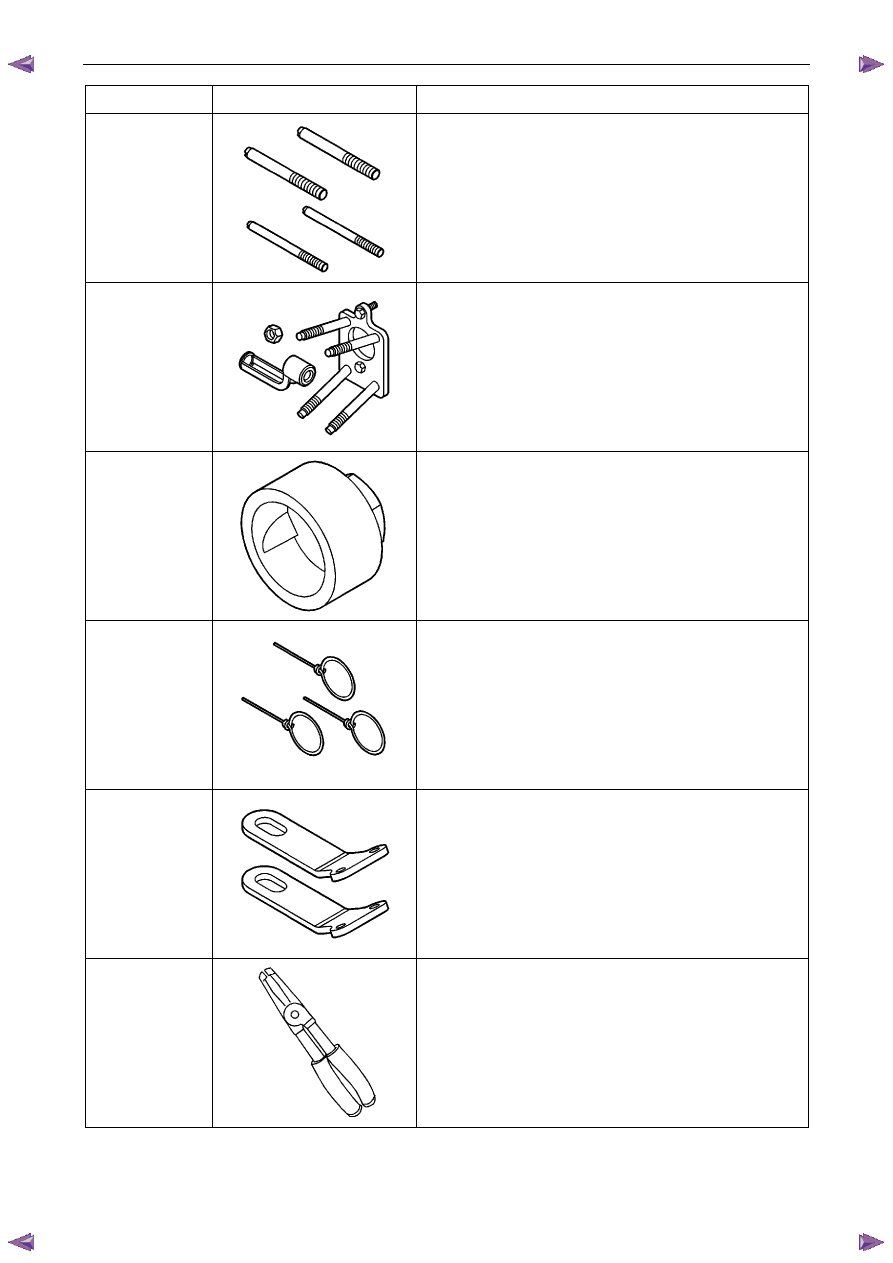

Page 6A1–295



Tool Number

Illustration

Description

EN-46109



Engine Front Cover / Oil Pan / Crankshaft Rear Oil Seal

Housing Installation Guide Pins

Used to align the engine front cover/oil pan/crankshaft rear oil
seal housing during engine assembly.

EN-46110



On-vehicle Valve Spring Compressor

Used to remove valve springs with the cylinder heads
assembled to the cylinder block.

EN-46111



Crankshaft Rotation Socket

Used to rotate the crankshaft during engine overhaul.

EN-46112



Timing Chain Tensioner Retraction Springs

Used to retain the timing chain tensioner plunger within the
tensioner bore during assembly of timing chains to engine.

EN-46114



Engine Lift Brackets

Used in conjunction with commercially available lifting
equipment to lift engine.

EN-46116



Valve Stem Seal Remover / Installer

Used to remove/install the valve stem seals.

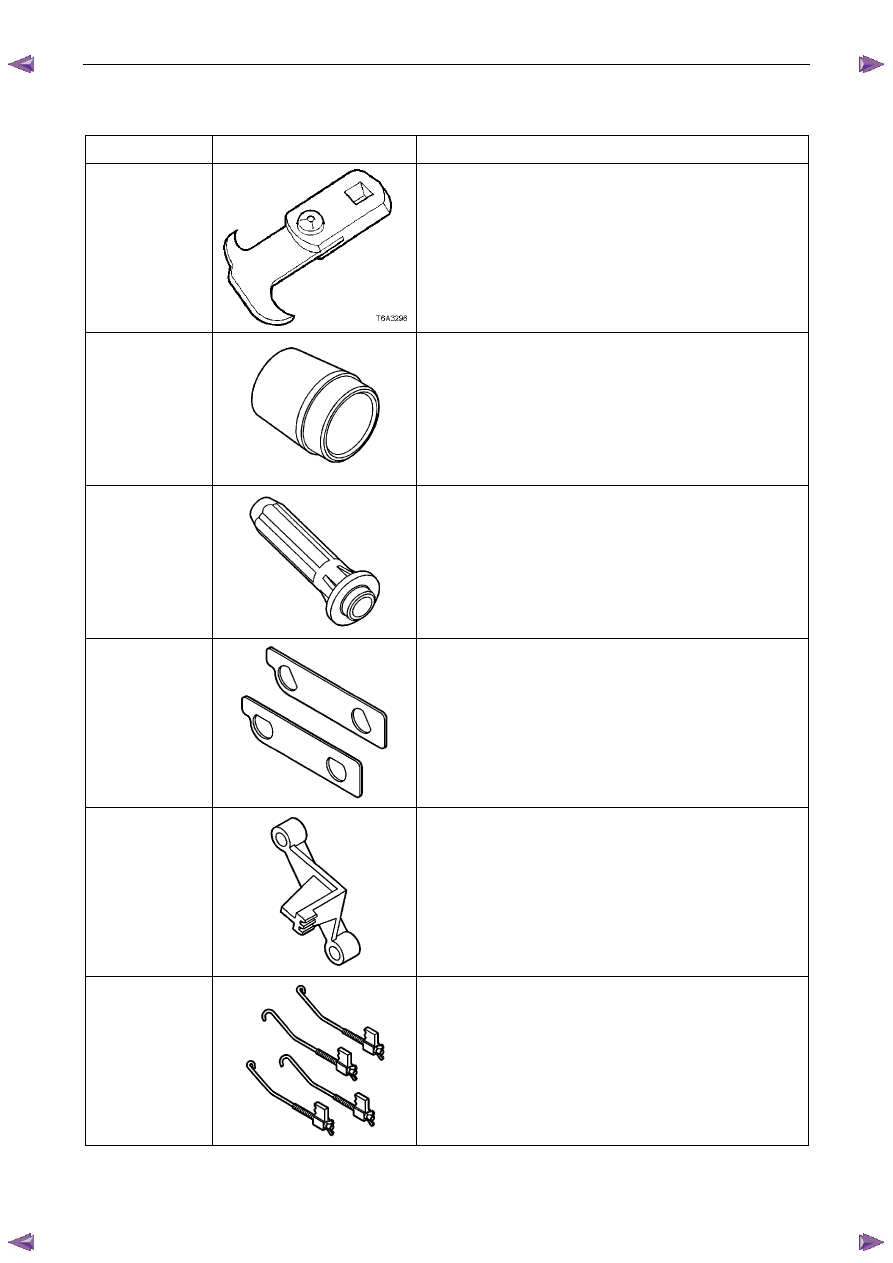

Engine Mechanical – V6

Page 6A1–296



Tool Number

Illustration

Description

EN-46117



Valve Stem Key Remover / Installer

Used in conjunction with J-8062 or EN-46110 to remove and
reinstall the valve stem keys.

EN-46119



Off-vehicle Valve Spring Compressor Adaptor

Used in conjunction with J-8062 to remove valve springs with
the engine disassembled.

EN-46120 and

J-42096





Valve Guide Reamer

Used to oversize valve guides prior to the installation of new
oversized valves.

EN-46121



Connecting Rod Guide Pin Set

Used to guide connecting rods onto the crankshaft journals
and prevent damage to the cylinder bores, journal faces and
piston cooling jets during engine assembly procedures.

EN-46122



Oil Control Valve Check Ball Remover / Installer

EN-7115

Torque Angle Wrench

Used to accurately tighten fasteners when an angle torque is
required.
