Engine Mechanical – V6

Page 6A1–285



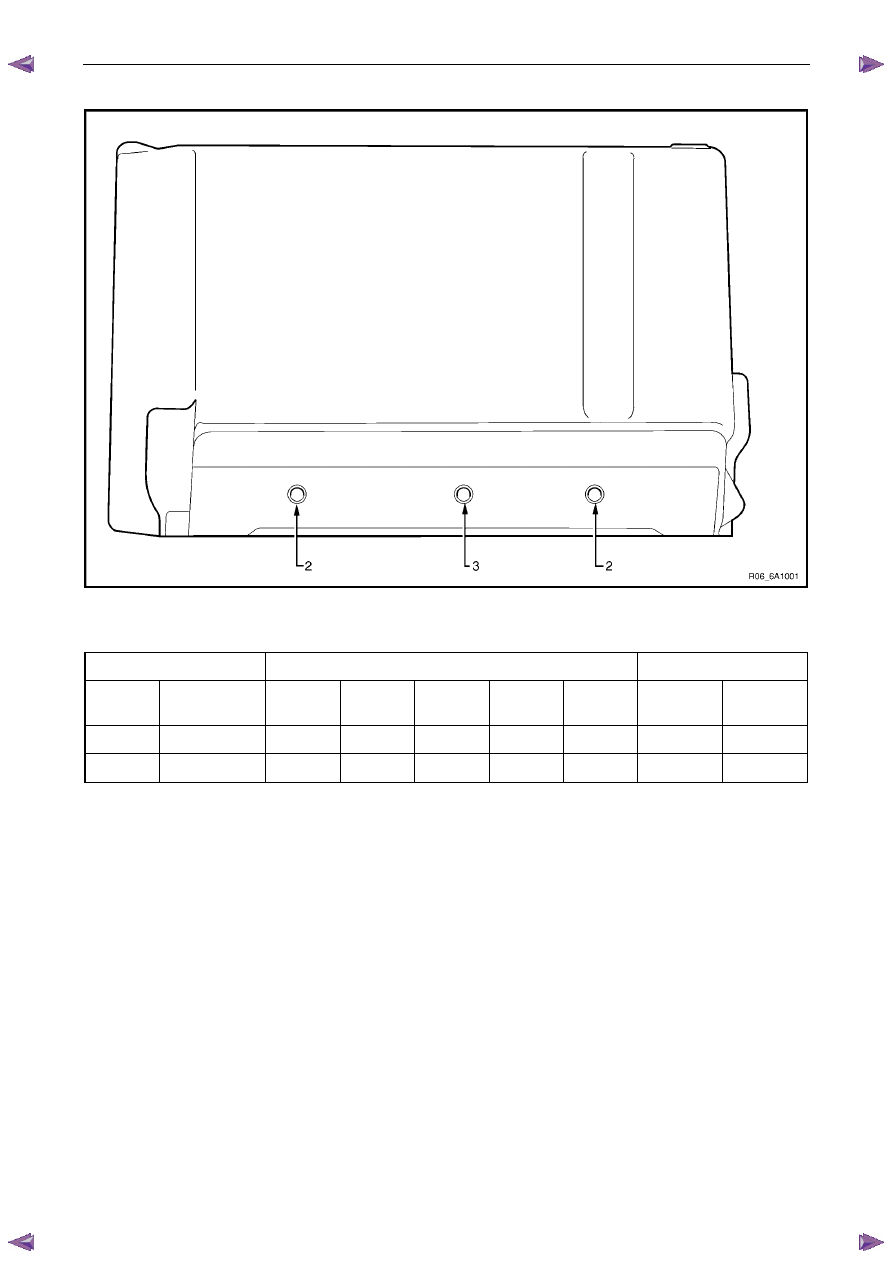

Oil Pan Front



Figure 6A1 – 536

Legend

Hole

Tool Number J 42385

Max. Depth in mm

Number Thread

Size  Drill

Counter-

bore

Tap Driver

Insert  Drill

Tap



2

M8 x 1.25

206

207

208

209

210

28.5

23.0

3

M8 x 1.25

610

n/a

208

209

620

37.5

32.0



Engine Mechanical – V6

Page 6A1–286



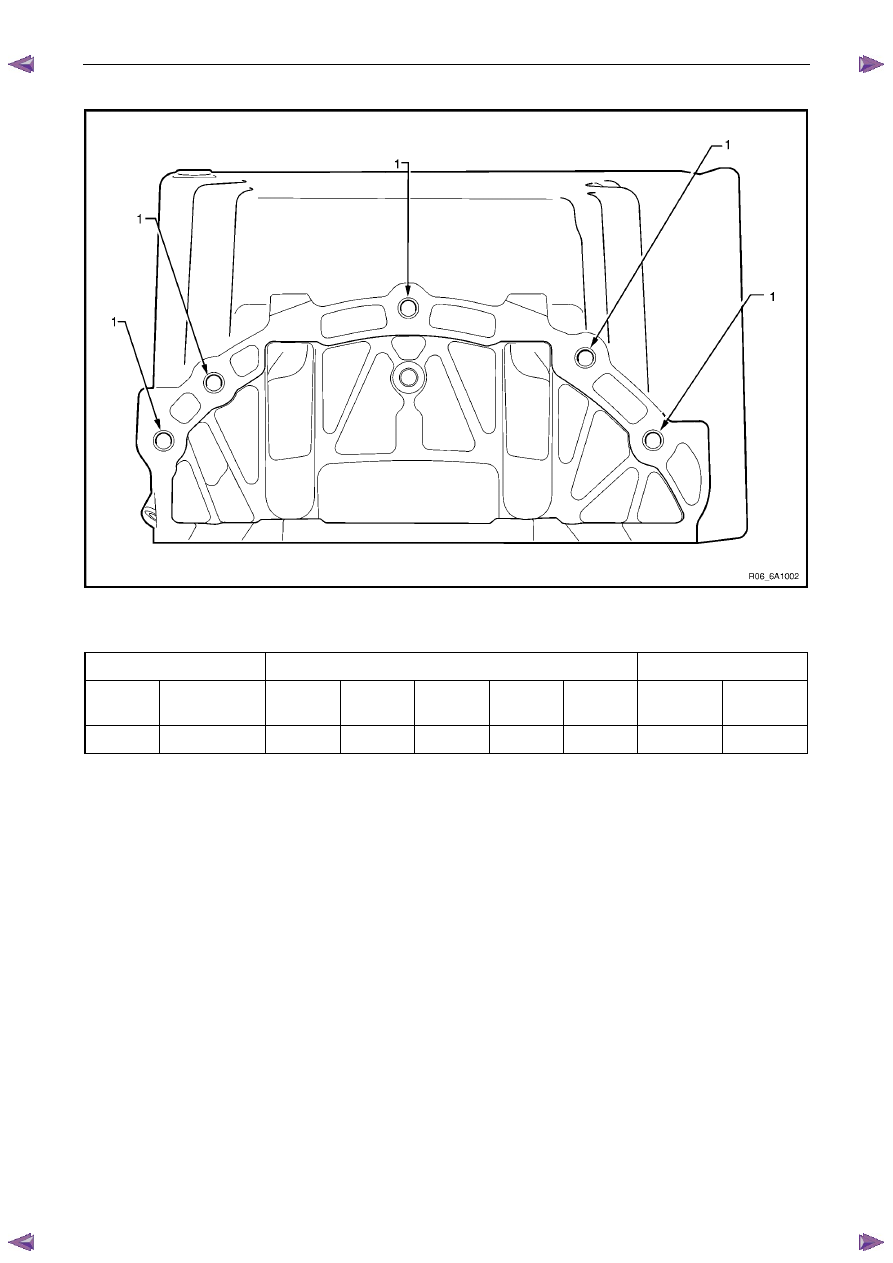

Oil Pan Rear



Figure 6A1 – 537

Legend

Hole

Tool Number J 42385

Max. Depth in mm

Number Thread

Size  Drill

Counter-

bore

Tap Driver

Insert  Drill

Tap



1

M10 x 1.5

211

212

213

214

215

Thru

Thru



Engine Mechanical – V6

Page 6A1–287



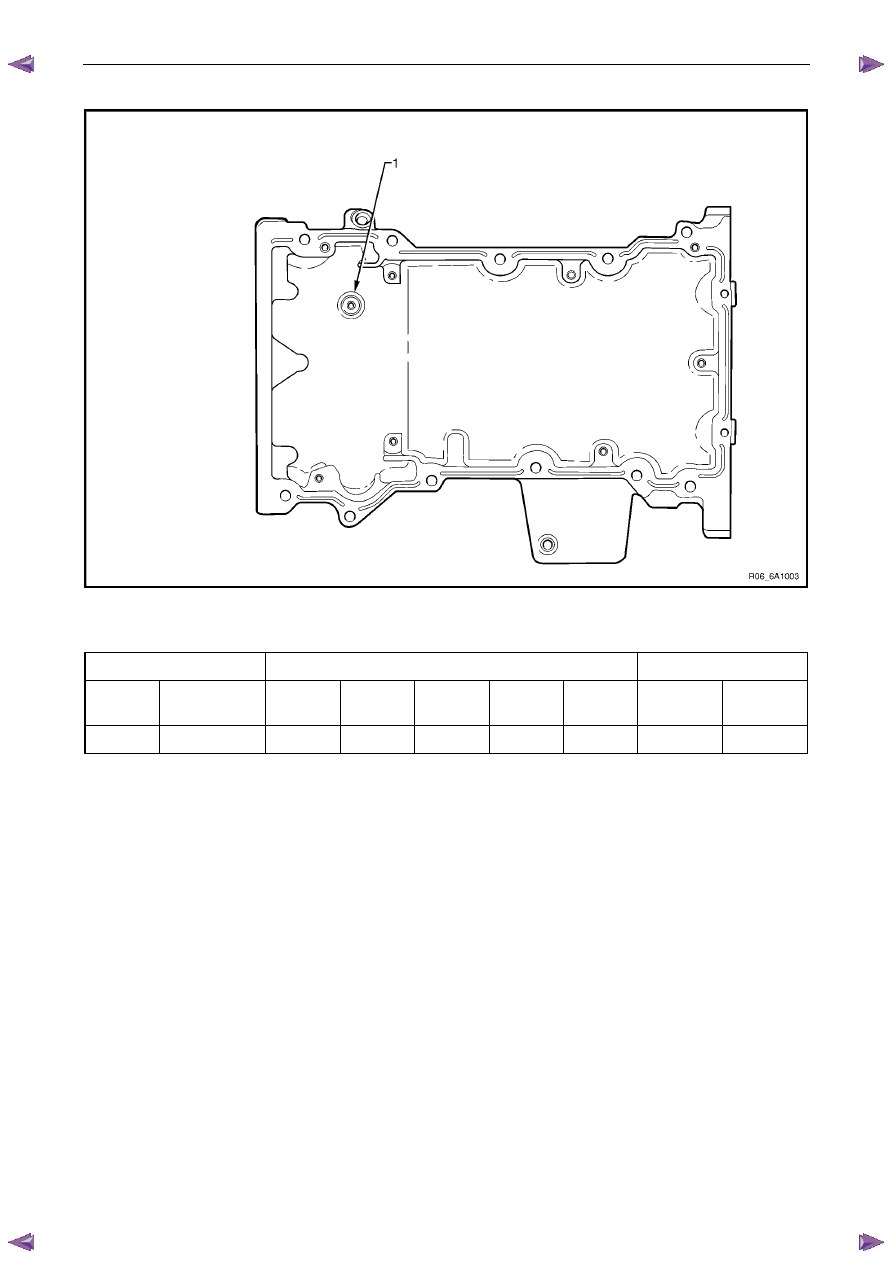

Oil Pan Bottom



Figure 6A1 – 538

Legend

Hole

Tool Number J 42385

Max. Depth in mm

Number Thread

Size  Drill

Counter-

bore

Tap Driver

Insert  Drill

Tap



1

M6 x 1.0

701

n/a

203

204

205

22.5

18.0



Engine Mechanical – V6

Page 6A1–288



5 Specifications

G e n e r a l

Engine Type......................................................................................................................... V6

Bank Angle ......................................................................................................................... 60

°

Displacement ............................................................................................3.6 litre (3,565 cm3)

Bore ...............................................................................................................................94 mm

Stroke .........................................................................................................................85.6 mm

Compression Ratio .........................................................................................................10.2:1

Cranking Speed at 40

°C.............................................................................................80 r.p.m.

Spark Plug Gap ............................................................................................................1.1 mm

Firing Order.............................................................................................................1-2-3-4-5-6

C y l i n d e r   B l o c k

Cylinder Bore Diameter ...........................................................................93.992 – 94.008 mm

Cylinder Out-of-Round – Production Maximum ........................................................0.013 mm

Crankshaft Main bearing bore Diameter ..................................................72.867 – 72.881 mm

Cylinder Head Deck Surface Flatness ........................................................................0.05 mm

C r a n k s h a f t

Connecting Rod Journal Diameter...........................................................55.992 – 56.008 mm

Connecting Rod Journal Out-of-Round.....................................................................0.005 mm

Connecting Rod Journal Taper .................................................................................0.005 mm

Connecting Rod Journal Width (Production)...........................................................22.000 mm

Connecting Rod Journal Width (Service limit)..........................................21.920 – 22.080 mm

Crankshaft End Play ....................................................................................0.100 – 0.330 mm

Crankshaft Main Bearing Clearance ............................................................0.010 – 0.060 mm

Crankshaft Main Journal Diameter ..........................................................67.992 – 68.008 mm

Crankshaft Main Journal Out-of-Round ....................................................................0.005 mm

Crankshaft Main Journal Taper.................................................................................0.005 mm

Crankshaft Main Journal Width, #2, 4 (Production) .......................................................24 mm

Crankshaft Main Journal Width, #2, 4 (Service).......................................23.900 – 24.100 mm

Crankshaft Main Journal Width, #3 (Production) ....................................................24.400 mm

Crankshaft Main Journal Width, #3 (Service) ..........................................24.360 – 24.440 mm

Crankshaft Main Journal Thrust Wall Runout ..............................................0.000 – 0.040 mm

Crankshaft Main Journal Thrust Wall Square ..............................................0.000 – 0.010 mm

Crankshaft Rear Flange Runout ...............................................................................0.025 mm

Crankshaft Reluctor Ring Runout - Maximum...........................................................1.500 mm

Crankshaft Thrust Bearing Clearance..........................................................0.076 – 0.305 mm

Crankshaft Thrust Surface Runout ...........................................................................0.040 mm

Crankshaft Thrust Surface – Height Diameter ........................................................95.000 mm

C o n n e c t i n g   R o d

Connecting Rod Length - Bore Centre-to-Centre..................................................150.400 mm

Connecting Rod Bore Diameter - Bearing End ........................................59.620 – 59.636 mm

Connecting Rod Bore Diameter - Pin End ...............................................24.007 – 24.021 mm

Connecting Rod Width ...........................................................................................21.775 mm

Connecting Rod Side Clearance..................................................................0.095 – 0.355 mm

Connecting Rod Bearing Clearance ............................................................0.010 – 0.070 mm

P i s t o n

Piston Diameter .......................................................................................93.956 – 93.974 mm

Piston Pin Bore Diameter ........................................................................24.005 – 24.009 mm

Piston Ring Groove Width - First (Top) Compression Ring .........................1.220 – 1.240 mm

Piston Ring Groove Width - Second Compression Ring..............................1.510 – 1.530 mm
