Engine Mechanical – V6 Page 6A1–269

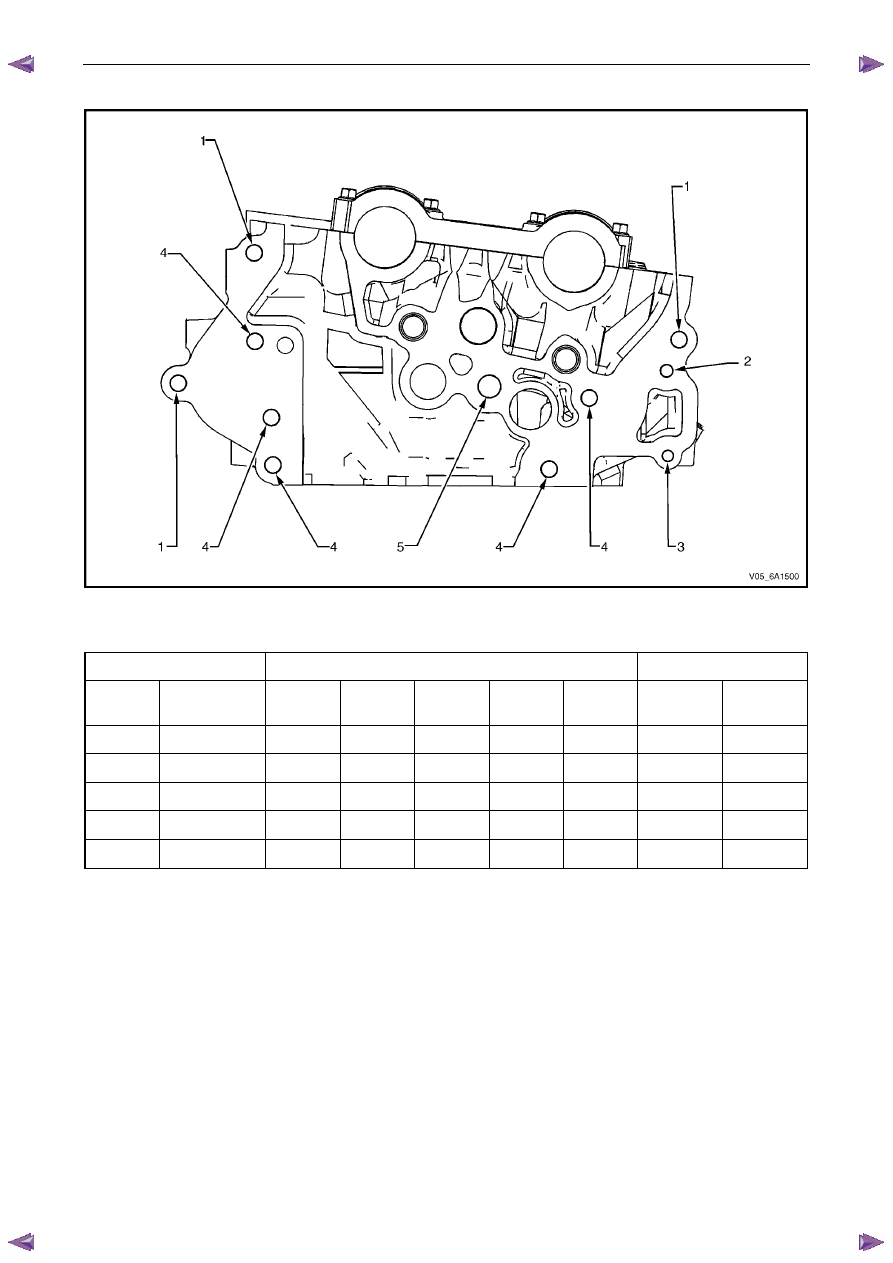

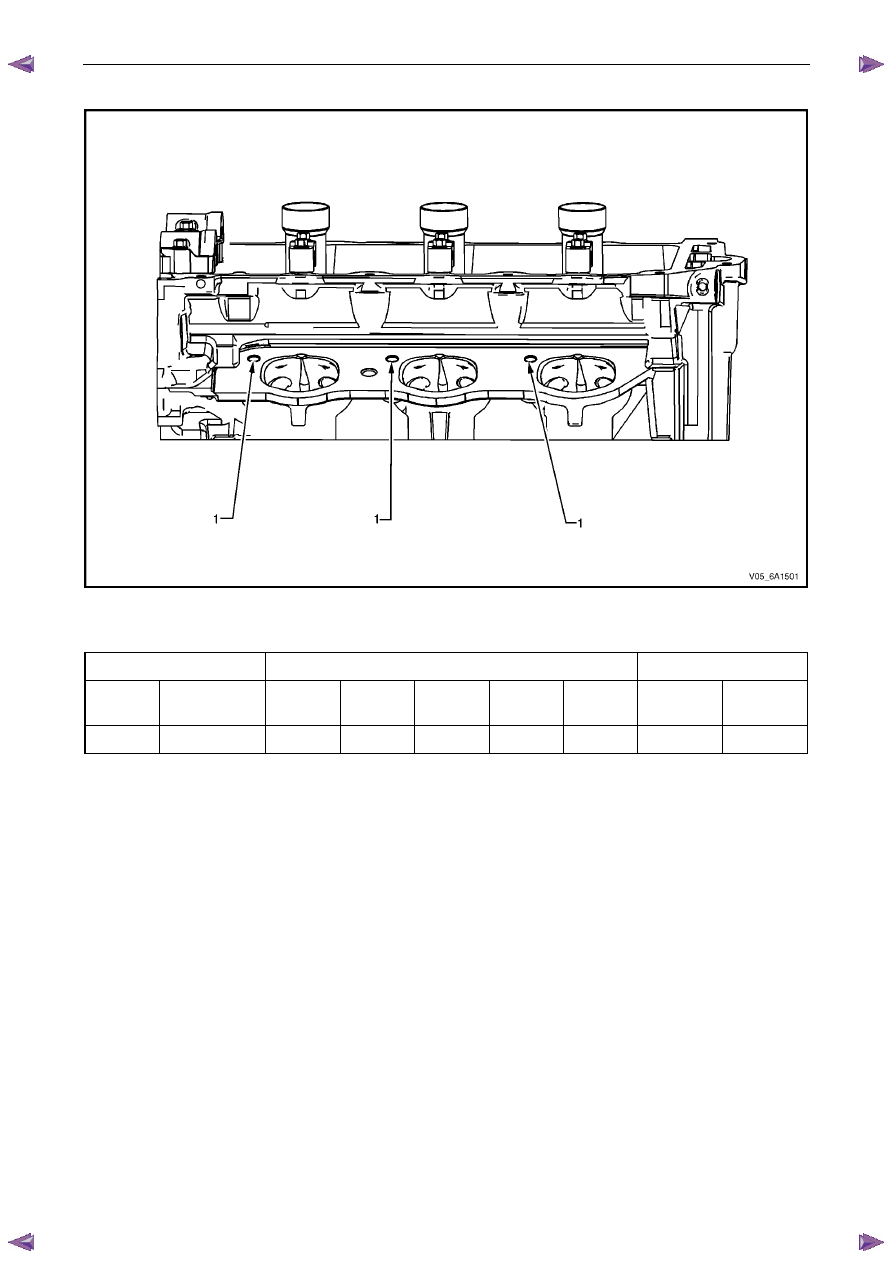

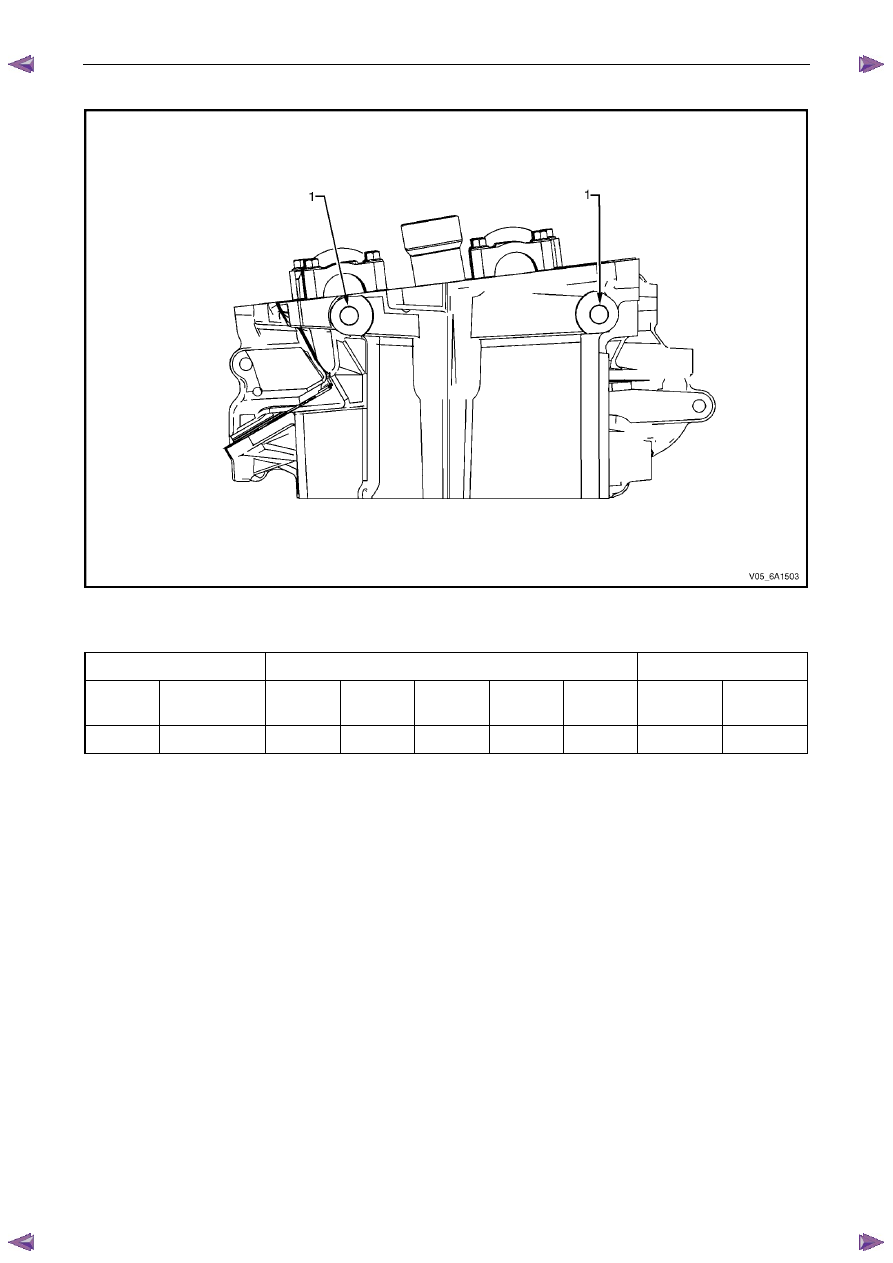

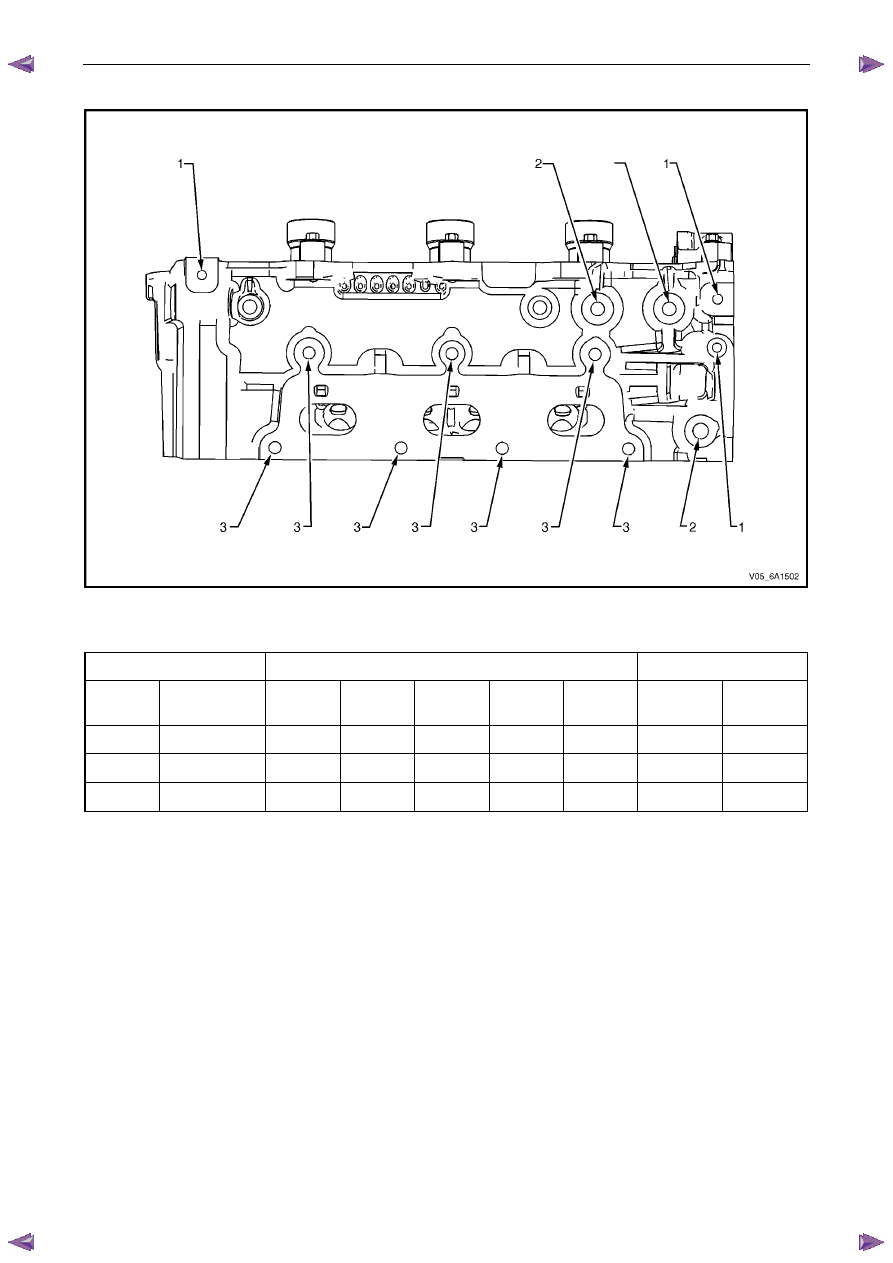

Right-hand Cylinder Head Front Face
Figure 6A1 – 520 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 Thru Thru 2 M6 x 1.0 201 202 203 204 205 22.5 18.0 3 M6 x 1.0 201 202 203 204 205 Thru Thru 4 M8 x 1.25 206 207 208 209 210 28.5 23.0 5 M12 x 1.75 856 857 858 859 416 40.0 32.5 |
