Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.

—

Verify repair

—

Step

Action

Value(s)

Yes

ENGINE DRIVEABILITY AND EMISSIONS

6E–123

DIAGNOSTIC TROUBLE CODE (DTC) P0108 MANIFOLD ABSOLUTE

PRESSURE CIRCUIT HIGH INPUT

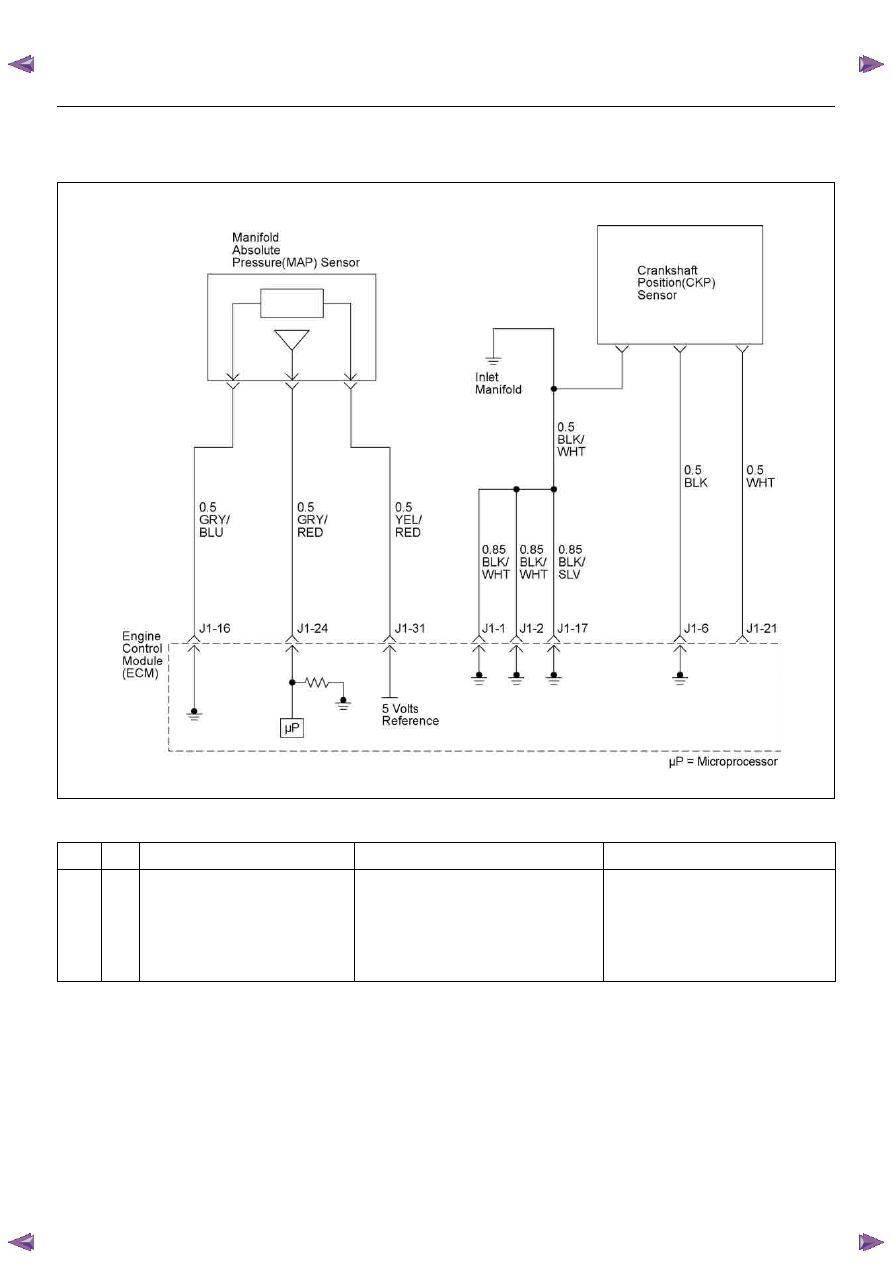

Condition for setting the DTC and action taken when the DTC sets

Circuit Description

The manifold absolute pressure (MAP) sensor responds
to changes in intake manifold pressure. The MAP
sensor signal voltage to the engine control module
(ECM) varies from below 2 volts at idle (low manifold
pressure) to above 4 volts with the ignition ON, engine
not running or at wide-open throttle (high manifold
pressure).
A “speed density” method of determining engine load is
used on the 2.4L engine. This is calculated using inputs

from the MAP sensor, RPM, CKP Sensor, and the
Intake Air Temperature (IAT) sensor. The MAP sensor is
the main sensor used in this calculation, and measuring
engine load is its main function.
The ECM monitors the MAP signals for voltages outside
the normal range (10-104 kPa) of the MAP sensor. If the
ECM detects a MAP signal voltage that is excessively
high, Diagnostic Trouble Code P0108 will be set.

Code

Type

DTC Name

DTC Setting Condition

Fail-Safe (Back Up)

P0108

Manifold Absolute Pressure Circuit
High Input

1. No DTC relating to TPS.
2. Throttle position is below 15% if engine

speed is below 2500rpm, or throttle posi-
tion is below 35% if engine speed is more
than 2500rpm.

3. Engine run time is longer than 10 seconds.
4. MAP sensor output is more than 103kPa.

The ECM uses default manifold absolute
pressure value based on engine speed
and throttle position.

6E–124

ENGINE DRIVEABILITY AND EMISSIONS

Diagnostic Aids

Check for the following conditions:

• Poor connection at ECM - Inspect harness

connectors for backed-out terminals, improper
mating, broken locks, improperly formed or damaged
terminals, and poor terminal-to-wire connection.

• If these codes are also set, it could indicate a

problem with the 5 Volt reference circuit.

• Damaged harness - Inspect the wiring harness for

damage; an open circuit, a short to ground, or a short
to voltage. If the harness appears to be OK, observe
the MAP display on the Tech 2 while moving
connectors and wiring harnesses related to the
sensor. A change in the display will indicate the
location of the fault.

Diagnostic Trouble Code (DTC) P0108

Manifold Absolute Pressure Circuit High Input

Step

Action

Value(s)

Yes

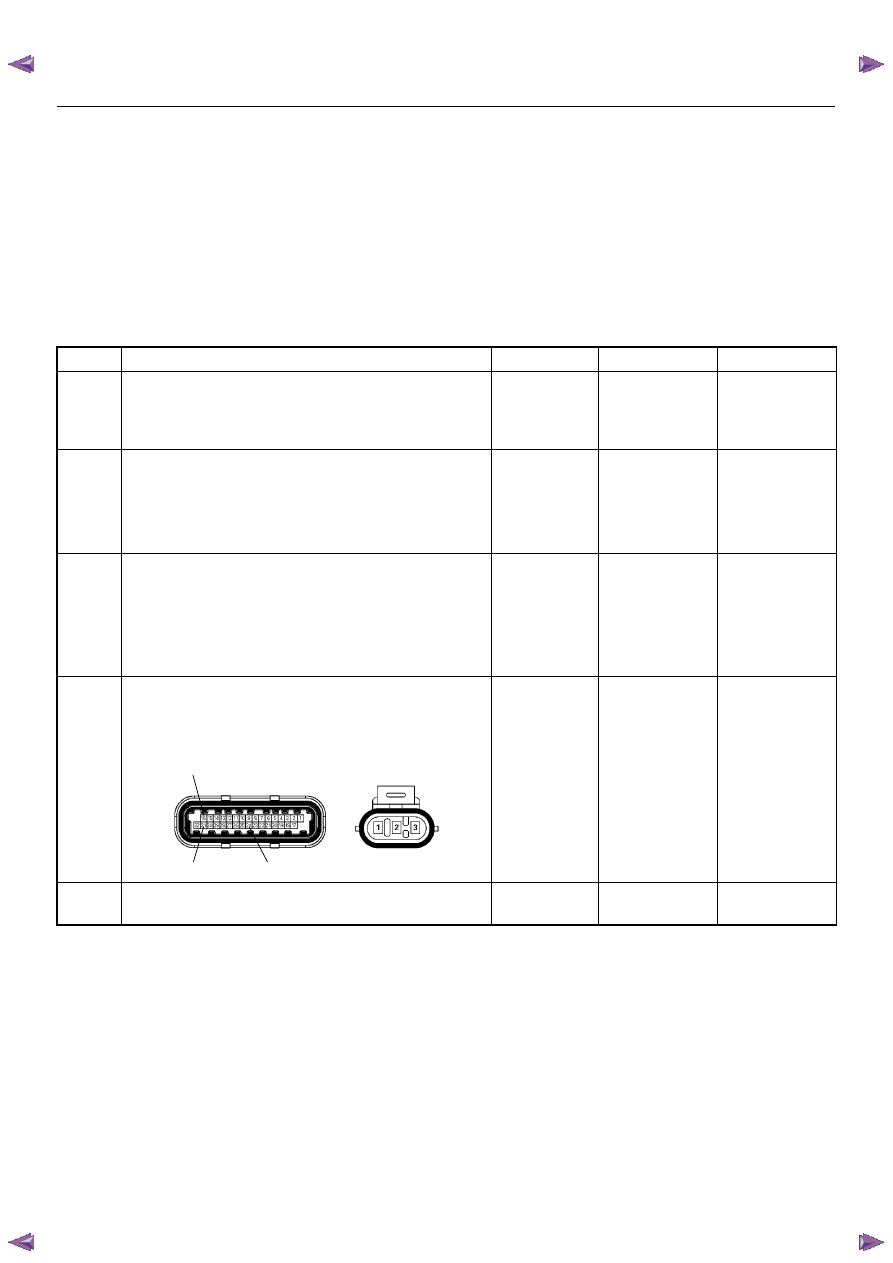

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor By Priority” in “F0:

Diagnostic Trouble Code”.

Is the DTC P0108 stored as “Present Failure”?

—

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

1. Using the Tech2, ignition “On” and engine “Off”.

2. Select “Clear DTC Information” with the Tech2 and

clear the DTC information.

3. Operate the vehicle and monitor the “F5: Failed

This Ignition” in “F2: DTC Information”.

Was the DTC P0108 stored in this ignition cycle?

—

Go to Step 4

Refer to

Diagnostic Aids

and Go to Step

Check for poor/faulty connection at the MAP sensor or
ECM connector. If a poor/faulty connection is found,
repair as necessary.
Was the problem found?

—

Verify repair

Go to Step 5

Visually check the MAP sensor.
Was the problem found?

—

Go to Step 11

Go to Step 6

E85

E60(J1)

ENGINE DRIVEABILITY AND EMISSIONS

6E–125

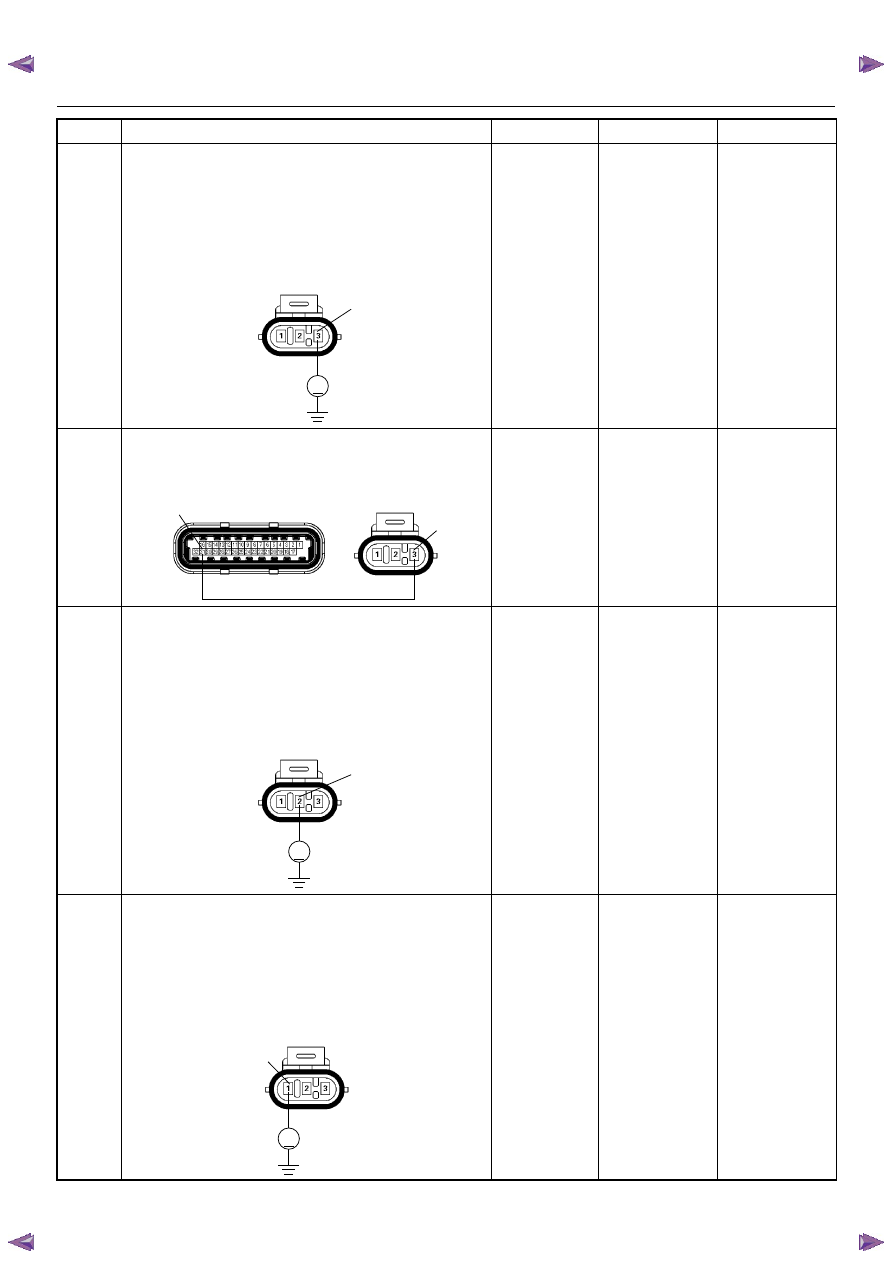

Using the DVM and check the MAP sensor power
supply circuit.

1. Ignition “On”, engine “Off”.

2. Disconnect the MAP sensor connector.

3. Check the circuit for short to voltage circuit.

Was the DVM indicated specified value?

Approximately

5.0V

Go to Step 8

Go to Step 7

Repair the short to voltage circuit between the ECM
and MAP sensor.
Was the problem solved?

—

Verify repair

Go to Step 13

Using the DVM and check the MAP sensor signal
circuit.

1. Ignition “On”, engine “Off”.

2. Disconnect the MAP sensor connector.

3. Check the circuit for short to power supply circuit.

Was the DVM indicated specified value?

Less than 1V

Go to Step 9

Repair faulty

harness and

verify repair

Using the DVM and check the MAP sensor ground
circuit.

1. Ignition “On”, engine “Off”.

2. Disconnect the MAP sensor connector .

3. Check the circuit for short to power supply circuit.

Was the DVM indicated specified value?

Less than 1V

Go to Step 10

Repair faulty

harness and

verify repair

Step

Action

Value(s)

Yes

E85

E60(J1)

E85
