6E–46

ENGINE DRIVEABILITY AND EMISSIONS

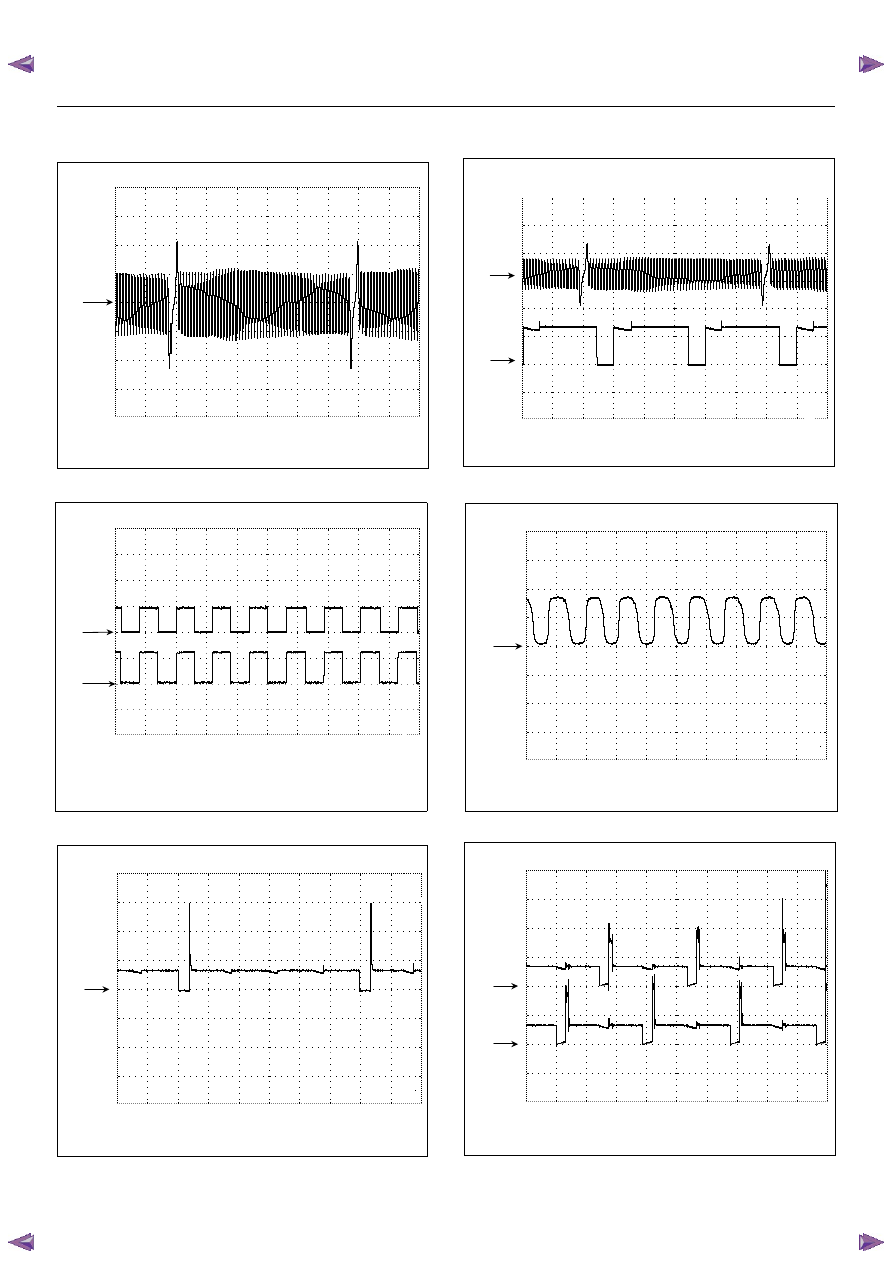

Reference Wave Form

  Crankshaft Position (CKP) Sensor Reference Wave Form

0V




Measurement Terminal: J1-21(+) J1-6(-)
Measurement Scale: 10V/div   5ms/div

Measurement Condition: Approximately 2000rpm

  Ve h ic le   S p e ed   S e n so r  (V S S )  R e fe re n c e   W a ve   F o rm

  C H 1
  0 V

  C H 2
  0 V



  M easurem ent Term inal: CH1: ECM J2-23(+) / CH2: VSS 3(+)    GND(-)
Measurem ent Scale: CH1: 10V/div / CH2: 10V/div 50m s/div

Measurem ent Condition: Approxim ately 20km /h

Note: The vehicle is w ithout imm obilizer system,
CH1 signal is same as CH2.

  Injector Control Signal Reference Wave Form

0V



  Measurement Terminal: J1-9(+) (No.1 Cylinder)      GND(-)
  Measurement Scale: 20V/div                                      5ms/div

Measurement Condition: Approximately 2000rpm

Crankshaft Position (CKP) Sensor & Tacho Output Signal

Reference W ave Form

CH1
0V

CH2
0V

  Measurement Terminal: CH1: J1-21(+) / CH2: J2-25(+)    GND(-)
  Measurem ent Scale: CH1: 2V/div / CH2: 10V/div        5m s/div

Measurem ent Condition: Approxim ately 2000rpm

  Heated Oxygen Sensor (HO2S) Reference Wave Form

0V




Measurement Terminal: J2-21(+)     GND(-)
Measurement Scale: 500mV/div       500ms/div

Measurement Condition: Approximately 2000rpm in Closed Loop

Ignition Coil Control Signal Reference Wave Form

CH1
0V

CH2
0V

Measurement Terminal: CH1: J1-19(+) / CH2: J1-18(+) GND(-)

Measurement Scale: CH1: 20V/div / CH2: 20V/div 10ms

Measurement Condition: Approximately 2000rpm

ENGINE DRIVEABILITY AND EMISSIONS

6E–47

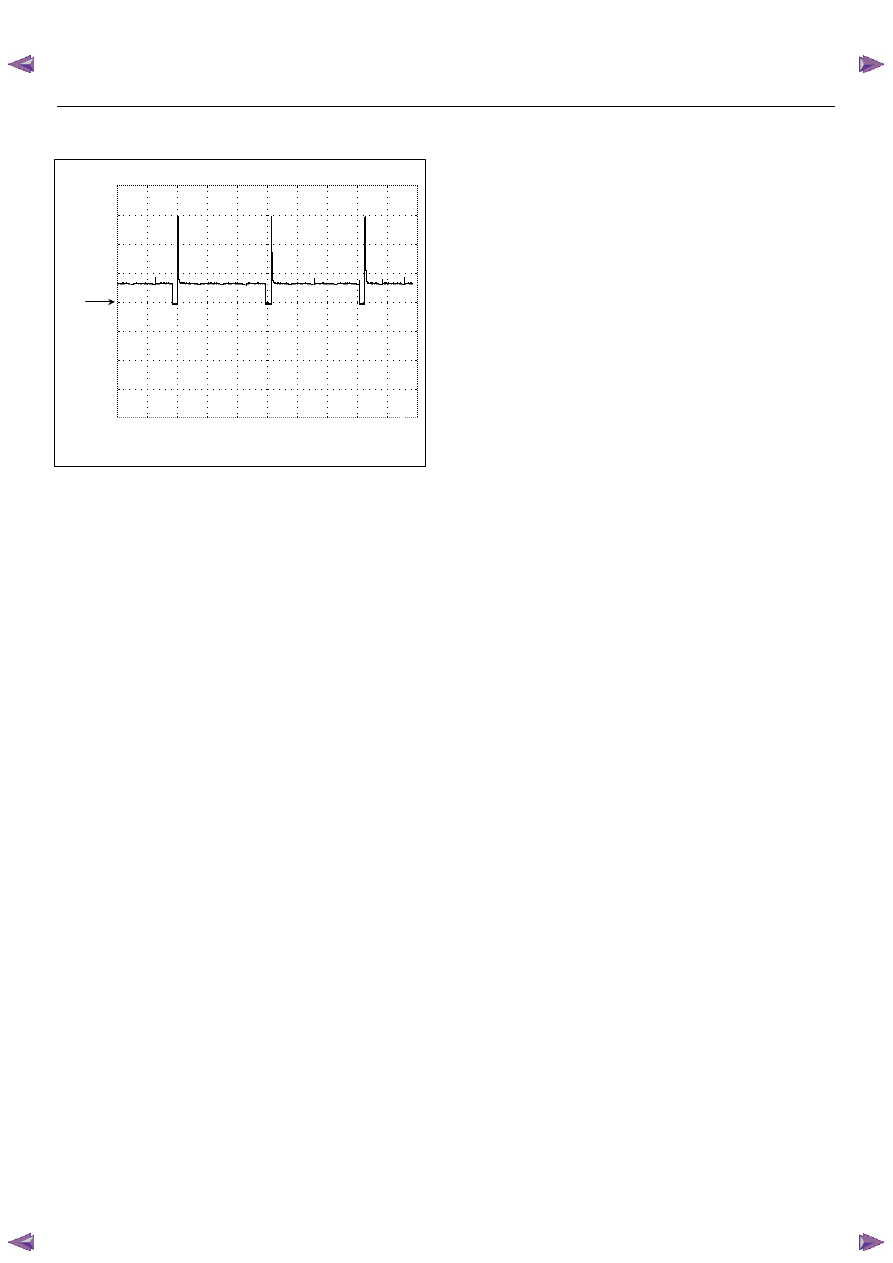

  EVAP Canister Purge Solenoid Reference Wave Form

0V





Measurement Terminal: J1-5(+) GND(-)
Measurement Scale: 20V/div    20ms/div
Frequency: Approximately 16Hz

6E–48

ENGINE DRIVEABILITY AND EMISSIONS

GENERAL DESCRIPTION FOR ECM AND
SENSORS

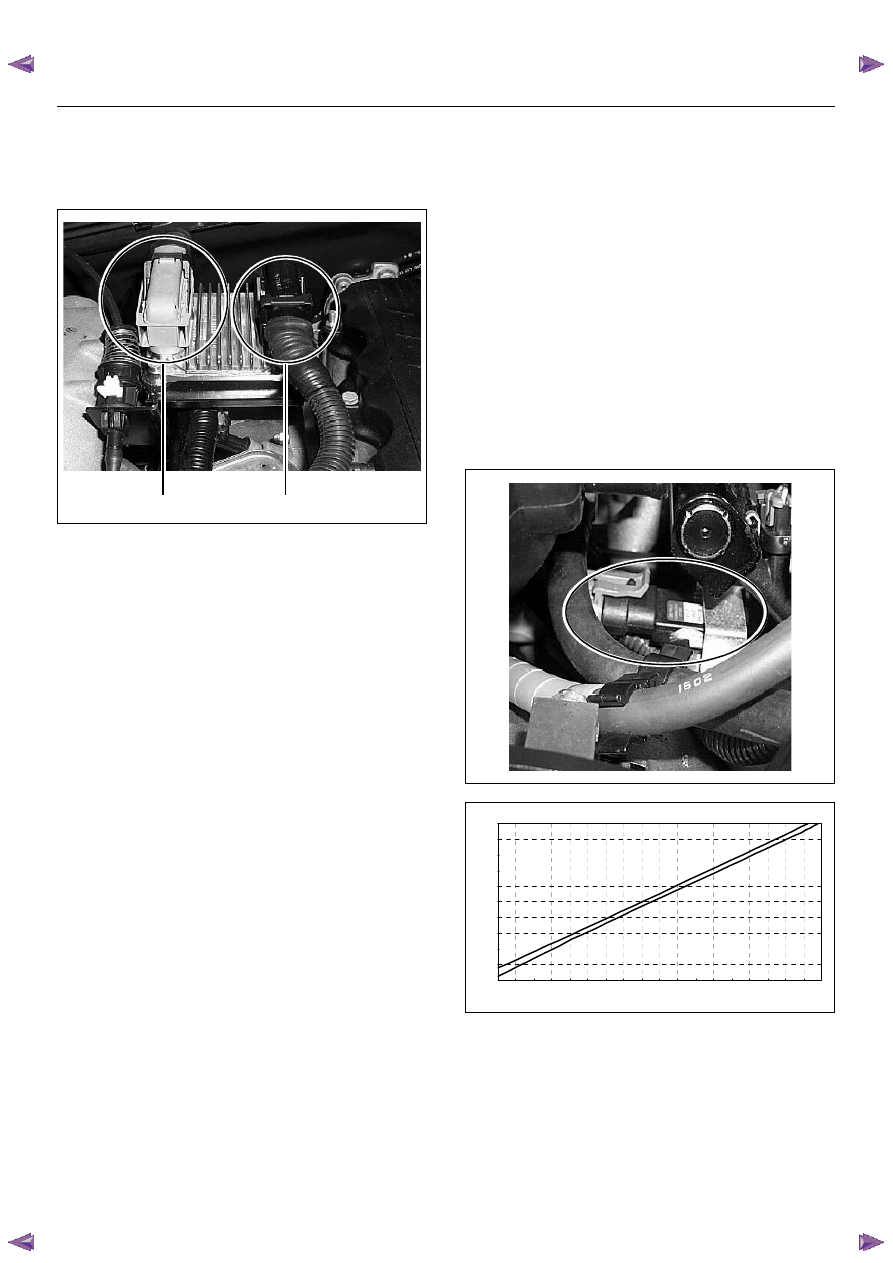

Engine Control Module (ECM)

The engine control module (ECM) is located on the
intake manifold. The ECM controls the following.
• Fuel metering system

• Ignition timing

• On-board diagnostics for electrical functions.

The ECM constantly observes the information from vari-
ous sensors. The ECM controls the systems that affect
vehicle performance. And it performs the diagnostic
function of the system.
The function can recognize operational problems, and
warn to the driver through the check engine lamp, and
store diagnostic trouble code (DTC). DTCs identify the
problem areas to aid the technician in marking repairs.

The input / output devices in the ECM include analog to
digital converts, signal buffers, counters and drivers.
The ECM controls most components with electronic
switches which complete a ground circuit when turned
on.

Inputs (Operating condition read):
• Battery voltage

• Electrical ignition

• Exhaust oxygen content

• Intake manifold pressure

• Intake air temperature

• Engine coolant temperature

• Crankshaft position

• Knock signal

• Throttle position

• Vehicle speed

• Power steering pressure

• Air conditioning request on or off

Outputs (Systems controlled):
• Ignition control

• Fuel control

• Idle air control

• Fuel pump

• EVAP canister purge

• Air conditioning

• Diagnostics functions

Manifold Absolute Pressure (MAP) Sensor

The MAP sensor is a strain gage. A pressure strains the
resistance on the silicon base. At that time the
resistance value changes. And it changes voltage. In
other words it measures a pressure value. It is installed
to the intake manifold. Output voltage of the MAP
sensor is low as pressure is low.

(1) J1 Port
(2) J2 Port

C harac t eris t ic of MAP Sens or -R ef erenc e-

0.5

1.5

2.5

3.5

4.5

100

105

Mani fol d A bs ol ute P res s ure (K P a) (T ec h2 Readi ng)

put

Vol

tage (

)

ENGINE DRIVEABILITY AND EMISSIONS

6E–49

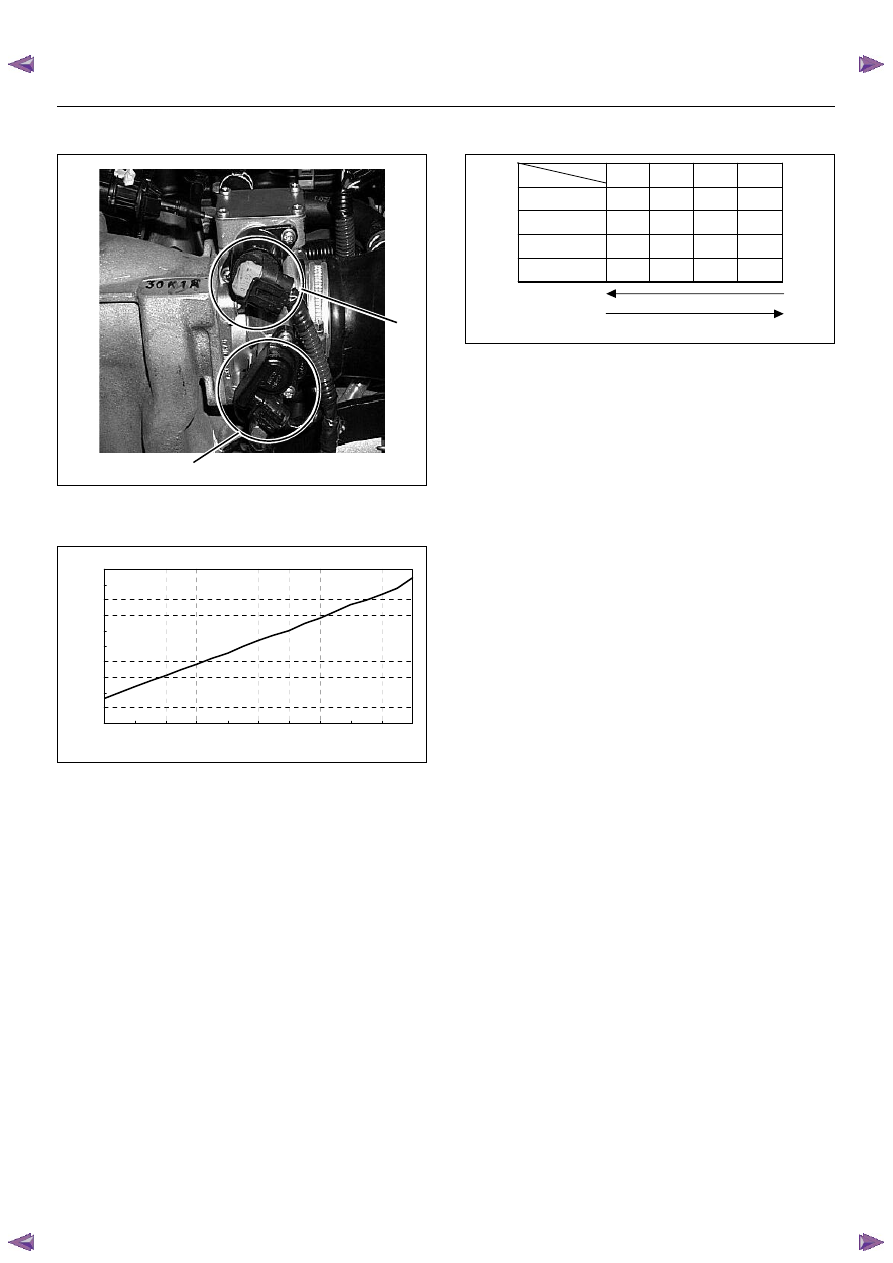

Throttle Position Sensor (TPS)

The TPS is a potentiometer connected to throttle shaft
on the throttle body.
The engine control module (ECM) monitors the voltage
on the signal line and calculates throttle position. As the
throttle valve angle is changed when accelerator pedal
moved. The TPS signal also changed at a moved
throttle valve. As the throttle valve opens, the output
increases so that the output voltage should be high.
The throttle body has a throttle plate to control the
amount of the air delivered to the engine.
Engine coolant is directed through a coolant cavity in
the throttle body to warm the throttle valve and to
prevent icing.

Idle Air Control (IAC) Valve

The idle air control valve (IAC) valve is two directional
and gives 2-way control. With power supply to the coils
controlled steps by the engine control module (ECM),
the IAC valve's pintle is moved to adjust idle speed,
raising it for fast idle when cold or there is extra load
from the air conditioning or power steering.
By moving the pintle in (to decrease air flow) or out (to
increase air flow), a controlled amount of the air can
move around the throttle plate. If the engine speed is
too low, the engine control module (ECM) will retract the
IAC pintle, resulting in more air moving past the throttle
plate to increase the engine speed.
If the engine speed is too high, the engine control
module (ECM) will extend the IAC pintle, allowing less
air to move past the throttle plate, decreasing the
engine speed.

The IAC pintle valve moves in small step called counts.
During idle, the proper position of the IAC pintle is
calculated by the engine control module (ECM) based
on battery voltage, coolant temperature, engine load,
and engine speed.
If the engine speed drops below a specified value, and
the throttle plate is closed, the engine control module
(ECM) senses a near-stall condition. The engine control
module (ECM) will then calculate a new IAC pintle valve
position to prevent stalls.
If the IAC valve is disconnected and reconnected with
the engine running, the idle speed will be wrong. In this
case, the IAC must be reset. The IAC resets when the
key is cycled “On” then “Off”. When servicing the IAC, it
should only be disconnected or connected with the
ignition “Off”.
The position of the IAC pintle valve affects engine start-
up and the idle characteristic of the vehicle.
If the IAC pintle is fully open, too much air will be
allowed into the manifold. This results in high idle
speed, along with possible hard starting and lean air/
fuel ratio.

(1) Throttle Position Sensor
(2) Idle Air Control (IAC) Valve

C haracterist ic of TPS -R ef erence-

0.5

1.5

2.5

3.5

4.5

100

Throt tle Angle (%) (Tech2 R eading)

put

Vol

tage (

)

Step

Coil

Coil A High
(ECM J1-28)

Coil A Low
(ECM J1-30)

Coil B High
(ECM J1-13)

Coil B Low
(ECM J1-29)

(IAC Valve Close Direction)

(IAC Valve O pen Direction)
