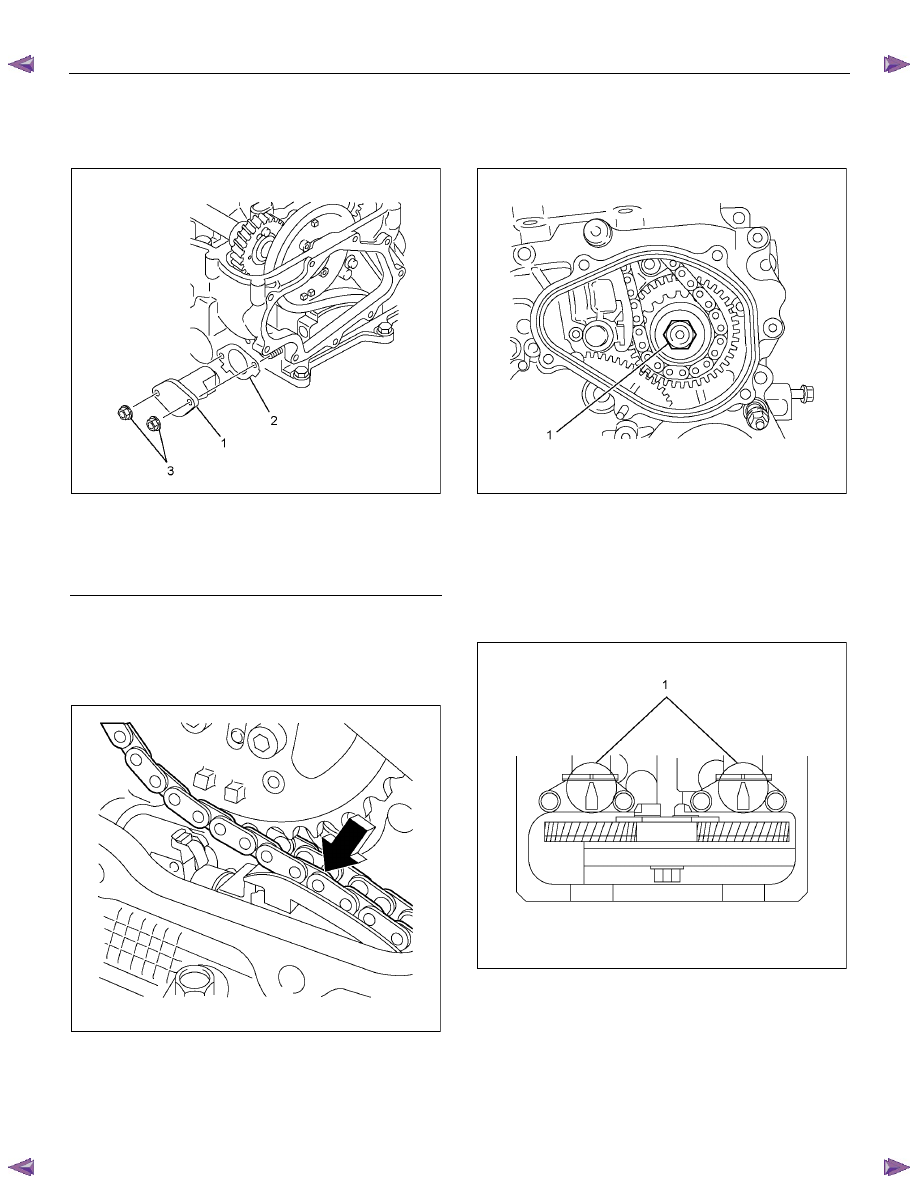

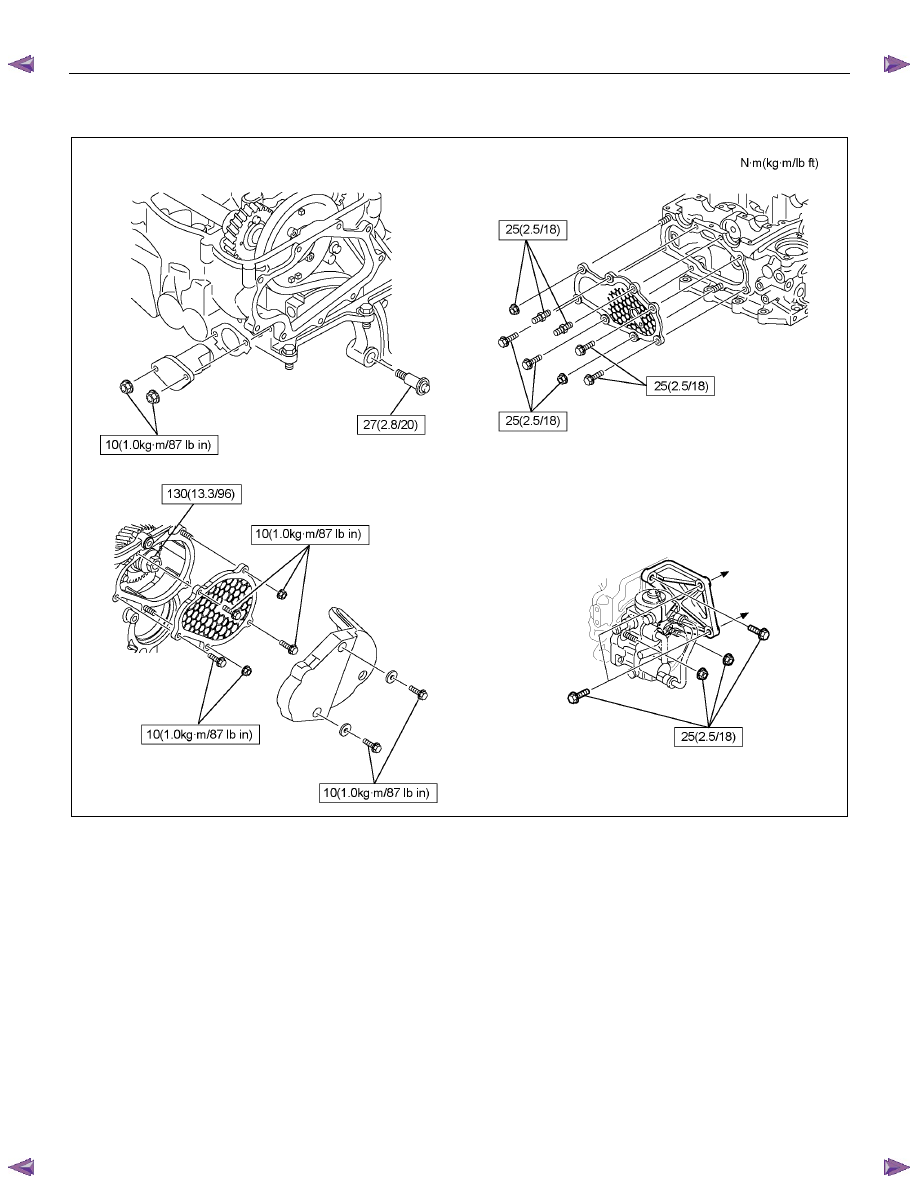

FUEL SYSTEM (4JK1/4JJ1) 6C-35 9. Install the timing chain tensioner.
Tighten the nut to the specified torque. Tightening torque: 10 N ⋅⋅⋅⋅m (1.0 kg⋅⋅⋅⋅m/ 87 lb in)

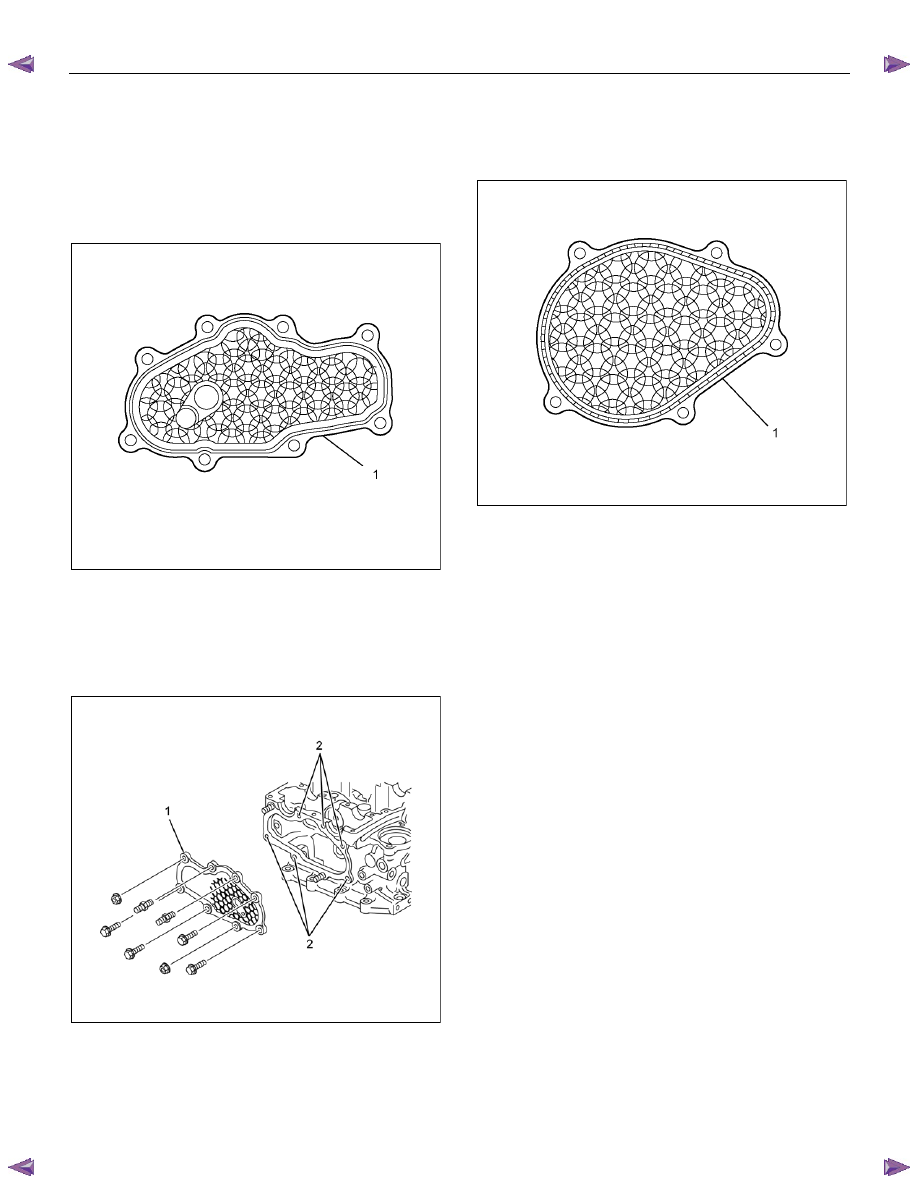

RTW56CSH001701 Legend 1. Timing Chain Tensioner 2. Gasket 3. Nut
10. Unlock the tensioner hook. • Press the place of the arrow in the figure. tension lever.
RTW56ASH020401

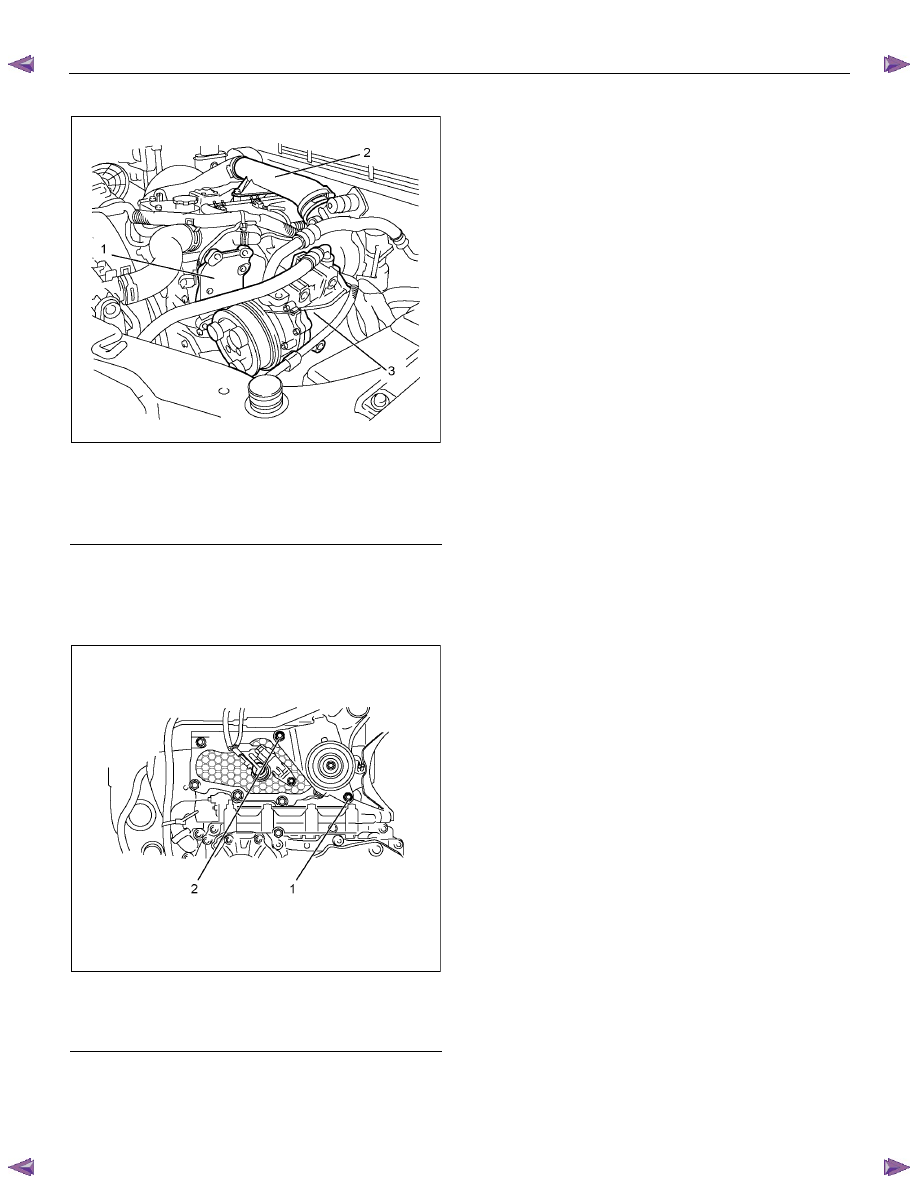

11. Tighten the fuel supply pump shaft nut.
Tighten the nut (1) to the specified torque. Tightening torque: 130 N ⋅⋅⋅⋅m (13.3 kg⋅⋅⋅⋅m / 96 lb ft)
RTW56CSH001601 12. Tighten the timing chain tension lever pivot bolt to the specified torque. Tightening torque: 27 N ⋅⋅⋅⋅m (2.8 kg⋅⋅⋅⋅m / 20 lb ft) 13. Turn the crank pulley two rotations (720°CA). 14. Check mark (1) on intake camshaft and exhaust camshaft to mark of camshaft bearing cap.
RTW56ASH006901
|
