FUEL SYSTEM (4JK1/4JJ1)  6C-27

Fuel Supply Pump

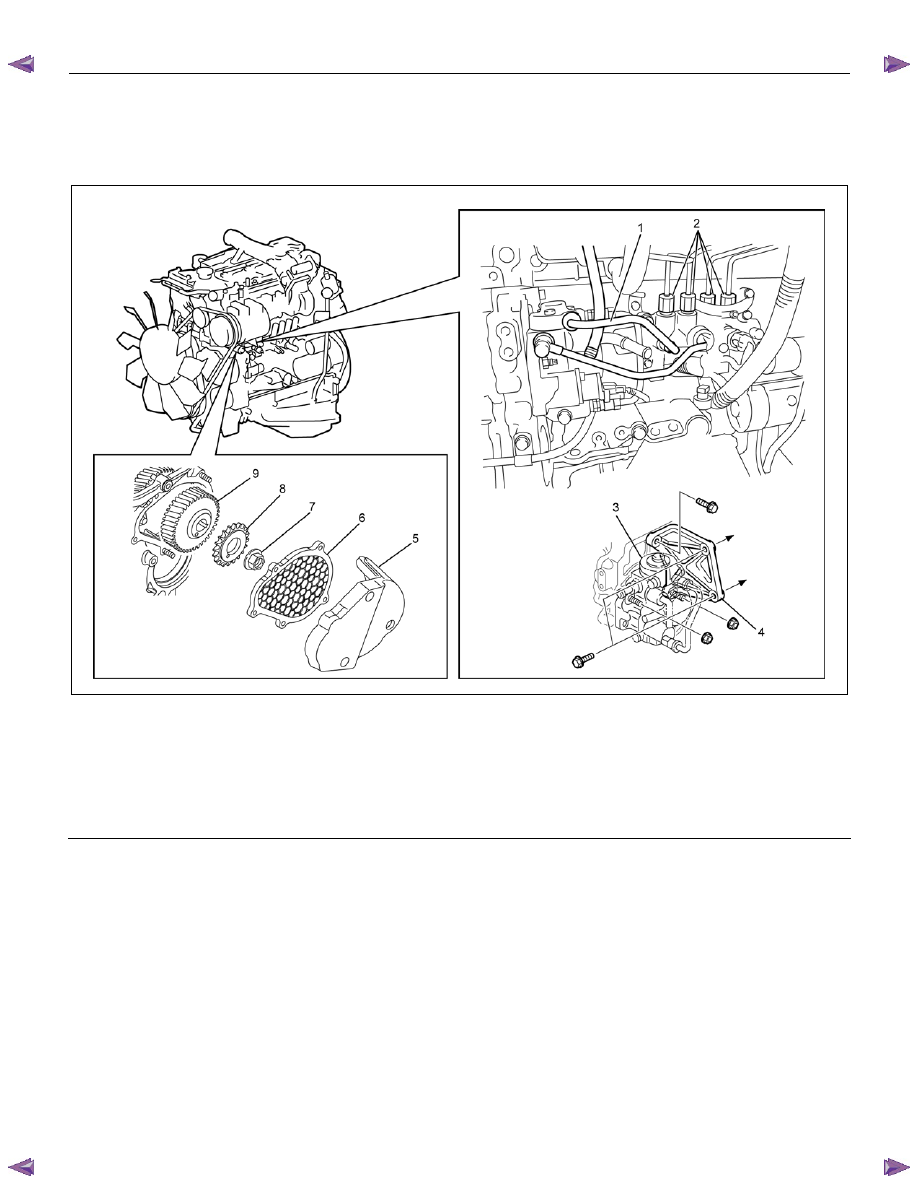

Components







RTW76CMF000201

Legend

  1.  Fuel Feed Pipe Assembly

  2.  Injection Pipe Sleeve Nut

  3.  Fuel Supply Pump

 4. Bracket

5. Noise Cover



  6.  Timing Chain Cover Lower

 7. Nut

 8. Sprocket

  9.  Fuel Supply Pump Gear





The fuel system consists of many tiny holes and spaces
that allow the movement of fuel from one place to
another. These holes and spaces are milled to
extremely high precision. This is especially true of the
fuel injector.

The fuel injector is very sensitive to foreign material.
Foreign material will result in fuel system breakdown.
Exercise great care not to allow the entry of foreign
material into the fuel system or fuel injector during the
removal and installation procedure.













6C-28  FUEL SYSTEM (4JK1/4JJ1)

Removal

1.  Partially drain the engine coolant.



Refer to drain procedure for engine cooling in this

manual.

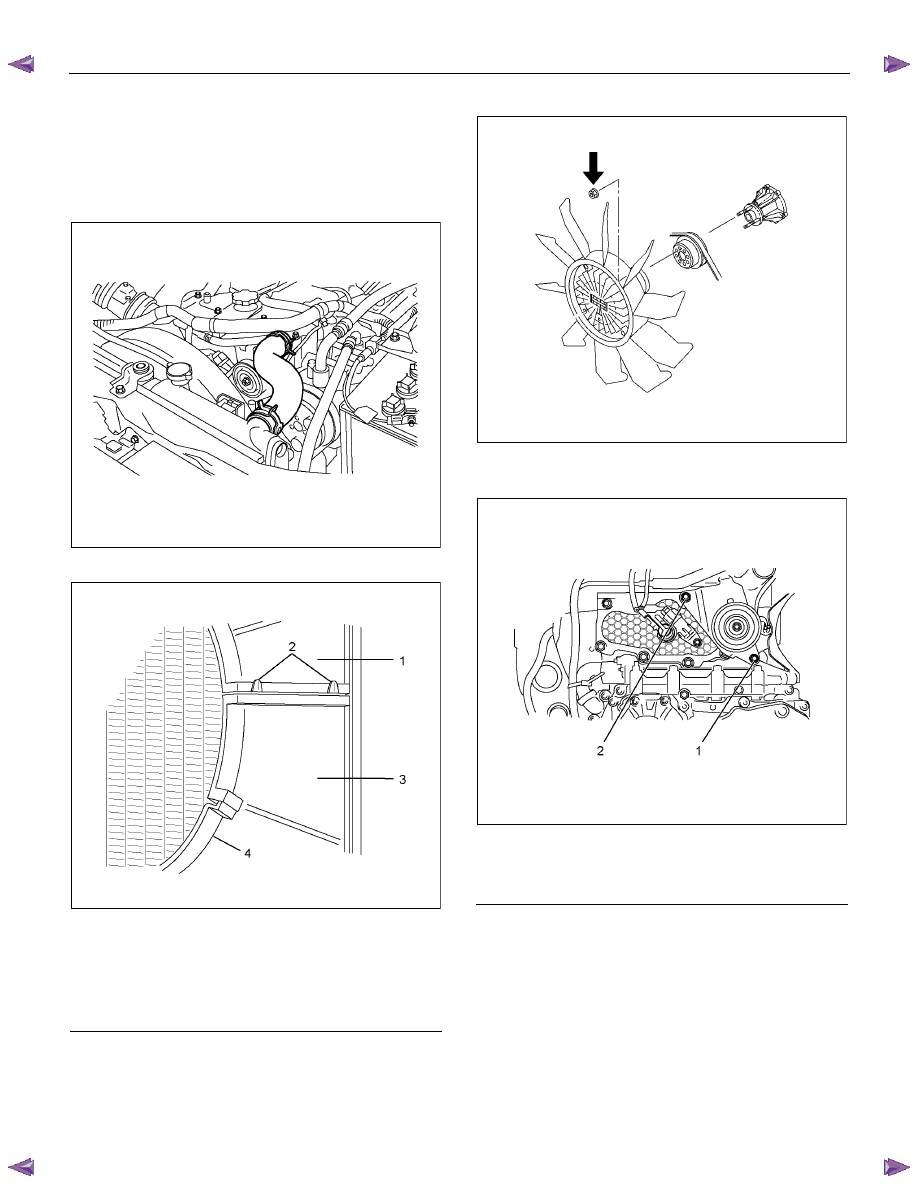

2.  Remove the radiator upper hose.










RTW56FSH000101

3.  Remove the fan guide.









RTW46BSH000101

Legend

 1. Fan

Guide

 2. Clips

  3.  Lower Fan Guide

 4. Fan

Shroud







4.  Remove the cooling Fan.









RTW56ASH025401

5.  Remove the A/C compressor drive belt.

6.  Remove the A/C compressor adjust pulley.










RTW56ASH010601

Legend

 1. Bolt

 2. Nut



7.  Remove the battery.



FUEL SYSTEM (4JK1/4JJ1)  6C-29

8.  Disconnect the A/C compressor.





RTW56ASH024201

Legend

  1.  A/C Compressor Bracket

 2. Intake

Duct

 3. A/C

Compressor



9.  Remove the A/C compressor bracket.

10. Remove the fuel rail assembly.



Refer to “Fuel Rail Assembly”.

11. Remove the cylinder head cover.

  Refer to “Cylinder Head Cover” in ENGINE

MECHANICAL section.

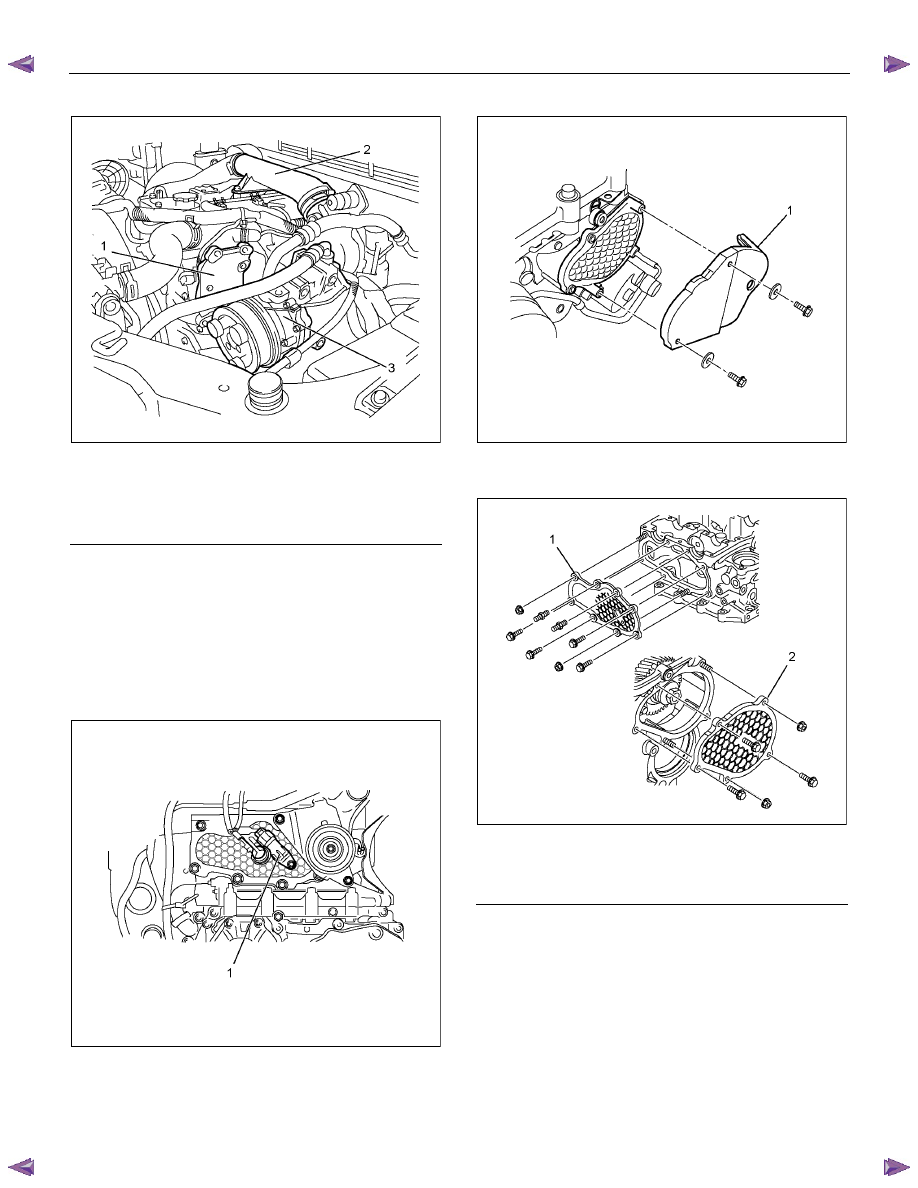

12.

Disconnect the camshaft position sensor

connector (1).










RTW56ESH003201





13. Remove the noise cover (1).









RTW56CSH001401

14. Remove the timing chain cover assembly. Upper &

lower.







RTW56CSH001501

Legend

  1.  Timing Chain Cover Upper

  2.  Timing Chain Cover Lower.



6C-30  FUEL SYSTEM (4JK1/4JJ1)

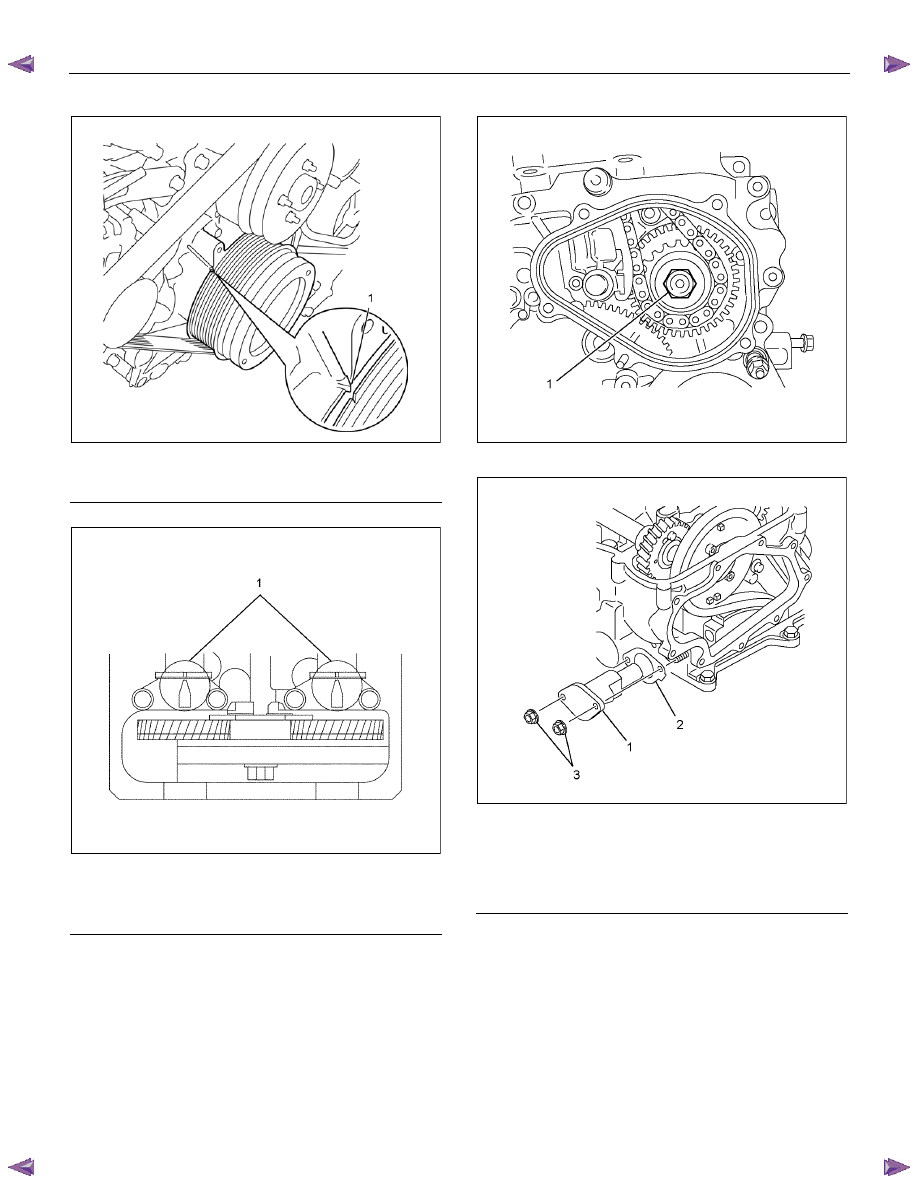

15. Align the timing marks at 3 locations as shown.











RTW76ASH001301

Legend

 1. TDC












RTW56ASH006901

Legend

 1. Align mark on intake camshaft and exhaust

camshaft to mark of bearing cap





16. Loosen the nut (1).








RTW56CSH001601

17. Remove the timing chain tensioner.







RTW56CSH003701

Legend

  1.  Timing Chain Tensioner.

 2. Gasket

 3. Nut
