6A-120  ENGINE MECHANICAL (4JK1/4JJ1)

Crankshaft Front Oil Seal

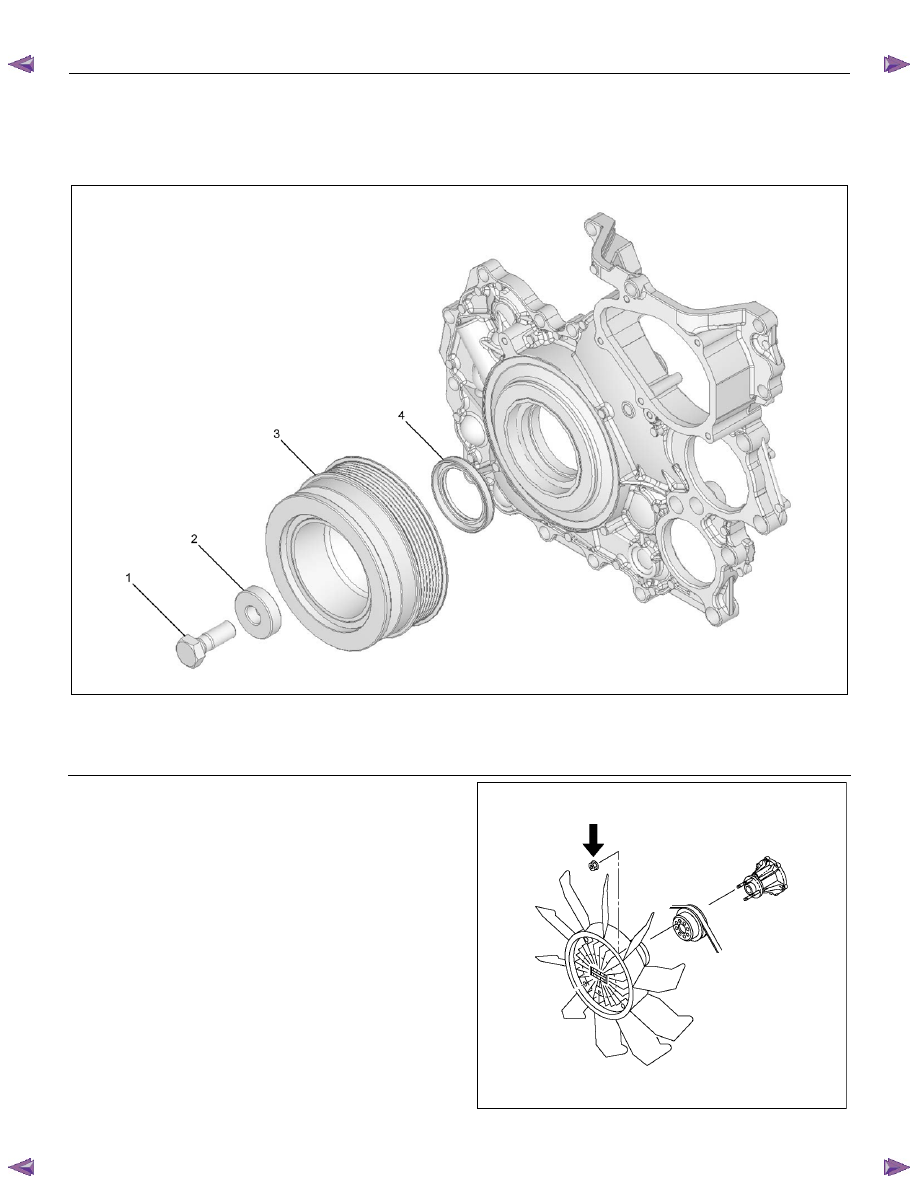

Components









RTW76AMF000501

Legend

 1. Bolt

 2. Washer



  3.  Crankshaft Damper Pulley

  4.  Crankshaft Front Oil Seal



Removal

1.  Remove the fan assembly.

•  Remove the fan assembly unscrewing four

mounting nuts.
















RTW56ASH025401

2.  Remove the fan belt.

ENGINE MECHANICAL (4JK1/4JJ1)  6A-121

3.  Remove the crankshaft pulley.

Note:
Do not reuse the bolt and the washer.

















LNW61ASH005301

4.  Remove the crankshaft front oil seal.

•  Remove only the oil seal with a screwdriver or

the like, avoiding damage to the oil seal contact

surface on the front cover and the shaft.

Installation

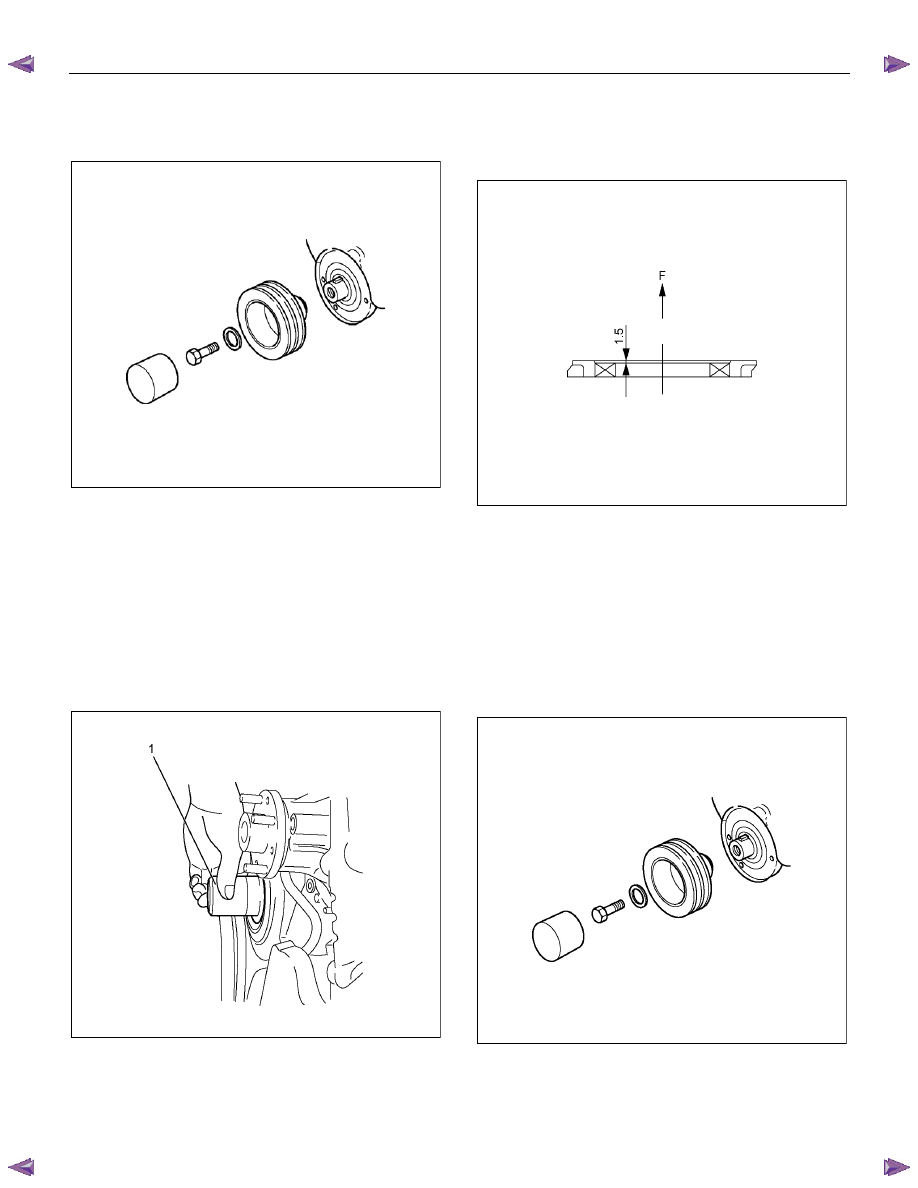

1.  Install the crankshaft front oil seal.

•  Use the special tool to install the front oil seal.


Front Oil Seal



Installer: 5-8840-2821-0 (1)









RTW56ASH016501







•  Apply engine oil to the lip of the oil seal.
•  With the seal pressed in check the dimension

of the oil seal section.



Standard Dimension = 1.5 mm (0.06 in)











RTW56ASH016601

2.  Install the crankshaft damper pulley.

•  Install the crankshaft pulley aligning with the

key on the crankshaft.

•  Hold the flywheel ring gear stationary to prevent

the crankshaft from turning when tightening the

damper pulley bolt.

Tightening torque: 294 N

⋅⋅⋅⋅m (30 kg⋅⋅⋅⋅m/217 lb ft)

•  Take care not to damage the crankshaft

damper pulley boss.












014R100014

3.  Install the fan belt.

•  Refer to “Engine Cooling”


6A-122  ENGINE MECHANICAL (4JK1/4JJ1)

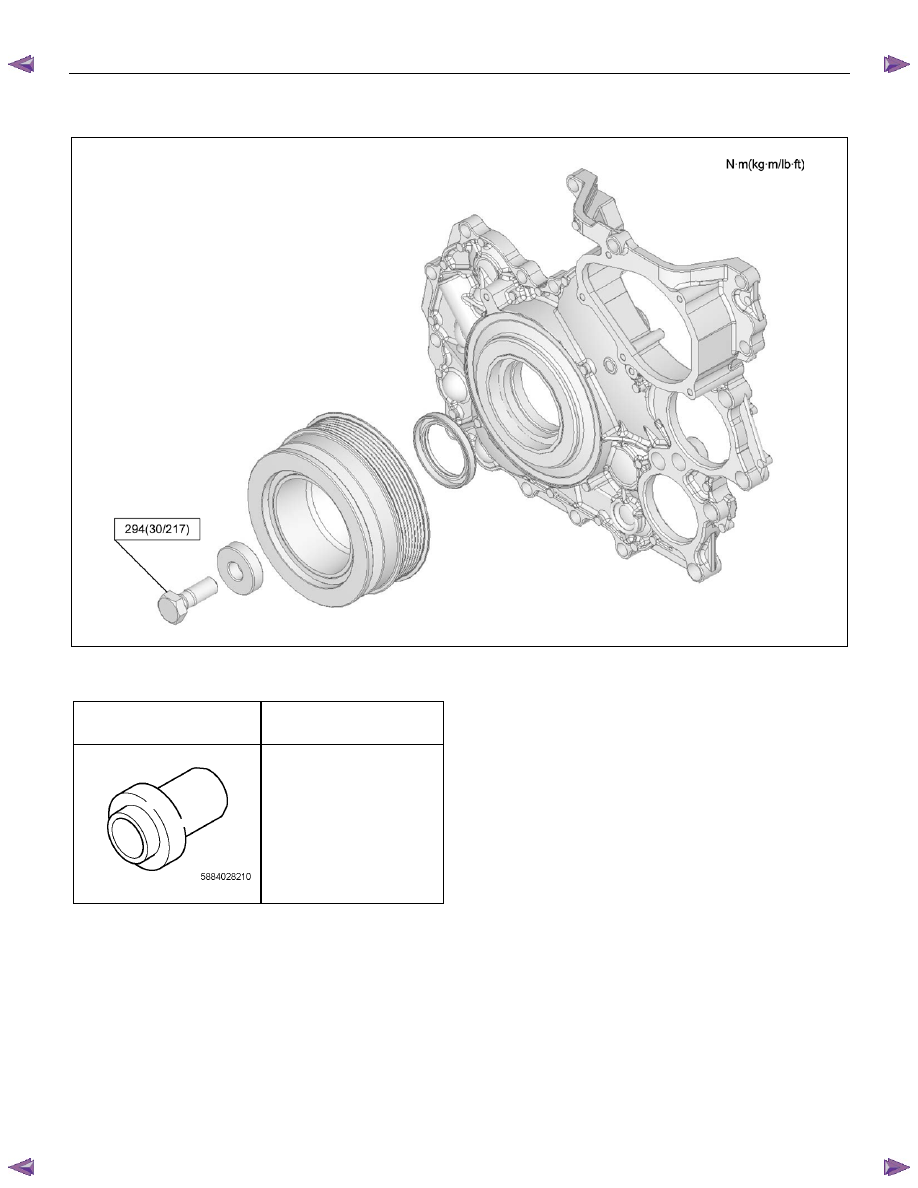

Torque Specifications









RTW76AMF000601

Special Tools

ILLUSTRATION

PART NO.

PART NAME









5-8840-2821-0

Oil seal installer









ENGINE MECHANICAL (4JK1/4JJ1)  6A-123

Crankshaft Rear Oil Seal

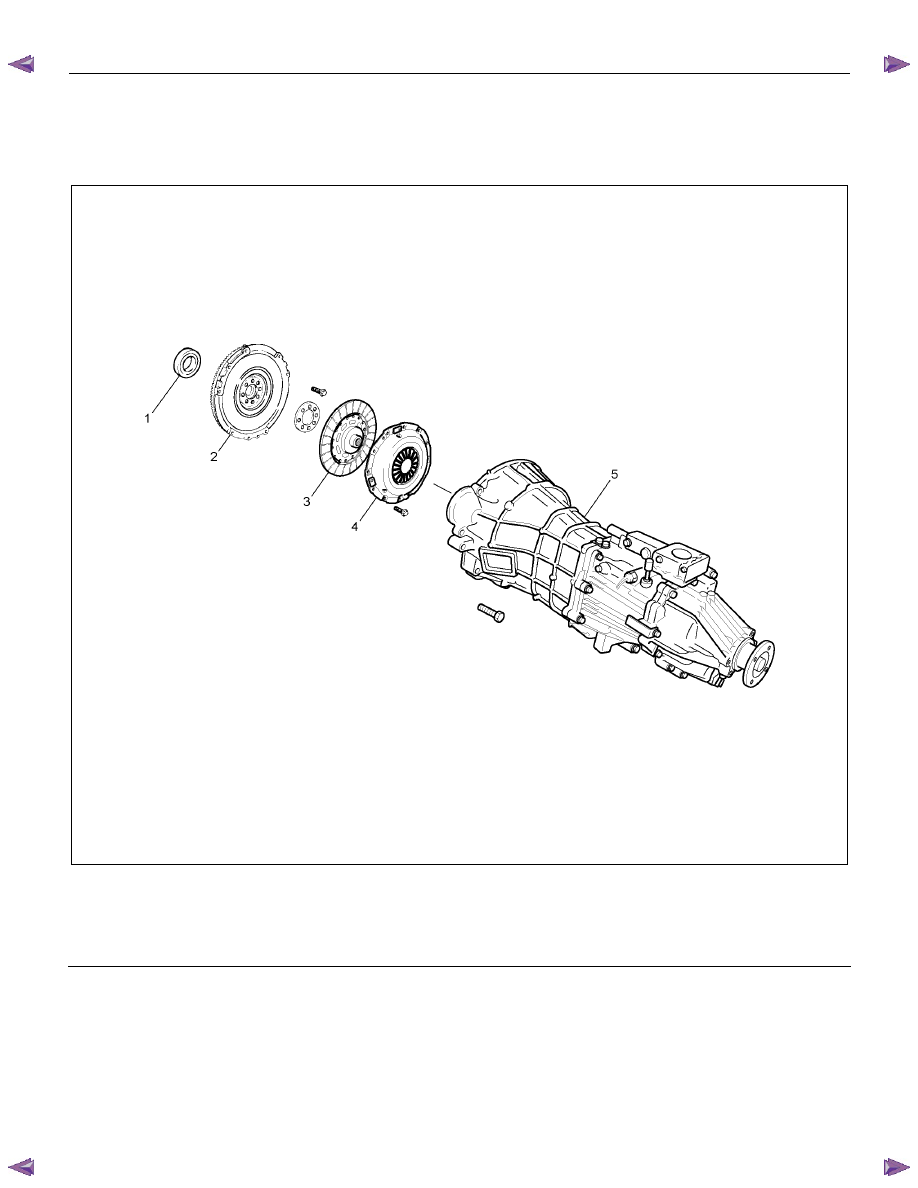

Components
















RTW56ALF002501

Legend

  1.  Crankshaft Rear Oil Seal

 2. Flywheel

 3. Driven

Plate



  4.  Clutch Pressure Plate

 5. Transmission

Assembly
