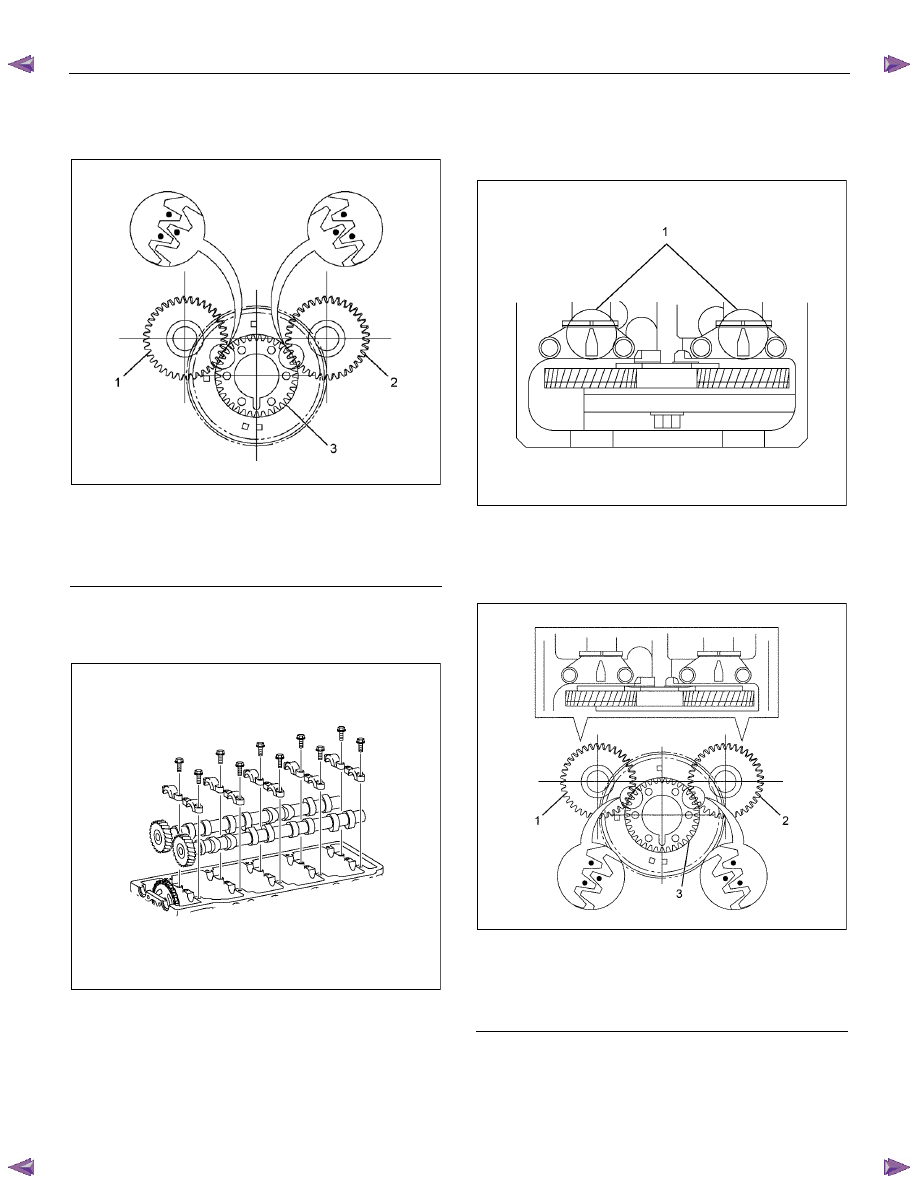

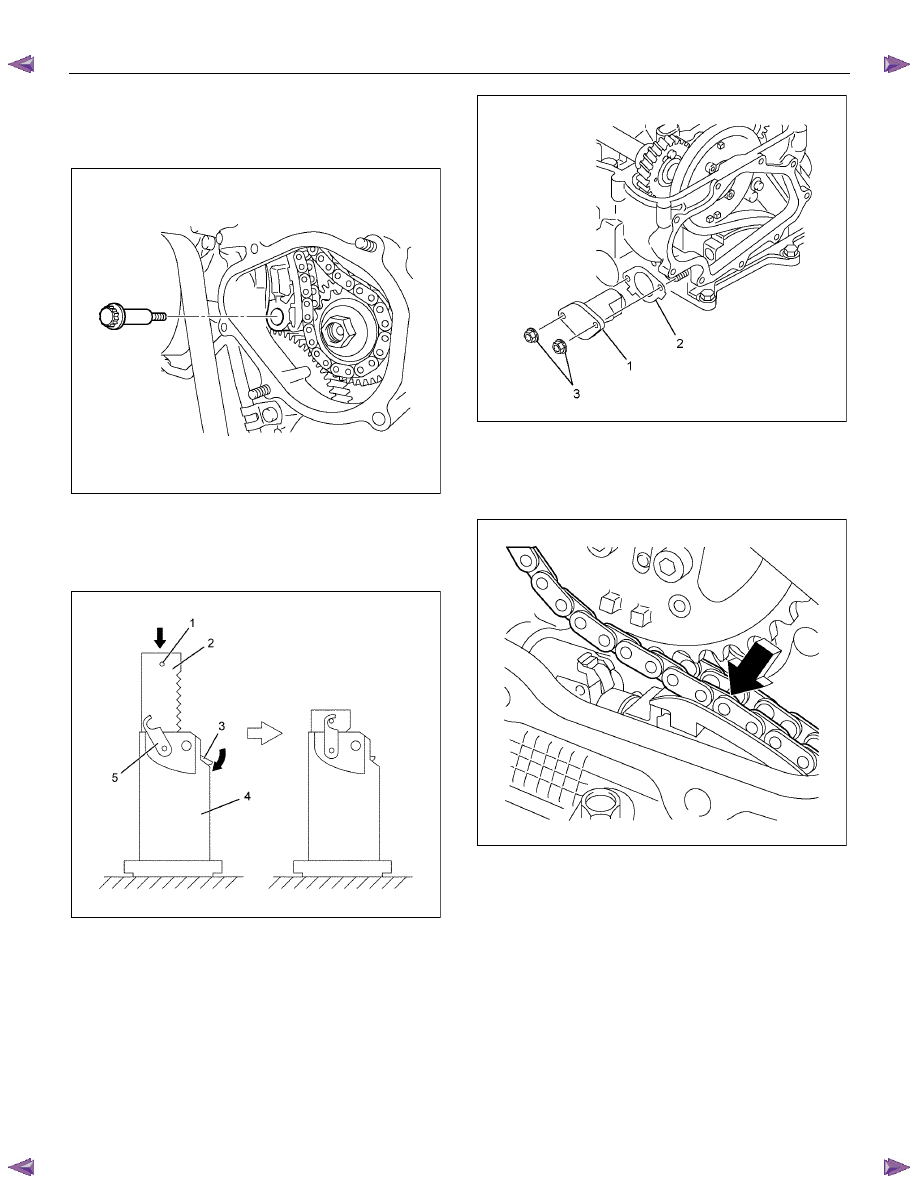

6A-92 ENGINE MECHANICAL (4JK1/4JJ1) 16. Install the chain guide bolt from cylinder head.
Tighten the bolt to the specified torque. Tightening torque: 25 N ⋅⋅⋅⋅m (2.5 kg⋅⋅⋅⋅m/18 lb ft)
RTW56ASH019501 17. Install the tension lever. 18. Rotate the crankshaft to make the No.1 cylinder meet the compression top dead center (TDC).
RTW76ASH001301 Legend 1. TDC

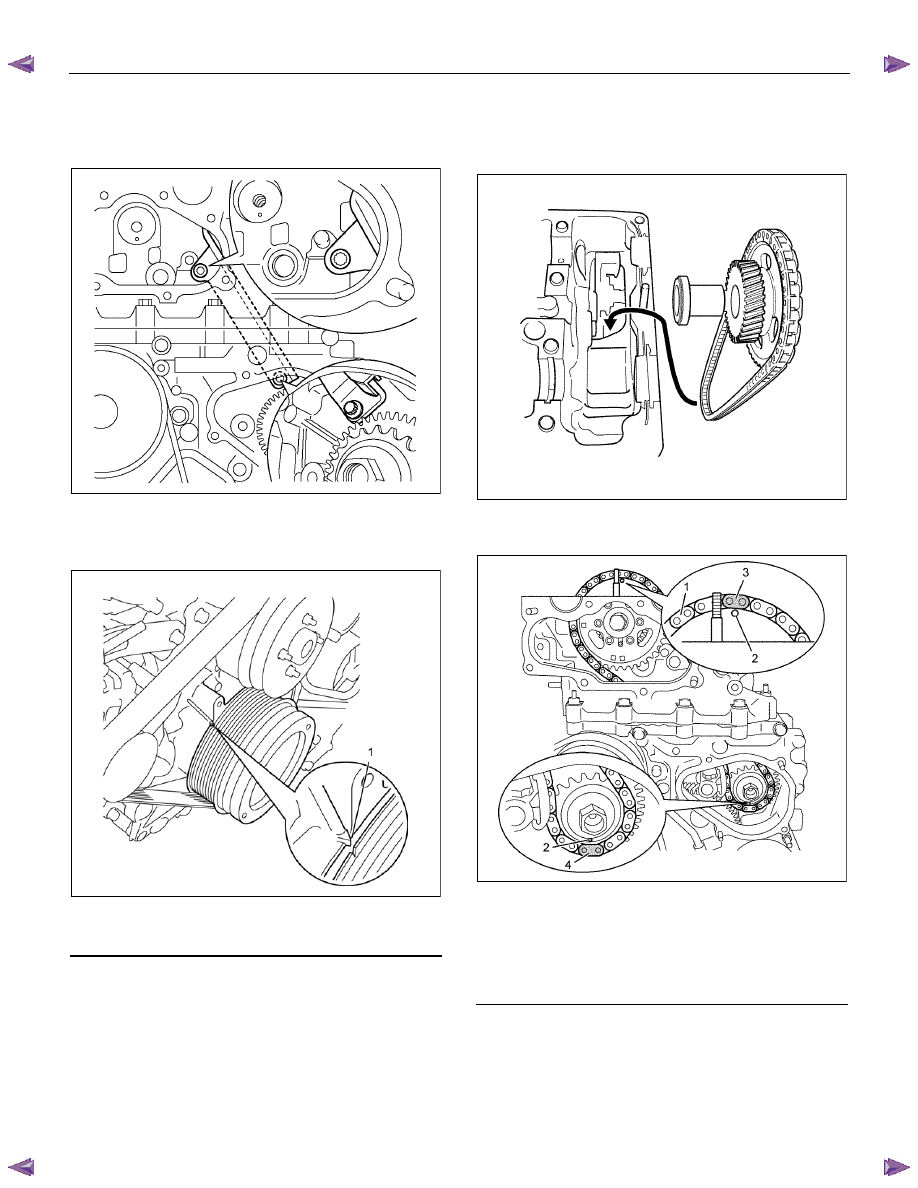

19. Install the timing chain with idle gear D. • Apply the engine oil bolt thread and seat. Tightening torque : 59 N ⋅⋅⋅⋅m (6.0 kg⋅⋅⋅⋅m/43 lb ft)

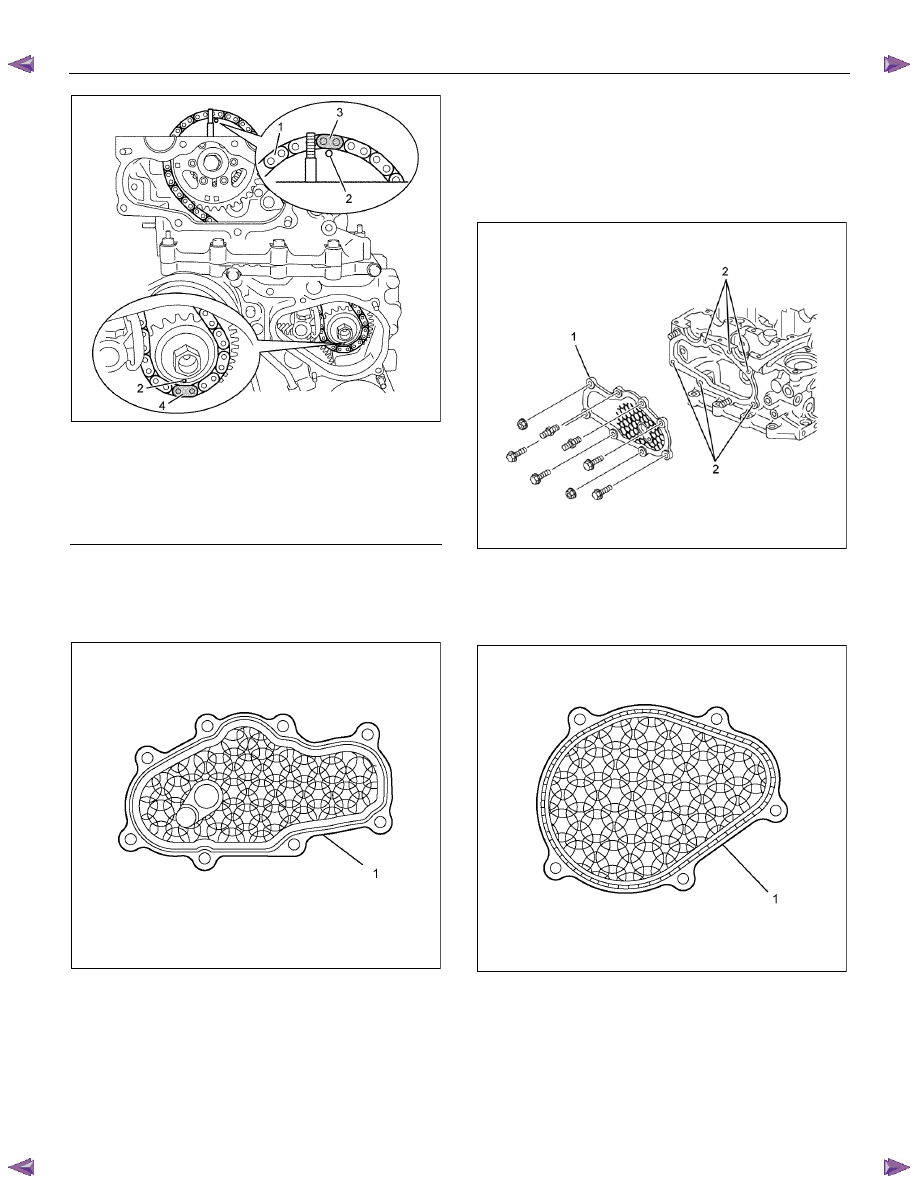

RTW56ASH021801 • Align the timing marks at two locations as shown.
RTW56ASH020301 Legend 1. Timing Chain 2. Timing Mark 3. Blue Link 4. Yellow Link
|
