ENGINE MECHANICAL 6A – 43
ENGINE OVERHAUL REMOVAL EXTERNAL PARTS

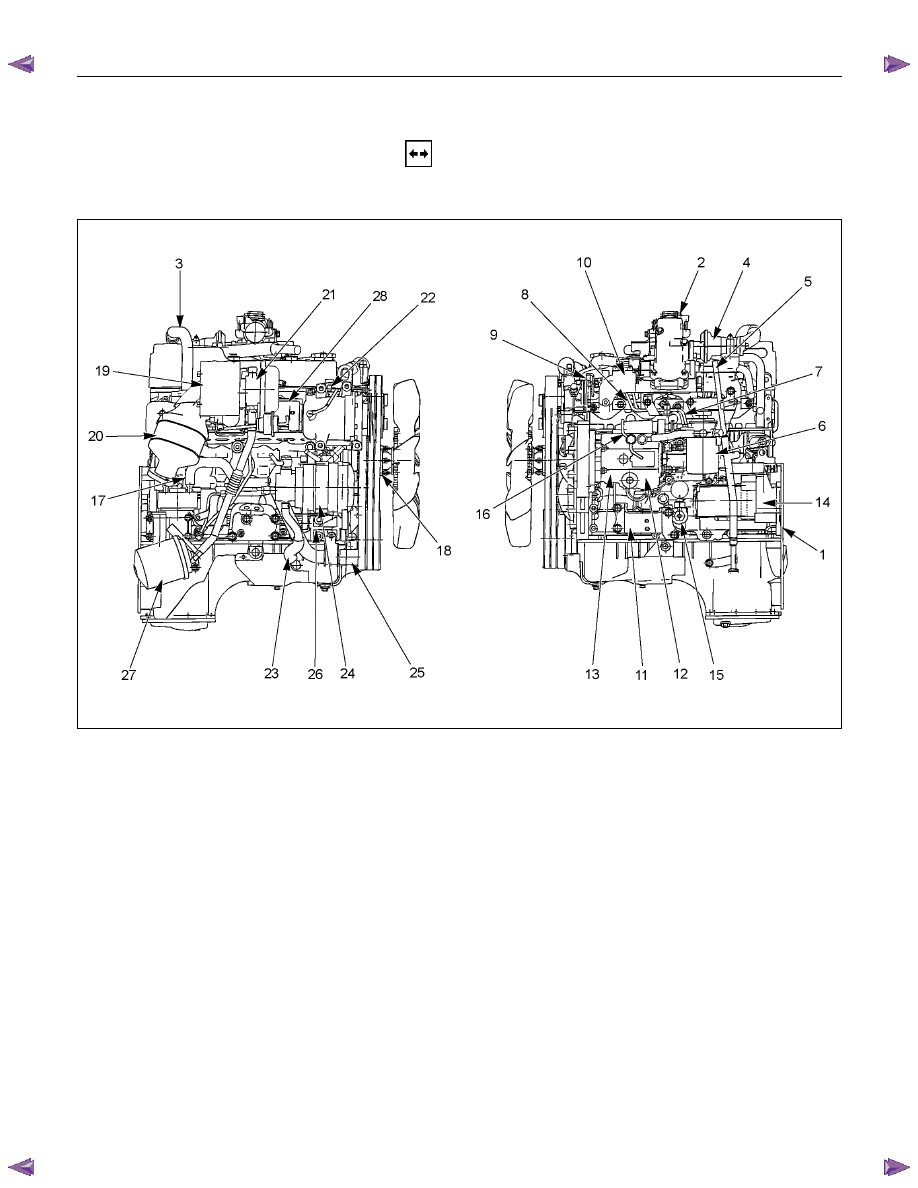

RTW36AMF000401
Removal Steps
1. Clutch Assembly or Flex Plate

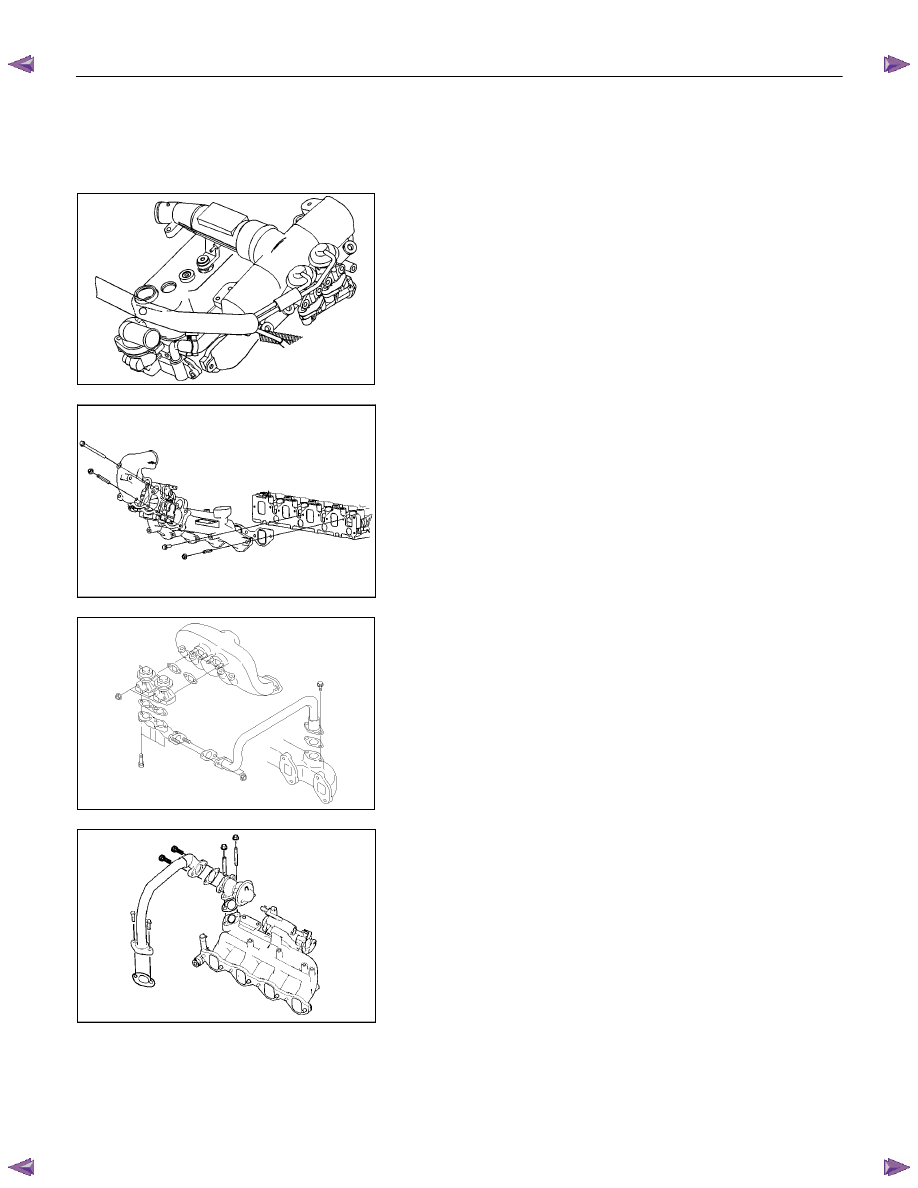

2. Intake Pipe and Throttle Body
3-1. EGR Pipe
3-2. EGR cooler (EURO III model only)
4. EGR Valve
5. Oil Level Gauge
6. Fuel Filter Assembly (Except EURO III)
7. Fuel Filter Bracket (Except EURO III)

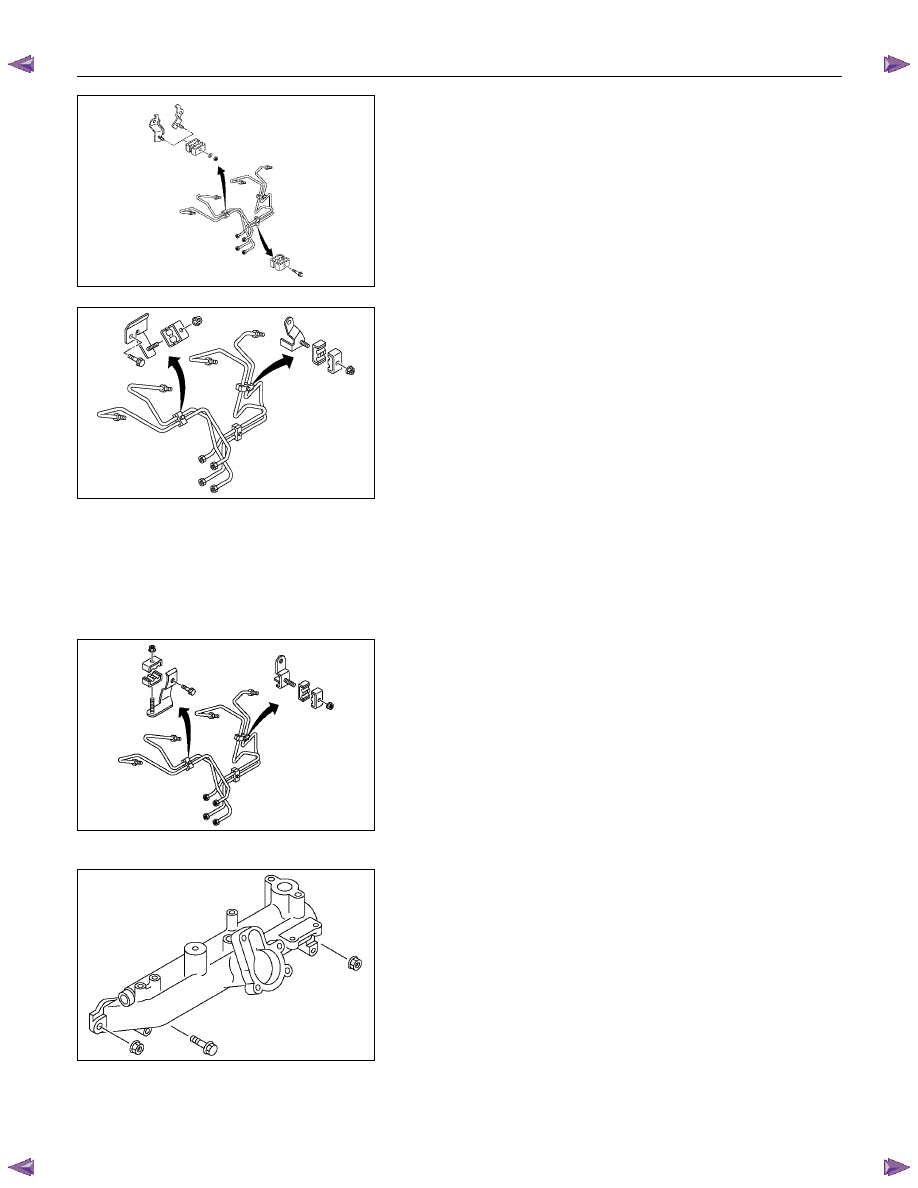

8. Fuel Injection Pipe with Clip
9. Power Steering Oil Pump Bracket 10. Intake Manifold 11. Engine Mounting Bracket and Foot 12. Injection Pump Cover 13. Injection Pump 14. Starter Motor

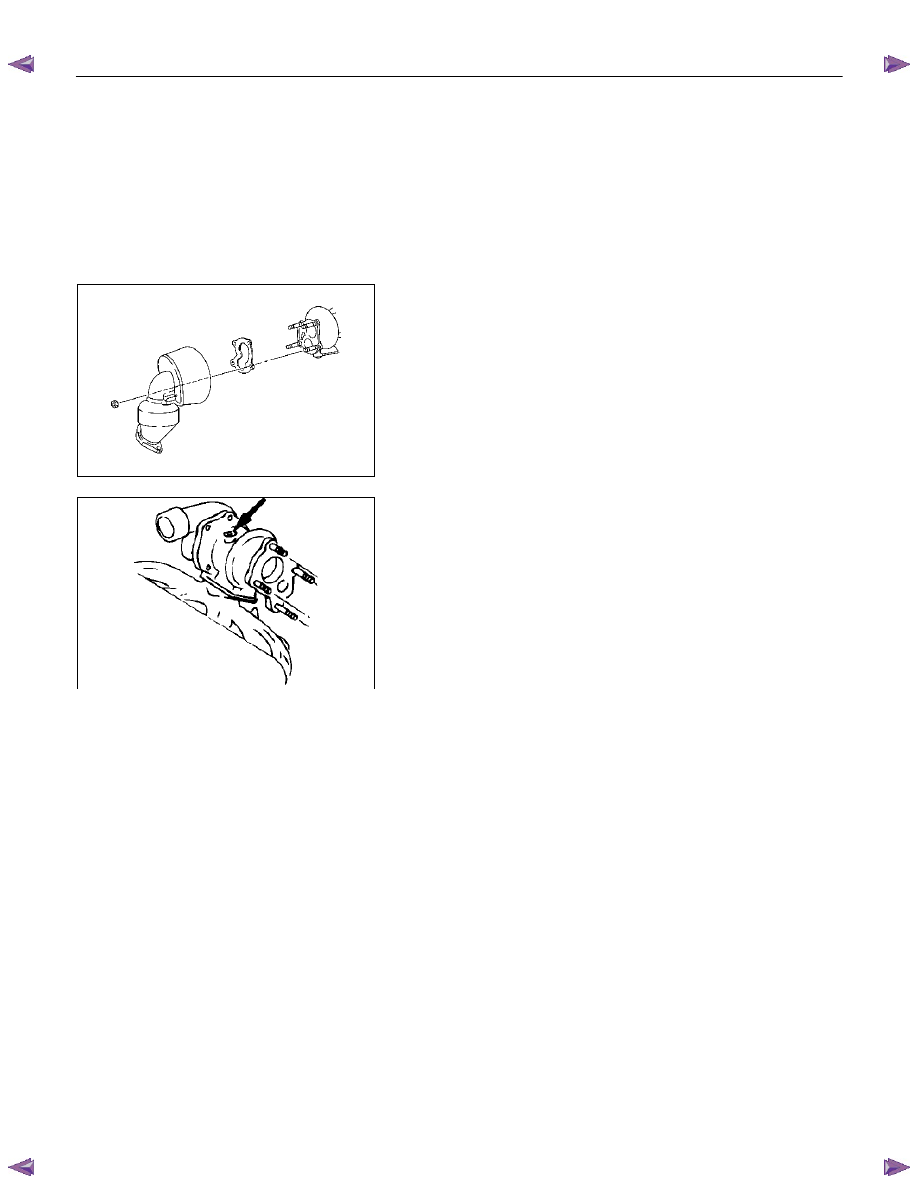

15. Oil Pressure Warning Switch 16. Fuel Leak Off Pipe 17. Oil Cooler Water Pipe 18. Cooling Fan Pulley 19. Heat Protector 20. Catalytic Converter 21. Turbocharger 22. Compressor Bracket 23. Vacuum Pump Oil Return Hose 24. Generator and Adjusting Plate 25. Water Inlet Pipe 26. Generator Bracket 27. Oil Cooler with Oil Filter 28. Exhaust Manifold
|
