ENGINE MECHANICAL   6A – 23



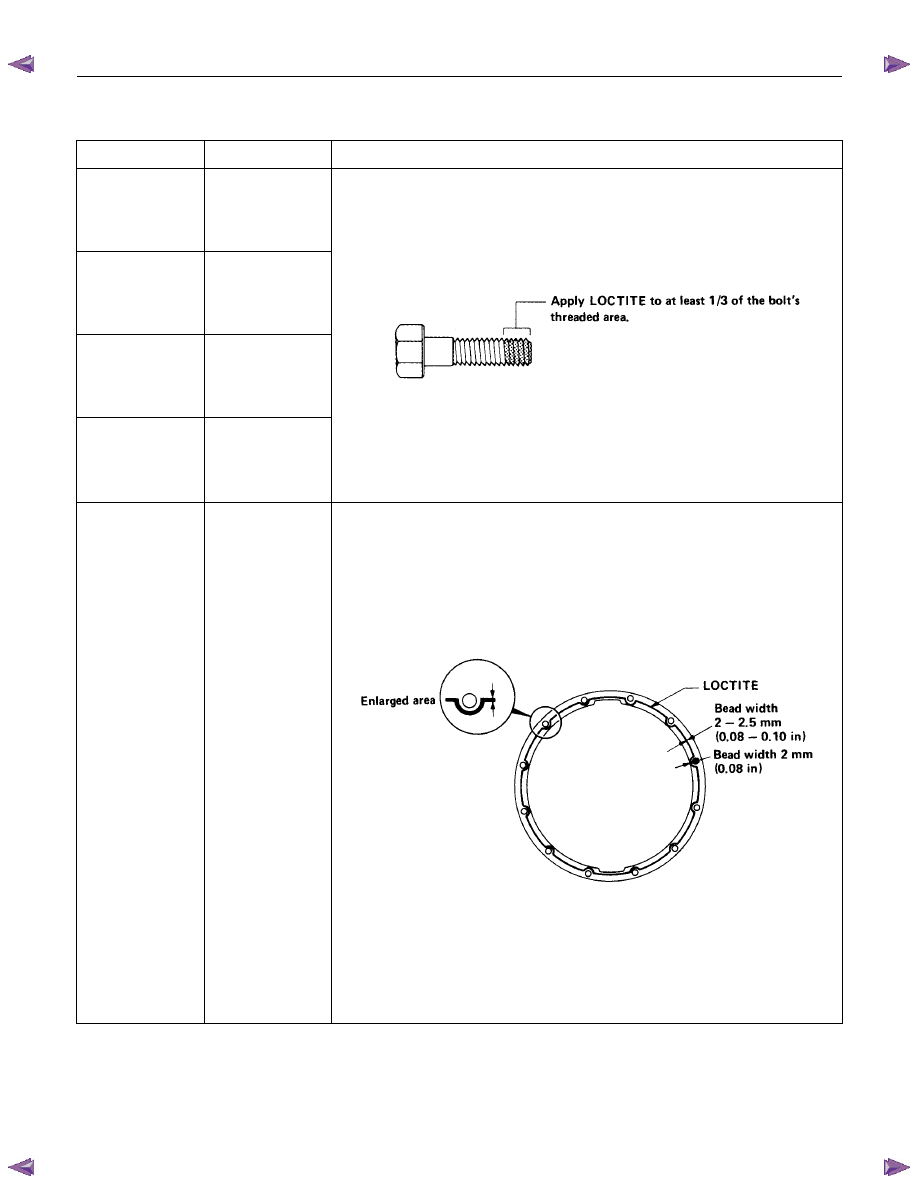

LOCTITE APPLICATION PROCEDURE

LOCTITE Type

LOCTITE Color

Application Steps

LOCTITE 242

Blue

LOCTITE 262

Red

LOCTITE 270

Green

LOCTITE 271

Red

1.

Completely remove all lubricant and moisture from the bolts and the
female threaded surfaces of the parts to be joined.
The surfaces must be perfectly dry.

2.

Apply LOCTITE to the bolts.



3.

Tighten the bolts to the specified torque.

4.

Wait at least one hour before continuing the installation procedure.



LOCTITE 515

Violet

1.

Completely remove lubricant and moisture from the connecting
surfaces.
The surfaces must be perfectly dry.

2.

Apply a 2.0 – 2.5 mm bead of LOCTITE to one of the connecting
surfaces.
There must be no gaps in the bead.

3.

Tighten the bolts to the specified torque.

4.

Let the joined parts set for at least thirty minutes.



6A – 24  ENGINE MECHANICAL



SERVICING

Servicing refers to general maintenance procedures to be performed by qualified service personnel.





RTW36ASH000401



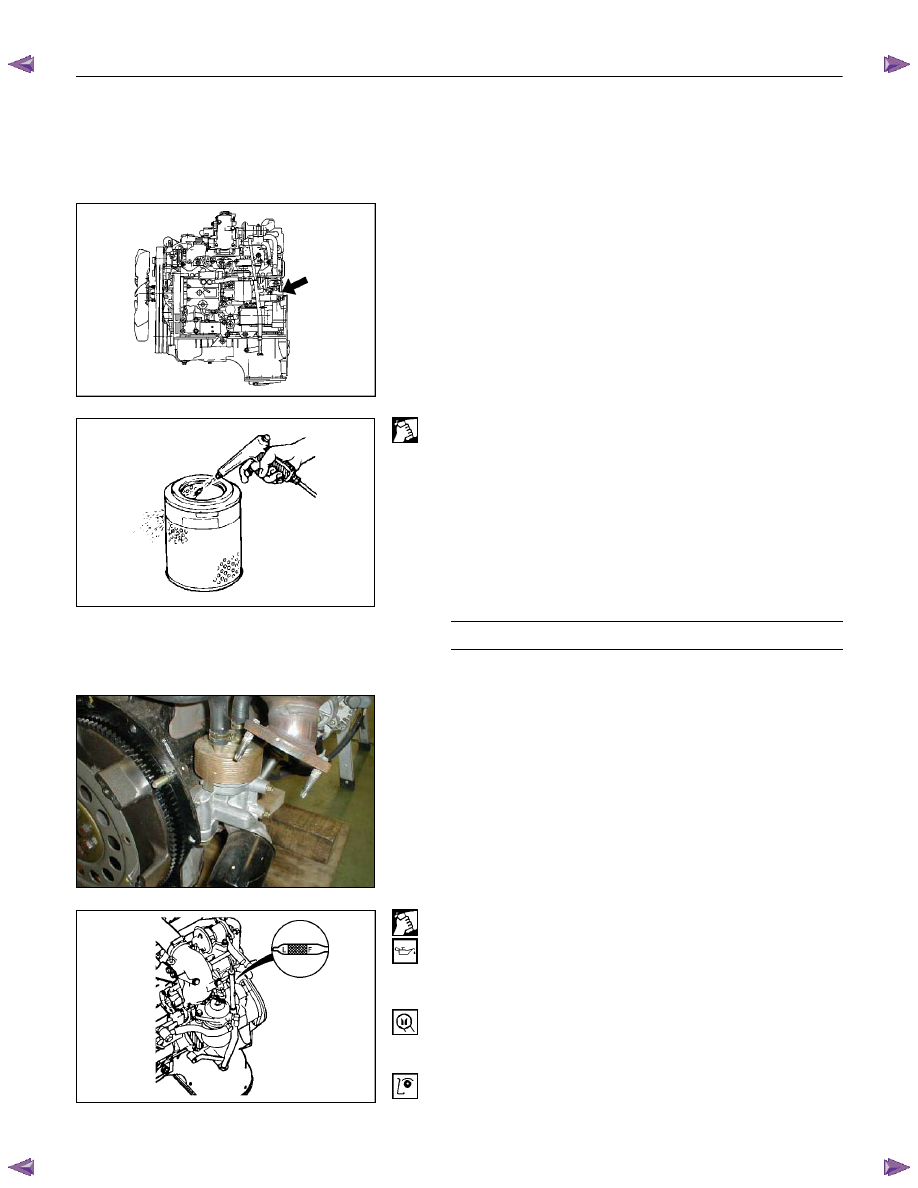

MODEL IDENTIFICATION

Engine Serial Number

The engine number is stamped on the rear left hand side
of the cylinder body.

The engine number is stamped in the plate in front of the
engine room as well.





AIR CLEANER

Element cleaning procedures will vary according to the
condition of the element.



Dust Fouled Element (Except wet type element)

Rotate the element with your hand while applying
compressed air to the inside of the element. This will blow
the dust free.

Compressed air pressure                         kPa (kg/cm

2

 /psi)

392 – 490 (4 – 5/57 – 71)







LUBRICATING SYSTEM

Main Oil Filter (Cartridge Type Paper Element)
Replacement Procedure

1.  Drain the engine oil.

2.  Retighten the drain plug.

3.  Loosen the used oil filter by turning it counterclockwise

with a filter wrench.
Filter Wrench: 5-8840-0200-0







RTW36ASH000101







4.  Clean the oil cooler fitting face. This will allow the new

oil filter to seat properly.

5.  Apply a light coat of engine oil to the filter O-ring.

6.  Turn in the new oil filter until the filter O-ring is fitted

against the sealing face.

7.  Use the filter wrench to turn in the filter an additional

2/3 turns.
Filter Wrench: 5-8840-0200-0

8.  Check the engine oil level and replenish to the

specified level if required.

130RY00003



6A-6

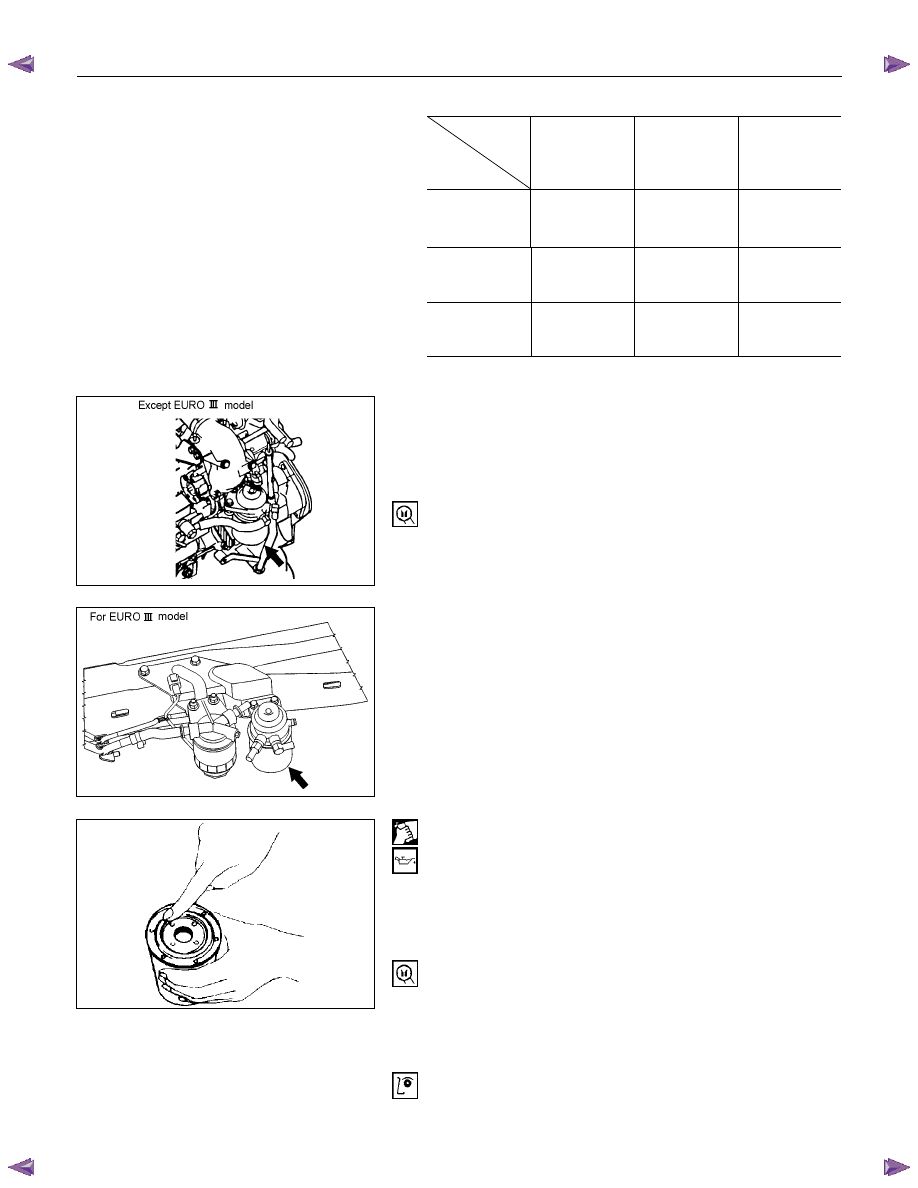

ENGINE MECHANICAL   6A – 25





Replenished Engine Oil

MAX lit (US/UK gal)

Condition



Model

Engine Dry



With oil filter
replacement

Without oil

filter

replacement

4

× 2

4

× 4

(4JA1L/TC)

6.2 (1.64/1.36)

5.2

∼ 4.2

(1.37

∼ 1.11

/ 1.14

∼ 0.92)

4.5

∼ 3.5

(1.19

∼ 0.93

/ 0.99

∼ 0.77)

4

× 2

(4JH1TC)



6.2 (1.64/1.36)

5.2

∼ 4.2

(1.37

∼ 1.11

/ 1.14

∼ 0.92)

4.5

∼ 3.5

(1.19

∼ 0.93

/ 0.99

∼ 0.77)

4

× 4

(4JH1TC)

7.0 (1.85/1.54)

6.2

∼ 5.2

(1.64

∼ 1.37

/ 1.36

∼ 1.14)

5.3

∼ 4.3

(1.72

∼ 1.14

/ 1.17

∼ 0.95)







9.  Start the engine and check for oil leakage from the

main oil filter.









RTW66ASH003201











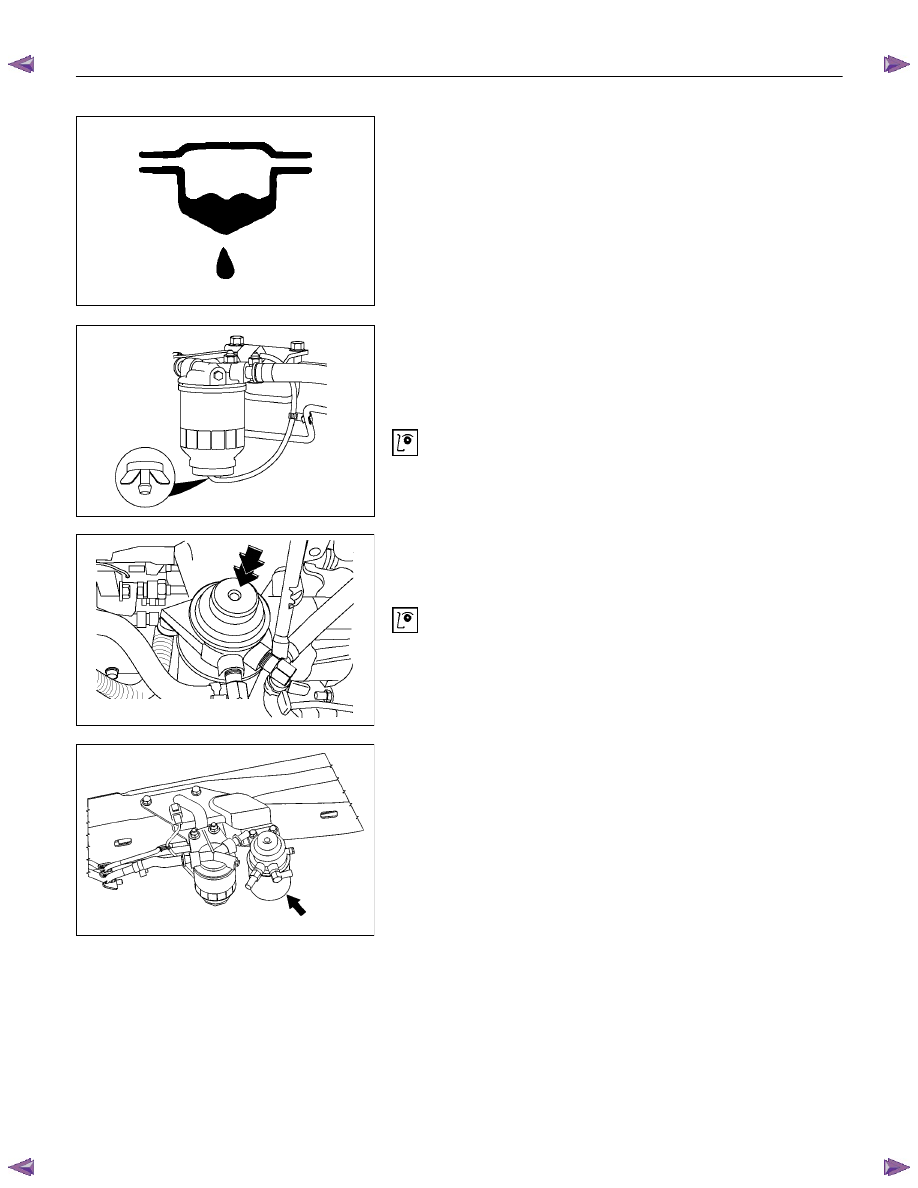

FUEL SYSTEM

Fuel Filter Replacement Procedure

1.  Remove the fuel filter by turning it counterclockwise

with a filter wrench.
Filter Wrench: 5-8840-0253-0 (J-22700)

Note:

Be careful not to spill the fuel in the filter cartridge.











RTW66ASH003301



















2.  Clean the fuel filter cartridge fitting faces.

This will allow the new fuel filter to seat properly

3.  Apply a light coat of engine oil to the O-ring.

4.  Turn in the fuel filter until the sealing face comes in

contact with the O-ring.

5.  Turn in the fuel filter an additional 2/3 of a turn with a

filter wrench.

Filter Wrench : 5-8840-0253-0 (J-22700)













6.  Operate the priming pump until the air discharged

completely from fuel system.

7.  Start the engine and check for fuel leakage.

Note:

The use of an ISUZU genuine fuel filter is strongly
recommended.



041RY00009

6A – 26  ENGINE MECHANICAL











041RY00011



Draining Procedure

The indicator light will come on when the water level in the
water separator exceeds the specified level.

Drain the water and foreign material from the water
separator (inside chassis frame) with the following
procedure.













1.  Place the drain pan under the drain plug.

2.  Loosen the drain plug and drain water.

3.  After draining the water, tighten the drain plug.

4.  Operate the priming pump on the fuel filter several

times and check for fuel leakage.

5.  Check the water separator indicator light. It should be

off.







Except EURO III model

RTW46ASH002901







For EURO III model

RTW46ASH000501







Air Bleeding

1.  Operate the priming pump until strong resistance is

felt.

2.  Wait 1 minute, and operate the priming pump until

strong resistance is felt.

3.  Once more wait, and operate the priming pump until

strong resistance is felt.

4.  Turn the ignition switch to the "ON" position. Wait until

the glow indicator lamp turns off.

5.  Turn the ignition switch to the "START" position and

crank the engine until it starts.

6.  If the engine does not start, repeat Step 3 - 5.

7.  Allow the engine to idle for 3 minutes to bleed air

completely form the fuel system and check for fuel
leakage.

Note:

Insufficient air bleeding may cause the Diagnostic
Trouble Code (DTC) store or improper engine
performance.
