BRAKES  5C-61









RTW75CSH002701



Important Operation-Removal

1. Brake pipe
When hurdling, be careful not to spill brake fluid over the
painted surfaces, as damage to the paint finish will result.
2.  Master Cylinder Fixing Nut

3. Bracket

4.  Master Cylinder Assembly
NOTE:
When removing the master cylinder from the vacuum booster,
be sure to get rid of the internal negative pressure of the
vacuum booster (by, for instance, disconnecting the vacuum
hose) in advance.
If any negative pressure remains in the vacuum booster, the
piston may possibly come out when the master cylinder is
being removed, letting the brake fluid run out.
While removing the master cylinder, do not hold the piston as it
can be easily pulled out.






Inspection and Repair

Vacuum Hose (The built in check valve)

360R300002





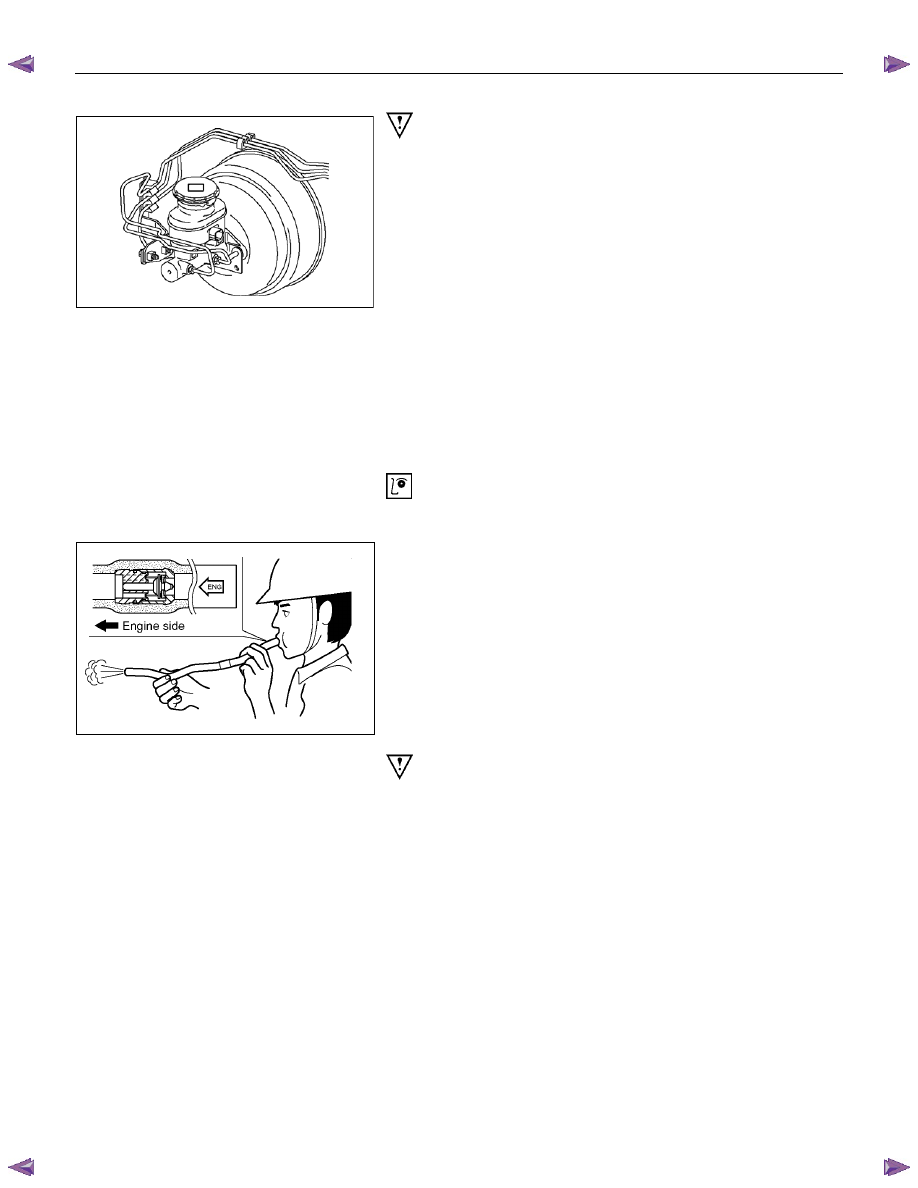

1) Inspect the check valve, which is installed inside the

vacuum hose.

2)  Blow air into the hose from the booster side as shown in

the illustration.  The air should pass freely through the

hose.

3)  Blow air into the hose from the engine side.  The check

valve should close to block the passage of air.

The vacuum hose and built-in check valve must be

replaced as a set if either is found to be defective.





Important Operation-Installation

10. Vacuum Booster Assembly
Note:
•  Adjustment of push rod of vacuum booster is not carried

out. When vacuum booster is damaged it exchanges for a

new article. (Push rod is adjusted)

•  Measurement of primary piston position by the side of

master cylinder is unnecessary.

9. Spacer

8. Gasket

7.  Vacuum Booster Fixing Nut

6. Snap Pin
Install the vacuum booster assembly to the dash panel and
pedal mounting bracket.


5C-62  BRAKES



360r300003

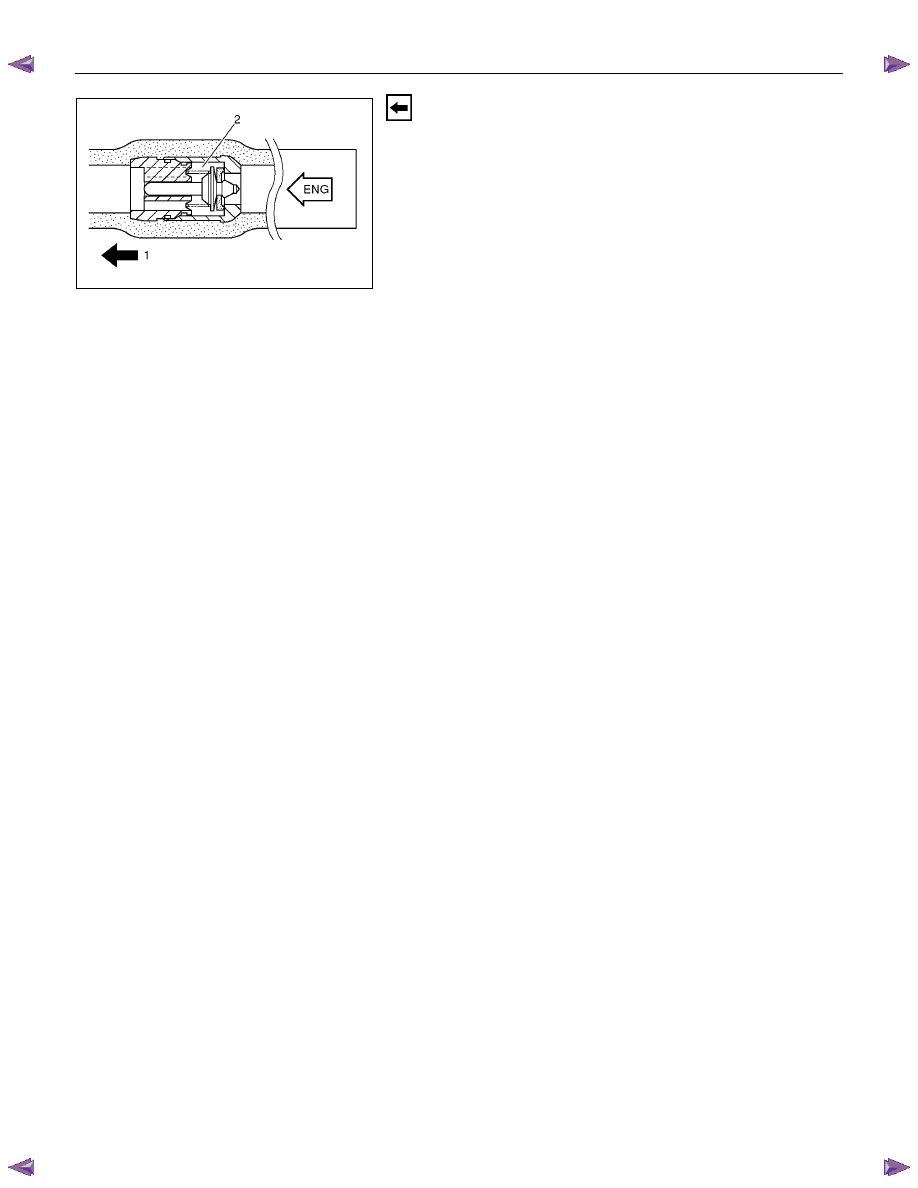

5. Vacuum Hose
The check valve (2) is built-in to the vacuum hose.
When installing the vacuum hose make sure that the arrow on
the hose is facing the engine (1).
Note:
•  Do not apply oil to the vacuum hose.
•  Installation direction is very important.  The booster will not

operate if the vacuum hose is installed in the wrong

direction.





BRAKES  5C-63

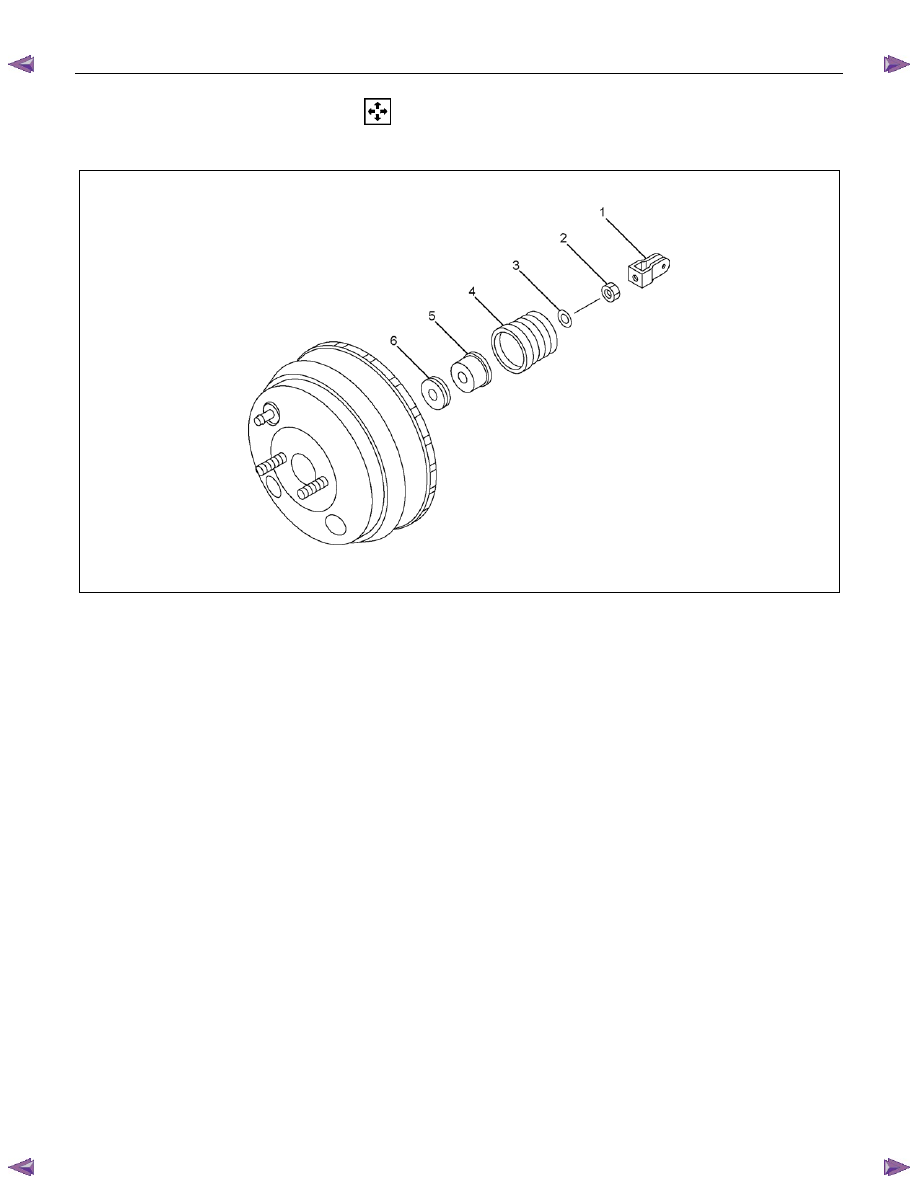

  DISASSEMBLY



VACUUM BOOSTER ASSEMBLY











Disassembly Steps



1. Clevis; Yoke



2. Nut; VLV rod



3. Retainer; Guard



4. Guard; VLV body

 5.

Silencer

 6.

Filter













5C-64  BRAKES

  REASSEMBLY

VACUUM BOOSTER ASSEMBLY









Reassembly Steps

 1.

Filter

 2.

Silencer



3. Guard; VLV body

▲  4. Retainer; Guard
▲  5. Nut; VLV rod
▲  6. Clevis; Yoke







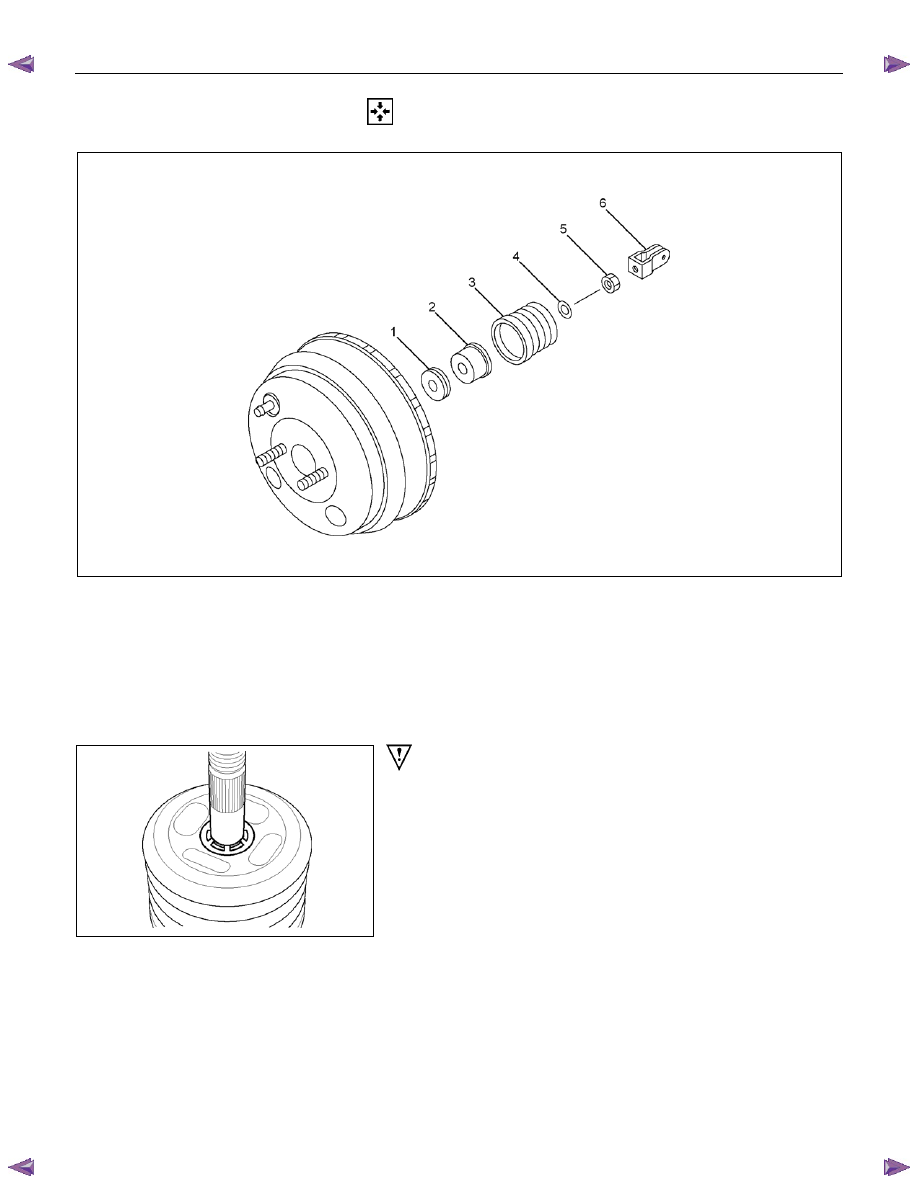

RTW75CSH002901







Important Operations

4. Retainer; Guard
Ensure that the lug of the inner surface is fitted into the groove
of the ROD.

5.  Nut; VLV Rod

Install the nut.
