ANTI-LOCK BRAKE SYSTEM  5B-1

SECTION 5B

ANTI-LOCK BRAKE SYSTEM

TABLE OF CONTENTS



PAGE

Service Precaution ....................................................................................................................... 5B – 2

Torque Specifications ................................................................................................................. 5B –  3

Electronic Hydraulic Control Unit ............................................................................................ 5B –  7

Electronic Hydraulic Control Unit and Associated Parts  .............................................  5B –  7

Removal  .....................................................................................................................................  5B –  7

Installation  ................................................................................................................................  5B –  7

Front Wheel Speed Sensor ........................................................................................................ 5B –  8

Front Wheel Speed Sensor and Associated Parts ......................................................... 5B –  8

Removal  .....................................................................................................................................  5B –  9

Inspection and Repair ............................................................................................................ 5B –  9

Installation  ................................................................................................................................  5B –  10

Rear Wheel Speed Sensor ......................................................................................................... 5B –  11

Rear Wheel Speed Sensor and Associated Parts .......................................................... 5B –  11

Removal  .....................................................................................................................................  5B –  11

Inspection and Repair ............................................................................................................  5B –  11

Installation  ................................................................................................................................  5B –  12

Front Sensor Rotor ...................................................................................................................... 5B –  13

Front Sensor Rotor and Associated Parts ....................................................................... 5B –  13

Removal  .....................................................................................................................................  5B –  13

Inspection and Repair ............................................................................................................ 5B –  14

Installation  ................................................................................................................................  5B –  14

Rear Sensor Rotor ........................................................................................................................  5B –  16

Rear Sensor Rotor and Associated Parts .........................................................................  5B –  16

Removal  .....................................................................................................................................  5B –  16

Inspection and Repair ............................................................................................................ 5B –  17

Installation  ................................................................................................................................  5B –  17

G-Sensor .........................................................................................................................................  5B –  19

G-Sensor and Associated Parts .......................................................................................... 5B –  19

Removal  .....................................................................................................................................  5B –  19

Installation  ................................................................................................................................  5B –  19

Special Tools  .................................................................................................................................  5B –  20

5B-2  ANTI-LOCK BRAKE SYSTEM

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNECESSARY SRS SYSTEM
REPAIRS.







CAUTION:  Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU/GM will call out those fasteners that require a
replacement after removal. ISUZU/GM will also call
out the fasteners that require thread lockers or
thread sealant. UNLESS OTHERWISE SPECIFIED,
do not use supplemental coatings (paints, greases,
or other corrosion inhibitors) on threaded fasteners
or fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

ANTI-LOCK BRAKE SYSTEM  5B-3

Torque Specifications

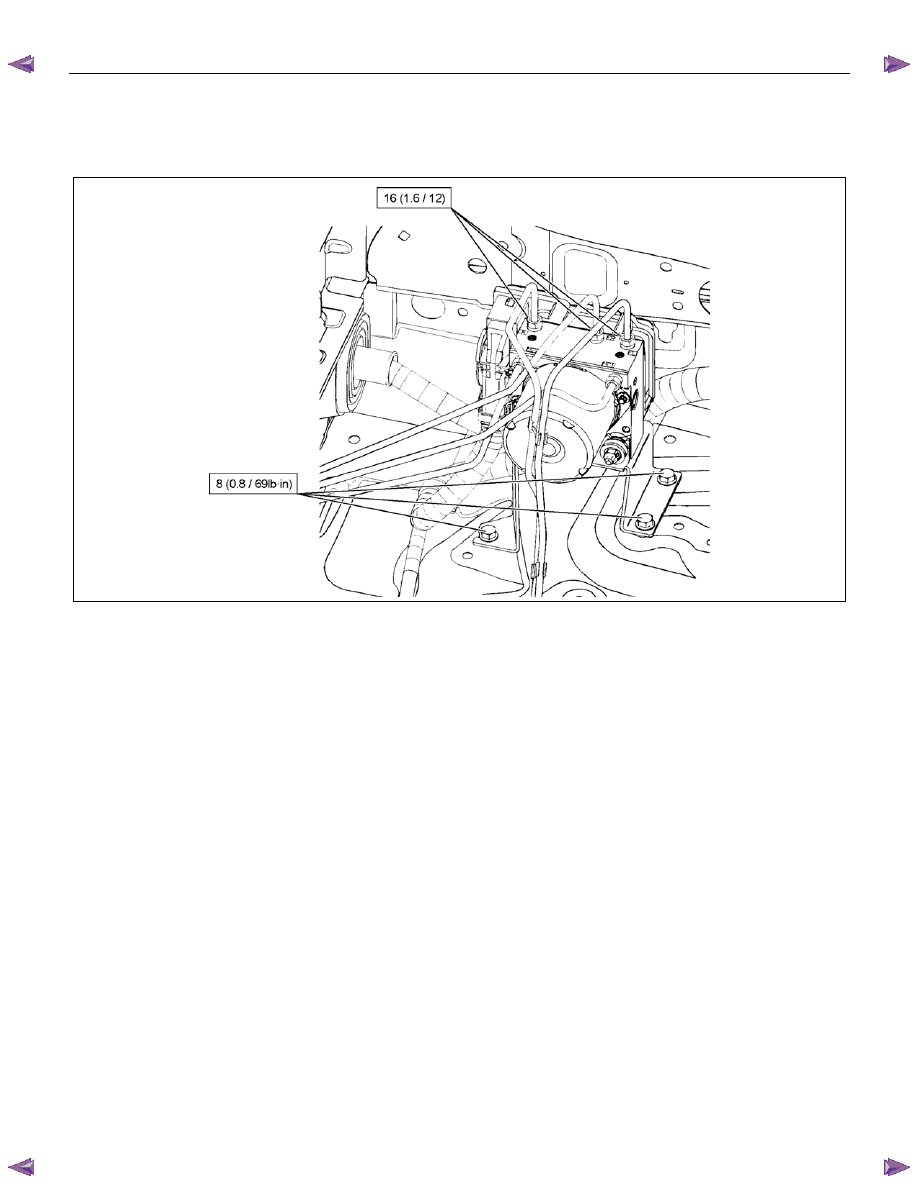

Electronic Hydraulic Control Unit

N

⋅m (kgf⋅m/lb⋅ft)





RTW75BMF000401




5B-4  ANTI-LOCK BRAKE SYSTEM

4

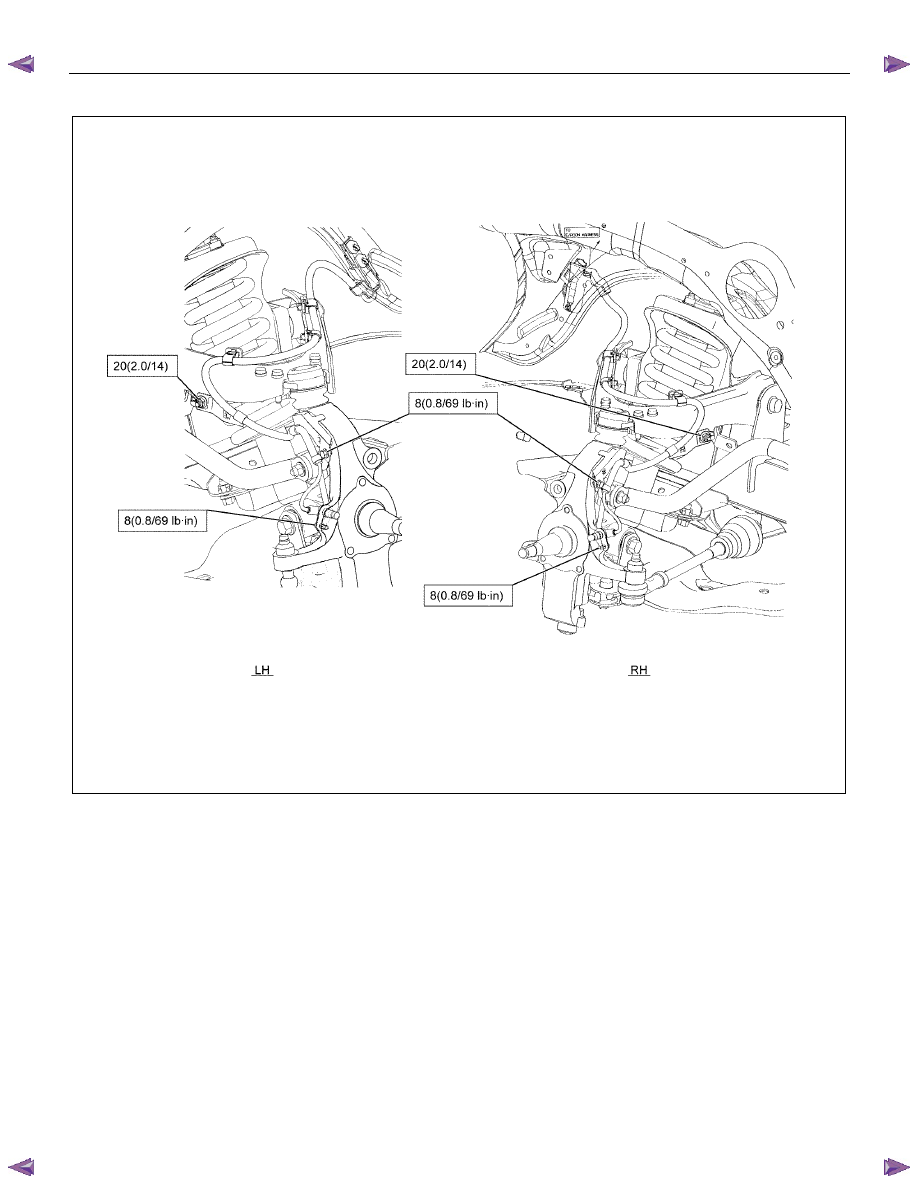

××××2 (Except High Ride Suspension) Front Wheel Speed Sensor

N

⋅m (kgf⋅m/lb⋅ft)












RTW55ALF000301
