10-58  CAB

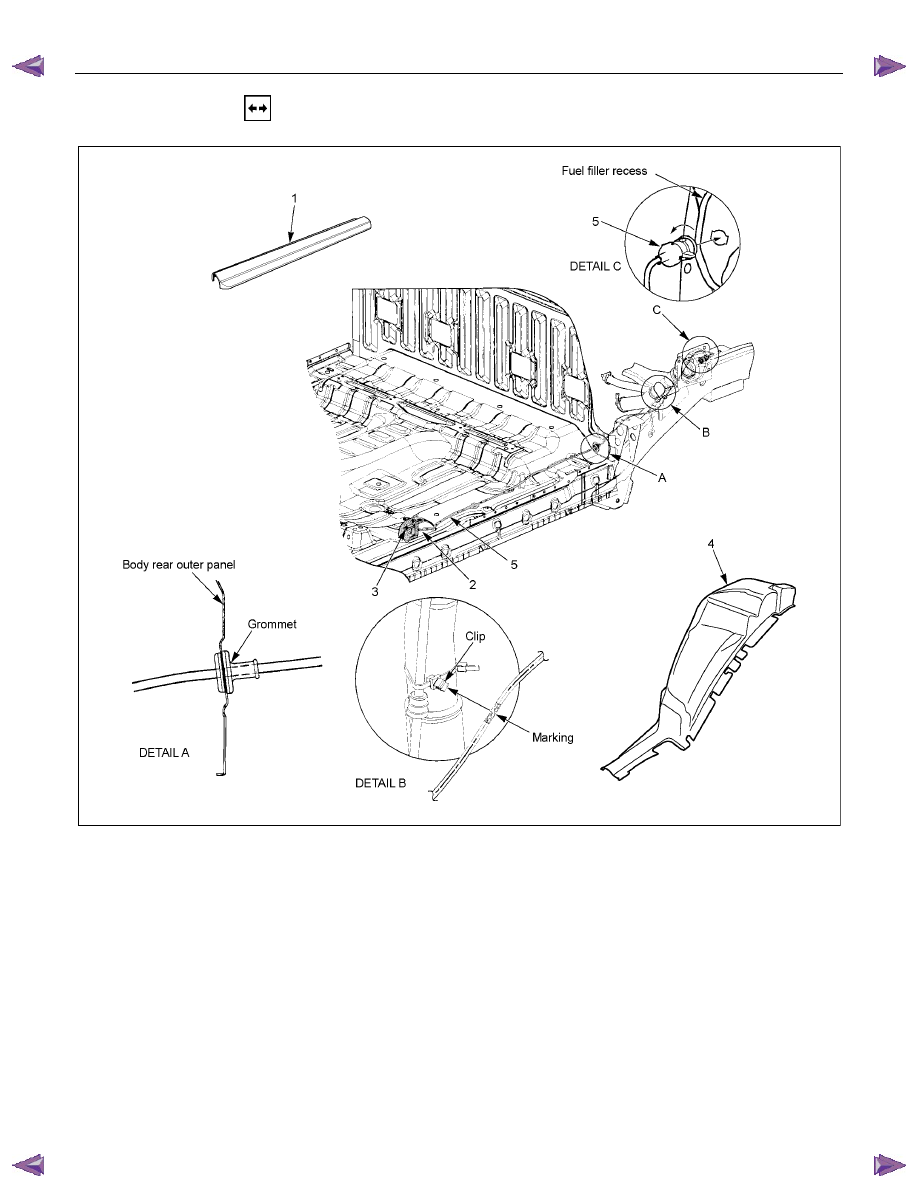

  REMOVAL (REGULAR CAB LHD MODEL)










RTW4A0LF000101



Removal Steps

▲  1. Front sill plate
▲  2. Fuel filler lid opener cover
▲  3. Fuel filler lid opener lever


4. Rear wheel housing extension panel

▲  5. Fuel filler lid cable assembly






CAB  10-59

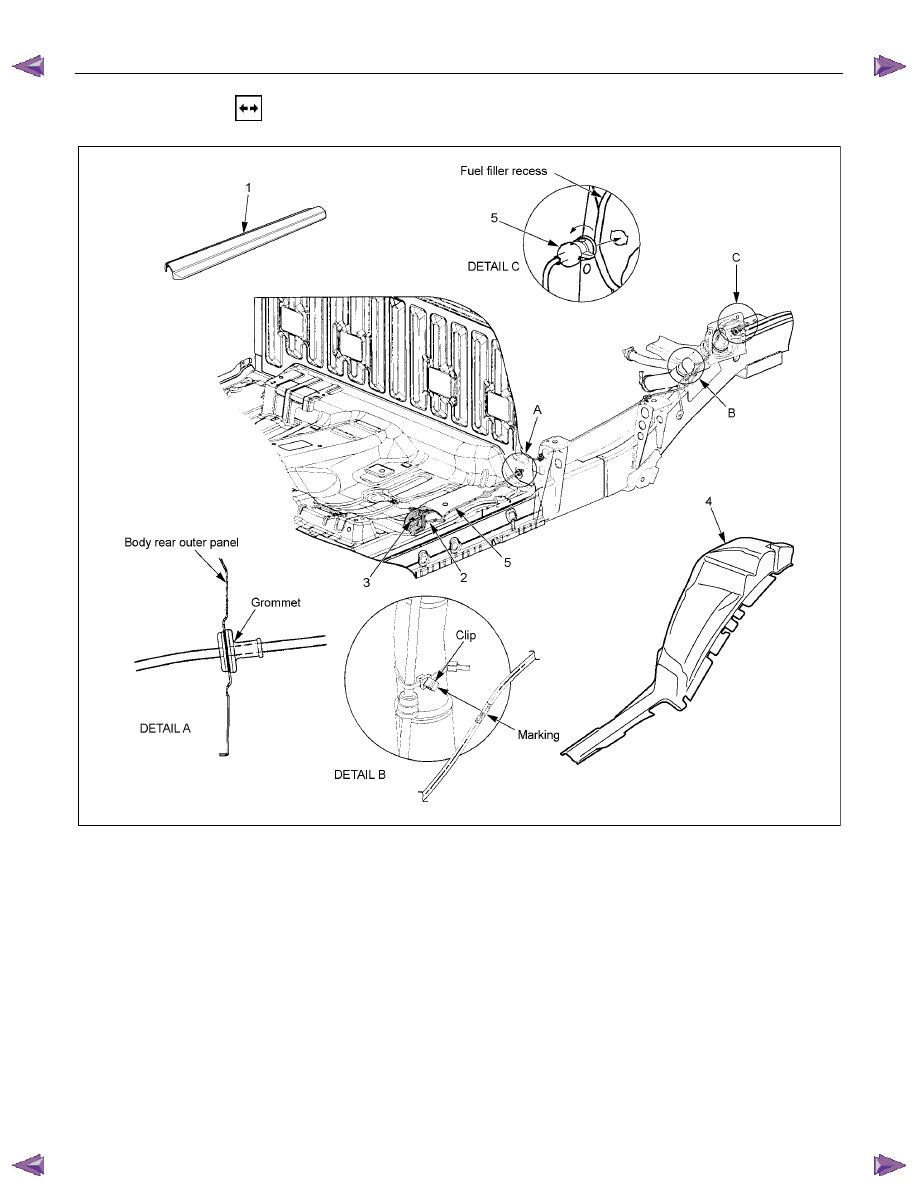

  REMOVAL (EXTEND CAB LHD MODEL)










RTW4A0LF000201



Removal Steps

▲  1. Front sill plate
▲  2. Fuel filler lid opener cover
▲  3. Fuel filler lid opener lever


4. Rear wheel housing extension panel

▲  5. Fuel filler lid cable assembly
















10-60  CAB

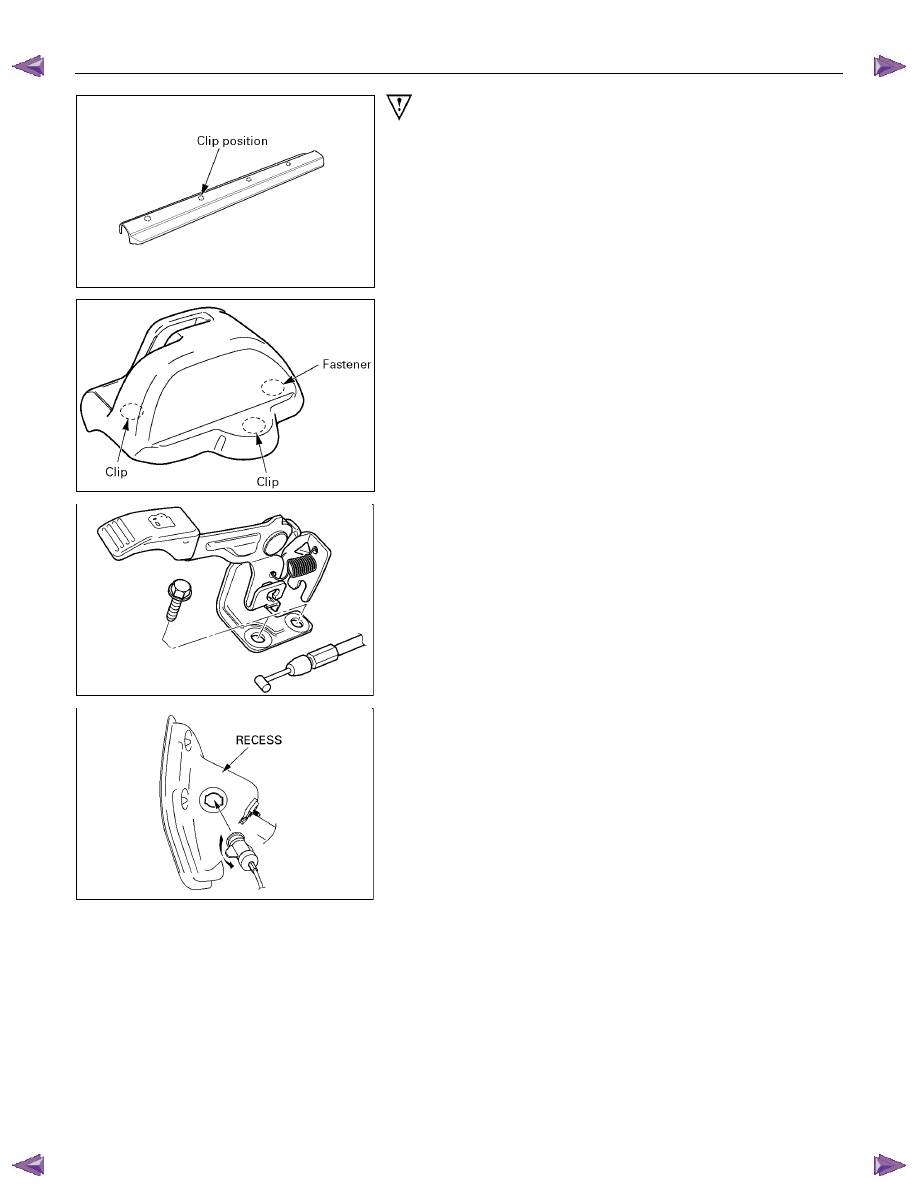

Important Operations - Removal

1.  Front Sill Plate

•  Pull out the 4 clip positions.





2.  Fuel Filler Lid Opener Cover

•  Pull out the 3 clip positions.






3.  Fuel Filler Lid Opener Lever

•  Remove the 2 opener fixing bolts and disconnect the

cable.







5.  Fuel Filler Lid Cable Assembly

•  Remove some fixing clips, turn the cable holder on the

side of the recess at 90

° counterclockwise and remove it

from the recess. Pull out the grommet in the direction of

the front of the vehicle and remove the cable assembly.



CAB  10-61

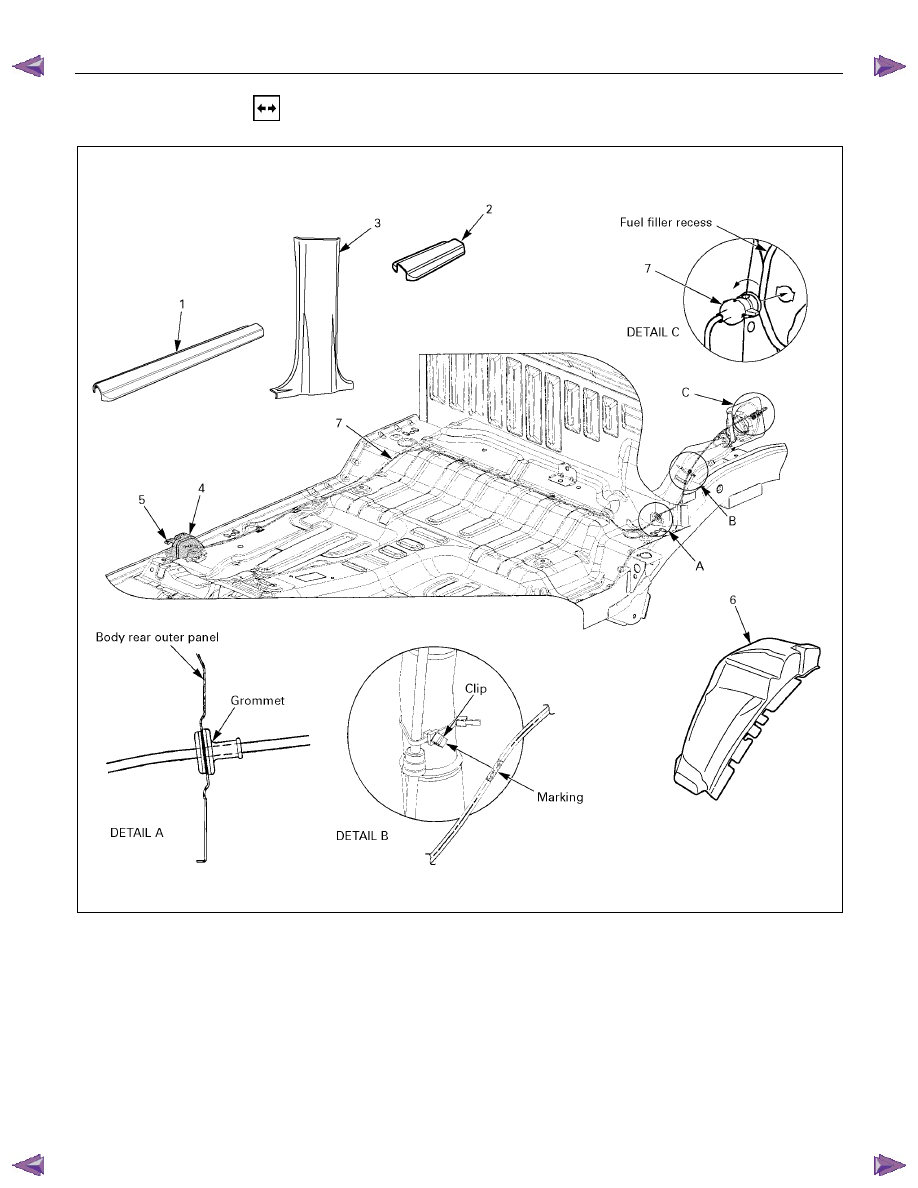

  REMOVAL (CREW CAB RHD MODEL)





686R300010



Removal Steps

▲  1. Front sill plate
▲  2. Rear sill plate


3. Center pillar lower trim cover

▲  4. Fuel filler lid opener cover
▲  5. Fuel filler lid opener lever


6. Rear wheel housing extension panel

▲  7. Fuel filler lid cable assembly
