Isuzu KB P190. Manual - part 1376

8A-566  ELECTRICAL-BODY AND CHASSIS

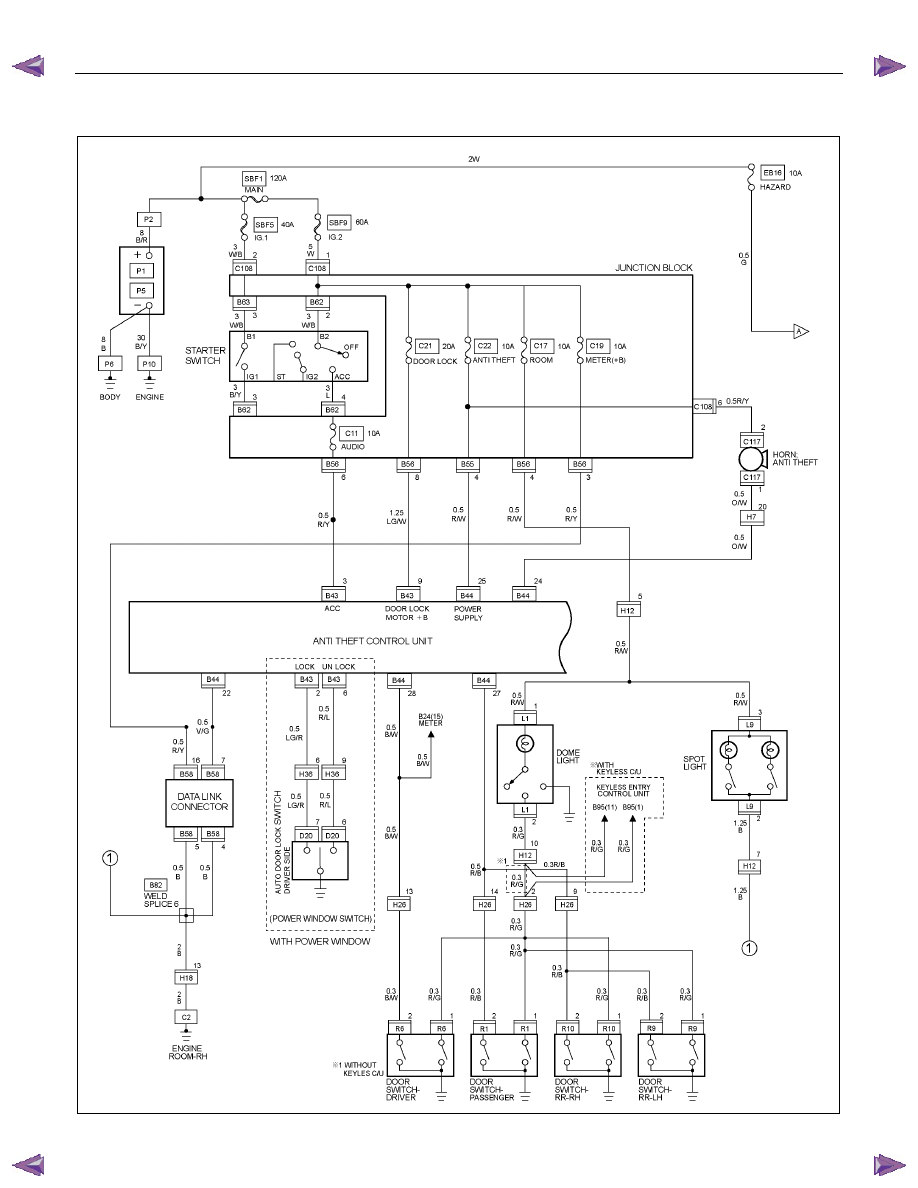

CIRCUIT DIAGRAM WITH SUPER LOCK 4JJ1-TC / 4JK1-TC (RHD) SOUTH AFRICA

Sheet 1/2











RTW78AXF019201

ELECTRICAL-BODY AND CHASSIS  8A-567

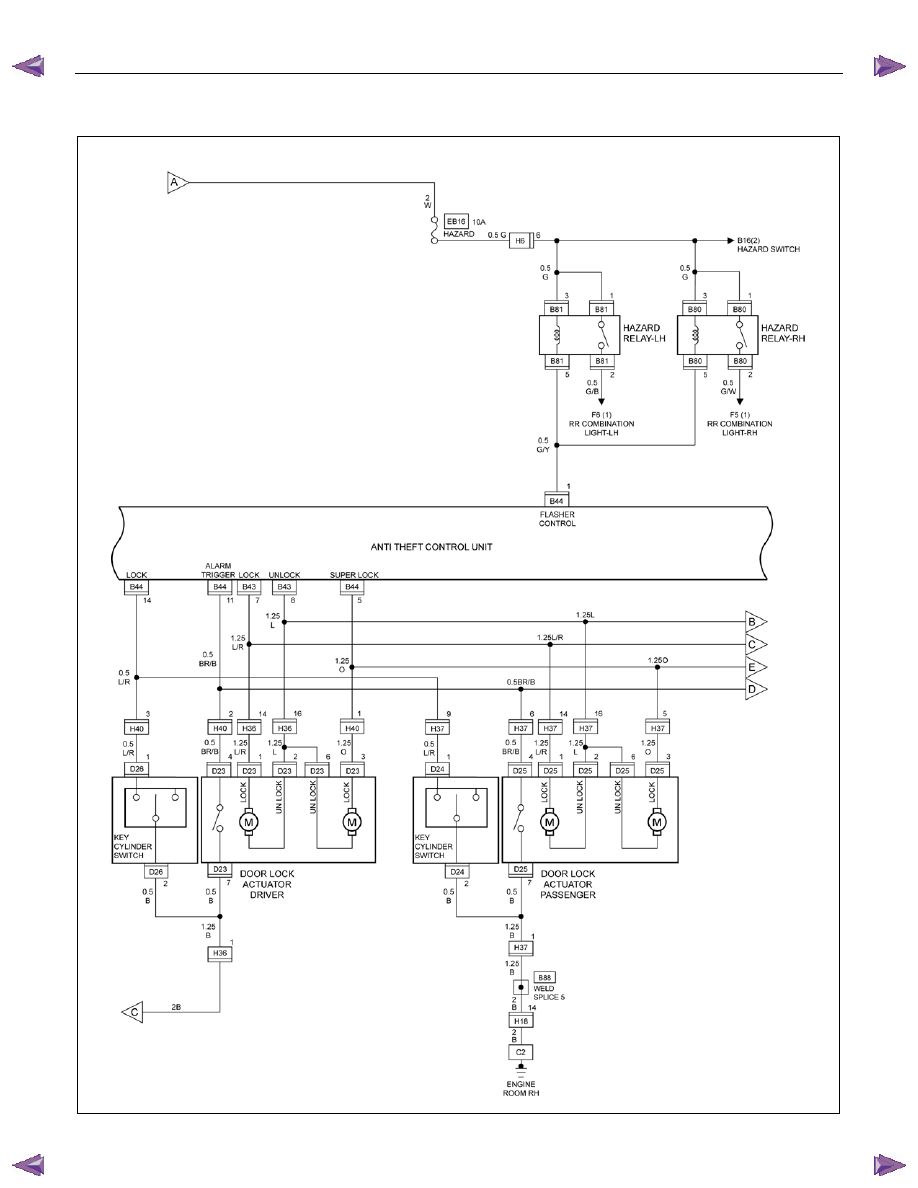

CIRCUIT DIAGRAM WITH SUPER LOCK 4JJ1-TC / 4JK1-TC (RHD) SOUTH AFRICA

Sheet 2/2










RTW78AXF019301

8A-568  ELECTRICAL-BODY AND CHASSIS

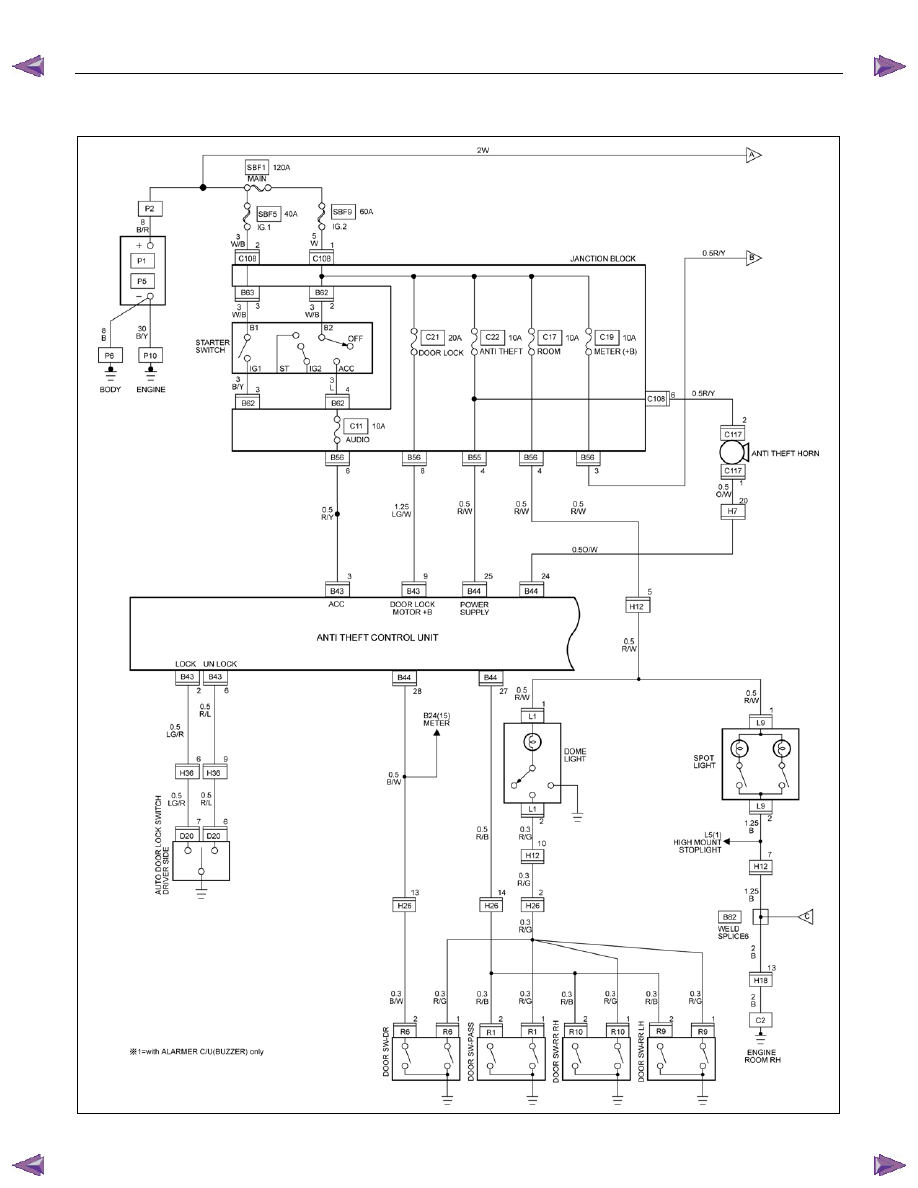

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) EXCEPT SOUTH AFRICA

Sheet 1/3









RTW78AXF033901

ELECTRICAL-BODY AND CHASSIS  8A-569

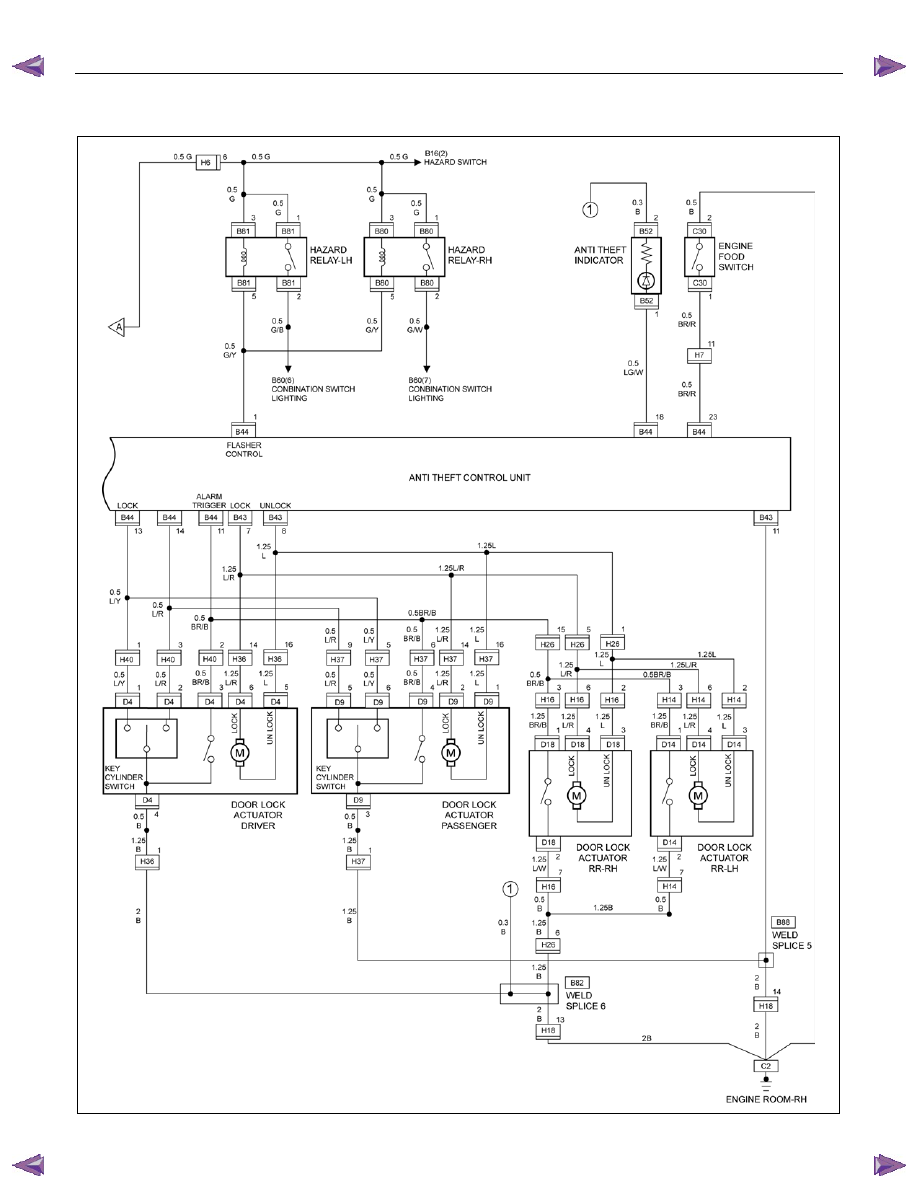

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) EXCEPT SOUTH AFRICA

Sheet 2/3













RTW78AXF034001
