Isuzu KB P190. Manual - part 1346

8A-446  ELECTRICAL-BODY AND CHASSIS



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA

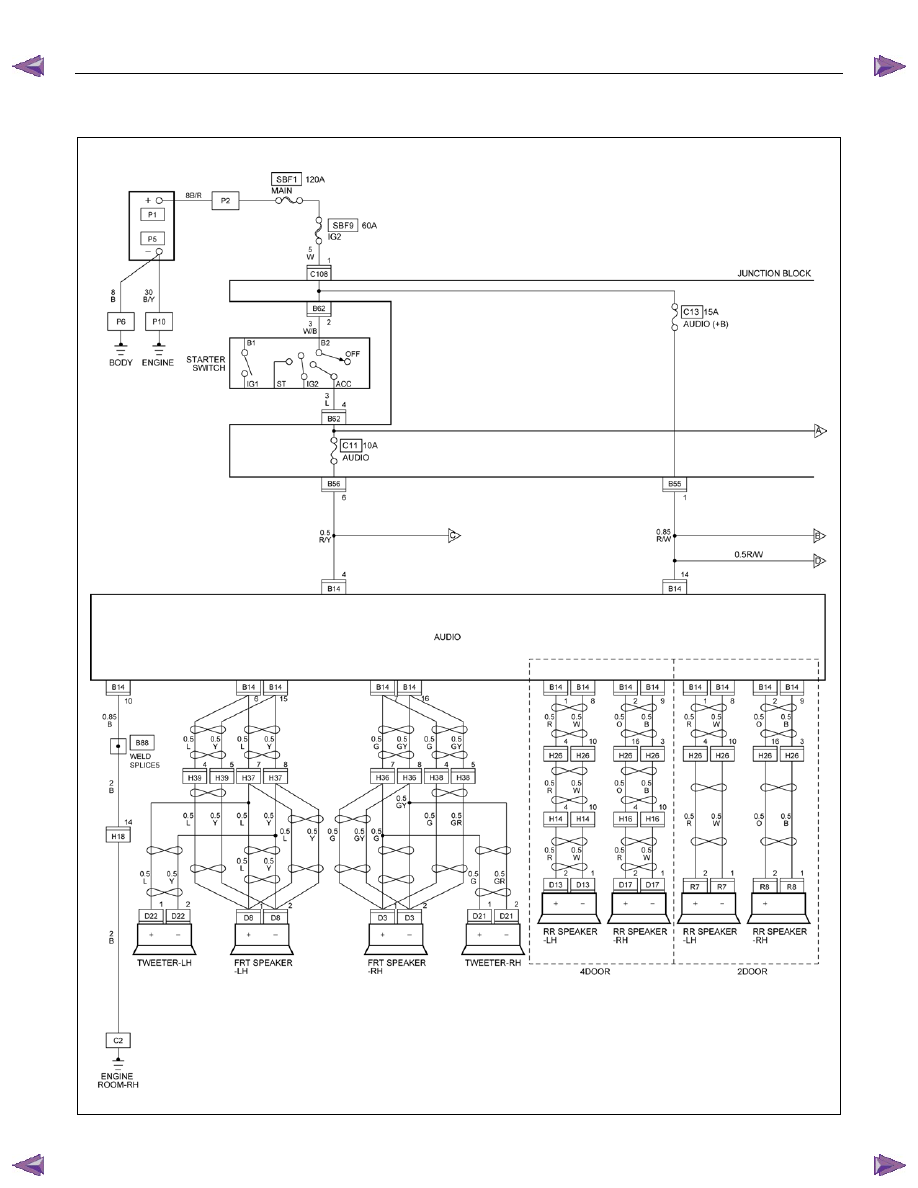

Sheet 1/2










RTW78AXF017901

ELECTRICAL-BODY AND CHASSIS  8A-447



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA

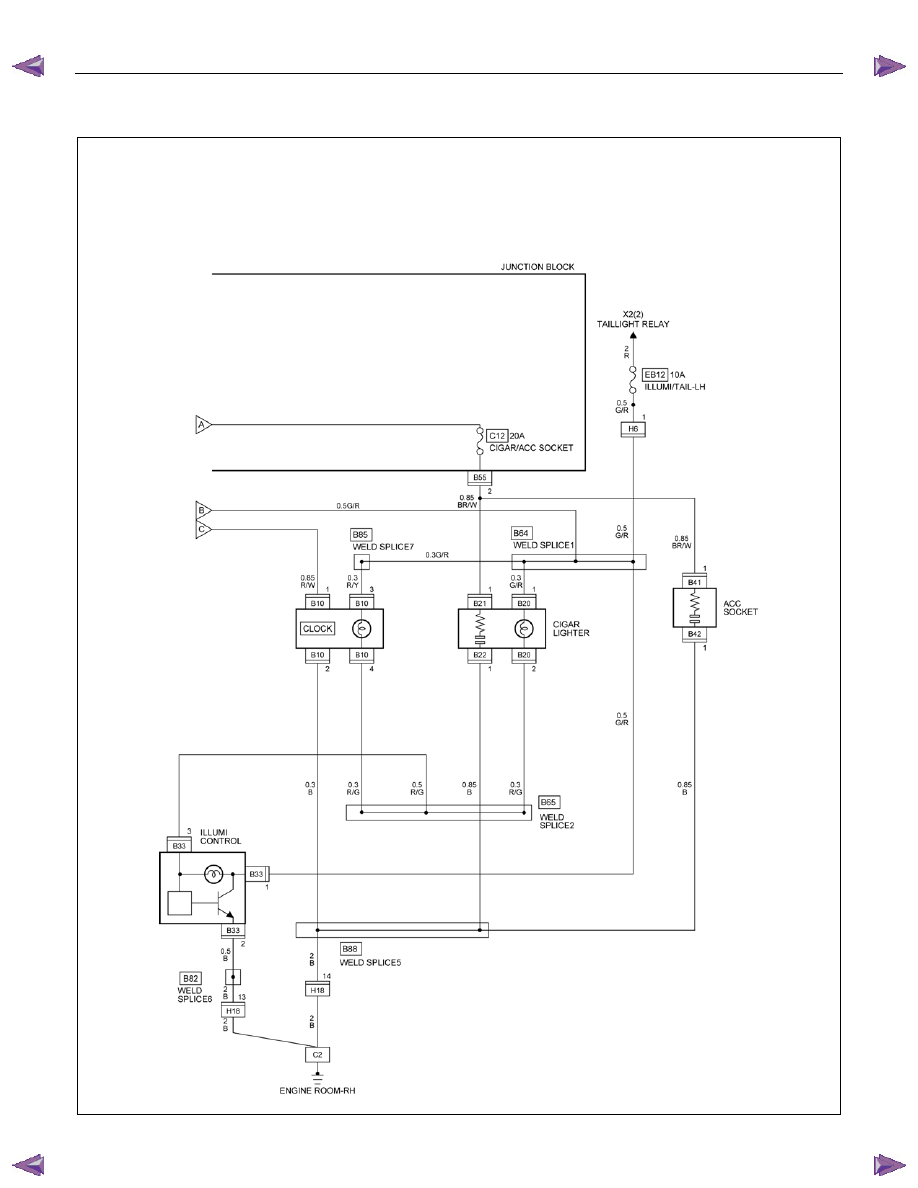

Sheet 2/2

















RTW78AXF018101

8A-448  ELECTRICAL-BODY AND CHASSIS



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) EXCEPT SOUTH AFRICA

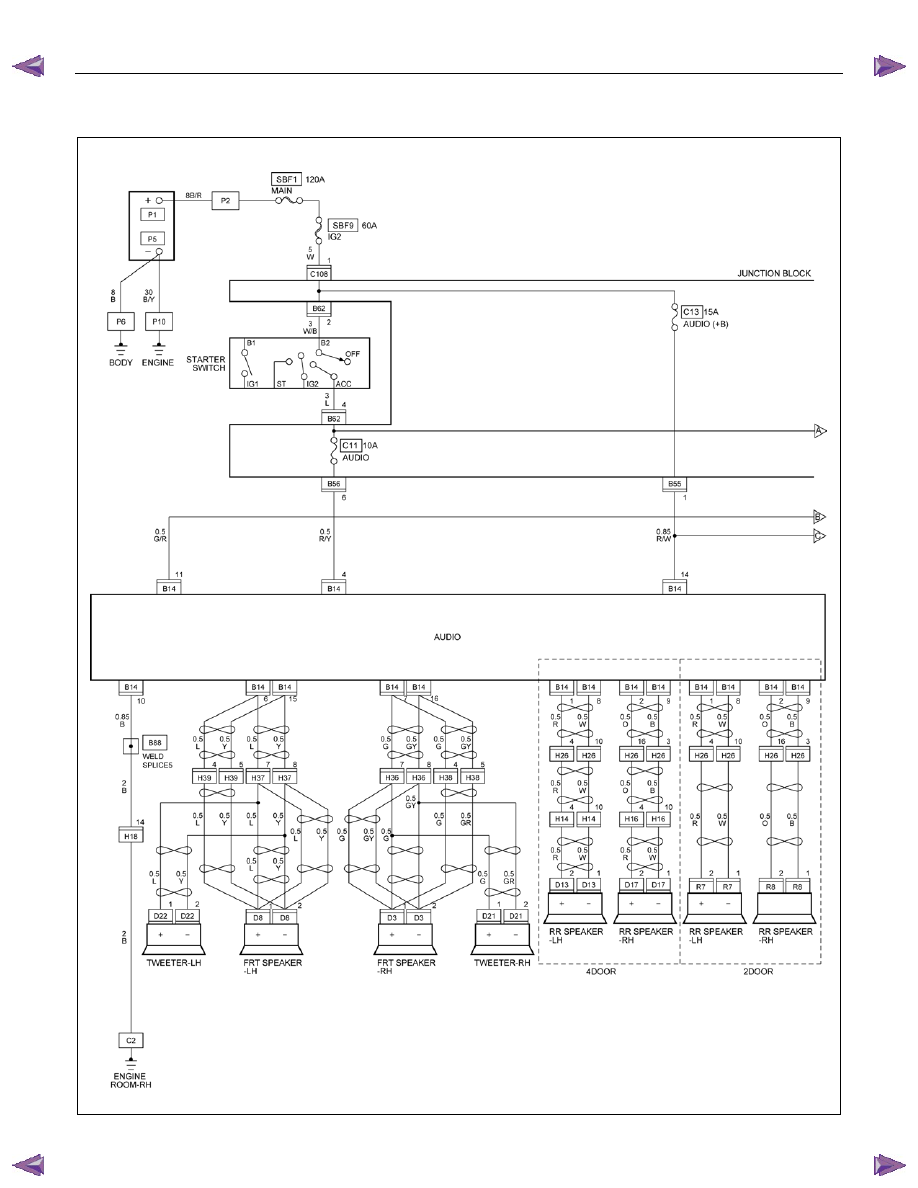

Sheet 1/2










RTW78AXF032301

ELECTRICAL-BODY AND CHASSIS  8A-449



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) EXCEPT SOUTH AFRICA

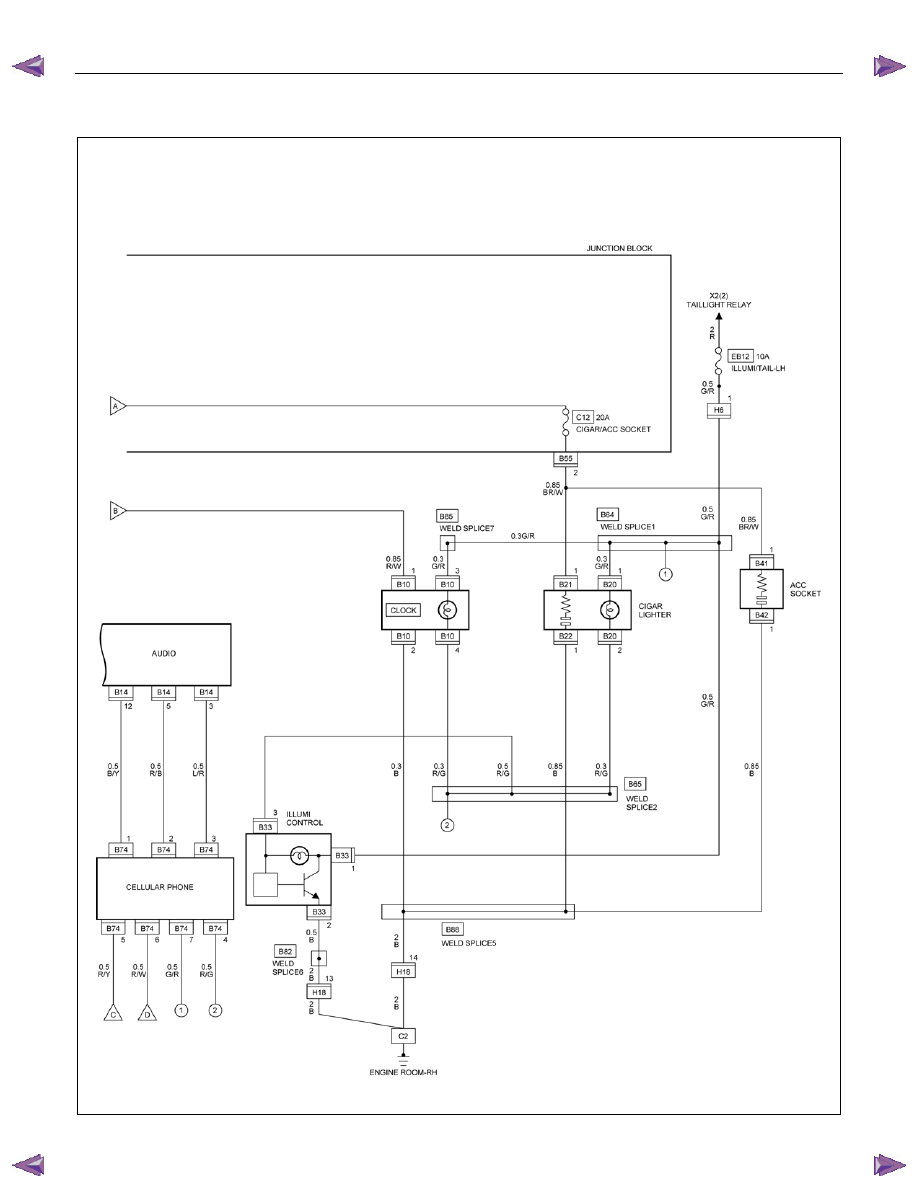

Sheet 2/2


















RTW78AXF032401
