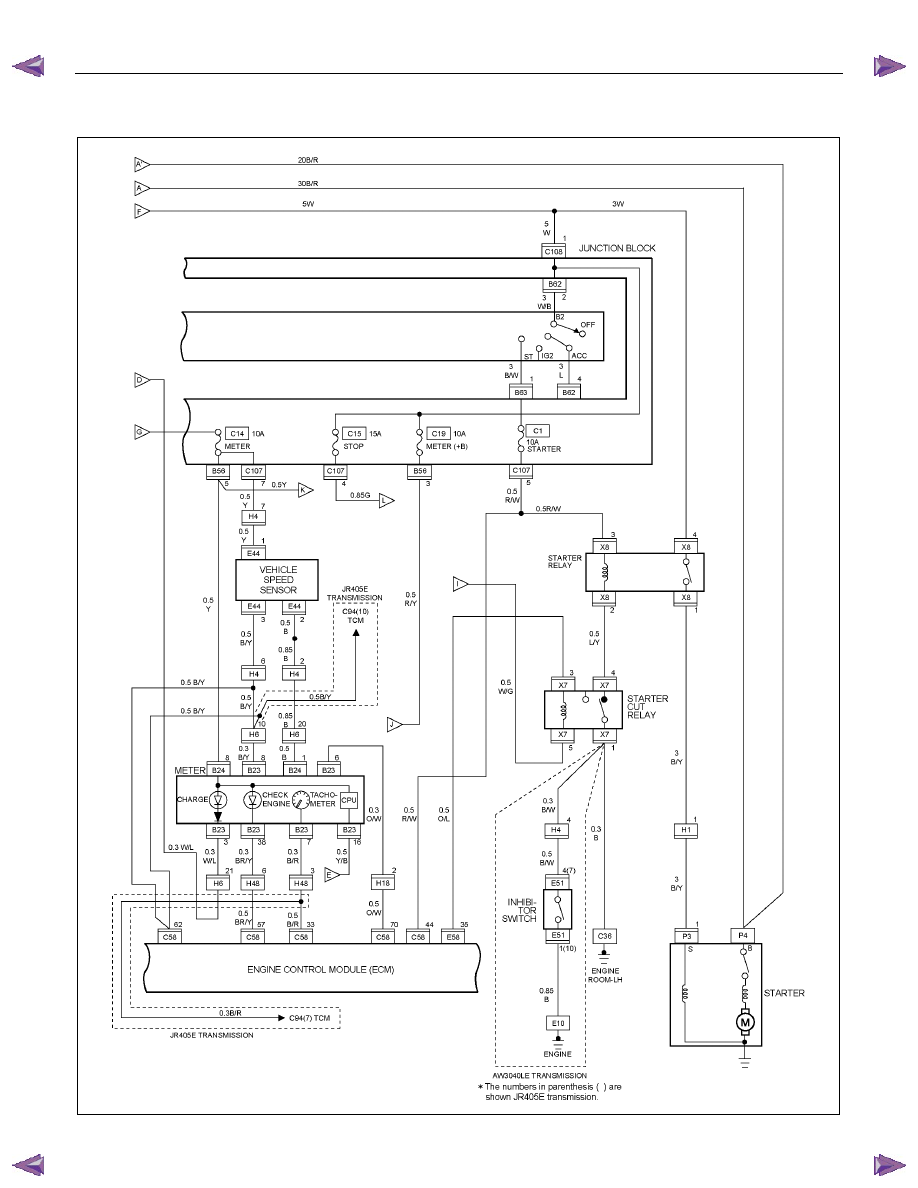

8A-130  ELECTRICAL-BODY AND CHASSIS



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP

Sheet 3/5











RTW78AXF026201

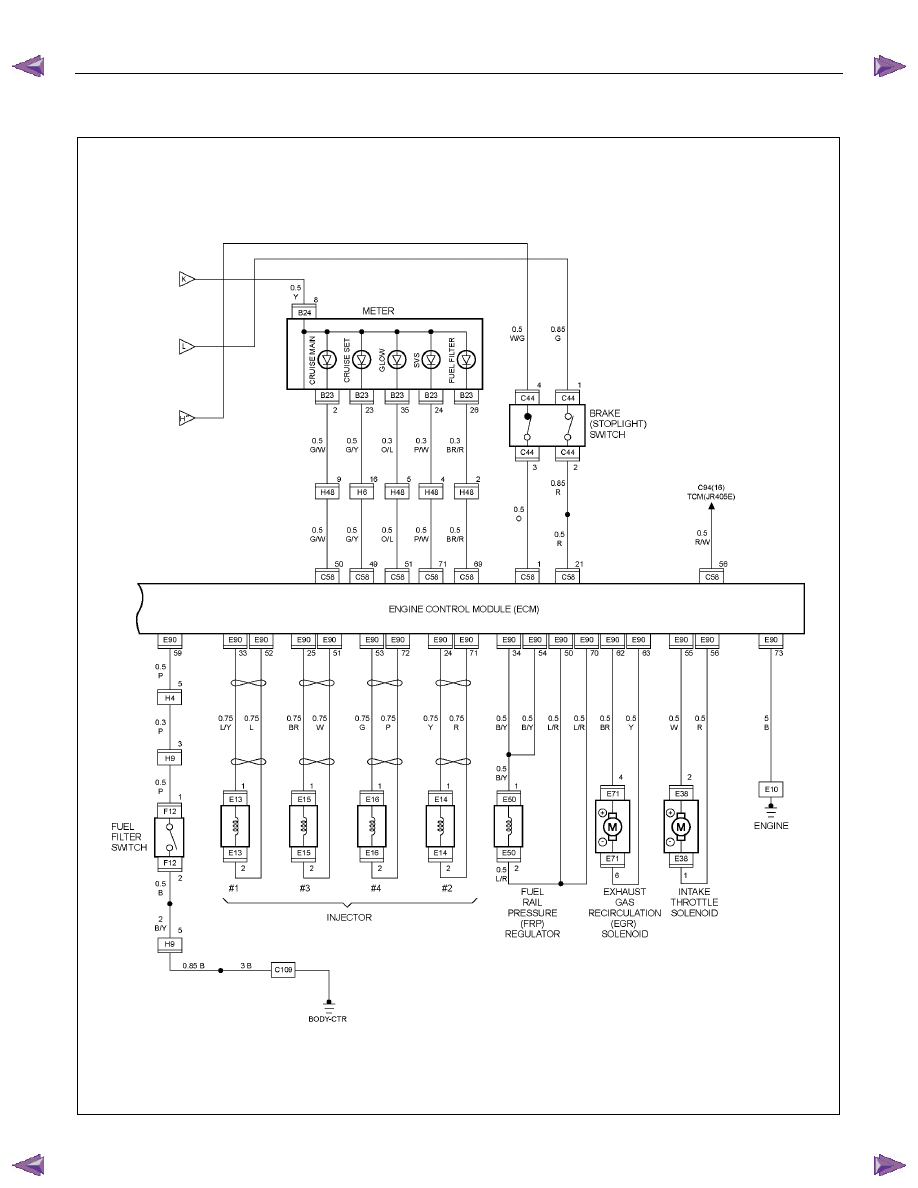

ELECTRICAL-BODY AND CHASSIS  8A-131



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP

Sheet 4/5

















RTW78AXF026301

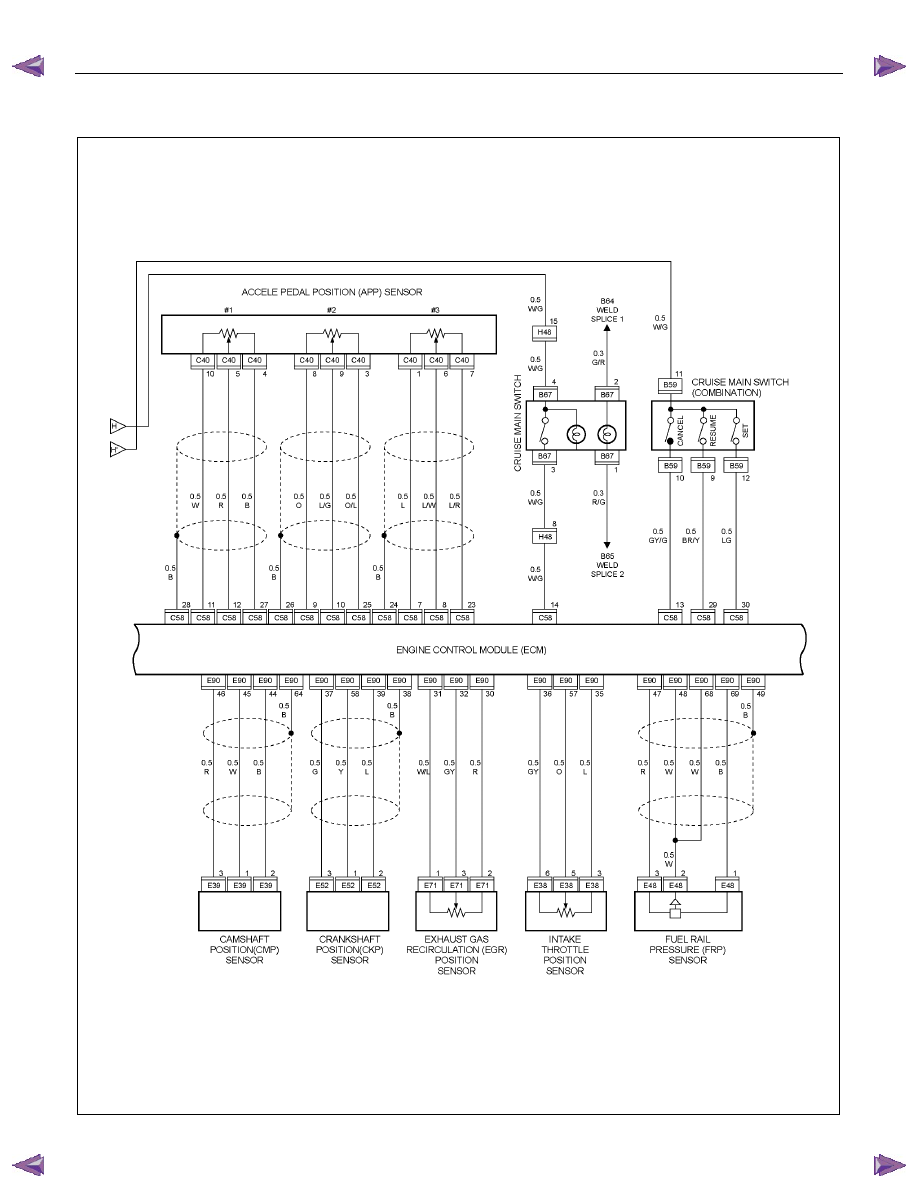

8A-132  ELECTRICAL-BODY AND CHASSIS



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP

Sheet 5/5
















RTW78AXF026401

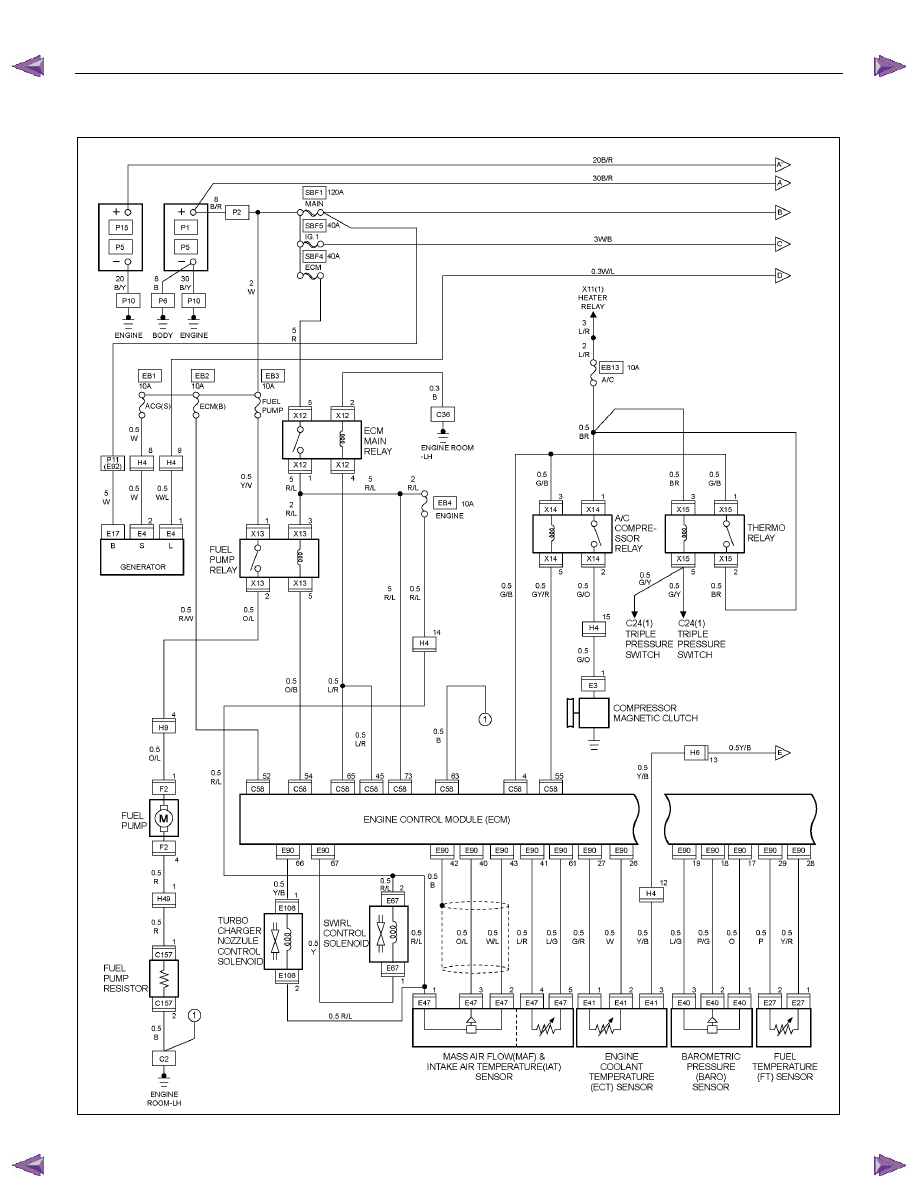

ELECTRICAL-BODY AND CHASSIS  8A-133



CIRCUIT DIAGRAM 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA

Sheet 1/5











RTW78AXF030301
