7D-10  TRANSFER CASE

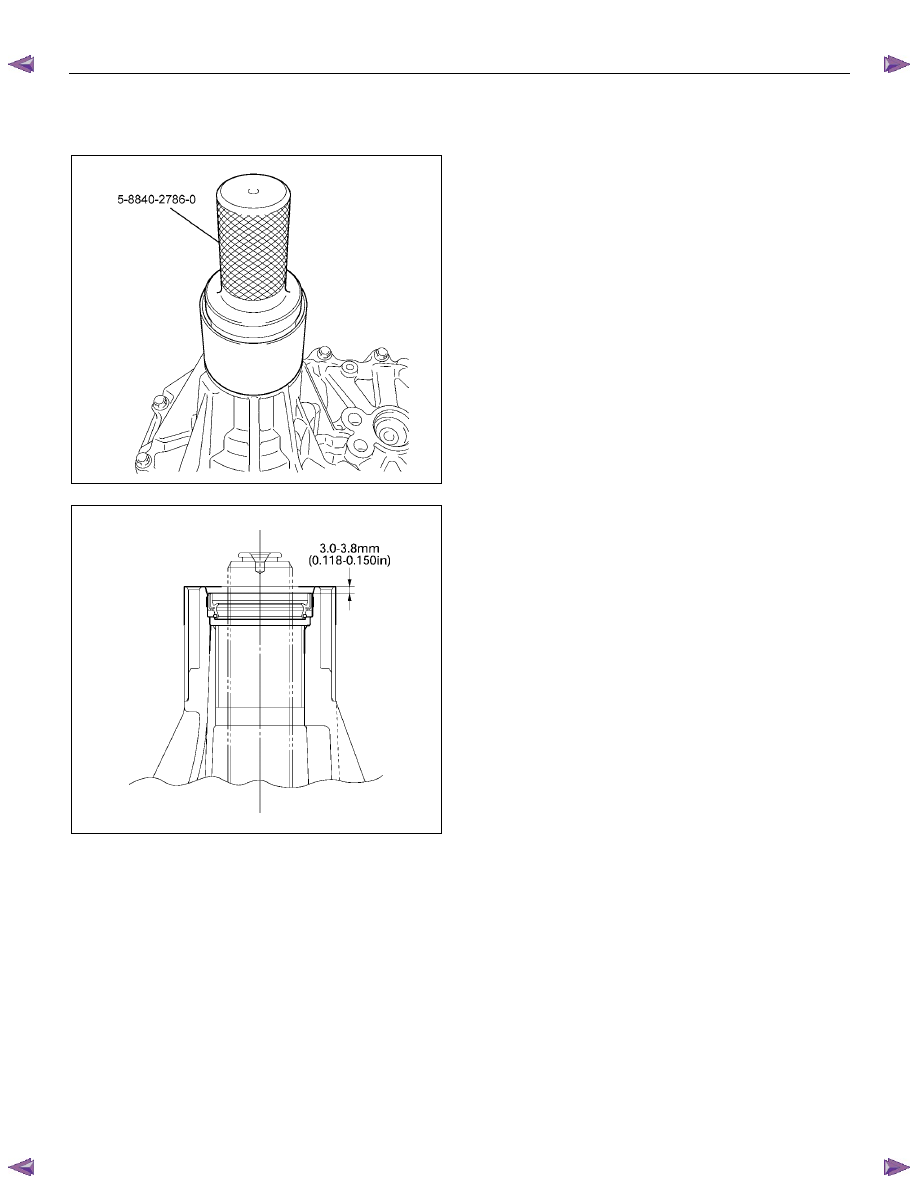

3.  Tap an oil seal in to place, use an oil seal installer

5-8840-2786-0 and a soft hammer.










RTW77DSH000401








220R300021

4.  Install the rear propeller shaft.



Propeller shaft bolts torque:

59 N

⋅⋅⋅⋅m (6.0 kgf⋅⋅⋅⋅m/43 lb⋅⋅⋅⋅ft)

5.  Lower the vehicle to the ground.

6.  Connect the battery ground cable.







TRANSFER CASE  7D-11

Transfer Case Assembly

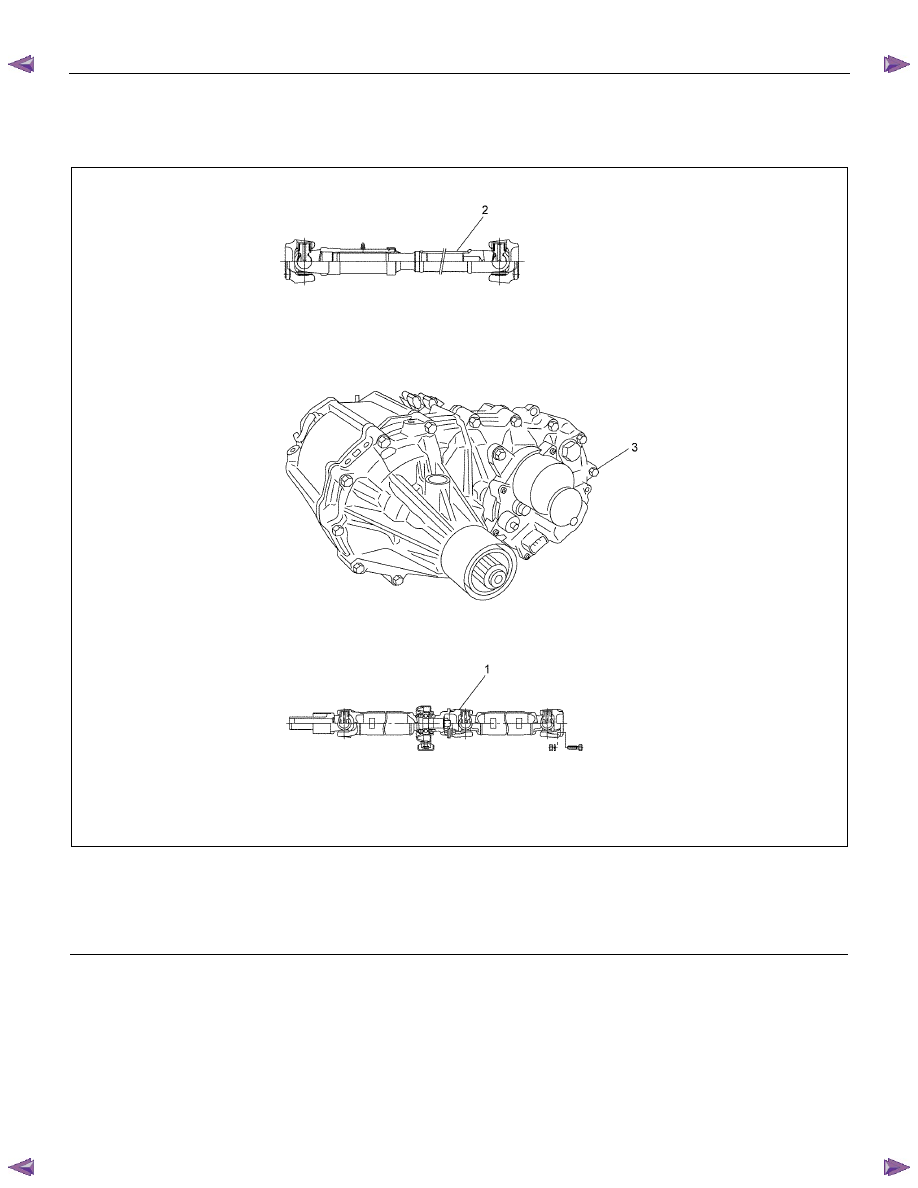

Transfer Case Assembly and Associated Parts










RTW57ALF000201

Legend





(1) Rear Propeller Shaft





(2) Front Propeller Shaft





(3) Transfer Case Assembly







7D-12  TRANSFER CASE

Removal

NOTE:  Before removing transmission and transfer
assembly from vehicle, change the transfer mode to
2WD using the 4WD push button switch on dash panel.

1.  Disconnect battery ground cable.

2.  Raise and support vehicle with suitable stands. Drain

transfer case fluid.

3.  Remove rear propeller shaft and front propeller shaft.
NOTE:  Apply alignment marks on the flange at both front
and rear sides.

4.  Disconnect harness connectors and clip.



Connector: transfer switch, 2WD-4WD actuator,

speed sensor.

NOTE:  Avoid turning the vehicle ignition switch to the ON
position when the 2WD-4WD connector is removed
(battery connected).

If the ignition switch must be turned to the ON position,
the controller must first be removed (memory must be
cleared because the CHECK 4WD INDICATOR will
light).

5.  Remove transfer case assembly from the vehicle.



Installation

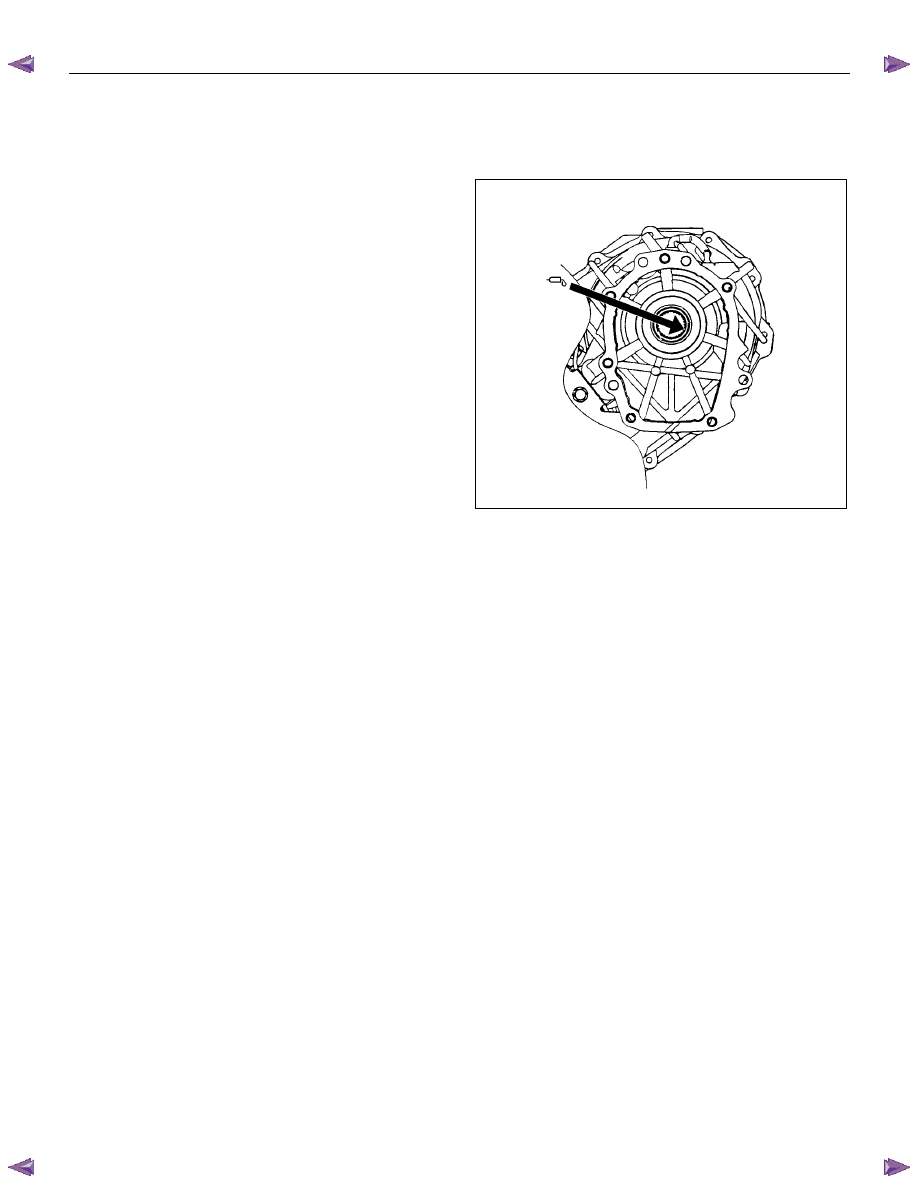

1.  Apply a thin coat of molybdenum disulfide grease to

the input shaft spline as shown in the figure.



260R300001



TRANSFER CASE  7D-13

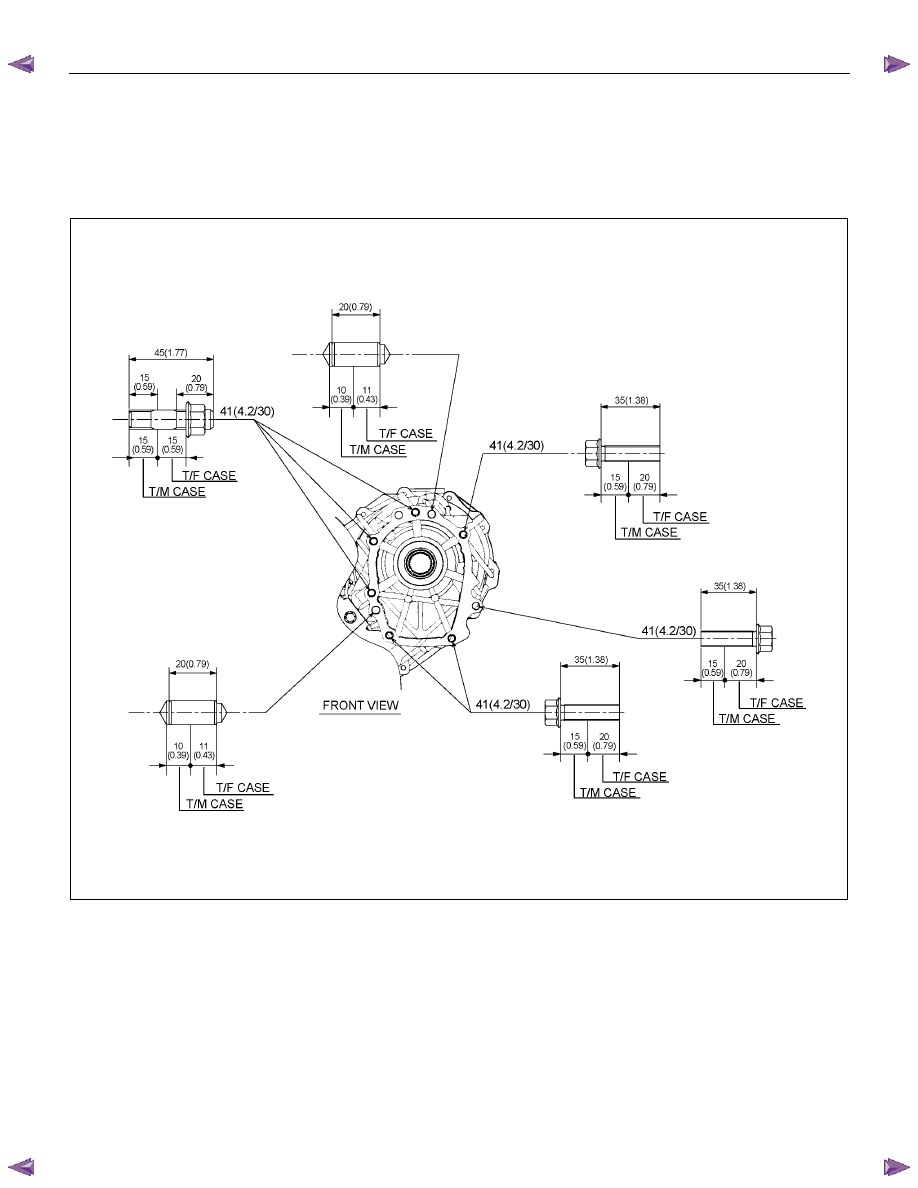

2.  Install transfer case assembly to the transmission.

Tighten transfer bolts as shown in the figure.







For M/T (MUA, MUX)

N

⋅⋅⋅⋅m (kgf⋅⋅⋅⋅m/lb⋅⋅⋅⋅ft)

mm (in)









RTW77DLF000201
