7C-2  CLUTCH

MAIN DATA AND SPECIFICATIONS

ENGINE

4JJ1

(High Output)

4JA1-T

4JK1-TC

4JJ1 (Standard Output)

4JH1-TC

C24SE

TRANSMISSION MUX

MSG

MUA

MUA

Clutch type

Dry single plate with diaphragm

Size

mm (in)

275 (10.83)

225 (8.86)

250 (9.84)

240 (9.45)

Clamping force

kg(lb)

700 (1544)

517 (1140)

640 (1411)

560 (1235)



(N)

(6860) (5070) (6300) (5500)

Pressure

plate



Outside diameter

mm(in)

275 (10.83)

225 (8.86)

250 (9.84)

240 (9.45)

Inside diameter

mm(in)

180 (7.087)

150 (5.906)

160 (6.299)

160 (6.299)

Driven

plate



Thickness

mm(in)



at free

8.8 (0.346)

8.4 (0.331)

8.3 (0.327)

8.7 (0.342)

at compressed

8.3 (0.327)

7.8 (0.307)

7.8 (0.307)

8.0 (0.315)

Clutch Cont. type

Hydraulic

Pedal free play

mm(in)

5.0-15.0 (0.2-0.6)

Master cylinder



Bore

×Stroke mm(in)

15.87

× 35 (0.625 × 1.38)

Slave cylinder



Bore

× Stroke

mm(in)

22.22

× 18.9

(0.875

× 0.744)

19.05

× 23

(0.749

× 0.906)

20.64

× 23

(0.813

× 0.906)

19.05

× 23

(0.749

× 0.906)



CLUTCH  7C-3

GENERAL DESCRIPTION

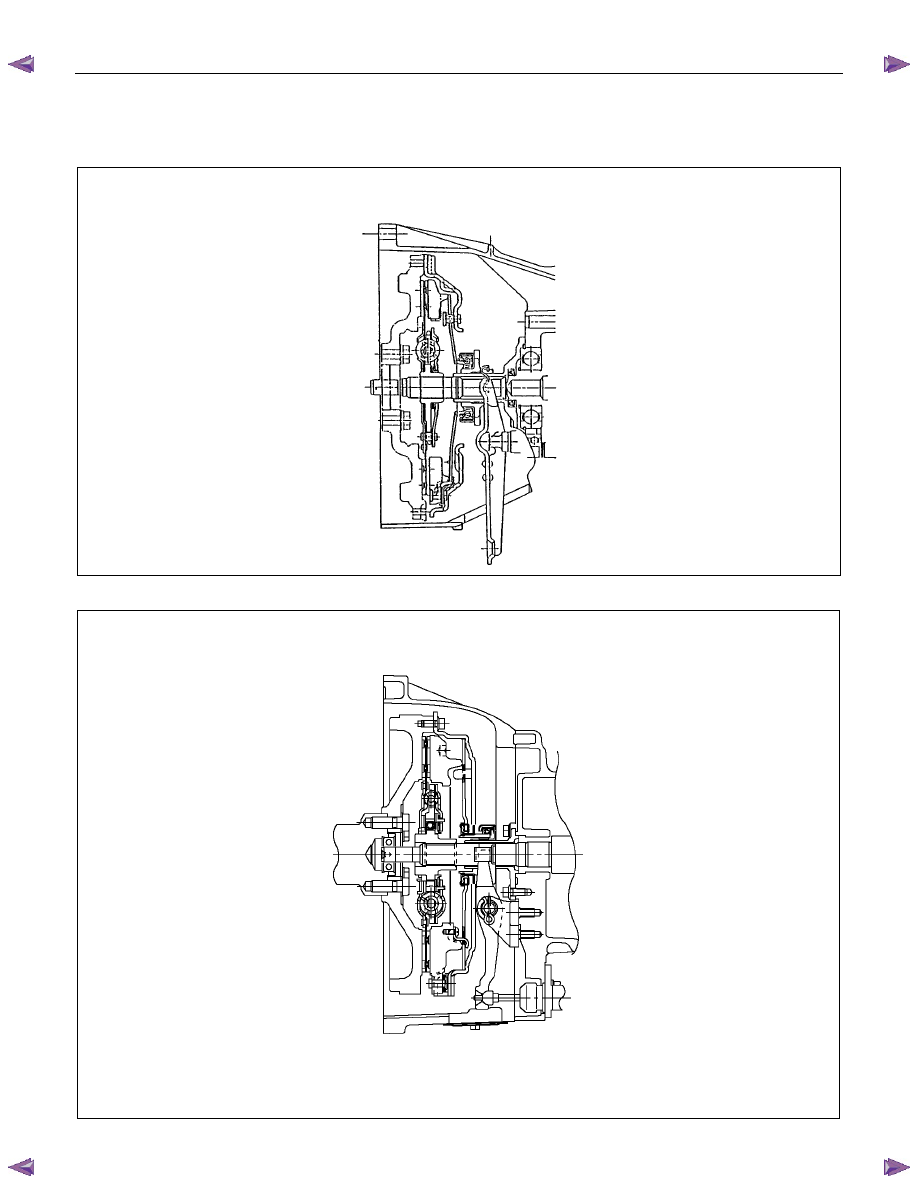

PUSH TYPE CLUTCH (MSG and MUA)















PULL TYPE CLUTCH (MUX)





RTW77CSF000601

7C-4  CLUTCH

The clutch assembly consists of the pressure plate, the clutch cover, the diaphragm spring pivot pin and the driven
plate assembly.
The clutch pedal is connected to the release bearing through the shift fork.
The driven plate assembly is installed between the flywheel and the pressure plate.
For models with MSG transmission and MUA transmission, the push-type clutch is used.
Diaphragm spring pressure holds the driven plate against flywheel and the pressure plate to provide the friction
necessary to engage the clutch.
Depressing the clutch pedal moves the shift fork against the release bearing.
The release bearing forces the diaphragm to overcome the force of the diaphragm spring and separate the driven
plate from the flywheel and pressure plate to disengage the clutch.
For model with MUX transmission, the pull-type clutch is used. The pull-type clutch is disengaged by pulling the
release lever (release bearing) to disengage the pressure plate.


CLUTCH  7C-5

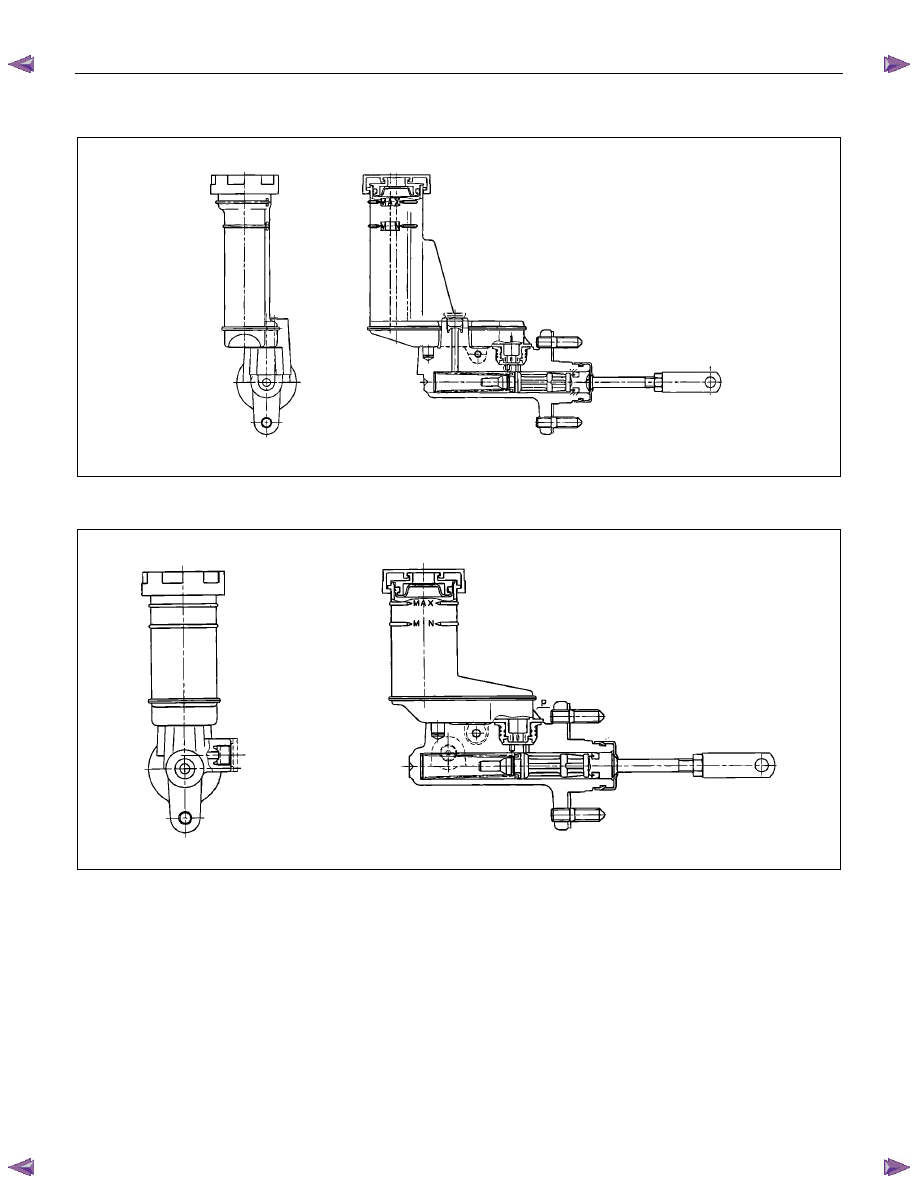

MASTER CYLINDER

C24SE (MUA) /RHD




RTW47CSF000501


C24SE, 4J series (MSG, MUA) /LHD




RTW47CSF000201
