 Manual Transmission (MUX)    7B1-53

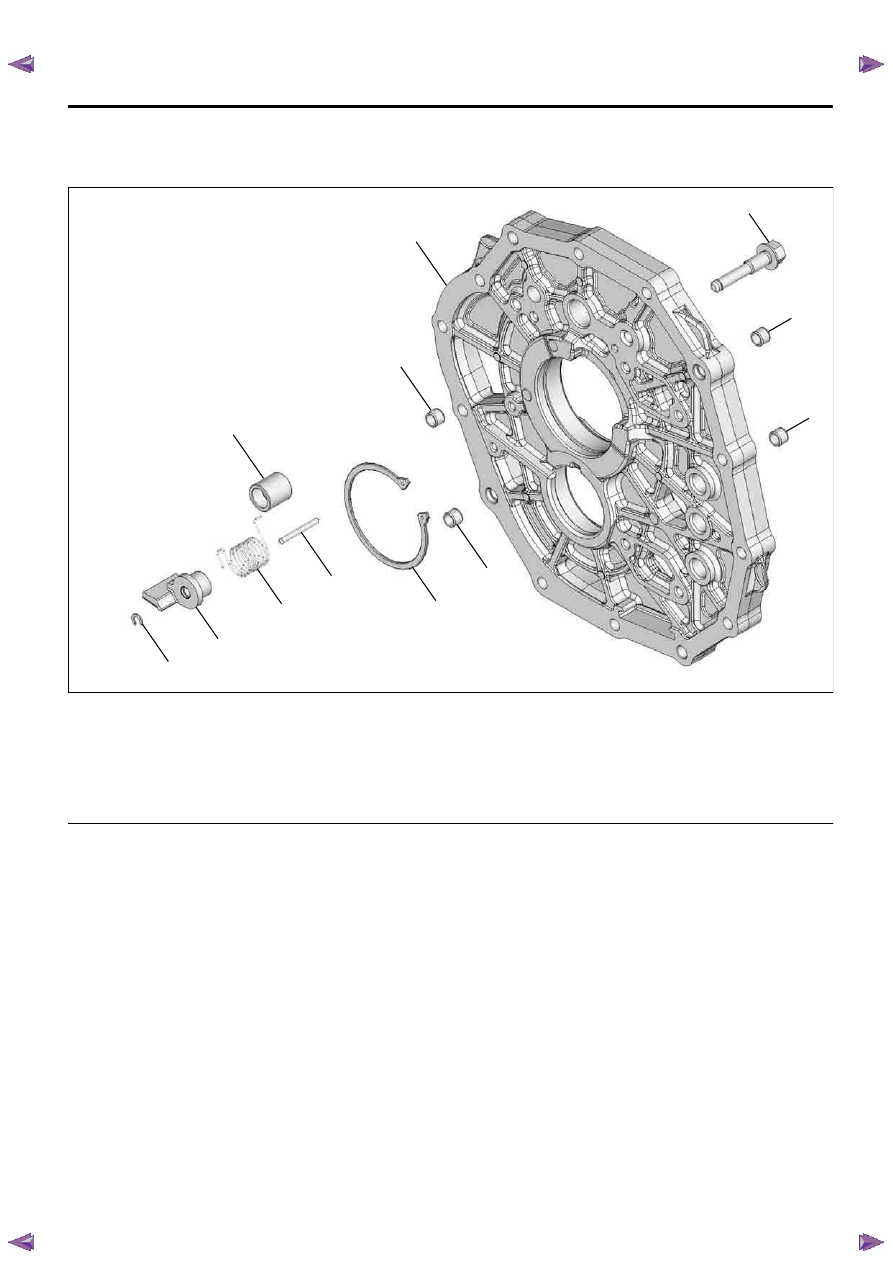

Intermediate Plate Assembly

Component

Legend

1. Intermediate plate
2. Reverse inhibitor bolt
3. Dowel
4. Input middle bearing snap ring
5. Straight pin

6. Reverse inhibitor spring
7. Reverse inhibitor
8. Reverse inhibitor snap ring
9. Linear ball bearing



Removal

1. Remove the reverse inhibitor snap ring.

2. Remove the reverse inhibitor and spring.

3. Remove the reverse inhibitor bolt.

4. Remove the straight pin.

5. Remove the linear ball bearing.

6. Remove the four dowels.

7. Use a pair of snap ring pliers to remove the input

middle bearing snap ring.

Installation

1. Use a pair of snap ring pliers to install the new

input middle bearing snap ring.

• Never reinstall the used snap ring.

2. Install the four dowels.

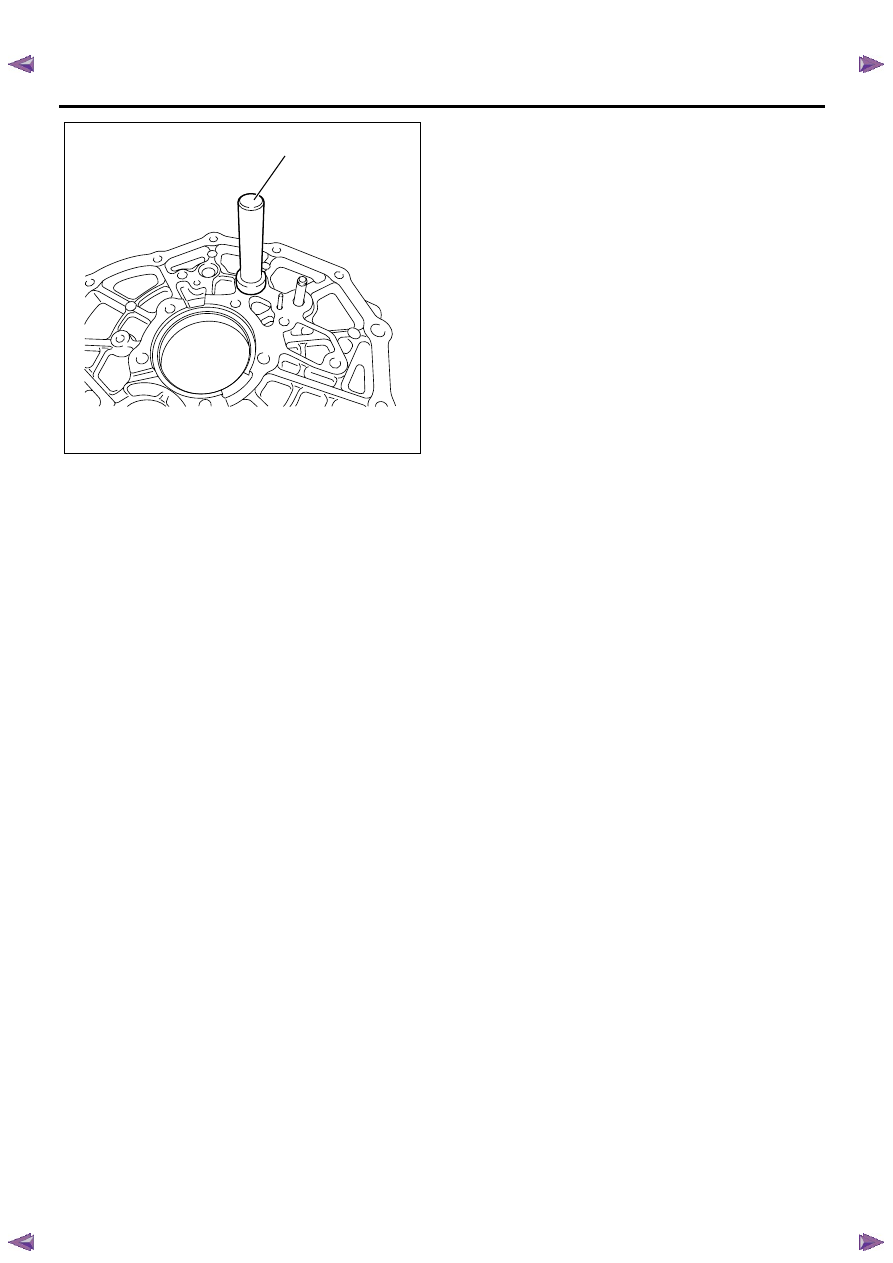

3. Use the installer 5-8840-2848-0 (1) to install the

linear ball bearing.

Notice:

• The bearing to be pressed fit to boss face.

• The bearing must be pressed at marked side.

RTW77BMF001001

9

3

1

2

3

3

3

4

5

6

7

8

7B1-54    Manual Transmission (MUX)

4. Install the straight pin.

5. Install the reverse inhibitor bolt.

• Tighten the reverse inhibitor bolt to the

specified torque.

Torque: 36 N

⋅m (3.7 kgf⋅m/27 lb⋅ft)

6. Install the reverse inhibitor and spring.

7. Install the new reverse inhibitor snap ring.

• Never reinstall the used snap ring.

Notice:
The snap ring must be assembled in groove of bolt
surely.

RTW77BSH002701

1

 Manual Transmission (MUX)    7B1-55

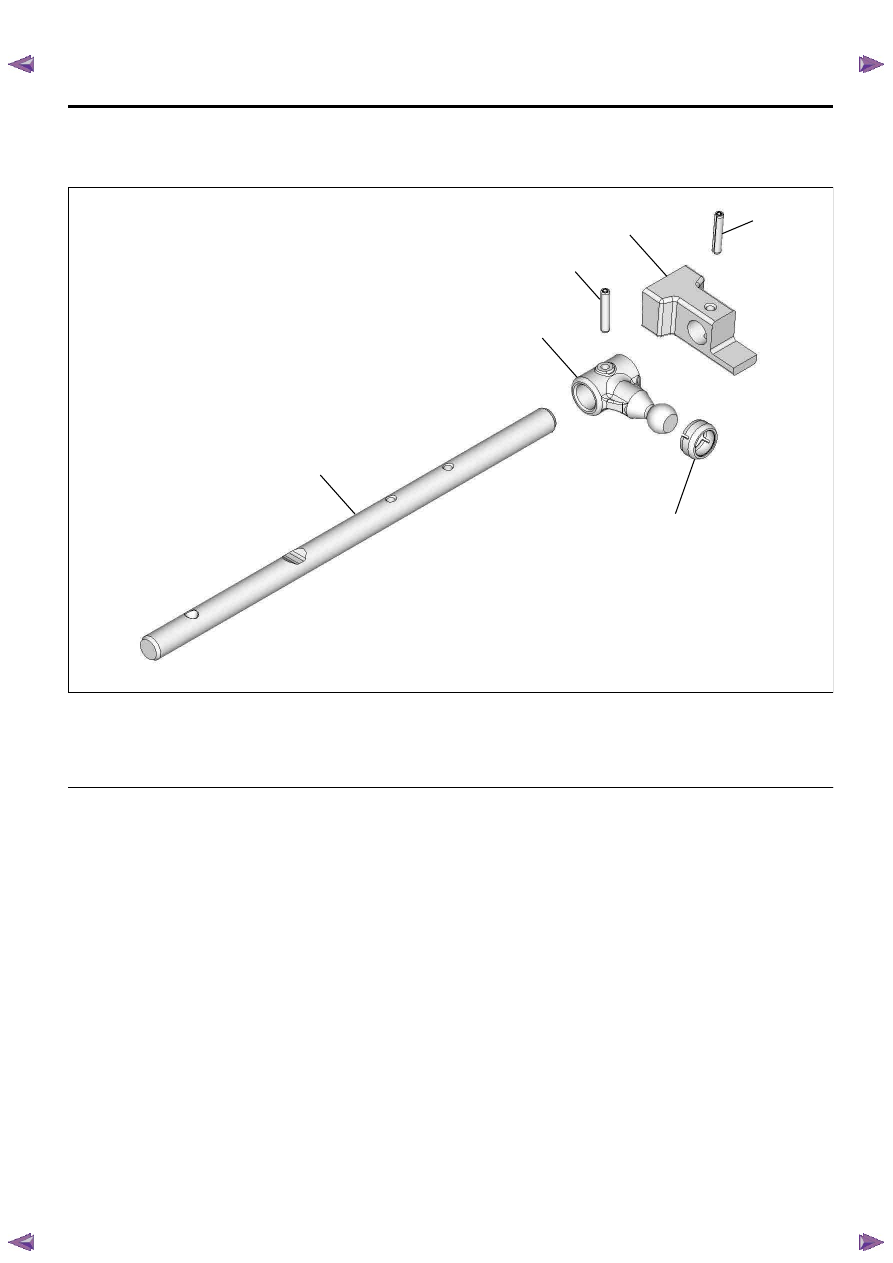

Control Rod Assembly

Component

Legend

1. Control rod
2. Control unit lever
3. Control unit lever spring pin

4. Detent shift block
5. Detent shift block spring pin
6. Shift control seat



Removal

1. Remove the shift control seat.

2. Use a spring pin remover to remove the spring pin

and the control unit lever.

3. Use a spring pin remover to remove the spring pin

and the detent shift block.

Installation

1. Install the detent shift block and the new spring pin.

• Never reinstall the used spring pin.

Notice:

• When assembled, vertical direction of block exists.

• The spring pin must be drive in to hole of end

surface of block surely.

2. Install the control unit lever and the new spring pin.

• Never reinstall the used spring pin.

Notice:
The spring pin must be drive in to hole of end surface of
lever surely.

3. Install the shift control seat.

• Apply grease to tip of sphere of lever and seat.

RTW77BMF001101

1

2

3

4

5

6

7B1-56    Manual Transmission (MUX)

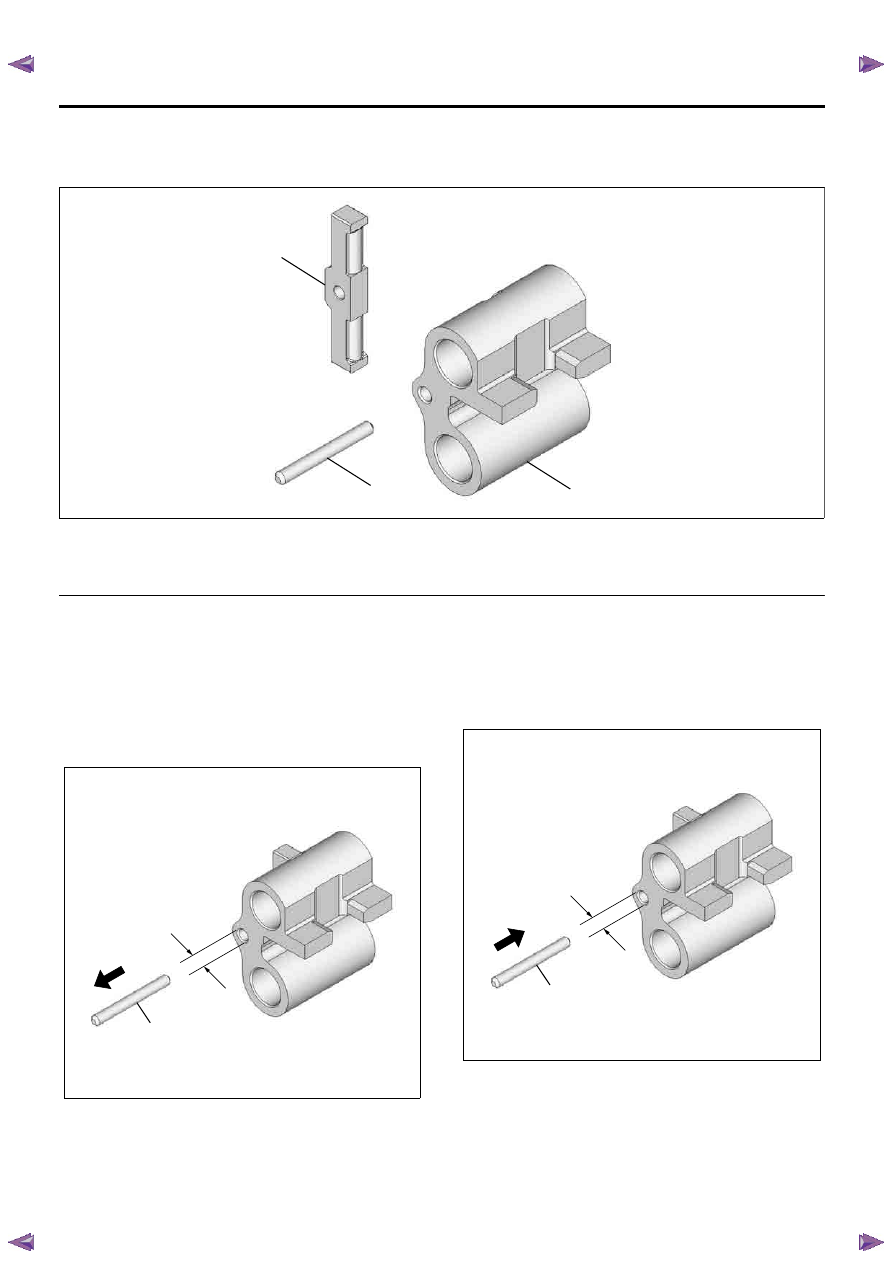

5th-Reverse Shift Block Assembly

Component

Legend

1. 5th-reverse shift lever
2. 5th-reverse shift block

3. Straight pin



Removal

1. Remove the straight pin and the 5th-reverse shift

lever.

Notice:
Make sure to remove the straight pin (2) in the direction
of 4.5 mm (0.177 in) diameter bore (1) side.

Installation

1. Install the 5th-reverse shift lever and the straight

pin.

Notice:

• Install the straight pin (2) from 4.5 mm (0.177 in)

diameter bore (1) side, and adjust the setting
position to make the end of straight pin flush with
the end of the shift block.

• Installation direction of the lever to be not

misassembled.

RTW77BSF000601

1

2

3

RTW77BSH007301

1

2

RTW77BSH007401

1

2
