Isuzu KB P190. Manual - part 1192





 Manual Transmission (MUX)    7B1-49

• The bearing must be press fitted with end surface of

shaft.

• The outer race must not be punch. (Inner race to be

punch.)

7B1-50    Manual Transmission (MUX)

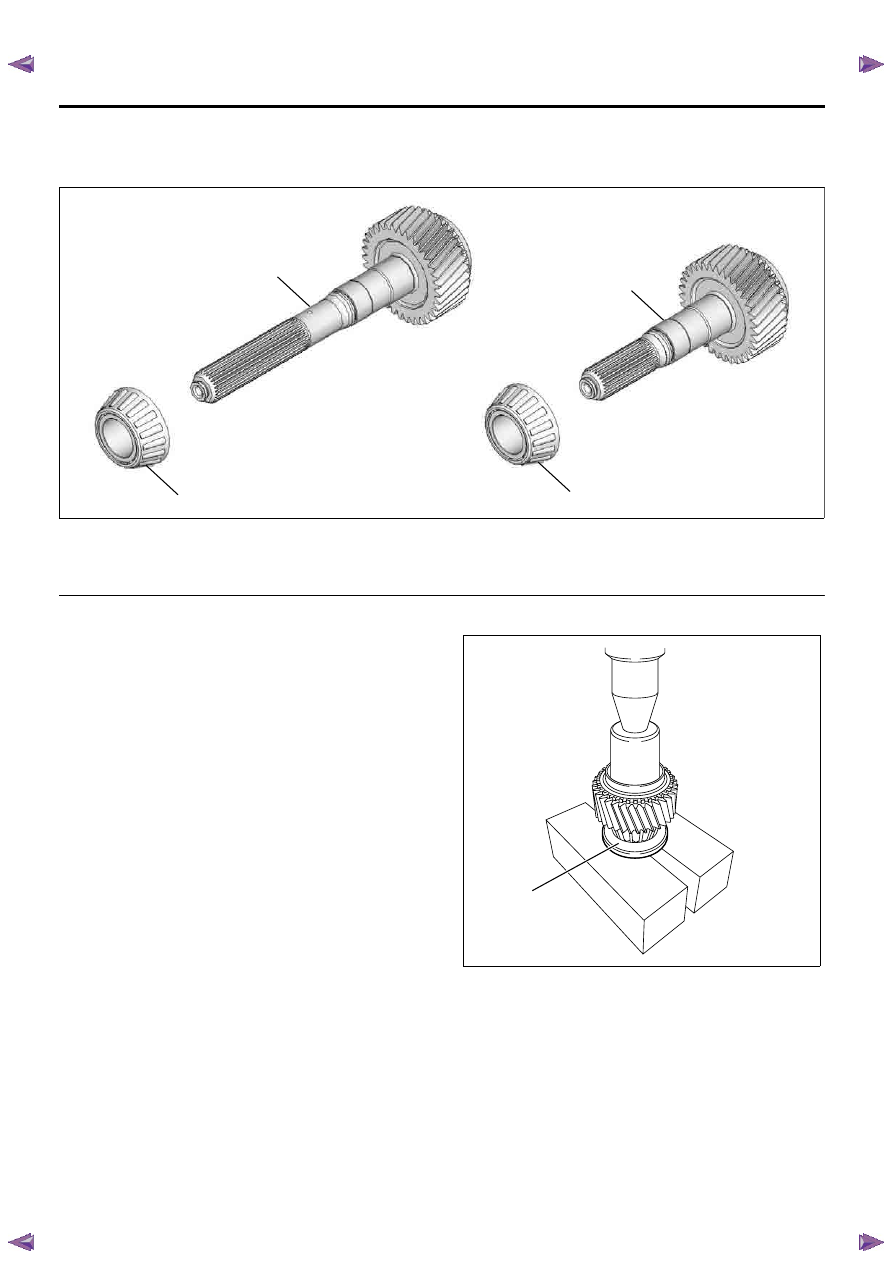

Output Shaft Assembly

Component

Legend

1. Output shaft (4x2 model)
2. Output shaft (4x4 model)

3. Output front bearing inner race



Removal

1. Break the output front bearing cage with hammer

and chisel.
Remove the output front bearing inner race, and
discard the used inner race.

Installation

1. Use a bench press and installer 5-8840-2847-0 (1)

to install the output front bearing inner race to the
output shaft.

• Never reinstall the used output front bearing

inner race.

• Apply grease (BESCO L-2 or equivalent) to the

bearing roller.

Notice:

• The bearing innner race must be press fitted to end

surface of gear.

• The cage must not be push.

RTW77BSF000801

1

2

3

3

RTW77BSH002601

1

 Manual Transmission (MUX)    7B1-51

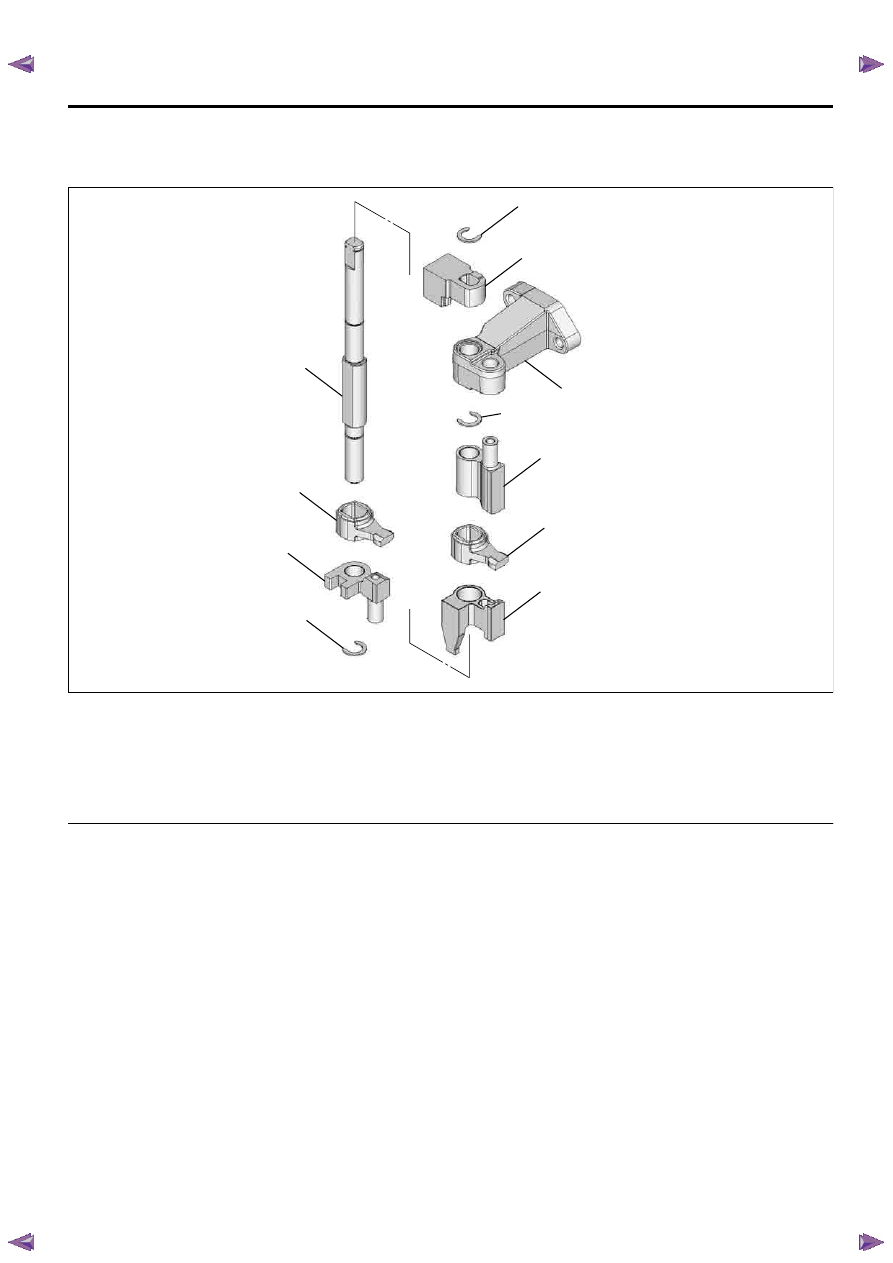

Shift & Select Rod Assembly

Component

Legend

1. Snap ring
2. Shift & select block
3. Shift rod bracket
4. Interlock upper block
5. Internal common upper lever

6. Interlock middle block
7. Interlock lower block
8. Internal common lower lever
9. Shift & select rod



Removal

1. Remove the snap ring from the interlock lower

block lower side.

2. Remove the interlock lower block.

3. Remove the internal common lower lever.

4. Remove the interlock middle block.

5. Remove the internal common upper lever.

6. Remove  the snap ring from the shift & select block

upper side.

7. Removel the shift & select block.

8. Removel the shift rod bracket.

9. Remove the snap ring from the interlock upper

block upper side.

10. Remove the interlock upper block.

Installation

1. Install the interlock upper block.

2. Install the new snap ring to the interlock upper

block upper side.

• Never reinstall the used snap ring.

Notice:
The snap ring must be assembled in groove of rod
surely.

3. Install the shift rod bracket.

4. Install the shift & select block.

5. Install the new snap ring to the shift & select block

upper side.

• Never reinstall the used snap ring.

RTW77BMF000901

1

2

3

1

4

5

6

1

7

8

9

7B1-52    Manual Transmission (MUX)

Notice:
The snap ring must be assembled in groove of rod
surely.

6. Install the internal common upper lever.

7. Install the interlock middle block.

8. Install the internal common lower lever.

9. Install the interlock lower block.

10. Install the new snap ring to the interlock lower

block lower side.

• Never reinstall the used snap ring.

Notice:
The snap ring must be assembled in groove of rod
surely.
