UNIT REPAIR (JR405E)  7A4-51

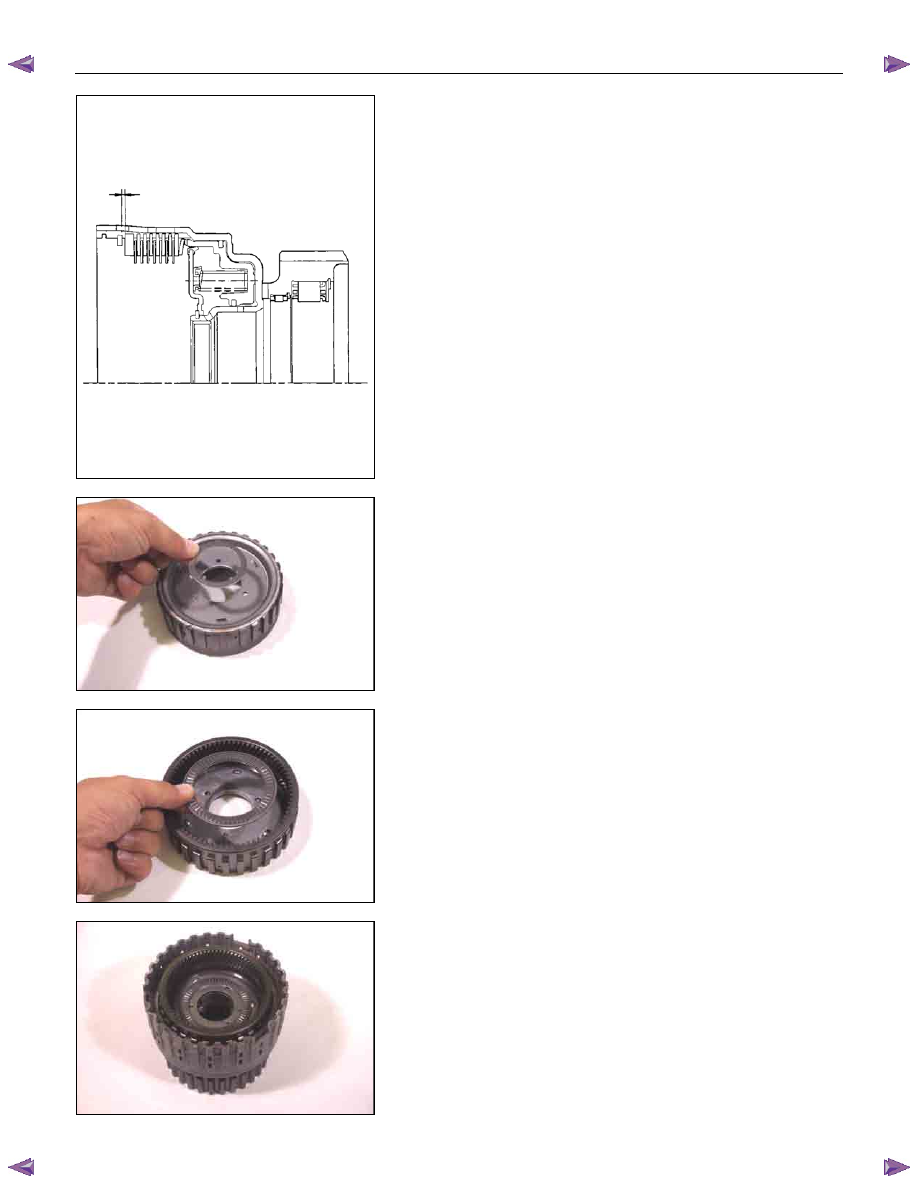

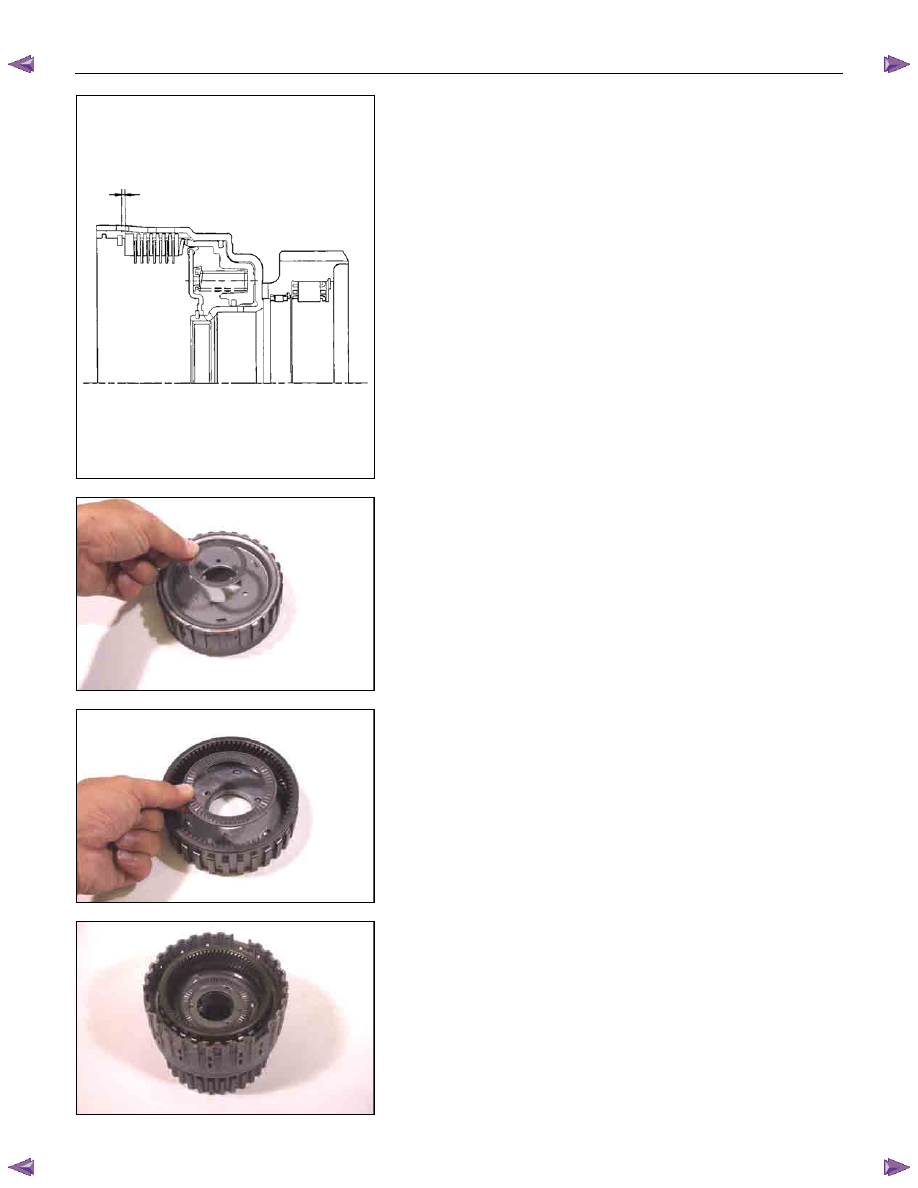

248L300007




4.2 mm (0.165 in)

4.4 mm (0.173 in)

4.6 mm (0.181 in)

4.8 mm (0.189 in)



37C&L-SUB40




12.Bearing race

13.Rear internal gear

14.Bearing

Install the bearing race and the bearing to the rear internal

gear.

NOTE:
Apply Vaseline to the fitting surfaces of the rear internal
gear to prevent the bearing race and the bearing from
falling during the installation process.





38C&L-SUB43







39C&L-SUB60



•  Install the rear internal gear to the low clutch drum.


7A4-52  UNIT REPAIR (JR405E)



40C&L-SUB46




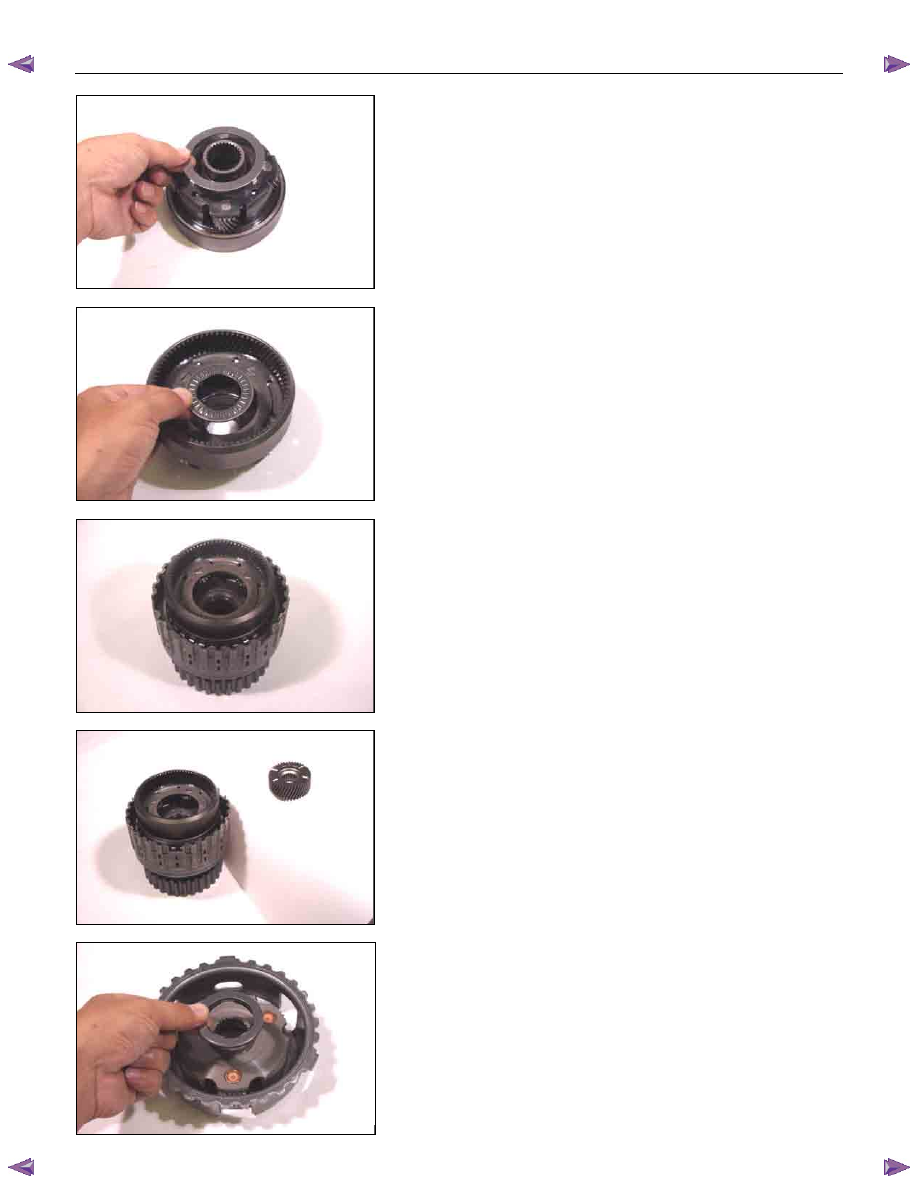

15.Bearing race

16.Rear carrier

17.Bearing

Install the bearing race and the bearing to the rear carrier.

NOTE:
Apply Vaseline to the fitting surfaces of the rear carrier to
prevent the bearing race and the bearing from falling
during the installation process.





41C&L-SUB49







42C&L-SUB61



•  Install the rear carrier to the low clutch drum.




43C&L-SUB07




18.Rear sun gear

Install the rear sun gear to the low clutch drum.





44C&L-SUB52




19.Bearing (with bearing race)

20.Front carrier

Install the bearing (with bearing race) to the front carrier.

NOTE:
Apply Vaseline to the fitting surfaces of the front carrier to
prevent the bearing from falling during the installation
process.



UNIT REPAIR (JR405E)  7A4-53



45C&L-SUB04




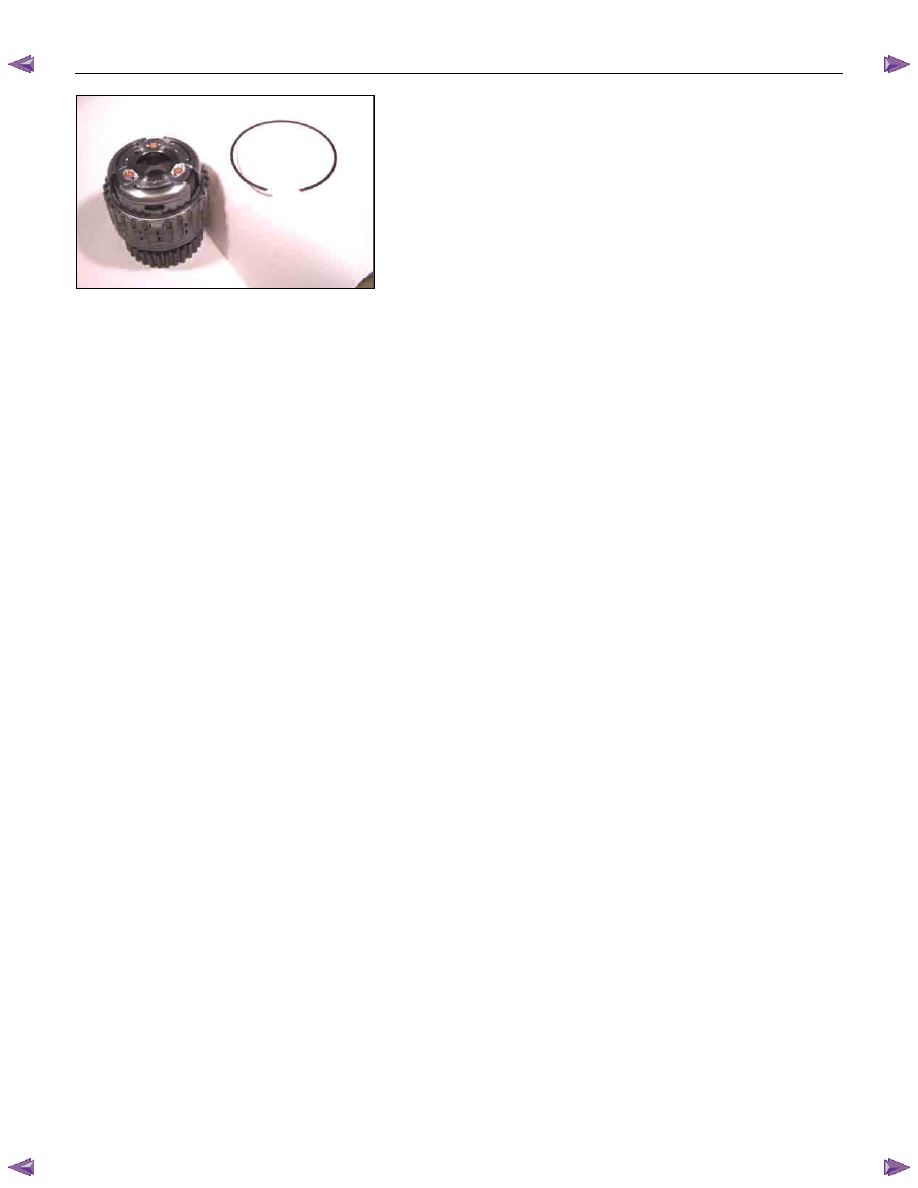

21.Snap ring

•  Install the front carrier to the low clutch drum.
•  Install the snap ring to the low clutch drum.





7A4-54  UNIT REPAIR (JR405E)





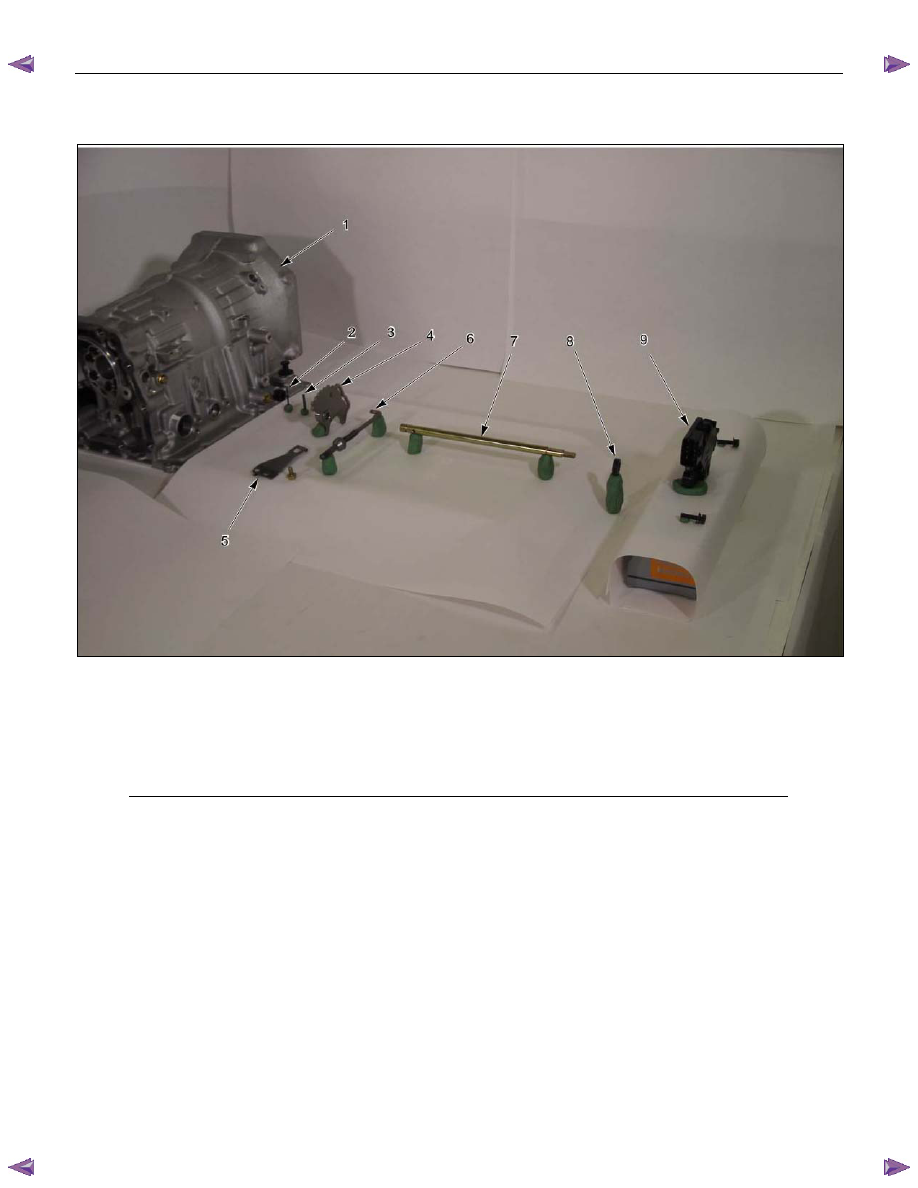

TRANSMISSION CASE





02CASE-BK06

Legend



1. Transmission case



2. Spring pin (slender)



3. Spring pin (fat)



4. Manual plate



5. Detent spring







6. Parking rod



7. Manual shaft



8. Oil seal



9. Inhibitor switch
