UNIT REPAIR (AW30–40LE)

7A4–73

Disassembly

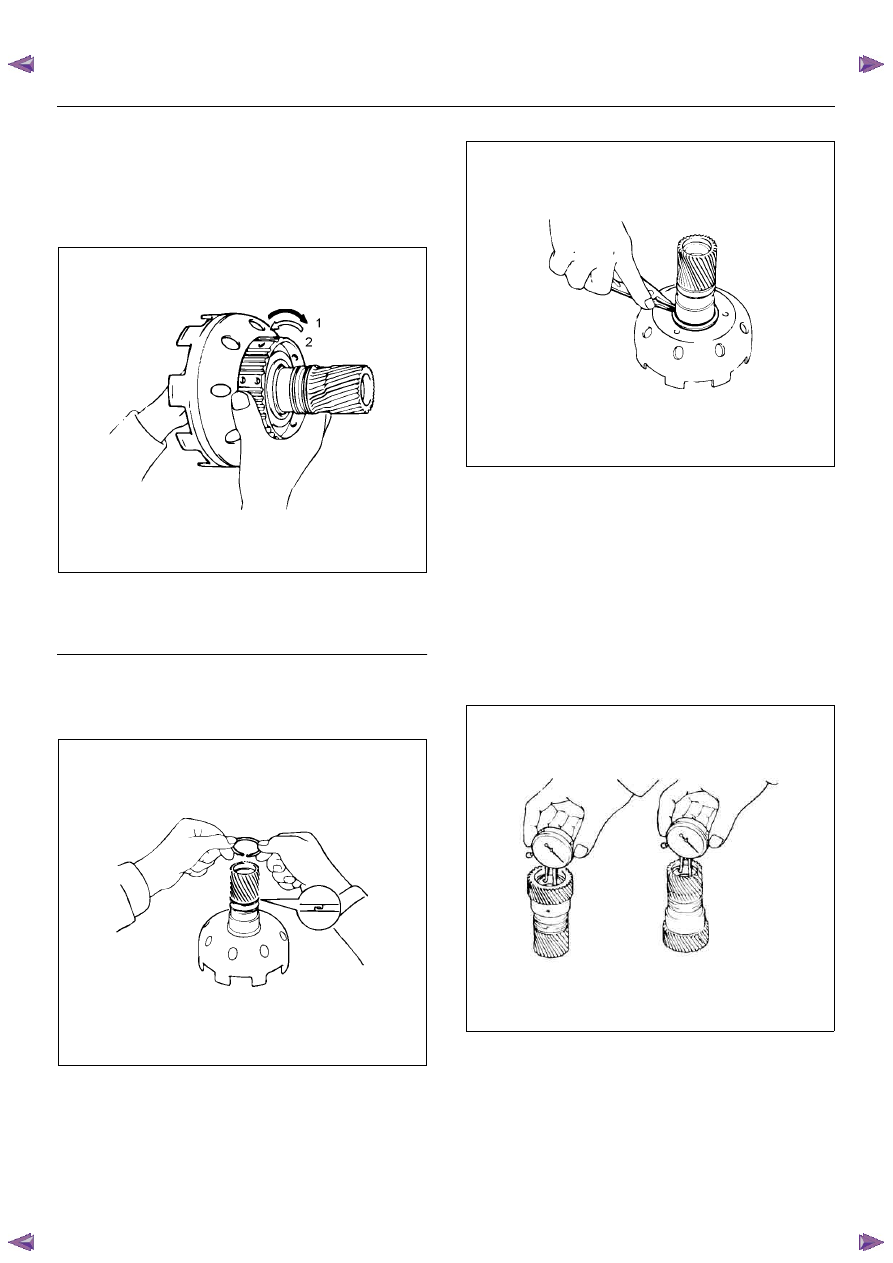

1. Check operation of No.1 one-way clutch

Hold the planetary sun gear and turn the second
brake hub.
The second brake hub should turn freely clockwise
and should lock counterclockwise.

RUW37ASH004601

EndOFCallout

2. Remove the one-way clutch and second brake hub.

3. Remove the trust washer (plastic).

4. Remove two oil seal rings (metal).

248RY00052

5. Remove the snap ring with snap ring pliers.

248RY00053

6. Remove the sun gear input drum.

7. Remove the snap ring from planetary sun gear.

Inspection and Repair

1. Check planetary sun gear bushing

Using a dial indicator, measure the inside diameter
of the planetary sun gear bushing.

Maximum inside diameter: 27.08 mm (1.066 in)

If the inside diameter is greater than the maximum,
replace the planetary sun gear.

248RY00054

Legend

(1) Free
(2) Lock

7A4–74

UNIT REPAIR (AW30–40LE)

Reassembly

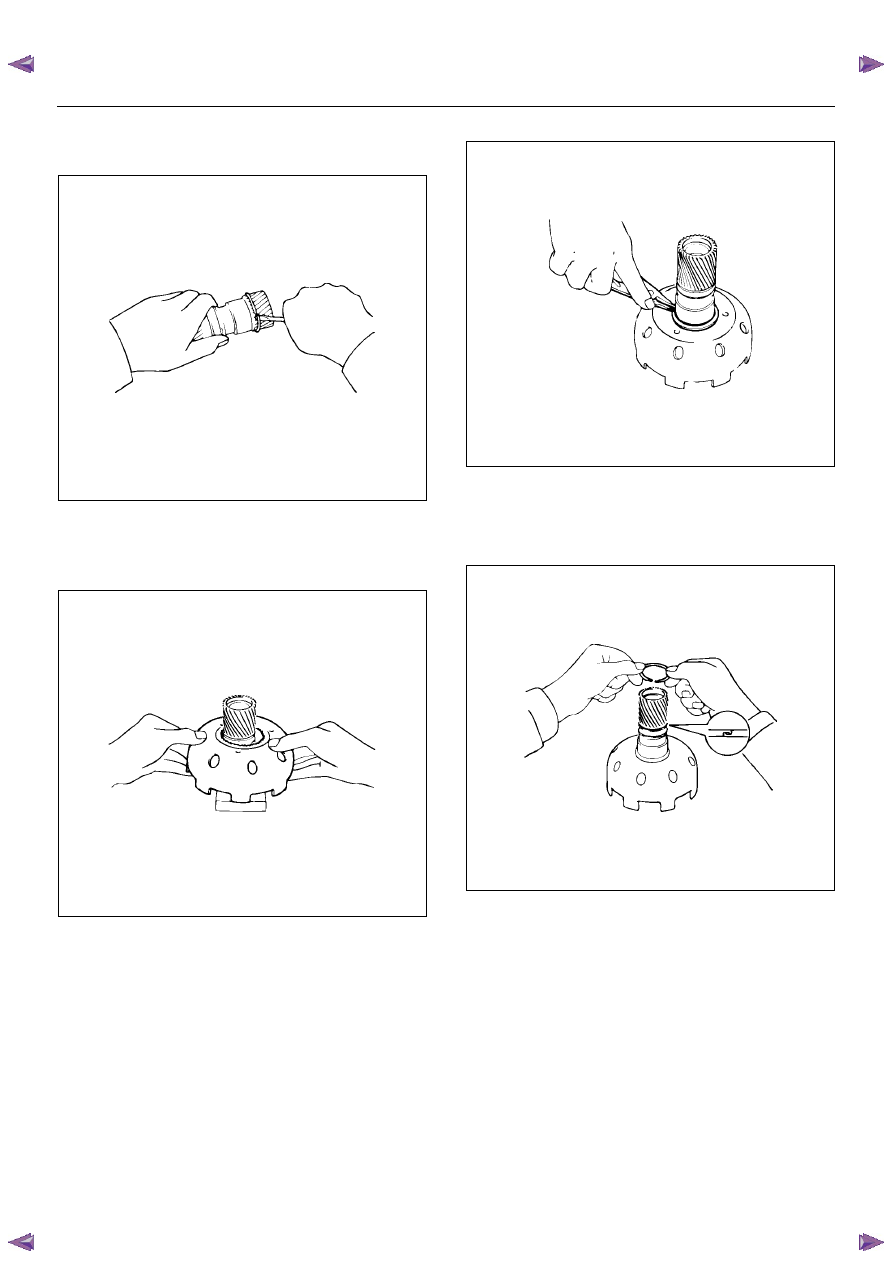

1. Install snap ring to planetary sun gear.

248RY00055

2. Place a wooden block, etc. as a work stand and

place the planetary sun gear onto it.
Install the sun gear input drum onto the planetary
sun gear.

248RY00056

3. Install snap ring with snap ring pliers.

248RY00053

4. Coat the two oil seal rings (metal) with ATF.

Install the two oil seal rings onto the planetary sun
gear.

NOTE:  Do not spread the ring ends too much.

248RY00052

UNIT REPAIR (AW30–40LE)

7A4–75

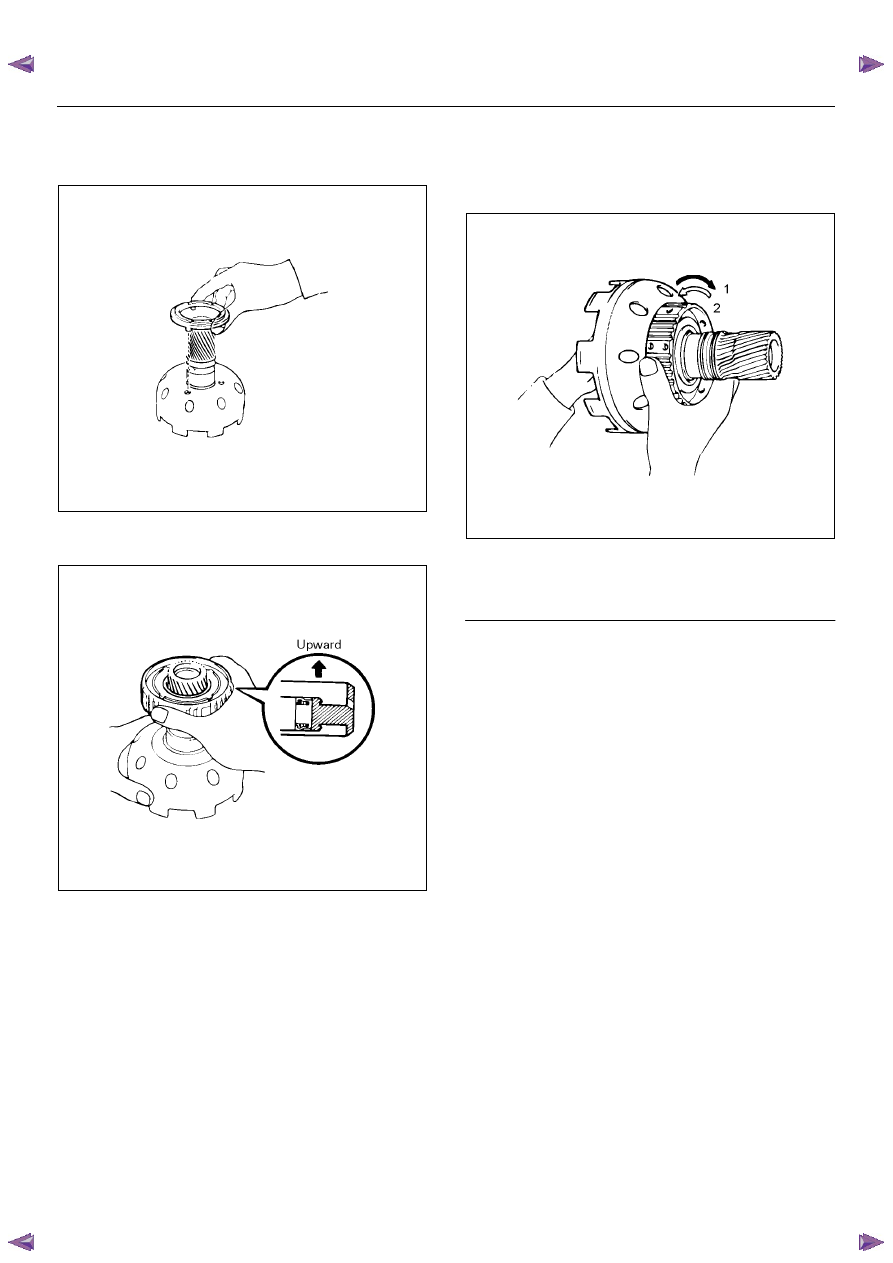

5. Install thrust washer (plastic).

NOTE:  Make sure that the lugs fit into the holes on the
sun gear input drum.

248RY00057

6. Install assembled No.1 one-way clutch and second

brake hub onto planetary sun gear as shown.

248RY00058

7. Check operation of No.1 one-way clutch

Hold the planetary sun gear and turn the second
brake hub.
The second brake hub should turn freely clockwise
and should lock counterclockwise.

RUW37ASH004601

EndOFCallout

Legend

(1) Free
(2) Lock

7A4–76

UNIT REPAIR (AW30–40LE)

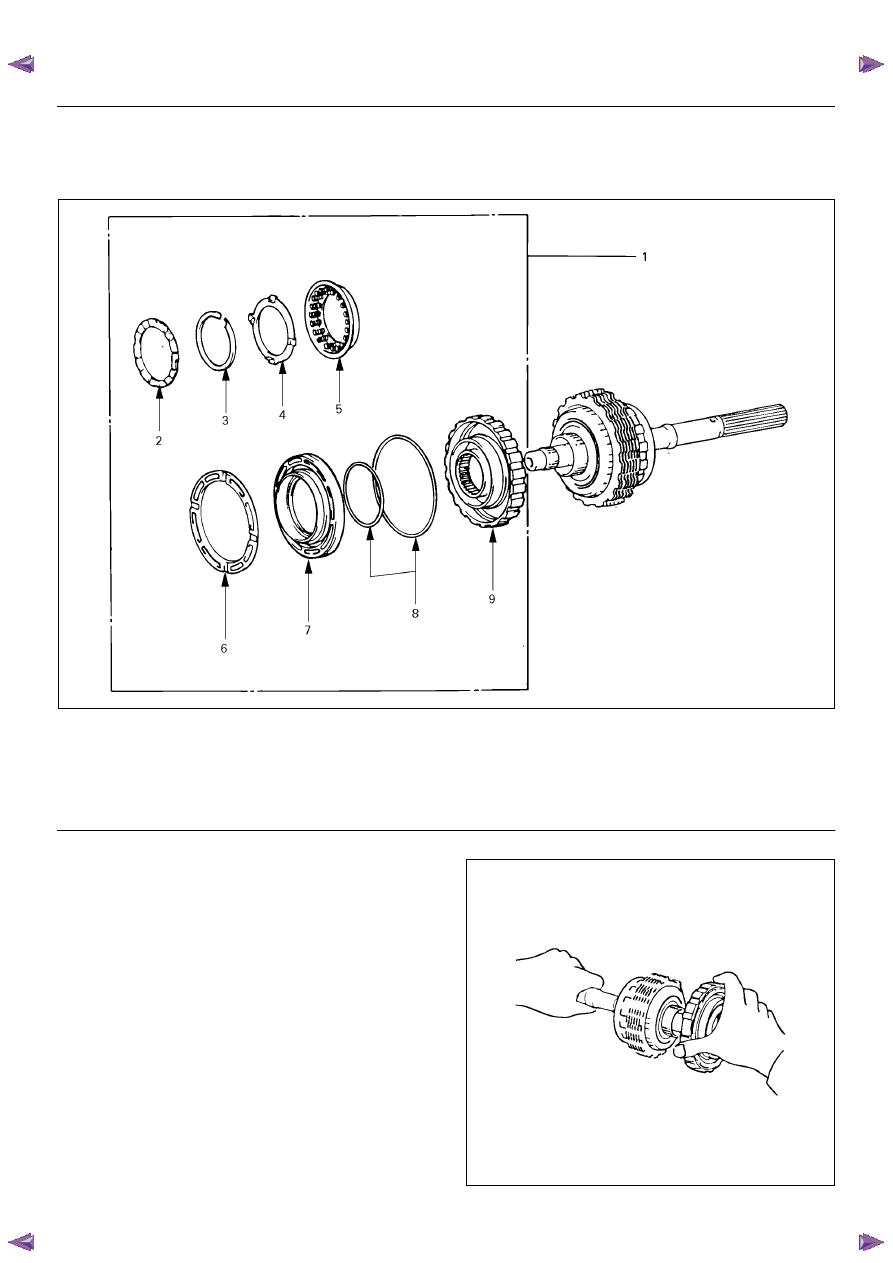

Second Brake Assembly (B–2)

Disassembled View

246R200001

EndOFCallout

Disassembly

1. Remove second brake assembly from output shaft.

246RY00007

Legend

(1) Second brake assembly
(2) Thrust washer (Plastic)
(3) Snap ring
(4) Spring retainer

(5) Piston return spring
(6) Piston sleeve
(7) Second brake piston
(8) O-ring
(9) Second brake drum
